Where to Set a Multimeter for Volts: A Practical Guide
Learn the correct volts setting on a multimeter for accurate voltage readings in electronics and automotive work, including DC vs AC, range selection, and safe measurement practices.
Goal: Learn where to set a multimeter for volts to obtain accurate readings safely. This quick answer covers when to use DC volts vs AC volts, how to choose an appropriate range (or rely on auto-range), and how to verify the setup before touching any live conductors to reduce the risk of damage or shock.
Understanding the volts setting on a multimeter
Volts is one of the most common measurements you’ll perform with a multimeter, but it’s also one of the easiest to mis-set. The key is to decide early whether you’re measuring DC voltage (like a battery or a power supply) or AC voltage (like household mains). The dial on most multimeters includes separate DC volts and AC volts ranges. If you’re using a modern auto-ranging meter, the device may pick a default range, but you still must ensure you’re in the correct mode and that the probe tips are properly placed. The goal is to avoid overloading the meter or the circuit while still capturing an accurate reading. In practice, begin with the most conservative range you expect to encounter; you can always step down to a finer range if the reading is close to the upper limit. According to 10ohmeter, establishing the correct context for the volts setting helps prevent misleading results and protects you from shock.
DC vs AC voltage: what you measure and why it matters
DC voltage is steady, like a battery; AC voltage alternates, like household power. When you measure DC, select the DC volts setting and a range that covers the expected voltage level, e.g., 0-20 V or 0-200 V depending on the circuit. For AC measurements, use the AC volts setting and a range that covers mains voltage (often 120 V or 230 V in many regions). Auto-range meters can simplify this, but you still need to verify the reading with a known reference, such as a power supply or a calibrated source.
How to locate and set the volts dial on common multimeters
Look at the dial for the V symbol. There are usually two: V with a straight line for DC, and V with a tilde for AC. For volts, place the selector on DC volts if measuring a DC circuit, or AC volts for AC circuits. If your meter is auto-ranging, you may see AUTO or an indication that the range is selected automatically. Always test the meter on a known voltage source to confirm the dial is functioning.
Range selection and auto-ranging: practical guidelines
If your meter is not auto-ranging, you must pick a range that is higher-than-expected voltage. For example, if you expect up to 12 V, set to 20 V range. For higher voltages, e.g., car batteries, use 20 V or 200 V range depending on the meter. Auto-ranging meters choose the appropriate range automatically, but you still should verify the reading against a known source.
Common mistakes and how to avoid them
Never measure across live mains with bare hands; use insulated probes; keep your other hand away; Use proper test lead safety. Do not attempt to measure current with the voltage setting. Always set to correct DC/AC mode before connecting; ensure the probes are properly inserted into the socket. If the reading seems off, recheck the range and verify the reference.
Automotive and electronics scenarios: voltage measurement examples
Measuring a car’s 12-volt system: set to 20 V DC; connect red probe to positive terminal and black to ground. For electronics board: measure a 5 V rail; use a 20 V DC range if the MSP or microcontroller board has a typical supply around 5 V. In both cases, ensure the circuit is powered as required by the task, and maintain a stable position to avoid probe slip.
Safety and maintenance when measuring voltage
Always ensure you have a stable surface and dry hands. Inspect leads for cracks and replace damaged probes before use. Keep the meter’s battery in good condition and store tools in a clean, dry place. When in doubt, power down before disconnecting probes and avoid touching metal tips while the circuit is energized.
Verifying readings and troubleshooting
If a reading seems anomalous, first verify you are on the correct DC/AC mode and range. Re-measure with a known reference source, such as a calibrated bench supply or another meter. Check the probes for continuity and correct jack insertion. Document readings and compare across multiple measurement attempts to identify transient fluctuations.
Tools & Materials
- Digital multimeter (DMM)(Auto-ranging preferred; ensure DC and AC voltage modes are clearly labeled)
- Test leads (red and black)(Insulated probes; check for cracks and worn insulation)
- Alligator clip adapters(Helpful for stable contact on small terminals)
- Insulating mat or non-conductive work surface(Reduces risk if a probe slips)
- Safety gloves(Optional for higher energy circuits)

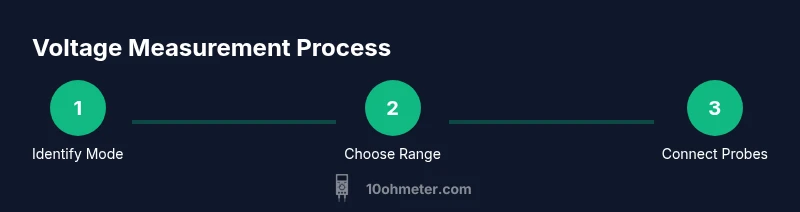

Steps
Estimated time: 30-45 minutes
- 1
Inspect the meter and leads
Examine the multimeter body and test leads for cracks, exposed conductors, or damaged insulation. Replace any damaged parts before proceeding. A faulty lead is a common cause of erroneous readings and shocks.
Tip: Do a quick continuity test on the leads with the dial set to a low resistance range to ensure they’re functional. - 2
Set the meter to the correct volts mode
Rotate the dial to the appropriate DC volts (V⎓) or AC volts (V~) setting depending on the circuit. If the meter is auto-ranging, ensure it’s in the voltage mode rather than current or resistance.
Tip: Double-check the chosen mode against the circuit type; mixing DC and AC modes is a frequent source of errors. - 3
Choose a safe, high-enough range
If the meter isn’t auto-ranging, select a voltage range that comfortably exceeds the expected maximum. You can narrow the range later if the reading sits well below the top end.
Tip: Starting high protects the meter and the circuit; you can downshift gradually to improve resolution. - 4
Insert and verify test leads
Plug the red probe into the V/Ω jack and the black probe into COM. Make sure the probes are firmly connected and not touching each other.
Tip: Keep one hand behind your back and avoid bridging components with your fingers while measuring. - 5
Make the voltage measurement
Touch the probe tips to the test points with steady hands. Read the display without moving the probes; note the value.
Tip: If you must measure across a component, stabilize the test points with a non-conductive tool. - 6
Verify the reading with a reference
Compare the new reading to an expected value from a known source like a calibrated supply or another meter. Seek consistency across multiple measurements.
Tip: If difference is large, re-check mode, range, and connections before retrying. - 7
Power down and disconnect
After recording the reading, power down the circuit and remove the probes in the reverse order of connection.
Tip: Store leads neatly to prevent insulation wear and accidental shorting. - 8
Document and review
Log the measurement context, range used, and any anomalies. Use this for future troubleshooting and to improve your technique.
Tip: Keep a small lab notebook or digital record for quick reference next time.
Your Questions Answered
What is the difference between DC and AC volts on a multimeter?
DC volts measure constant voltage like a battery, while AC volts measure fluctuating voltage like mains. Always switch the meter to the correct mode for the circuit you’re testing to avoid inaccurate readings and potential damage.
DC voltage is steady, AC voltage fluctuates. Always pick the matching DC or AC mode to get accurate results.
Can I measure voltage on a live circuit?
Yes, you can measure live voltage in many cases, but follow strict safety steps: wear PPE, keep hands away from probes, use insulated leads, and stay within the meter’s rated limits. For high-energy circuits, consider professional supervision.
You can measure live voltage with care using insulated probes and proper safety steps.
What range should I use for a 12 V system?
For a 12 V system, use a range that includes 20 V or higher, depending on your meter. In many meters, a 20 V DC range is appropriate, and you can switch to a higher range if the reading is near the top.
Use a 20 V DC range for typical 12 V systems, unless the reading sits near the top.
Why does my reading jump around on a bench supply?
Voltage readings can jump if there are circuit transients or poor contact. Ensure solid probe contact, stable power supply, and confirm the meter mode and range before trusting the value.
Jumps often come from contact or transient issues; recheck connections and range.
Which jacks should I use for measuring voltage?
Use the V/Ω jack for the red probe and the COM jack for the black probe. Ensure the meter is set to the correct volts mode before connecting.
Red to V/Ω, black to COM, then set volts mode.
Watch Video
Key Takeaways
- Choose the correct DC or AC mode before measuring.
- Start with the highest safe range and adjust as needed.
- Verify readings with a known reference source.
- Use proper safety practices and inspect tools before use.
- Document measurements for future troubleshooting.
