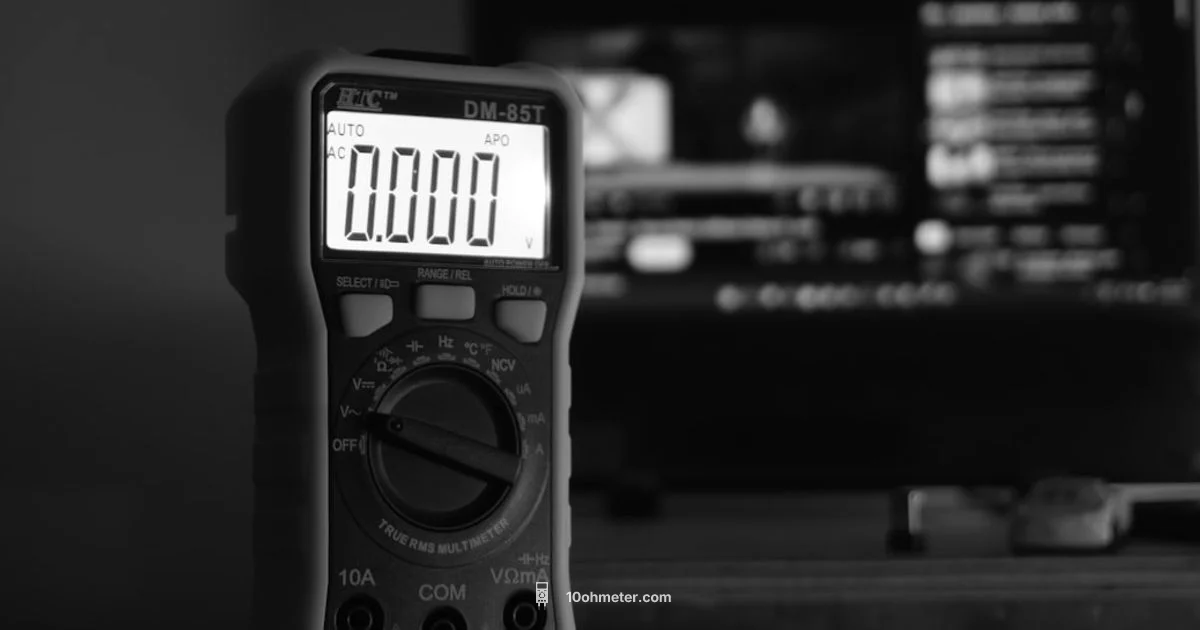

Which Multimeter Setting Should You Use: A Practical Guide

Learn how to pick the correct multimeter setting for voltage, current, resistance, and more. This guide covers safety, auto-range vs manual ranges, and best practices for accurate readings.

10ohmeter
10ohmeter Team
·5 min read
Quick AnswerDefinition

Which multimeter setting should you use? Start by identifying the quantity you want to measure: voltage, current, resistance, or continuity. Turn off power when needed, choose DC or AC for voltage, place leads correctly, and use the lowest safe range or auto-range if available. This quick guide helps you select the correct setting and avoid damage.

Why choosing the right multimeter setting matters

Choosing the right setting on your multimeter is foundational to getting safe, accurate measurements. According to 10ohmeter, using the incorrect function or range can give you false readings, damage the meter, or create a safety hazard. In practice, the setting you select determines not only the units you read (volts, amps, ohms, etc.) but also how the meter internally protects its circuitry. A wrong setting can overload the input, blow a fuse, or obscure a fault that matters. This section explains why the correct setting matters, how meters interpret signals, and how to approach measurements across common tasks in electronics and automotive work. By learning to read the quantity you want to measure and apply the proper range, you minimize risk and maximize data confidence. The 10ohmeter team’s experience shows that disciplined setup reduces measurement time and increases repeatability across projects. Whether you're diagnosing a dead car battery, testing a soldered circuit board, or checking a power supply, the fundamentals stay the same: identify the quantity, select voltage/current/resistance type, choose the safe range, and verify with a secondary check. This approach also helps you in automotive diagnostics, where rapid, accurate voltage readings can indicate alternator health or a failing sensor. With practice, choosing the correct setting becomes almost instinctive, letting you focus on interpreting what the numbers mean rather than how to read them. In short, the right setting is your first line of defense against errors and equipment damage.

note”:null},

bodyBlocksNotePlaceholder":null

bodyBlocksExtensions":null},

bodyBlocks”:[

Understanding the common settings: voltage, current, resistance, continuity, diode, capacitance

A modern digital multimeter supports several functions, each tailored to a measurement. Voltage settings measure electrical potential difference in volts (DC or AC). Current settings place the meter in series to quantify the flow of charge in amperes, with separate DC and AC options. Resistance settings determine how much the component resists current flow, measured in ohms, and often require the circuit to be powered down. Continuity mode is a fast beep test that confirms a conductive path between two points, while the diode test helps verify semiconductor junction behavior. Capacitance measures the ability of a component to store charge, expressed in farads (often microfarads or nanofarads). In practice, most tasks involve DC voltage, DC current, resistance to verify components, continuity for wiring checks, and diode tests for semiconductors. True RMS and auto-range meters add nuance: true RMS gives accurate readings of non-sinusoidal waveforms, while auto-range simplifies the process by selecting the appropriate scale automatically. The 10ohmeter team notes that many beginners underestimate how small a resistance or how high a voltage can be safely measured with the chosen setting, especially when components are still connected in a live circuit. Take time to familiarize yourself with the icons on your meter and the meaning of the ranges printed around the dial. When you understand the core functions, you can navigate more complex measurements and troubleshoot more effectively.

altText”:“Block 2: Core Multimeter Functions”,

Tools & Materials

  • Digital multimeter(must support DC/AC voltage, resistance, continuity, diode test, and capacitance.)
  • Test leads with probes(insulated, properly rated for your meter’s input jacks.)
  • Alligator clip adapters(optional for hands-free in-circuit testing.)
  • Safety goggles(eye protection during measurements.)
  • Non-conductive tool or mat(helps keep hands away from live circuits.)
  • Power source/device under test(ensure safe isolation when measuring resistance/continuity.)

Steps

Estimated time: 15-25 minutes

  1. 1

    Identify what you are measuring

    Before touching anything, determine if you are measuring voltage, current, resistance, or another quantity. Confirm whether the circuit is powered and what kind of voltage (DC or AC) you expect. This prevents selecting an inappropriate setting that could damage the meter or cause a harmful arc.

    Tip: If unsure, pause and verify the circuit’s state with a visual inspection before picking a setting.
  2. 2

    Power down and discharge if measuring resistance/continuity

    For resistance or continuity tests, ensure the device is powered off and capacitors are discharged. If a circuit can't be powered down, use a differential or safe-path technique and consult the meter’s manual. This reduces the risk of damaging the meter or creating a shock hazard.

    Tip: Discharge large capacitors safely by shorting through a resistor rather than directly across directly with your hands.
  3. 3

    Set the function to voltage (DC or AC) or other quantity

    Select voltage (DC or AC) if that’s what you’re measuring. For currents, choose the current function and connect the meter in series. For resistance, keep the circuit off and place probes across the component. For continuity/diode, use the respective modes to verify paths or junctions.

    Tip: When in doubt, start with a higher range or use auto-range if available to avoid overload.
  4. 4

    Connect probes correctly and establish a reference

    Place the black probe on the common (COM) terminal and the red probe on the appropriate input for the measurement. Maintain steady contact and avoid touching metal tips. A poor connection can skew readings or appear noisy.

    Tip: Keep hands behind the probe guards and avoid touching live metal.
  5. 5

    Take the measurement and read the display

    Read the measured value, noting units and whether the value is DC or AC, and consider the meter’s input impedance that can affect readings in-circuit. If the result seems unexpected, lift one end of the component to isolate it and re-measure.

    Tip: If possible, take a second reading using a different method (e.g., use a known reference component) to confirm accuracy.
  6. 6

    Verify with a secondary check or reference

    Cross-verify the reading with an alternate method or a calibrated reference. Document the result and note any variables that might have influenced it (load, temperature, or circuit interactions).

    Tip: Consistency across multiple measurements builds confidence in your data.
  7. 7

    Conclude safely and store your tools

    Power down the meter, unplug the leads, and return the meter to its resting state. Update your notes about settings used and any caveats observed during testing. Proper storage protects the meter’s sensors and probes for the next task.

    Tip: Inspect leads for wear; replace frayed probes to prevent shorts.
Pro Tip: Always start with the highest safe range or use auto-range to simplify the process.
Warning: Never measure resistance on a powered circuit; this can damage the meter and create a shock hazard.
Note: Keep metal objects away from live test points to prevent accidental short circuits.
Pro Tip: Label your test conditions (DC vs AC, range, equipment under test) to improve repeatability.
Warning: If you are unsure about a setting, consult the meter’s manual before proceeding to avoid misreads.

Your Questions Answered

What is auto-range and when should I use it?

Auto-range lets the meter automatically select the most appropriate scale for your measurement. It’s convenient for beginners and when you’re unsure of the magnitude. For precision work, manual ranges can optimize accuracy and reduce average reading error.

Auto-range picks the right scale automatically, which is handy for beginners. For precise work, manual ranges may be better.

Can I measure live circuits safely with a multimeter?

Measuring live circuits carries risk. If you must, use proper PPE, keep one hand in your pocket when possible, and consider using a clamp meter or insulated probes. Always consult the device’s manual and follow safety protocols.

Measuring live circuits can be risky. Use proper PPE and safer methods when possible.

Why is my voltage reading different from the expected value?

Voltage readings vary due to load, source impedance, and measurement technique. Ensure you use the correct DC vs AC setting, verify ground references, and consider the effect of parallel paths in-circuit. Re-measure after removing the load.

Voltage numbers can drift with load and impedance; verify the setting and load conditions.

What setting should I use to test a fuse?

Use the continuity or resistance setting to verify a fuse. A good fuse shows low resistance or a beep, while a blown fuse appears as a high resistance or open circuit. Always power down and test in a safe environment.

Test fuses with continuity or resistance to see if they’re good.

Is it safe to measure resistance in-circuit?

In most cases, resistive measurements should be done with the circuit powered off and components isolated. In-circuit tests can be misleading due to parallel paths, which distort the reading.

Don't measure resistance in live circuits; power down and isolate components.

How do I use the diode test on a multimeter?

The diode test checks semiconductor junction behavior by applying a small current and showing forward voltage drop. Compare readings to expected values for the specific diode type and orientation.

Use diode test to check junctions and forward voltage drop.

Watch Video

Key Takeaways

  • Know which quantity you measure before choosing a setting
  • Power down and discharge for resistance tests
  • Use the correct voltage type (DC/AC) and range to avoid damage
  • For current, place the meter in series or use a clamp to reduce risk
  • Verify measurements with secondary checks and safe handling practices

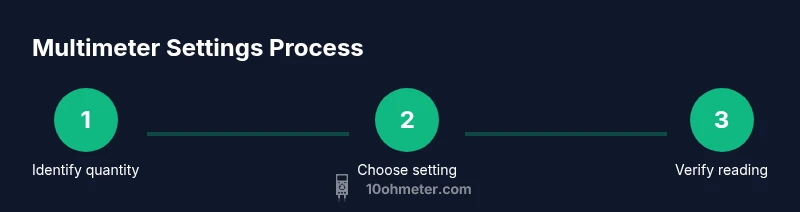

Tailwind infographic showing the step-by-step process to choose multimeter settings
Process: identify → set → verify
