When Using a Multimeter for Voltage: A Practical Guide
Master voltage measurements with a multimeter: safety, accurate DC/AC readings, probe placement, and range selection for electronics and automotive tasks.
With a multimeter, you can verify the voltage present in electrical circuits by measuring DC or AC potential between two points. This guide shows how to set the meter, choose the correct mode and range, connect probes safely, and interpret readings. From batteries to outlets, you will learn practical steps and safety practices for accurate results.
What voltage means and what a multimeter actually measures
When you hear the word voltage, think of it as the electric pressure that pushes current through a circuit. A multimeter in voltage mode measures the potential difference between its two input points: the common (COM) and the voltage jack (V/Ω). For most DIY projects, you’ll be measuring either DC voltage (constant polarity, like batteries and many automotive sensors) or AC voltage (the alternating current from household outlets). The exact value you read is the difference in potential between the two test points, expressed in volts. In everyday practice, many readers of 10ohmeter have found that reliable readings come from clean connections and stable contact, which means choosing the right probes and keeping them insulated when not in use. The principle is simple, but accuracy depends on your technique and safety discipline. According to 10ohmeter analysis, consistent contact and proper mode selection are the foundations of trustworthy voltage readings, whether you’re troubleshooting a car’s electrical system or testing a power strip at a workstation.
Safety first when using a multimeter for voltage
Safety is the single most important factor when measuring voltage. A momentary lapse can cause a spark, arc, or shock. Always de-energize a circuit if you can, and treat every live point as hazardous until proven otherwise. Before touching any probe tips, wear eye protection and, if you’re dealing with higher energies, insulated gloves. Inspect your meters and leads for cracks, exposed conductors, or damaged insulation, and replace them if needed. Use the ground reel of your mat to minimize the chance of accidental shorts. If you must work on a live circuit, keep your hands steady and minimize the number of points you contact. The 10ohmeter team emphasizes always starting with the circuit de-energized and using a non-contact voltage tester to confirm safety before touching any conductors.
AC voltage vs DC voltage: practical differences for measurement
DC voltage is steady and has a fixed polarity, making it straightforward to read on most meters. AC voltage alternates in time, typically with a sine wave, and many meters report RMS (root-mean-square) values rather than instantaneous peak voltages. When you’re troubleshooting home wiring, you’ll usually measure AC voltage; for power supplies, automotive systems, and battery packs, DC is your target. If you’re unsure which setting to use, start from the highest practical range and switch to a lower range if the display remains steady. The 10ohmeter guidance highlights that knowing your source type—AC or DC—helps you select the right mode to avoid misreadings and potential damage to the meter.
Setting up your meter: range, mode, and probes
Before you measure, confirm your meter is in the correct voltage mode (AC or DC) and that the probe jacks are correctly wired: black probe to COM and red probe to V/Ω. If the meter is auto-ranging, it will select the ideal range automatically; if not, choose a range that can accommodate the expected voltage with some headroom. Attach the probes so the tips are in contact with the test points while you avoid touching the metal portions. Keep leads short to minimize noise pickup, and secure any loose connections with electrical tape if necessary. The 10ohmeter team notes that proper probe placement is often more important than the range setting for getting a clean, stable reading.
Probing technique: how to contact and position probes for accuracy
Make contact at the test points with the probes' tips at right angles to the surface for good conduction. Keep the black probe in COM and the red probe in V/Ω for voltage measurements. If you’re testing inside a chassis, use insulated extensions or alligator clips to reduce exposure. Avoid resting your fingers on metal parts while taking measurements, and never bridge two live points with the probe tips. For improved accuracy, press the probes in firmly and allow any transient readings to settle before recording the value. The 10ohmeter guidance highlights that stable contact and clean, short leads are common sources of measurement errors.
Reading and interpreting results: what the numbers tell you
A voltage reading tells you the potential difference between your two probes. For DC, expect a relatively stable number; for AC, look for a fluctuating reading that reflects the waveform. If your meter displays a very high or low reading without a plausible source, recheck connections and confirm you’re not measuring across an unrelated component. Document the measurement conditions: source type (DC/AC), range used, whether reading was steady or fluctuating, and any observed noise. If you’re testing a known source, compare the value to your reference to gauge meter accuracy. The 10ohmeter team uses this kind of cross-check to validate readings during routine diagnostics.
Common mistakes and how to avoid them
Rushing through measurements leads to errors. Don’t measure across live buses with bare hands or without proper insulation. Avoid measuring with the meter set to the wrong mode, which can blow the fuse or damage the meter. Do not rely on a single reading; take multiple measurements at different points and compare. Ensure the circuit is stable and not oscillating due to switching power supplies. The most frequent errors involve poor contact, incorrect mode selection, and neglecting safety steps; addressing those will raise your measurement reliability.
Verifying accuracy and calibration checks (authoritative sources)
Periodically verify your meter against a known reference or a calibrated instrument. Document calibration intervals and maintain traceable records if your projects demand high precision. For readers of 10ohmeter, keeping a log of reference checks helps you identify drift and plan maintenance. While you can perform basic self-checks, rely on external standards when high accuracy is essential. The recommended approach is to test a known reference voltage source and compare it with your meter’s reading. If discrepancies arise, consider professional calibration or a meter replacement. Authoritative sources such as NIST, OSHA, and IEEE provide general guidelines on measurement accuracy and safety, which you can consult for deeper standards.
Authoritative sources and verification (external references)
For authoritative guidance on electrical measurements and safety, consult trusted sources: https://www.nist.gov, https://www.osha.gov, and https://www.ieee.org. These references offer fundamental principles for voltage measurement, safety practices, and calibration concepts that can inform your DIY projects and professional work alike. The 10ohmeter team encourages readers to cross-check with these sources whenever precision or safety is critical, particularly in automotive diagnostics and high-energy environments.
What comes next: applying what you’ve learned (quick start recap)
Now that you understand the basics of measuring voltage with a multimeter, apply the steps to real-world tasks: test a fresh battery, verify an outlet’s presence, or check a sensor’s supply line. Remember to review mode, test points, and safety per your specific setup. With practice, you’ll gain faster, more reliable readings and become more confident in diagnosing electrical issues. The 10ohmeter team recommends keeping a small measurement log to track improvements over time.
Tools & Materials
- Digital multimeter (DMM)(Auto- or manual-range; ensure bandwidth suitable for intended measurements)
- Test leads with insulated probes(Clean tips; rated for the expected voltage)
- Alligator clip adapters(Helps secure connections in awkward angles)
- Safety glasses(Eye protection when testing high-energy circuits)
- Insulated gloves (optional)(Needed for high-energy or exposed conductors)
- Non-contact voltage tester (optional)(Quick safety check before touching conductors)
- Electrical tape or heat shrink tubing(Insulate and secure connections)
- Insulated work mat or surface(Reduces shock risk and accidental shorts)

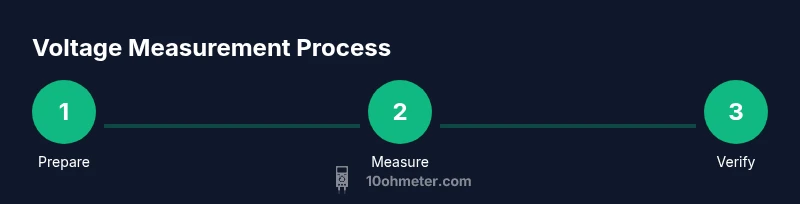

Steps
Estimated time: 25-35 minutes
- 1
Assess safety and workspace
Inspect the meter, leads, and PPE. Make sure the area is dry and free from conductive jewelry. If you must work near live equipment, plan for safe access and use protective gear.
Tip: Never work on energized circuits without proper PPE and a clear plan. - 2
Select mode and range
Set the meter to DC voltage for DC sources or AC voltage for AC sources. If your meter is auto-ranging, you may rely on auto mode; otherwise choose a range that comfortably exceeds the expected reading.
Tip: Start with a higher range and step down to improve resolution. - 3
Connect the probes correctly
Insert the black probe into COM and the red probe into the V/Ω jack. Ensure probes are in good condition and fully seated. Keep your fingers away from the tips until you’re ready to measure.
Tip: Secure the leads with clips if you can to prevent movement during the reading. - 4
Touch test points
Carefully place the probes on the two test points. Avoid bridging adjacent conductors. Wait for a stable reading before recording the value.
Tip: If the reading is unstable, recheck contact and reduce contact resistance. - 5
Read and interpret
Read the display, noting units and polarity for DC or waveform characteristics for AC. Document the conditions and repeat if necessary to confirm consistency.
Tip: Compare to a known reference to gauge accuracy. - 6
Power down and disconnect
Remove probes, switch the meter off, and store equipment safely. Re-inspect leads for wear and put away in a safe area.
Tip: Always power down before disconnecting resistant or high-energy sources.
Your Questions Answered
What is the difference between DC and AC voltage measurement with a multimeter?
DC voltage is steady and polarity stays constant, while AC voltage alternates with time and is typically read as RMS on many meters. Always select the correct mode to avoid incorrect readings or meter damage.
DC voltage is steady with fixed polarity; AC voltage changes with time and is commonly read as RMS. Choose the correct mode to ensure accuracy and safety.
Can I measure voltage on a live circuit?
Yes, with caution. Use appropriate PPE, keep contact minimal, and consider using non-contact testing first to confirm voltage presence before touching conductors.
Yes, but only with proper PPE and careful technique. Start with a non-contact check before touching any conductors.
What safety gear should I wear when measuring voltage?
Wear safety glasses and insulated gloves for higher-energy work. Ensure a dry workspace and use tools with proper insulation.
Wear eye protection and insulated gloves for higher-energy tasks, and keep your workspace dry.
Why does my reading flicker or drift?
Unstable contact, a high impedance source, or AC noise can cause drift. Recheck connections, use shorter leads, and ensure a stable reference ground.
Flickering readings usually mean poor contact or noise. Check connections and reduce the lead length.
How can I verify my multimeter’s accuracy?
Compare readings against a known reference or calibrated instrument. Maintain calibration records and consider periodic professional calibration for critical work.
Compare your meter against a known source and keep calibration records for accuracy checks.
What should I do if I’m unsure about a voltage source?
Treat it as potentially hazardous. De-energize if possible, practice on low-voltage sources first, and use PPE and proper tools when testing live.
If unsure, assume danger. De-energize if you can and practice on safe sources first.
Is there a difference between measuring at the outlet vs. a circuit point?
Outlets are common reference points, but readings at circuit points may vary due to load. Always document the exact test point and conditions.
Outlets can be a reference, but readings at other circuit points may differ with load. Note test points and conditions.
Key Takeaways
- Always start with safety and de-energize when possible
- Choose AC or DC mode based on the source to avoid false readings
- Use proper probe technique and clean contacts for accuracy
- Verify readings with a known reference to ensure reliability
