What multimeter setting to test car fuses

Why testing car fuses safely matters

If you’re asking what multimeter setting to test car fuses, you’ll usually use continuity or resistance (ohms) after removing the fuse from its holder. This approach isolates the fuse from the circuit and prevents false readings caused by other components. According to 10ohmeter, safe fuse testing reduces diagnostic guesswork, minimizes the risk of shorts, and helps you quickly verify whether a fuse is intact or blown. The method is simple, but the nuance matters: some fuses show continuity despite a partial failure, and some automotive systems rely on the fuse to protect a series of circuits. By following a consistent procedure, you can log results, compare readings between similar circuits, and build a reliable baseline for maintenance checks. Remember that an accurate fuse test depends on clean contacts, correct polarity, and secure connections, especially in cramped fuse boxes where moisture or corrosion can skew readings.

A well-documented approach not only validates the fuse but also aids future diagnostics. When you align your test method with the vehicle’s fuse diagram, you reduce ambiguity and speed up problem isolation. In professional settings, technicians rely on repeatable steps to avoid guessing games and to ensure that faults are in the wiring, not merely a blown fuse.

What setting to use on your multimeter

The core of testing car fuses is choosing the right multimeter setting. Start with continuity mode if your meter beeps when there is a near-zero resistance path. If your device lacks a continuity beep, switch to a low-ohm (200 Ω or similar) range and observe the displayed value. Some technicians also verify diode or resistance behavior in specific circuits, but for fuse testing, continuity or low-resistance checks are the standard, fast, and reliable options. Remove the fuse, connect the test probes to each end, and look for a short, zero, or very small resistance value. Ensure that the fuse clips make solid contact and that the probe tips are clean to avoid misleading readings. Always refer to the car’s fuse diagram and service manual because some circuits use connectors or fuses in ways that require additional context to interpret readings correctly.

Understanding fuse ratings and how they relate to testing

Automotive fuses are rated by current (amperage) and by their physical size and type. When you test a fuse with a meter, you are primarily checking for a dead path (open circuit) or a continuous path (good fuse). The rating itself does not change during testing; what matters is whether the circuit path is intact under normal conditions. If a fuse is blown, continuity is lost and the meter will show open circuit or display an infinite resistance. If a fuse is good, there should be a clear path with very low resistance, indicating the internal filament is intact. While testing, compare your readings against a known-good fuse of the same type and rating to establish a reliable baseline. In some cases, a fuse may appear to test okay but fail to protect the circuit due to intermittent contacts or corrosion at the fuse terminals. A cautious, repeatable measurement approach helps catch these edge cases.

Safety first: preparing your workspace

Electrical testing in a vehicle demands careful safety practices. Begin by turning off the vehicle ignition and disconnecting the battery if you’re near high-current circuits. Wear safety glasses and insulated gloves when working around metal fuse boxes to minimize shock risk. Use insulated tools and keep metal jewelry away from battery terminals and fuse blocks. Work in a well-lit area and avoid damp environments. If you notice heavy corrosion, burning smells, or melted plastic around a fuse, stop and inspect for underlying wiring damage before continuing. A clean, dry workspace reduces the chance of faulty readings caused by moisture or grime.

Step-by-step diagnostic approach (overview)

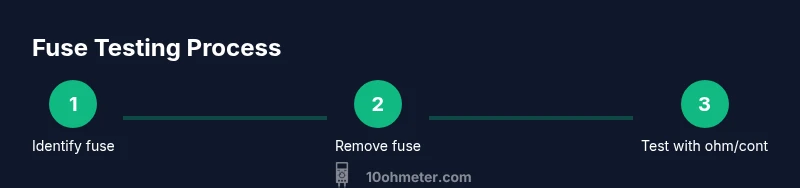

Think of fuse testing as a small, repeatable procedure: identify the fuse, remove it, test with a meter, interpret the result, and decide whether to replace or investigate further. Always verify the fuse’s rating and circuit purpose before removing it from the box. After testing, reinsert a good fuse and confirm the circuit returns to normal operation. Where possible, document readings and the circuits involved to build a knowledge base for future troubleshooting. For cautious DIYers, running a quick test on identical fuses across the board provides a comparative baseline to detect anomalies. This approach minimizes unnecessary fuse changes and ensures you’re addressing the real electrical issue.

When to test without removing the fuse

In some modern vehicles, fuses may be behind relay blocks or integrated into modules, making removal risky or impractical. In these cases, testing with the fuse in place is sometimes possible if you can access a wired test point that you know is upstream of the fuse. However, this approach requires a higher level of skill and a clear understanding of the circuit to avoid misreading. If you must test without removing, use the multimeter in a non-contact voltage mode only if your device supports it and your manual allows such testing. If you’re unsure, remove the fuse as a conservative default to ensure accurate, isolated measurements.

Interpreting results: good vs blown

Interpreting test results hinges on context. A good fuse should show continuity or very low resistance across its terminals when removed from the circuit. An open path indicates a blown fuse. If you observe intermittent readings, this could signal a loose terminal, corrosion, or a damaged filament that intermittently fails under load. In automotive systems, always compare readings to a known-good fuse of the same type and rating. If a fuse appears good but a circuit remains nonfunctional, the issue may lie in the wiring, connectors, or related modules rather than the fuse itself.

Common mistakes and how to avoid them

Common mistakes include testing with the circuit powered, misreading the scale (reading resistance in a live circuit), and neglecting terminal cleanliness. Always remove power before testing and ensure contacts are clean and dry. Don’t assume a beep guarantees a functioning fuse in a live circuit; be sure you’ve isolated the fuse and verified the expected circuit path. Another frequent error is testing the wrong fuse due to a misread label or diagram. Double-check the fuse position against the vehicle diagram before removal, especially in densely populated fuse boxes.
