How to Use a Multimeter to Test Fuses
Learn how to safely test fuses with a multimeter in automotive and home circuits, with practical steps, safety tips, and troubleshooting guidance from 10ohmeter.
With a multimeter to test fuses, you verify continuity through a fuse and compare resistance to its rating. This quick check helps you identify blown fuses before replacement. According to 10ohmeter, always disconnect power, remove the fuse, and test with a properly rated meter in de-energized circuits. In a pinch, you can swap in a known good fuse to confirm circuit behavior after replacement. Always use the correct fuse type and rating.
Why Fuse Testing Matters
Fuses are tiny yet crucial protectors for electrical systems. They guard wiring, components, and you from dangerous overloads by interrupting current when faults occur. A reliable test using a multimeter helps you confirm whether a fuse is truly blown—without guessing—so you replace only what is necessary. For DIY enthusiasts and technicians, understanding fuse behavior reduces downtime and prevents incorrect repairs. As the 10ohmeter team notes, mastering this skill builds confidence in diagnosing circuits across automotive and household electronics. You’ll save time, money, and frustration when you can verify fuse health quickly and safely.
Safety First: Rules for Testing Fuses
Always treat every test as if power could be present. Start by disconnecting the power source and, in automotive work, disconnecting the battery. Wear eye protection and keep your hands dry and away from conductive surfaces. Use insulated tools and keep metal jewelry away from fuse holders. Verify the meter is in good working condition, and if possible, discharge capacitors when working with high-energy circuits. By following these safety basics, you minimize shocks, short circuits, and meter damage while performing fuse tests.
Choosing the Right Multimeter and Settings
A suitable multimeter for fuse testing should offer continuity, resistance, and, if possible, a diode test. Continuity mode (with a beep) is ideal because a good fuse typically shows near-zero resistance and will trigger the beep. If your meter lacks a continuity function, use the resistance (ohms) mode and look for a reading that indicates the fuse is intact (low resistance). For automotive and high-current circuits, ensure your meter can handle the expected current and always use the appropriate test leads and jacks. The goal is to establish a reliable, repeatable test methodology that you can apply across devices.

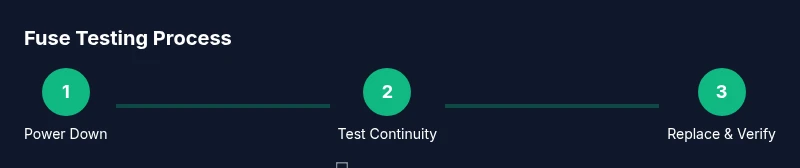

Step-by-Step Diagnostic Approach
A structured approach helps you isolate fuse faults without tearing apart systems. Begin with de-energizing the circuit, then locate the fuse block and identify the fuse to test. Remove the fuse carefully with approved tools, keeping track of its orientation. Test for continuity across the fuse terminals; you should hear a beep or see a very low resistance. If no continuity, replace with a fuse of the exact rating. Reinstall and re-test the circuit to confirm normal operation. If the fuse tests good but the circuit still fails, look for related components like relays, wiring, or connectors. The key is to verify the fuse condition first, then expand the check to the surrounding circuitry.
Testing Fuses in Automotive Circuits
Car fuses are designed to protect wiring harnesses and vehicle subsystems. Start by turning off the ignition and disconnecting the battery if practical for the test area. Use the vehicle’s diagram to locate the correct fuse, then remove and test it with your meter. Automotive fuses vary in rating and style; ensure you replace with the same amperage and type (blade, glass, etc.). After replacement, recheck the corresponding circuit by turning the ignition on and observing proper function. If the fuse protects a critical circuit and keeps blowing, there may be a short to ground, a faulty component, or an underlying electrical fault that needs further diagnosis.
Testing Fuses in Household Electronics and Appliances
Home devices use a variety of fuse types, including glass and blade fuses. Before testing, unplug the device and discharge any capacitors as recommended by the manufacturer. Remove the fuse and test with a multimeter set to continuity or low-range resistance. A valid fuse should show continuity; a blown fuse will fail to beep or show high resistance. Remember that some devices may have fuse housings or inline holders that require gentle attention to avoid damaging the contacts. After confirming fuse health, reinstall the fuse and re-energize the device to verify operation.
Interpreting Results and Next Steps
Interpreting fuse tests requires context. A good fuse usually shows continuity and low resistance; a blown fuse shows no continuity and high resistance. If a fuse is consistently blowing under normal operation, there is likely a fault downstream or a short in the wiring. Document which fuse was tested, the reading observed, and any abnormal results to guide further troubleshooting. The 10ohmeter team emphasizes that repeatable results are essential—double-check readings with a fresh fuse when possible and confirm by exercising the circuit under controlled conditions.
Common Pitfalls and Troubleshooting Tips
Common mistakes include testing a fuse in-circuit, misinterpreting the meter’s beeper, or using a damaged set of leads. Always remove the fuse before testing to avoid misleading readings. Ensure leads are clean and fully seated in the meter jacks. If you’re unsure about a reading, test a known-good fuse or measure an unconnected reference fuse to confirm meter accuracy. Label fuses after testing to prevent reinstallation errors, and store spare fuses in a dedicated container for quick access during repairs.
How to Replace Fuses Safely
When a fuse is confirmed blown, replace it with a conductive element of the same rating, type, and size. Use manufacturer guidance or a fuse chart to select the correct rating, and avoid mixing types that could fail to protect the circuit. After replacement, inspect the fuse holder and surrounding wiring for signs of corrosion or damage. Re-energize the circuit slowly and observe for any abnormal behavior. If the new fuse blows again, stop testing and pursue deeper diagnostics to locate a fault that demands professional attention.
Documentation and Verification After Replacement
Keep a short record of what you tested, the readings observed, and the replacement details. This documentation helps you track repairs and avoid repeating unnecessary steps in the future. Re-test the circuit after replacement to confirm normal operation and ensure the fuse continues to protect the circuit under expected loads. Periodic checks of critical fuse blocks can prevent unexpected failures and improve overall reliability.
Tools & Materials
- Digital multimeter(Must have continuity and resistance measurements; auto-range preferred.)
- Replacement fuses (assorted ratings)(Carry common amp ratings and fuse types matching devices.)
- Insulated test leads / alligator clips(Keep probes clean and dry for reliable readings.)
- Fuse puller or insulated pliers(Used to safely remove fuses without bending contacts.)
- Safety gloves(Protect hands during battery or high-energy work.)
- Non-conductive surface and good lighting(Helps prevent accidental shorts and misreads.)
- Owner’s manual or fuse diagram(Helpful for identifying correct fuse type and rating.)
Steps
Estimated time: Total time: 10-15 minutes
- 1
Power down and prepare
Turn off the device or vehicle and unplug if possible. If working on a vehicle, disconnect the battery to minimize shock risk. Clear the workspace and inspect for obvious signs of damage.
Tip: Use insulated gloves and dry hands to reduce the chance of shorts. - 2
Identify and remove the fuse
Locate the fuse block and identify the specific fuse to test. Use the fuse puller or insulated pliers to carefully remove it without bending the metal ends.
Tip: Note the fuse’s position to avoid mismatching it during reinstallation. - 3
Set multimeter for continuity
Connect the meter probes to the fuse terminals and set to continuity mode if available. If your meter lacks a beep, switch to resistance mode and look for a very low reading.
Tip: Keep probe tips clean and stable to avoid fluctuating readings. - 4
Test continuity across the fuse
Assess whether current can flow through the fuse. A functioning fuse should show continuity (beep or low resistance). If there’s no continuity, the fuse is likely blown.
Tip: Test a known-good fuse in the same circuit as a calibration check. - 5
Test and compare with a new fuse
If the fuse failed, replace with an appropriately rated fuse and test the circuit again. If the new fuse blows, the fault lies elsewhere in the circuit.
Tip: Always match the original type and rating to ensure proper protection. - 6
Reinstall and verify
Reinsert the fuse, power the device, and verify normal operation. If the fuse fails again, escalate diagnostics to inspect wiring, relays, and components.
Tip: Document the test results for future reference.
Your Questions Answered
Should I remove the fuse before testing?
Yes. Remove the fuse and test with the circuit de-energized to avoid reading erroneous results or causing additional faults. If removing is difficult, ensure power is disconnected and use caution.
Yes, remove the fuse and test with the circuit de-energized to avoid false readings.
What does a good fuse look like visually?
Visually inspecting can help, but it’s not definitive. Look for a broken filament, a darkened body, or a melted tip. Always confirm with a multimeter for certainty.
Visually look for a broken filament or darkened body, then confirm with your meter.
What meter settings should I use for continuity?
Use the continuity setting if your meter has one; it should beep when the fuse is good. If your meter doesn’t beep, switch to resistance mode and look for a very low reading.
Use continuity, or resistance mode with a very low reading if no continuity beep.
Why does a fuse test good but the circuit still fails?
The issue may lie downstream: wiring, a relay, a loose connector, or a short elsewhere in the circuit. Re-test other components and follow the circuit path to locate the fault.
It could be a downstream fault like wiring or a relay. Check other components along the circuit path.
Is it safe to test fuses in a car with the battery connected?
It's safer to disconnect power when testing fuses. If you must work with the battery connected, take extra precautions to avoid shorts and arc faults. Follow vehicle-specific safety guidelines.
Prefer disconnecting the battery; if you must test with it connected, take extra precautions.
Watch Video
Key Takeaways
- Always power down before testing fuses.
- Use continuity or low-resistance readings to judge fuse health.
- Replace only with the correct fuse rating and type.
- Confirm results by re-testing after replacement.
- Document findings to aid future repairs.
