How to Use a Multimeter for Car Fuses: A DIY Guide
Learn to test car fuses with a multimeter, verify continuity, and diagnose circuit faults safely. This 10ohmeter guide covers tools, safety, readings, common pitfalls, and practical tips for DIYers and technicians.
Test car fuses safely and accurately using a multimeter for car fuses. You’ll verify continuity, check for blown links, and confirm circuit integrity. You’ll need a digital multimeter (preferably true RMS), test leads, and access to the fuse box. This quick guide outlines the essential steps and safety precautions. Following these basics with care helps prevent electrical mishaps and protects sensitive car electronics.
Why testing with a multimeter for car fuses matters
In automotive electrical systems, fuses protect circuits from overloads. A blown fuse is a symptom, not the cause; diagnosing properly requires confirming fuse status and tracing to the root cause. The right tool for this is a reliable multimeter for car fuses. According to 10ohmeter, using a proper multimeter for car fuses helps isolate faults without guessing and reduces the risk of damage to sensitive modules. Modern cars route dozens of circuits through compact fuse panels; testing these quickly can save time and money. A high-quality multimeter with continuity and resistance modes makes it straightforward to verify whether a fuse is intact or blown. Remember, never assume a fuse is good based on a quick look at the color or a flicker of the LED on a fuse panel; use precise measurements. The goal is to determine if the fuse is the point of failure or if the problem lies downstream in the wiring or a component. This approach supports DIYers and technicians who want to understand how to read fuses in the context of broader automotive diagnostics. The 10ohmeter team found that disciplined testing with a proper multimeter for car fuses reduces guesswork and speeds up repairs.
Understanding fuse basics in your vehicle
Fuses sit in fuse panels that protect circuits from overloads. They are rated by amperage and are designed to sacrifice themselves when current exceeds a safe threshold. To diagnose car fuse issues, you must distinguish between a blown fuse and a circuit fault downstream. The term multimeter for car fuses describes a tool that lets you test continuity, resistance, and even voltage in the right parts of the circuit. Always check the fuse rating against the owner's manual or the fuse panel diagram before swapping. A blown fuse usually shows open circuit resistance and no continuity, but environmental factors like corrosion or loose connectors can mimic this failure. By understanding fuse placement, color codes, and the role of fusible links, you can map out the likely fault location. This foundational knowledge helps both DIY hobbyists and professional technicians approach automotive diagnostics with confidence and methodical reasoning.
How to choose the right multimeter for car fuses
Selecting the right meter is crucial for accurate readings. Look for a model with reliable continuity beeps, low resistance measurement, and solid input protection when testing automotive circuits. A true RMS meter can improve accuracy for variable loads, though most car fuse tests are DC and do not require high-frequency measurements. Features like automatic range selection, backlit display, and protected test leads simplify work in cramped fuse boxes. Ensure your multimeter can measure resistance close to zero when a fuse is intact and that it can detect an open circuit when blown. For the best results, pick a meter with a dedicated diode and continuity test mode, plus fuses-protective accessories. While a basic meter can work, a purpose-built automotive tester reduces the risk of arcing and provides clearer audible feedback when a connection is solid. As you gain experience, you’ll understand which features matter most for car fuse testing and diagnostics.
Safety first: electrical safety when working in the car
Car electrical work carries risk, including the potential for short circuits, shock, or battery damage. Before any test, ensure the ignition is off and, if possible, disconnect the battery ground to prevent accidental energization. Wear safety glasses and avoid touching metal probe tips together while the circuit is live. Use insulated tools and keep fingers away from exposed metal connections. If you must test while the car is running, use a clamp meter and work with extreme caution to prevent shorts. Never bypass a fuse for test purposes; instead, verify continuity and inspect for underlying issues. By following these safety practices, you protect yourself and the vehicle’s electronics while performing reliable diagnostics.
Basic readings you will perform with a multimeter for car fuses
The core readings are continuity, resistance, and voltage presence on either side of a fuse. When a fuse is good, continuity should beep and resistance will be very close to zero. If the fuse is blown, you’ll see an open circuit or infinite resistance. Voltage checks help confirm that power is present on the supply side and that the load side responds when the circuit is energized. In some cases, you may need to load-test the circuit by turning on components (headlights, horn) to see how current flows and whether a fuse remains healthy under demand. Always compare readings to the fuse type and circuit requirements in the owner’s manual. If readings don’t align with expected values, recheck connections, inspect for corrosion, and consider replacing the fuse with the correct rating.

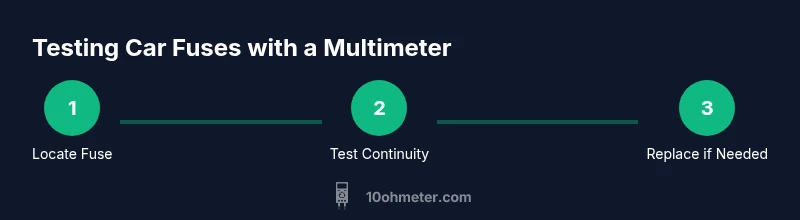

Step-by-step overview (summary) for testing fuses step-by-step with a multimeter
While our dedicated STEP-BY-STEP block covers the exact sequence, this overview helps frame the process. You’ll locate the fuse, prepare tools, and confirm the system is safely de-energized. Then remove the fuse and test for continuity or resistance across the fuse terminals. Finally, reinsert the fuse and verify the circuit operation. The goal is to determine if the fuse or the wiring is at fault, guiding safe, accurate repairs with the right replacement parts when needed.
Interpreting readings: what numbers mean in car circuits
A good fuse shows continuity and near-zero resistance in most meters. If there’s no continuity, the fuse is blown, but also check for poor contact in the fuse holder or corrosion. A high resistance reading may indicate a poor connection or oxidation at the terminals. If voltage is present on both sides without continuity, the fuse is likely intact but there could be a downstream short or a high-resistance path in the wiring. Always verify the scale and reference points, especially in complex automotive networks where modules and relays influence readings. Context matters: a fuse that protects a critical system may appear fine under light load but fail under peak draw. Cross-check with symptoms and other diagnostic cues for a reliable diagnosis.
Common mistakes when using a multimeter for car fuses
Rushing through tests or testing with power applied often leads to misleading results or equipment damage. Don’t test a fuse in place without removing it, as contact resistance can mimic a healthy fuse. Don’t assume a colorful fuse indicator means health; corrosion and loose contacts are common culprits. Neglecting to recalibrate or reset the meter between tests can yield inconsistent results. Finally, avoid testing while the battery is connected if you’re measuring resistance, as DC currents can affect readings and cause safety hazards. Being methodical and patient reduces errors.
Diagnosing related issues beyond the fuse
Sometimes a blown fuse is the symptom of larger electrical problems such as wiring damage, poor ground connections, or defective relays. If a fuse repeatedly blows, inspect the entire circuit path, including connectors, harnesses, and components attached to the circuit. Look for signs of wear, abrasion, or moisture intrusion that could create a short. Use the multimeter to trace continuity beyond the fuse to the suspected device, and check for parasitic drains that may occur when the vehicle is off. Document findings with notes and photos to guide future repairs and prevent recurring failures.
Next steps and maintenance tips
After confirming fuse health, replace any blown fuses with the correct amperage rating from the vehicle’s manual. Do not upsell to higher ratings to compensate for a faulty circuit. Periodically inspect fuse taps, connectors, and relay sockets for corrosion and secure seating. Consider keeping spare fuses of common ratings in the glove box for quick replacements. Regularly test critical circuits during vehicle maintenance to catch issues early, and maintain a simple log of test results for future reference.
Tools & Materials
- digital multimeter (preferably true RMS)(Choose one with continuity and resistance modes)
- test leads with alligator clips(Insulated and rated for automotive use)
- fuse puller(Plastic tool; protects fuse ends from damage)
- spare fuses (common ratings)(Keep an assortment on hand for quick swaps)
- owner’s manual / fuse panel diagram(Essential for correct fuse identification and ratings)
- insulated gloves(Adds protection during battery work)
- flashlight or headlamp(Illumination in cramped fuse boxes)
Steps
Estimated time: 15-25 minutes
- 1
Prepare workspace and safety gear
Clear the work area, wear eye protection, and ensure the vehicle is off. Gather your multimeter for car fuses, test leads, fuse puller, and spare fuses. This minimizes distractions and reduces risk during testing.
Tip: Keep keys out of the ignition and avoid working with metal jewelry that could cause shorts. - 2
Identify fuse location and rating
Consult the owner’s manual or fuse diagram to locate the target fuse. Note the amperage rating and the circuit it protects to ensure you replace it with the correct value.
Tip: Double-check the diagram; misidentifying a fuse is a frequent source of errors. - 3
Power down the system
Turn off the ignition and disconnect the battery ground if you’ll be testing under load or handling live conductors. This prevents accidental shorts and protects your meter.
Tip: If you must test while powered, use a clamp-on meter designed for automotive use and proceed with extreme caution. - 4
Remove the fuse with a fuse puller
Gently pry the fuse from its socket using a fuse puller to minimize terminal damage. Inspect the fuse visually for a melt or break, but rely on the meter for confirmation.
Tip: Never touch both ends at once with metal tools; maintain a single contact point when testing. - 5
Set meter to continuity or resistance
Configure the multimeter for continuity (or resistance if continuity isn’t available). Place probes on the fuse’s ends to test the element itself. A beep or near-zero resistance indicates a good fuse.
Tip: Ensure probes are making clean, straight contacts with the fuse ends for an accurate reading. - 6
Test the circuit side and supply side
With the fuse removed, test the socket contacts on both sides to verify there’s no short circuit in the housing. Reconnect the battery and briefly energize the circuit to confirm the path works when the fuse is reinserted.
Tip: If you detect resistance where there shouldn’t be, check for corrosion or loose connections in the socket. - 7
Reinsert fuse and verify operation
Place the fuse back into its socket and turn the vehicle or component back on to ensure the circuit operates as expected. If issues persist, inspect downstream wiring or devices for faults.
Tip: Document the test results and keep the replaced fuse in a labeled location for future troubleshooting.
Your Questions Answered
Can I test a fuse without removing it?
In many cases you can test continuity across the fuse terminals in the holder, but removing the fuse gives a clearer, more reliable reading and avoids contact resistance that can mislead results.
Yes, you can test without removing in some cases, but removing the fuse improves accuracy.
What does it mean if the meter shows no continuity but the fuse looks fine?
A lack of continuity can indicate a poor contact or corrosion in the fuse holder, not just a blown fuse. Re-seat the fuse, inspect the socket, and retest.
No continuity with a good-looking fuse often points to a bad contact or corrosion.
Why does a fuse blow repeatedly after replacement?
Repeated blows usually signal an underlying circuit fault, such as a short or excessive draw. Trace the circuit path beyond the fuse to locate the root cause.
If it keeps blowing after replacement, look for a short or excessive current draw in the circuit.
Can a cheap meter be used effectively for car fuse testing?
A basic meter can work for continuity and resistance, but a higher-quality model with solid probes and safety features improves reliability and reduces measurement error.
A basic meter can work, but a better one makes it more reliable.
Is it safe to test fuses with the battery connected?
Testing while the battery is connected increases risk. Prefer to disconnect the battery ground or test with the vehicle off unless you’re using a clamp-on meter designed for live testing.
Only test live circuits with proper equipment and precautions.
Watch Video
Key Takeaways
- Identify fuse ratings before replacement.
- Use continuity and resistance modes for accurate results.
- Do not bypass fuses during testing.
- Always verify downstream components after a fuse reads as blown.
