What Setting on Multimeter to Test Fuse: A Practical Guide
Learn the exact multimeter setting to test fuses safely and accurately. This comprehensive guide covers continuity vs resistance modes, step-by-step testing, and safety tips for DIY electronics and automotive work.
To test a fuse, use your multimeter in continuity mode for a quick pass/fail check, or in the lowest resistance (Ω) range to measure resistance. Remove the fuse from the circuit, touch each probe to the fuse ends, and listen for a beep or observe near-zero resistance. A blown fuse shows open circuit (no beep, infinite resistance).
What setting on multimeter to test fuse
If you're asking what setting on multimeter to test fuse, the quick answer is to use continuity mode for a fast pass/fail check or resistance (Ω) mode to gauge the fuse's resistance when it's not completely open. In most cases, a good fuse will show a near-zero resistance and a continuous beep in the meter's continuity setting. A blown fuse will show an open circuit (infinite resistance) and no beep. According to 10ohmeter, always start by powering down and removing the fuse from the circuit to avoid damaging the meter. This initial step protects both you and the test instrument and sets a safe baseline for accurate results. The approach is suitable for common radial fuses, inline fuses, and automotive blade fuses, with minor adjustments for fuse type.
Continuity mode vs resistance mode: when and why
Continuity mode is designed for quick checks: it simply confirms a path exists between the two ends of the fuse. The meter often emits a beep when a path is present, making it ideal for fast troubleshooting. Resistance mode, on the other hand, provides a numeric value; a healthy fuse typically presents low resistance, usually well under a few ohms, while a blown fuse approaches infinity. When testing a fuse in-circuit, resistance values can be misleading due to parallel paths; isolating the fuse is recommended for accuracy. For automotive and high-current fuses, use the lowest practical resistance setting to avoid false readings from wiring and components.
Safety first: power down and disconnect
Never test a fuse while the surrounding circuit is powered. Powering the circuit can feed current through other components, potentially damaging the meter or causing a short. Disconnect power sources, unplug equipment, and, in automotive work, disconnect the chassis battery ground to minimize risk. If you must test a fuse in a live circuit, use non-contact methods for preliminary checks and physically isolate the fuse first when safe. These precautions protect both you and the equipment.

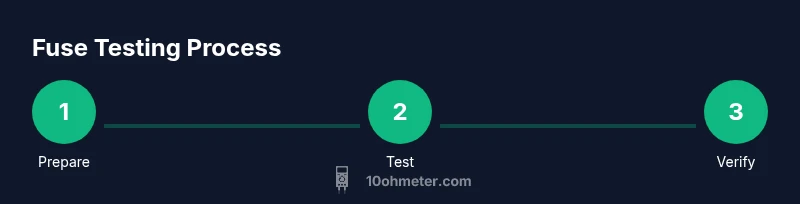

Step-by-step quick workflow
A practical workflow combines safety with reliable results. Gather your meter, leads, and spare fuses, then remove the suspected fuse from the circuit, set the meter to continuity or the lowest resistance range, place the probes on each end of the fuse, and observe the meter's reading or beep. If continuity is present and resistance is near zero, the fuse likely passes. If there is no continuity or resistance is very high, the fuse is probably blown. Always recheck by testing a known good fuse to verify the meter is functioning properly.
Choosing the right range on your meter
Not all meters share identical ranges, but most have a dedicated continuity setting and an Ω range that spans 200 Ω, 2 kΩ, and higher. Start with the lowest resistance range when measuring fuses, such as 200 Ω, and move up if you do not see a meaningful reading. If your meter lacks an audible continuity beep, rely on the displayed resistance; a good fuse should show a very small resistance (often less than a few ohms). If the resistance reads as infinite, the fuse is blown. Practically, using continuity mode is the simplest path for quick checks.
Testing a fuse in a circuit vs removing the fuse
Testing in-circuit can be misleading because other components present alternate current paths. Whenever possible, remove the fuse from the circuit to test it in isolation. If you cannot remove the fuse, perform a two-step check: first power down and disconnect, then probe the fuse ends with the meter while noting any parallel paths. Document your readings and compare them with the fuse's rated resistance and the expected path in the circuit.
Interpreting results: good fuse vs blown fuse
A good fuse typically closes the circuit, showing continuity and a very low resistance on the Ω scale. In continuity mode, you should hear a steady beep indicating a complete path. A blown fuse shows an open circuit: no beep and a very high or infinite resistance on the Ω scale. Some fuses are designed to have a small resistance even when intact, but the key indicator remains continuity and a stable, very low value. If you’re uncertain, repeat the test with a known-good fuse to confirm your meter is functioning.
Automotive fuse testing specifics

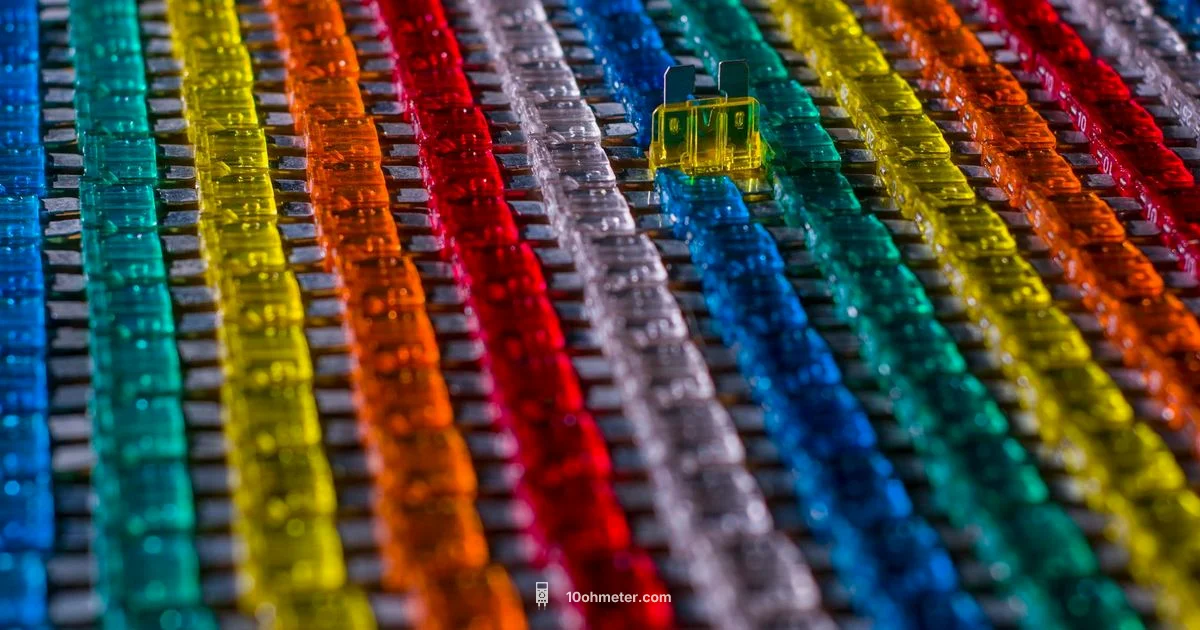

Automotive fuses come in blade formats and sometimes high-current variants. For automotive tests, ensure the engine is off and the battery is disconnected if safety allows. Use continuity or low-Ω settings to verify the fuse's integrity after removing it from the circuit. Be mindful of the environment: under-hood space can make probe access challenging, so use fine-tipped leads and avoid shorting adjacent terminals. Confirm that the test results align with the fuse's rating and the circuit's expected behavior.
Slow-blow vs fast-acting fuses
Different fuse types yield different readings. Fast-acting fuses should typically show near-zero resistance when healthy and open-circuit when blown. Slow-blow (time-delay) fuses may exhibit a tiny resistance due to their construction even when intact; the continuity beep may still occur. Rely primarily on continuity status rather than absolute resistance numbers for these fuses, and replace any fuse that fails to maintain a stable reading under test conditions.
Replacing fuses safely and verifying
When a fuse is confirmed blown, replace it with one of the exact rating and type recommended by the device's manufacturer. After replacement, re-test the circuit to ensure normal operation and confirm that the fault is resolved. If the new fuse blows again quickly, there may be a short or overcurrent condition in the circuit. In that case, inspect related components and trace the fault path with a systematic approach.
Troubleshooting common mistakes and how to avoid
Common mistakes include testing with the circuit powered, testing a fuse in-circuit without isolating other paths, and misinterpreting readings due to parallel components. Always use proper PPE, test in a well-lit area, and verify your meter’s functionality with a known-good fuse. Take notes of the exact readings and device context, so you can repeat tests or explain results clearly to others.
Best practices and next steps
Adopt a consistent protocol: power down, isolate the fuse, choose the correct range, verify with a known-good fuse, and confirm results by re-testing in the circuit if necessary. Build a small reference chart for quick checks and keep spare fuses on hand. For recurring fuse issues, consider diagnosing root causes in the circuit rather than replacing fuses repeatedly. The 10ohmeter team emphasizes methodical testing and safety every step of the way.
Tools & Materials
- Multimeter(Prefer a meter with an audible continuity setting and Ω range (e.g., 200 Ω).)
- Test leads(Insulated probes with sharp tips for reliable contact.)
- Spare fuses(Have exact ratings for the device on hand.)
- Screwdriver or fuse puller(Needed for stubborn fuse access in enclosures.)
- Safety gloves(Non-conductive gloves add protection when handling live components.)
- Insulating mat or work surface(Keeps tools from shorting against metal surfaces.)
Steps
Estimated time: 20-30 minutes
- 1
Prepare and safety check
Gather the multimeter, leads, spare fuses, and a safe work area. Wear eye protection if you’re working near energized circuits. Verify the device is powered off and unplugged, and if you’re working on an automotive circuit, disconnect the battery ground if safe to do so.
Tip: Double-check the fuse you’re testing is the one related to the fault to avoid unnecessary testing of unrelated parts. - 2
Isolate the fuse
If possible, remove the fuse from the circuit so you can test it in isolation. In automotive or live systems, isolating may require disconnecting harnesses or connectors. This reduces alternate current paths that could skew results.
Tip: Label the fusion path or keep the fuse in a small tray to avoid mix-ups. - 3
Set the meter to continuity or low Ω
Turn the multimeter to continuity mode or the lowest Ω range available (often 200 Ω). If your meter has a dedicated continuity beep, enable it for immediate feedback. Some meters require you to hold the mode button until the symbol appears.
Tip: If you’re unsure of the exact range, start at the lowest Ω range and adjust upward as needed. - 4
Test the meter with a known-good fuse
Before testing the suspect fuse, test a known-good fuse to verify the meter’s response. You should hear a beep in continuity or observe a near-zero resistance value. If the meter doesn’t respond, troubleshoot the meter before proceeding.
Tip: Calibration checks save misreads in critical diagnostics. - 5
Make contact on fuse ends
Touch one probe to each end of the fuse. Ensure good contact by applying light, consistent pressure. Avoid touching the fuse body with your fingers near the probes to prevent heat transfer or accidental shorting.
Tip: Use fine-point probes for cramped enclosures. - 6
Read the results
If continuity is indicated (beep) and resistance is very low, the fuse passes. If there is no beep and the resistance is very high or infinite, the fuse is blown. In some slow-blow fuses, a small resistance may appear even when intact; interpret with circuit context.
Tip: Cross-check with a second fuse of the same rating to confirm results. - 7
Evaluate in-circuit results
If you cannot remove the fuse, interpret results with caution. Diodes, resistors, or other components can influence readings. Document readings and compare against expected values from the circuit schematic.
Tip: If in doubt, remove the fuse and re-test in isolation. - 8
Replace if blown and re-test
Install a fuse with the correct rating and type. Reconnect power and test the circuit function. If the fuse blows again, the fault lies in the circuit and requires deeper diagnosis.
Tip: Always use the exact fuse type and rating specified by the manufacturer. - 9
Document and clean up
Record the test results, including readings and the fuse rating. Return tools to the workspace and secure any loose wires. Close up access panels after verifying safe operation.
Tip: Keep a small log for future reference in your project notes.
Your Questions Answered
Can I test a fuse without removing it from the circuit?
Testing a fuse in-circuit can lead to misleading results due to parallel paths. If possible, remove the fuse and test it in isolation. When removal isn't feasible, use caution and interpret readings in the circuit context.
Testing without removing the fuse can be misleading due to other components in the circuit. Remove the fuse when possible to get accurate results.
What setting should I use for automotive fuses?
For automotive fuses, use continuity mode or the lowest resistance range on your meter. Ensure the vehicle is off and the battery ground is safely disconnected if allowed. Verify readings with a known-good fuse and follow vehicle safety procedures.
Use the continuity setting or the lowest ohm range for car fuses, with the vehicle safely powered down.
Why does my meter beep when testing a suspected good fuse but read high resistance?
A poor contact or a borderline fuse can cause inconsistent readings. Clean contact points, re-seat the fuse, and retest. If the resistance remains high, replace the fuse and inspect the circuit for faults.
If the beep pattern changes after retesting, check contacts and reseat the fuse; replace if readings stay off.
What if the fuse tests as good but the circuit still fails?
The fault may lie elsewhere in the circuit. Use a systematic diagnostic approach, testing diodes, resistors, and connectors. Review the device’s schematic to locate fault-prone areas.
If the fuse passes but the circuit fails, investigate other components step by step.
Is it safe to test a live circuit with a multimeter?
Generally avoid testing live circuits with probes touching exposed conductors. If you must, use insulated probes and keep hands away from contacts. Power down as soon as a safe test is complete.
Avoid testing live circuits; use insulated probes and power down when possible.
Should I replace a fuse with a higher rating to prevent nuisance blows?
No. Use the exact fuse rating specified by the manufacturer. Using a higher rating can prevent protection, increase risk, and damage circuits. Always follow the device's documented fuse specification.
Don’t up-rate fuses; use the manufacturer’s rating to stay safe.
Watch Video
Key Takeaways
- Use continuity or low-Ω settings for fuse tests
- Remove the fuse from the circuit for accurate results
- Blown fuses show open circuits; good fuses beep or read near-zero Ω
- Always replace with the exact fuse type and rating
- Verify results with a known-good fuse and document outcomes
