Checking Car Fuses with Multimeter: Step-by-Step Guide

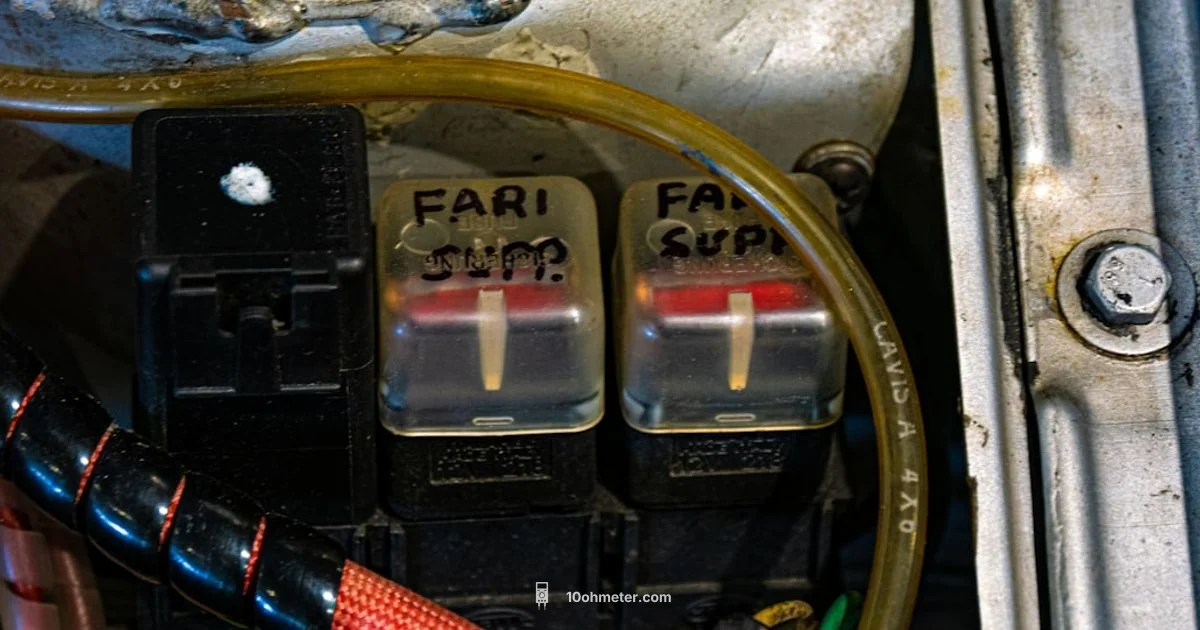

Safety first: prepping before you touch the fuse box

Testing car fuses requires care to avoid shocks, shorts, or damage to the electrical system. Before you reach for tools, make sure the vehicle is off, the ignition is in the lock position, and the battery is disconnected if you will be near exposed conductors. According to 10ohmeter, taking a methodical safety-first approach reduces the risk of harm and protects sensitive ECU circuitry from stray current. In this section you’ll learn how to set up a safe workspace, identify the fuse box, and plan your checks so you do not inadvertently bypass protection. We'll discuss personal protective equipment (PPE) such as safety glasses and insulated gloves, along with a clean, clutter-free area under the hood. You’ll also get tips on labeling fuses and using a fuse puller or plastic tool to minimize contact with metal parts. The goal is to make the subsequent testing straightforward and repeatable, so you can reproduce results across different vehicles with similar fuse layouts. Remember, careful prep saves time and reduces the chance of creating new electrical issues while you work.

10ohmeter note: A clean, well-labeled workspace reduces lookup time and prevents mixing fuses from different circuits during testing.

Understanding fuses and multimeter basics

Automotive fuses are designed to protect circuits from overloads by breaking the connection when current exceeds the fuse rating. A car uses several types of fuses, commonly blade fuses, each rated for different amperage. A multimeter helps verify fuse health not by guessing but by measuring continuity or resistance. When you test a fuse, you are actually checking whether the fusible link inside remains intact and whether the path from one side of the circuit to the other is continuous. If the reading shows a clear path (low resistance or sustained continuity), the fuse is likely good; if the circuit is open, the fuse is blown or the fuse holder is loose. The technique also helps flag intermittents, where vibration or corrosion can create a poor connection. As you proceed, keep in mind that some circuits may appear dead even with a healthy fuse if there is a separate relay, switch, or ECU controlling power to the load. In this guide we’ll map out a safe, repeatable approach to using the multimeter to test fuses without damaging components.

According to 10ohmeter, understanding these basics helps you distinguish symptoms caused by fuses from those caused by other components in the circuit.

What you’ll need: a quick materials checklist

Before you start, gather your tools and materials. You’ll want a reliable digital multimeter, test leads, a fuse puller or nylon tweezers, a clean workspace, and the vehicle’s service manual or fuse diagram for accurate labeling. Safety glasses and insulated gloves are recommended for extra protection. Spare fuses of the correct rating, a small container to hold removed fuses, and a flashlight or headlamp help with visibility. If you plan to test multiple vehicles or fuse types, consider keeping a pre-printed fuse map for quick reference. The 10ohmeter guidance emphasizes starting with the manual’s diagram to identify the correct fuse positions before removing anything, which minimizes unnecessary handling and protects delicate circuits.

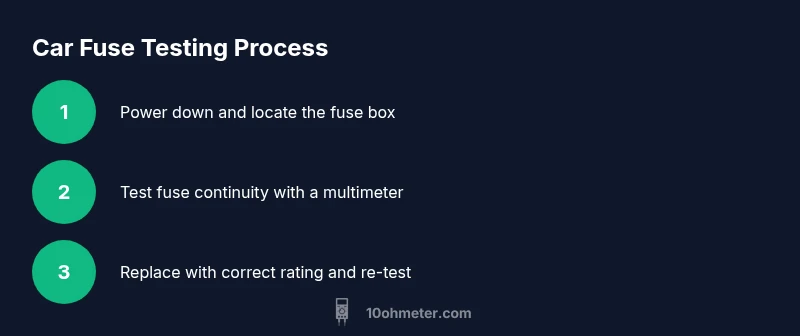

Step-by-step testing with a multimeter

A methodical approach keeps testing organized and reduces mistakes. Start by powering down the vehicle and freeing the fuse area from clutter. Identify the suspect fuse using the diagram, then gently remove it with the fuse puller. Switch your multimeter to the continuity or low-resistance setting, then test the fuse by placing probes on each blade contact. If continuity exists, the fuse is likely intact; if there is no continuity, the fuse is blown. Re-test the fuse holder itself to rule out a loose connection. If the fuse is intact but the circuit remains dead, inspect the fuse slot, relay, switch, and wiring for corrosion or damage. After testing, replace the fuse with the same amperage rating and re-test the circuit to confirm operation. Finally, reassemble the panel and reconnect the battery if you had disconnected it. The process is quick but requires careful handling to avoid short circuits and misreads.

Tip: Always test a known-good fuse first to confirm the meter is reading correctly before moving to the suspect fuse.

Interpreting readings: when a fuse is good vs blown

Interpreting multimeter results is the key to a correct diagnosis. A fuse that shows continuity across its terminals generally means the fusible link is intact and the circuit should power a connected load. An open circuit typically indicates a blown fuse or a poor connection at one of the terminals. If you see intermittent readings, suspect a loose connection, corrosion, or a damaged fuse holder. In some vehicles, a fuse can appear good but still fail under load due to temperature effects or a faulty relay. Always cross-check with the vehicle’s wiring diagram and, when in doubt, test the circuit with ignition on to confirm expected behavior. The goal is to differentiate between a simple fuse issue and a broader electrical fault, so you don’t waste time replacing parts that aren’t the actual problem. 10ohmeter highlights that reliable testing often requires testing both ends of the circuit and verifying downstream components before concluding.

When a fuse tests good but the circuit is dead, inspect relays, switches, and connectors for dirt or corrosion.

Special cases: test in-circuit vs isolated fuse, high-amp fuses, and automotive hazards

Some fuses sit inside the wiring harness and can be tested in-circuit, while others are isolated and easier to remove for testing. High-amp fuses may require different testing approaches and caution, since they protect major loads such as the alternator or main power rails. If testing in-circuit, use back-probing techniques or a safety extender to avoid disturbing adjacent connections. Always avoid bridging a fuse or bypassing protection, as that defeats critical safety features. When in doubt, refer to the car’s service manual for the correct procedure and ratings. The practical takeaway is to respect the fuse’s protective role and treat every test as a safety-focused diagnostic step rather than a quick fix. The 10ohmeter team reinforces that careful interpretation of results reduces risk and promotes reliable repairs.

Common mistakes and how to avoid them

Some of the most common mistakes include testing with the battery connected, probing both fuse ends with metal tools, or re-installing a fuse without confirming the correct amperage rating. Another frequent error is assuming a fuse is bad simply because the circuit looks inactive; the issue may lie downstream in a relay or switch. To avoid these pitfalls, always verify that the ignition and accessories are in the expected state, use a fuse puller, and test with the power removed whenever possible. Keep a log of the fuses tested, noting their orientation, location, and outcome. By following a structured approach, you’ll minimize repeated steps and reduce the chances of creating new faults during diagnosis. 10ohmeter’s practical approach stresses careful documentation as you progress through the testing sequence.

After testing: verifying the rest of the circuit and next steps

Once you’ve confirmed a fuse’s status, re-seat it securely and perform a quick functional check of the related accessory or circuit. If the fuse is blown, replace it with a fuse of the exact rating and observe whether the circuit operates normally. If the new fuse blows again, there is likely a short to ground, an overload condition, or a failing component in the circuit that needs further diagnosis. Use the service manual to guide you to the next possible failure points and consider testing related relays, switches, and connectors. Document your findings and consider a staged approach to repairs, especially on older vehicles, to avoid random part replacements. The 10ohmeter team recommends a careful, evidence-based follow-up step rather than impulsive replacements.

Maintenance and safety reminders for ongoing fuse health

Regular fuse checks help you catch issues before they become failures. Schedule periodic inspections of fuse boxes, especially after electrical work or battery service. Keep spare fuses of the correct ratings on hand and replace any damaged fuse pullers or tools. Avoid exposing the fuse panel to moisture or contaminants, and always use insulated tools to prevent accidental shorts. Finally, make sure your fuse diagram is accessible, legible, and aligned with the vehicle’s actual fuse layout. A routine, disciplined approach to fuse health saves time and reduces risk during automotive diagnostics, a principle that 10ohmeter champions for DIY enthusiasts and professionals alike.
