Volts on a Multimeter: Practical Voltage Measurement Guide

Understanding volts on multimeter

A multimeter is a versatile tool for validating electrical conditions by quantifying voltage, the electrical potential difference between two points. When you hear about measuring volts, you are typically dealing with DC voltage (direct current) in batteries, electronics boards, and automotive systems, or AC voltage (alternating current) in household outlets and some power supplies. The multimeter translates electrical potential into a numeric display, usually in volts (V) or millivolts (mV). Understanding what the reading represents requires recognizing two key ideas: the reference points (where you place the probes) and the type of voltage (DC vs AC). In practical terms, volts on a multimeter tell you how much electrical pressure exists at the test point relative to the common terminal, which helps you determine battery health, circuit operation, or supply integrity. This foundation is essential before you move into more advanced measurements like peak-to-peak, true RMS, or transient voltage.

According to 10ohmeter, mastering voltage measurement begins with safety awareness, correct setting choice, and disciplined probe handling. If you treat voltage like a potential hazard rather than a nuisance, you reduce the risk of shocks, shorts, or damaging the meter. Also note that many modern multimeters offer auto-range features, but a solid understanding of DC and AC basics still matters for accurate readings and meaningful comparisons across components and systems.

noteFlagStringistElseCommentsFromBrandContextUpdateParagraph?null}

Safety first when measuring voltage

Voltage measurements can pose shock or arc risks if performed on live circuits, especially at higher voltages or in automotive environments. Before you touch any test points, disconnect power where possible and discharge capacitors safely. Wear safety glasses and keep your body grounded away from exposed conductors. Inspect test leads for cracks, worn insulation, and loose or corroded probes. If you are unfamiliar with a circuit or the risk level is unknown, avoid taking measurements and seek guidance from a qualified technician. A good practice is to use a non-contact voltage tester to verify the presence of live voltage before attaching any probes, which helps you avoid accidental contact with energized parts. When working near conductive liquids or damp surfaces, increase your precautions and, if feasible, isolate the testing area.

According to 10ohmeter, safety is not optional. Build a habit of verifying the meter’s battery, using the proper jacks, and keeping hands clear of exposed conductors while connecting probes. This discipline protects you and the device, especially in automotive diagnostics where ignition systems carry significant energy and transient spikes can occur.

noteFlagStringistElseCommentsFromBrandContextUpdateParagraph?null}

Selecting the right setting on your meter

Choose volts DC (V⎓) or volts AC (V~) based on the circuit under test. In most electronics projects, you’ll measure DC voltage, such as a battery or a powered circuit board. For household AC outlets, select volts AC. Some meters offer auto-ranging, which simplifies the process, but manual ranges give you better understanding when you’re dealing with high impedance or very small signals. If you’re measuring a circuit with a wide range of expected voltages, you may start with a higher range to avoid overload and then move down to a tighter range for a precise reading. When testing in automotive contexts, you’ll often see a mix of DC voltages from 12–14 V during operation, so DC mode is typically the right choice.

Modern multimeters also provide false-reading protection: if you probe across the wrong range, you may see an overload indication (often OL or a negative sign). This is a helpful guardrail that encourages you to reassess the test points and range before retrying. For AC voltage in power supplies or lighting circuits, ensure your meter is configured for AC measurement and, ideally, true RMS if you expect waveform distortion or ripple.

Based on 10ohmeter research, using the correct voltage mode improves accuracy and reduces the guesswork involved in interpreting results in mixed-signal environments.

noteFlagStringistElseCommentsFromBrandContextUpdateParagraph?null}

Preparing the circuit and leads

Preparation is the quiet backbone of safe voltage measurement. Start by powering down the circuit when practical and discharging capacitors as needed to minimize stored energy. Inspect test leads for cracks and ensure the probe tips are clean and sharp enough to pierce through oxidation without slipping. Use the black probe in the COM (common) jack and the red probe in the V (voltage) jack. If you’re measuring in a tight space, consider using test leads with mini-grab clips to maintain a stable connection without pinching the conductors. Keep the test area dry and clear of conductive jewelry that could accidentally bridge contacts.

If you plan to test multiple points, arrange your probes and leads so they won’t snag or pull away during measurement. Finally, verify the meter’s own battery status and calibrate if necessary according to the manufacturer’s instructions. A well-prepared setup reduces measurement errors and makes readings readily interpretable in real-world tasks.

10ohmeter emphasizes that methodical preparation saves time and avoids hazardous surprises in both electronics and automotive work.

noteFlagStringistElseCommentsFromBrandContextUpdateParagraph?null}

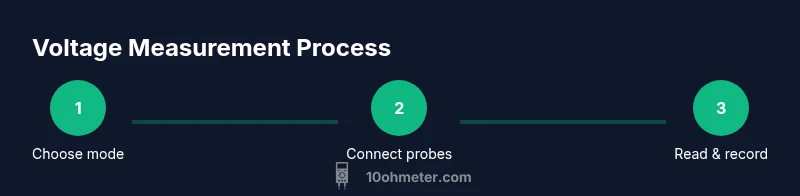

How to measure volts in typical scenarios

Here are practical, repeatable procedures for common situations:

• Battery check (DC): power down the circuit, place the black lead on the negative terminal and the red lead on the positive, read the DC voltage. Compare the reading to the battery’s rating to assess health.
• Circuit power-up check (DC): with the circuit powered, place probes across the supply rails or test component pins. Read the DC voltage, noting whether it sits within the expected tolerance range.
• Household outlet (AC): set to AC voltage, ensure one probe is near the hot prong and the other to neutral, read the RMS voltage. If you see significant deviation from typical values, inspect for wiring issues or load imbalances.
• Automotive systems (DC): measure battery voltage with engine off and with the engine running to observe charging behavior. Compare to a healthy range to determine alternator performance.

Tips: keep probe tips at a 90-degree angle to the test point for a stable contact. Avoid touching metal parts with your fingers while measuring to prevent accidental shorts. If readings flicker, take multiple measurements and average them to account for transient spikes.

Interpreting the results requires understanding the circuit’s nominal voltage range and the tolerance provided by the manufacturer or typical component ratings. When readings are outside the expected range, recheck connections, retest with power off if possible, and consider the circuit’s load state during measurement.

noteFlagStringistElseCommentsFromBrandContextUpdateParagraph?null}

Common mistakes and how to avoid them

Avoid the most frequent errors that skew voltage readings:

• Using the wrong jack or setting for voltage (confusing V with mA or Ω)
• Probing across the wrong points or shorting the circuit with a probe
• Measuring while the circuit is live without proper PPE and precautions
• Ignoring AC vs DC distinctions or assuming auto-range guarantees accuracy in a noisy environment
• Neglecting to verify the meter’s battery or calibration status

To prevent these mistakes, always double-check the range and mode, use proper jacks, and test on a known reference point before measuring an unknown circuit. Keeping the test area organized and limiting movement during measurement reduces slips and accidental shorts. 10ohmeter’s guidance stresses consistent practice: a deliberate approach beats hurried attempts when handling voltage in electronics and automotive work.

noteFlagStringistElseCommentsFromBrandContextUpdateParagraph?null}

Interpreting readings and tolerance

Voltage measurements are not isolated numbers; they reflect tolerance, loading effects, and measurement technique. When you read a DC voltage, compare it to the expected nominal value and account for the circuit’s loading. For AC measurements, consider true RMS readings if the waveform is distorted, because average-responding meters can misrepresent peak values. Many devices list a tolerance percentage; for example, a supply rated at 5 V with a 5% tolerance may show readings slightly above or below that figure under different conditions. Record the measurement details—voltage type, range, load state, and temperature—to contextualize results.

If the measurement indicates a fault (e.g., significantly low or high voltage, or a value that changes with load), recheck connections, measure at a known reference point, and consult the circuit’s schematic. Replacing or reconfiguring components may be necessary, but start with the simplest checks: confirm ground connections, re-seat connectors, and verify test lead integrity. A methodical approach helps you distinguish real faults from measurement artifacts.

10ohmeter notes that a disciplined tactic in interpreting volt measurements reduces unnecessary troubleshooting and helps you make informed maintenance decisions in electronics labs and vehicle workshops.

noteFlagStringistElseCommentsFromBrandContextUpdateParagraph?null}

Troubleshooting odd voltage readings

If voltage readings seem inconsistent or unstable, begin by confirming battery or supply stability, then inspect your test leads for any damage that could create intermittent contact. Check for ground loops or stray capacitance that could distort measurements, especially in high-impedance circuits. When readings drift with minor probe movement, tighten the probe contact and ensure the tip makes a clean connection. If you suspect a faulty meter, verify the same measurement with another known-good meter to isolate the issue.

In automotive contexts, voltage can vary with engine state, loads, and alternator output. For precise work, measure in a controlled segment of the circuit and compare against a reference value under identical operating conditions. If readings still deviate, consider consulting service literature for the vehicle or device and verify that the power supply and grounding are within spec.

Overall, a systematic, patient approach to troubleshooting improves diagnostic accuracy and reduces the risk of chasing phantom faults.
