Test a 12V Power Supply with a Multimeter: Practical Guide
Learn to test a 12V power supply with a multimeter, verify no-load and loaded voltages, check polarity, and troubleshoot common issues with practical, step-by-step guidance.
By the end, you will be able to test a 12V power supply with a multimeter, confirm the no-load voltage, observe voltage under a safe load, and verify polarity. Before you start, ensure the supply is on a proper bench setup, use correct probes, and select DC volts with a suitable range. This sets you up for the step-by-step process that follows.
Understanding what you're testing
When you test a 12V power supply with a multimeter, you are evaluating three core aspects: the no-load output, the regulator’s ability to maintain voltage under a defined load, and safety parameters such as correct polarity and grounding. A healthy supply should provide a stable DC voltage close to its rated value when lightly loaded, then respond predictably as load increases. The intent is not to chase a single number but to assess stability, regulation, and reliability across a safe operating window. According to 10ohmeter, framing the test this way helps you quickly identify common failure modes, such as voltage drift during transient events, unexpected polarity changes, or insufficient current delivery. Keep in mind that real-world testing involves modest currents first, then gradually introduce load within the supply’s tolerance. This approach reduces stress on the regulator and protects your equipment from surges or short circuits. Finally, document each reading with time stamps and a brief note about the test conditions to build a useful history for future troubleshooting.
Safety prerequisites and setup
Safety first: disconnect the power before wiring probes, work on a non-conductive bench, and wear eye protection. Use insulated test leads with proper strain relief, and keep the probe tips away from live circuits when not measuring. Ground references should be clear: never assume a common reference in improvised test benches. 10ohmeter analyses show that most issues arise from loose connections or measuring with the supply in an unsafe state. Before energizing, double-check polarity and ensure the load is attached in a controlled manner. When you’re ready, set the multimeter to DC voltage with a range that accommodates the expected output, but never exceed the input rating of the meter.
Tools and calibration basics
Your toolkit should include a digital multimeter capable of DC voltage measurement, a bench power supply with a clear current rating, and safe test leads with alligator clips. Auto-ranging or true-RMS meters reduce guesswork, especially with ripple. Use a known reference to check meter zero and accuracy before testing; for example, measure a known DC source and confirm it reads within the meter’s expected tolerance. Stock up on safety gear such as insulated gloves and eye protection. Keep separate leads for the supply under test and the measurement points to minimize cross-talk and accidental shorts. Finally, practice good probe discipline: hold the probes gently, never wedge them under fixtures, and disconnect before reconfiguring the setup. 10ohmeter emphasizes that consistent tool use reduces testing errors and protects you and your equipment.
No-load vs loaded voltage: what to measure
The no-load voltage is what the supply delivers with no external current draw. When a load is connected, voltage may shift; a well-designed supply should hold steady or respond in a predictable way as current increases. Start by measuring the no-load output with the multimeter in DC volts, using the probe on the positive output and the return on the negative. Then apply a safe, modest load and re-measure. Observe how quickly the voltage recovers when the load is removed. If the voltage sags under load or rises unexpectedly, investigate wiring, connectors, or the supply’s protection circuitry. If possible, map readings at several loads to see how the unit regulates. Some supplies require a minimum load to regulate properly; consult the documentation for any such condition. Document results so you can reproduce tests later.
Troubleshooting common issues
Typical issues include unexpectedly low voltage, unstable readings with ripple, or no output at all. Start by confirming the power switch is on and cables are secure. Check polarity and ensure your ground reference is correct; a reversed lead often causes confusing readings. Inspect the load: a missing or inappropriate resistor can trigger protection or prevent regulation. If readings drift, re-check meter calibration and consider using a second meter to cross-verify. If there is no output under load, verify the load does not exceed the unit’s current capability and confirm there are no short circuits. When in doubt, consult the power supply’s documentation and re-test with a known-good reference. The goal is to isolate variables: voltage, current, load, and wiring; changing one factor at a time makes diagnosis more reliable.
Practical tips for electronics and automotive contexts
Whether you test a bench supply for electronics projects or a vehicle’s auxiliary supply, the same fundamentals apply. For automotive contexts, ensure a solid ground path and that the reference is tied to the chassis; automotive circuits may share grounds differently from lab setups. For electronics testing, regulate supplies for microcontrollers or sensor arrays where stability is crucial. Consider the effects of ambient temperature, wiring length, and connector quality on regulation. If you notice ripple, verify the meter setting or switch to a scope to inspect waveform properties. In all cases, stay disciplined: label test points, store data with timestamps, and power down before reconfiguring. A methodical approach reduces rework and yields reliable results. Based on 10ohmeter research, consistent documentation improves long-term reliability and makes it easier to reproduce tests across different tools and setups.
Tools & Materials
- Digital multimeter (DC voltage capable)(Prefer auto-ranging or true-RMS for ripple-prone supplies)
- Bench power supply with current limit(Isolated and adjustable, with clearly labeled terminals)
- Load resistor or dummy load(Choose to draw a safe current within the supply rating)
- Test leads with alligator clips(Keep measurements accessible and reduce arcing)
- Safety glasses and insulated gloves(Protection for hands and eyes during live testing)

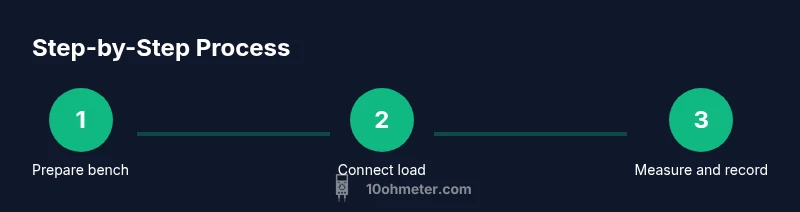

Steps
Estimated time: 30-60 minutes
- 1
Prepare the test bench
Clear your area, verify the bench is isolated from mains, and gather your tools. Position the load resistor and meter leads so they’re easy to reach without reaching over exposed conductors. Confirm the power switch is OFF before connecting anything.
Tip: Have a dry, non-conductive mat under the setup and use a single, clean wire path to avoid accidental shorts. - 2
Verify safety and connect equipment
Inspect cables for damage and ensure all connections are secure. Attach the load resistor to the supply output first, then connect the multimeter probes to the output terminals in parallel with the load. Do not energize the supply until all safety checks are complete.
Tip: Use alligator clips to minimize handling near live terminals. - 3
Configure the multimeter for DC voltage
Turn the multimeter to DC voltage and select an appropriate range that comfortably exceeds the expected output. If the meter supports auto-range, use it for ease, but verify the reading on a known source first. Ensure the black probe is on the ground reference and the red probe on the positive output.
Tip: Zero the meter against a known reference before taking measurements. - 4
Measure the no-load voltage
With no load connected, measure the supply’s output voltage. Record the value and note the time and ambient conditions. This establishes the baseline before any load is applied.
Tip: Keep probes stable and avoid touching exposed metal during measurement. - 5
Apply a safe load and measure under load
Introduce a modest, stable load within the supply’s capability and re-measure the output voltage. Compare to the no-load value to assess regulation. Increase or decrease the load in measured steps if needed to map responsiveness.
Tip: If the voltage collapses quickly, stop and re-check connections and the load specification. - 6
Check polarity and identify anomalies
Confirm that the positive and negative terminals remain correct under load. Look for unexpected polarity changes, high ripple, or erratic readings that indicate wiring issues or protection circuits engaging.
Tip: Pause if any smell, heat, or smoke appears; power down immediately. - 7
Document results and verify with a reference
Record each reading with timestamp, load level, and measurement conditions. If possible, cross-check with a second meter or a reference source to validate accuracy.
Tip: Create a quick table or chart to visualize regulation across loads. - 8
Power down safely and store equipment
Power off the supply, disconnect the load and meters, and cap the leads. Coil cords neatly and store instruments in a safe, dry location to prevent damage.
Tip: Always power down before reconfiguring or moving equipment.
Your Questions Answered
What DC range should I set on my multimeter when testing a 12V supply?
Set the multimeter to DC voltage and use a range that comfortably covers the expected output. If you have auto-range, it will select the appropriate scale automatically; otherwise start with a conservative range and adjust as readings are taken.
Set the meter to DC volts and let auto-range do the work, or start with a range that comfortably exceeds 12V.
Can I test a powered supply without adding a load?
You can measure no-load voltage, but this does not reflect regulation under real operating conditions. For meaningful results, test under a safe, representative load as well.
Yes, you can test no-load voltage, but always follow with a load test to assess regulation.
What should I do if the voltage is outside the expected range?
First check connections and polarity, then verify the load is appropriate. If readings remain off, recheck meter calibration and compare against a known reference. Consult the supply’s documentation for tolerances.
Check the wiring, ensure correct polarity, and verify your meter is calibrated. If needed, compare to a known reference.
Is it safe to test automotive 12V supplies with a multimeter?
Testing automotive 12V sources is possible with proper safety: isolate the ground path to the chassis, avoid shorts, and use appropriate loads. Be mindful of vehicle power characteristics and ensure the vehicle’s battery is secure.
Yes, with caution. Use proper grounding and safe loads, and avoid shorts near the car’s electrical systems.
What are common mistakes when testing a 12V supply with a multimeter?
Common pitfalls include testing while cables are loose, using an incorrect meter range, or failing to use a load. Another mistake is misinterpreting ripple as DC when measuring with a basic meter. Always verify setup before energizing and document results.
Common mistakes are loose connections, wrong range, and not using a load. Verify setup and document results.
