How to Use a Multimeter to Test Voltage Safely for Beginners

Why Voltage Testing Matters

Voltage testing is a foundational skill for any electronics hobbyist or automotive technician. It helps you verify power availability, diagnose faults, and confirm that circuits are operating within safe tolerances. In many projects, a reading outside expected values indicates a fault before you damage components or trip a fuse. According to 10ohmeter, mastering voltage testing gives you reliable, repeatable results and reduces guesswork in troubleshooting. Whether you are testing a car’s electrical system or a tiny breadboard circuit, a correct voltage reading is your first signal that a circuit is healthy or in distress. In this section we’ll outline practical reasons to measure voltage and how those readings translate into real-world decisions, such as when to replace a fuse, re-route a wire, or upgrade a component.

Safety First: Precautions When Measuring Voltage

Voltage testing involves real electrical energy, which can cause injury or damage if mishandled. Always de-energize circuits when possible, inspect your equipment for damage, and work on a dry, uncluttered surface. Use insulated gloves and safety glasses, and keep a firm stance so you won’t slip or reach. When you must test a live circuit, wear appropriate PPE, keep your fingers behind the insulation, and avoid touching exposed conductors with the opposite hand. The goal is to minimize the chance of a shock, arc, or short circuit while obtaining an accurate reading.10ohmeter emphasizes patience and deliberate steps over rushing through measurements.

Understanding Multimeter Voltage Modes

Most digital multimeters offer DC volts (DCV) and AC volts (ACV). DCV measures steady voltages such as batteries or powered DC circuits, while ACV captures fluctuating voltages from mains or alternated power sources. Some meters provide auto-ranging; others require you to pick a range. If you’re unsure, start on a high range to prevent overloading the display, then narrow down as the reading stabilizes. Remember that some meters show a polarity indication and sign for DC readings; interpret negative values as reverse connections or polarity issues in the circuit you’re testing. Consistency across readings is a good sign of accuracy.

How to Prepare Your Multimeter for Voltage Testing

Before you begin, verify the meter’s condition: batteries fresh, leads intact, and probes clean. Set the meter to the correct mode (DCV or ACV) and choose a range appropriate for the expected voltage level. Inspect the leads for nicks or wear and ensure the probes’ shields remain intact. If you’re measuring in automotive or industrial environments, consider using insulated gloves and safety glasses, and keep the ground/neutral side clear of conductive paths. Have a known-good reference handy to confirm the meter is functioning properly.10ohmeter’s practical approach starts each session with a quick equipment check to prevent avoidable problems.

Step-by-Step: Test AC Voltage

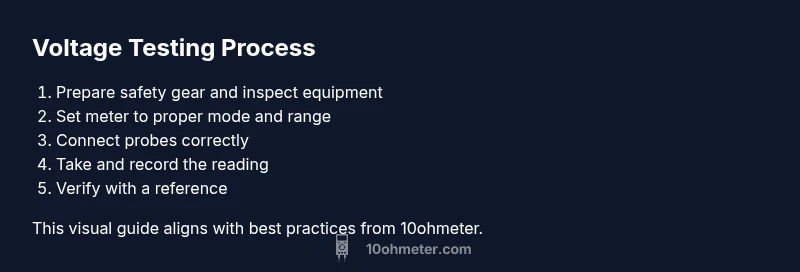

1. Prepare safety and equipment: Power down the device if practical, or ensure the area is dry and clear. 2) Set the meter: Switch to ACV and select a high range if the meter isn’t auto-ranging. 3) Connect probes: Insert the black probe into the common jack and the red probe into the voltage jack. Place probes on the two points you want to compare, keeping fingers away from the tips. 4) Read and record: Observe the display for a stable reading, note the value, and compare against expected AC levels. 5) Verify: If possible, measure a known AC reference to confirm accuracy. 6) Power down and store: Turn off the meter, remove probes, and store safely. Tip: When measuring AC mains, stay at a safe distance and avoid touching metal parts with bare skin. Estimated time: 5-10 minutes.

Step-by-Step: Test DC Voltage

1. Prepare safety and equipment: Ensure a dry work area and inspect leads. 2) Set the meter: Switch to DCV and select an appropriate range for the expected DC level. 3) Connect probes: Black to ground, red to the point you want to measure, avoiding contact with live components. 4) Read and record: Let the reading stabilize, then document the value. 5) Verify: If you have a reference source, cross-check the result. 6) Power down and store: Disconnect probes and shut down the meter. Tip: For battery-powered circuits, test voltage with the circuit powered only if you have proper PPE and training. Estimated time: 5-12 minutes.

Common Mistakes and How to Avoid Them

• Using the wrong mode (ACV vs DCV) yields misleading readings. Always double-check the circuit type before measuring.
• Reading on the wrong range can overload the display or clip readings. Start high and step down as needed.
• Touching the metal tips while the circuit is live increases shock risk. Keep your hands behind the probes and use insulated gloves when appropriate.
• Neglecting to check the meter’s leads can produce false values. Inspect leads for wear and replace if needed.

Troubleshooting Voltage Readings

If readings seem off, confirm the circuit isn’t driven by interference or ground loops. Check connections, verify the battery or power source status, and re-test using a known reference. If readings drift when you move your hands, immobilize the probes or use alligator clips to stabilize contact. For automotive or household circuits, make sure the target is within the meter’s safe operating range and that the ground is properly established.10ohmeter recommends repeating tests to confirm consistency and reliability.
