How to Use a Multimeter to Check Voltage
Learn how to safely check voltage with a multimeter, including DC vs AC measurements, proper range selection, lead handling, and troubleshooting in electronics and automotive tasks.
By the end, you’ll confidently measure voltage with a multimeter and verify whether a circuit is live, at a safe level, or within design tolerances. You’ll learn to select the right setting, attach the test leads correctly, and interpret the reading without grounding yourself or damaging the meter. This guide uses safe, practical steps suited for electronics and automotive tasks.
Why voltage measurement matters
Voltage is the electrical pressure that drives current through a circuit. Being able to reliably check voltage helps you identify open circuits, bad connections, and safety risks before you power up devices. According to 10ohmeter, voltage testing is a foundational skill for both hobbyists and professionals, reducing guesswork and preventing damage to components. In practice, you’ll use voltage measurements to confirm that a supply is present, that a circuit is within expected tolerances, and that when you disconnect power you’re not introducing new hazards. When you understand DC voltage in battery-powered electronics and AC voltage in mains-powered systems, you can troubleshoot faster. This section also sets the stage for choosing the correct range, selecting the proper mode (DC vs AC), and understanding how waveform shape affects readings. Mastery starts with safety-first habits and precise probe placement to avoid accidental shocks or short circuits.
Choosing the right range and setting on your multimeter
Modern multimeters offer manual range setting or auto-ranging. For voltage checks, you must distinguish DC from AC and pick a range that will cover the expected value without maxing out the display. If you’re measuring a typical automotive 12V system, a DC range just above 12V (e.g., 20V) is common; for mains AC, you’ll usually choose a higher AC range (e.g., 200V or 600V) to accommodate peak voltages. Auto-range can simplify operations, but you still need to know what you’re measuring and why. Always read the instrument’s manual to understand its limits, input impedance, and any cautions about measuring live circuits. Safe, accurate readings come from matching the meter’s expectations to the circuit under test, not from forcing the meter to guess.
Safety essentials before you start
Electrical testing carries the risk of shock, arc flash, and equipment damage. Always wear appropriate personal protective equipment for the task and keep your workspace dry and uncluttered. Ensure the meter is turned off before connecting or disconnecting probes in high-energy environments. Ground yourself and keep one hand behind your back when working on exposed circuits to reduce the chance of a shock path through your body. If you’re unsure about a circuit’s safety, use a non-contact voltage tester to verify presence of voltage before touching any conductors. Power down the circuit when possible and verify zero energy with the meter after discharging capacitors or residual charges.
Preparing your test leads and probes
Test leads should be in good condition with intact insulation and undamaged tips. Use leads with proper safety ratings (CAT III/IV as applicable) and ensure the probes’ grips are comfortable and secure. Shrouded banana plugs prevent accidental contact with live metal, and alligator clips can help keep hands free for delicate measurements. Inspect the leads for cracks, exposed conductors, or bent pins before use. Keep probes and test points clean to avoid poor contact that can skew readings. For mains work, never bypass safety features or substitute improvised conductors.
Step-by-step: measuring DC voltage
DC voltage measurements are common in battery packs, low-voltage electronics, and solar installations. Start by turning the multimeter to the DC voltage range and confirming the probe tips are in good contact with the test points. Place the red probe on the positive node and the black probe on the ground or reference node. Read the display and compare it to the expected DC value. If you see a fluctuating reading, verify the circuit isn’t switching or that a capacitor isn’t discharging unexpectedly. Record the value and note any load conditions that might affect the measurement. When finished, power down the circuit safely and store your tools properly.
Step-by-step: measuring AC voltage
AC voltage measurements are typical for wall outlets and many automotive alternators. Switch the meter to an appropriate AC voltage range and firmly connect the probes across the live and neutral (or hot and ground) conductors. Read the RMS value shown on the display, which represents the effective voltage for typical sine-wave signals. If the waveform is distorted or noisy, consider using a true-RMS meter to get a more accurate reading. Do not touch metal parts during the test, and avoid contact with exposed conductors. After measurement, power down if required and inspect the leads for heat after prolonged testing.
Interpreting voltage readings and common errors
Interpreting voltage readings requires understanding tolerances for a given circuit. Small deviations are normal, but large discrepancies indicate a fault, a poor connection, or an incorrect range. Common errors include measuring with the meter in the wrong mode, using the incorrect range, or testing without proper common ground. Keep in mind meter input impedance can affect measurements in high-impedance circuits. For best results, test in a consistent state: same load, same temperature, and with the circuit properly grounded. Always compare readings against known good references or circuit schematics to determine if a reading is acceptable.
Troubleshooting voltage measurements in automotive systems
Vehicles present unique challenges due to differing ground references, multiple power rails, and noisy electrical environments. When testing car batteries, ensure the vehicle is off and perform a quick zero-check to confirm the meter reads near zero on non-live circuits. When diagnosing alternator or charging problems, isolate components and measure across the battery while the engine runs, watching for a healthy charging range. Remember, automotive systems can be sensitive to high impedance paths; use short leads and avoid bridging high-current paths with the meter. Document readings at various RPMs to map voltage behavior under load.
Maintenance and calibration tips for accuracy
Regular maintenance helps ensure voltage readings stay accurate. Calibrate your meter according to the manufacturer’s schedule, replace worn test leads promptly, and keep the display and contacts clean. If you notice drift or sudden jumps in readings, perform a quick calibration check against a known reference source. Storage matters: keep the meter in a clean, dry place away from direct heat. Battery checks are part of routine upkeep, since a weak battery can masquerade as a measurement error. Practicing these routines reduces confusion during critical troubleshooting tasks.
Real-world scenarios: electronics vs automotive
In electronics projects, voltage checks are typically low-energy and precise, with RC networks or microcontroller supply rails as common targets. In automotive work, voltages can swing with engine RPMs, starter load, and accessory circuits, requiring careful probing and grounding. The techniques are the same at their core—select the correct mode, place probes accurately, and read the output—but the context dictates range choices, safety precautions, and the interpretation of results. With practice, you’ll quickly differentiate a healthy circuit from a fault, whether you’re debugging a breadboard project or inspecting a vehicle’s charging system.
Conclusion
Measuring voltage with a multimeter is a foundational, learnable skill that improves diagnostic confidence in electronics and automotive work. By choosing the right range, following safety practices, and interpreting readings in context, you can identify issues quickly and prevent further damage. As you gain experience, you’ll rely less on guesswork and more on precise, repeatable measurements. The 10ohmeter team recommends consistently documenting readings and maintaining your tools for long-term reliability.
Tools & Materials

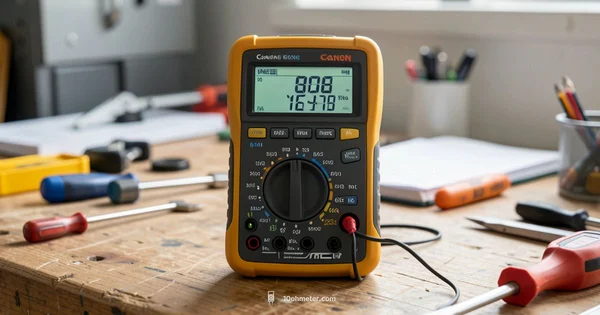

- Digital multimeter (true RMS preferred)(CAT III rating at least 600V; auto-ranging preferred for ease)
- Test leads (red and black with shrouded banana plugs)(Inspect for cracks; ensure probes are intact)
- Alligator clips(Hands-free testing when precision matters)
- Non-contact voltage tester(Optional for quick live-checks before touching conductors)
- Insulated gloves(Use when handling exposed wiring or high-energy circuits)
- Workbench mat or grounded surface(Reduces risk of short circuits and slips)

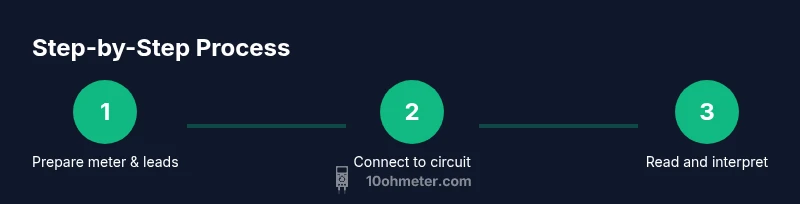

Steps
Estimated time: 15-25 minutes
- 1
Assess safety and goal
Identify whether you’re measuring DC or AC voltage and confirm the power state of the circuit. Ensure you have a dry, organized workspace and appropriate PPE. Clarify the expected voltage range to choose the correct setting before touching any conductors.
Tip: If in doubt, power down and discharge capacitors before starting. - 2
Inspect equipment
Check the multimeter for any visible damage and verify the test leads are intact with clean tips. Replace damaged leads or the meter itself before proceeding to avoid inaccurate readings or shocks.
Tip: A damaged probe can create a false reading or pose a shock risk. - 3
Set the meter to the correct mode
Choose DC voltage when testing DC circuits (e.g., batteries) or AC voltage for mains or AC-powered devices. Select a range that comfortably exceeds the expected voltage to avoid overload readings. If your meter has auto-range, you can enable it, but verify the reading afterward.
Tip: Avoid using a too-low range; it can overload the meter with a high reading. - 4
Connect test leads properly
Connect the black probe to the reference/ground and the red probe to the test point or supply line. Hold the probes steady, and keep your other hand away from the circuit. For live circuits, minimize contact time and maintain good contact for a stable reading.
Tip: Use alligator clips to hold probes if you need both hands for tool handling. - 5
Take a DC voltage reading
If testing DC, place the probes across the source with polarity observed. Read the display, noting whether the reading aligns with expected nominal values. If you see large fluctuations, re-check connections and consider loading the circuit to see how voltage holds under typical use.
Tip: Always confirm the circuit is not drawing unexpected surge currents during the test. - 6
Take an AC voltage reading
For AC voltage, ensure the measurement range covers typical mains values. Probe across live and neutral (or live and ground) and read RMS voltage. Distortions in waveform can affect accuracy; consider true-RMS meters for non-sinusoidal signals.
Tip: Do not touch metal parts during measurement; stand on a dry, non-conductive surface. - 7
Interpret and document
Compare results to reference values and note load conditions, battery state, and any deviations. Document the environment, range used, and waveform characteristics if relevant. This records a baseline for future troubleshooting.
Tip: If readings look unusual, re-check range and connections before re-measuring. - 8
Power down and safely store
Power down the circuit, remove probes carefully, and disconnect the meter. Return leads to their storage pouch and keep the meter in a dry, safe location. Recalibrate periodically per the manufacturer’s guidelines.
Tip: Store with fresh batteries to avoid anxiety during urgent tests.
Your Questions Answered
What is the difference between DC and AC voltage when testing with a multimeter?
DC voltage is constant and polarity-specific, typical of batteries and electronics. AC voltage alternates in a sine wave, like wall outlets. Always select the correct mode to avoid damage and obtain accurate readings.
DC voltage stays constant and has polarity; AC voltage alternates with time. Pick the correct mode to get a meaningful reading.
Can I measure voltage on live equipment safely?
Testing live equipment introduces shock and arc risks. Use proper PPE, keep one hand behind your back when possible, and consider non-contact testing to reduce exposure before contacting conductors.
Live testing can be dangerous. Use safety gear and non-contact checks first when possible.
Why might my meter show OL or an infinite reading?
OL usually means out of range or open circuit. Check that you’re on the correct range and that the circuit is closed. Poor contact or a blown fuse can also cause erroneous readings.
OL means out of range or open circuit. Re-check range and connections; a blown fuse can also cause this.
What range should I use for car battery measurements?
A typical car battery measurement uses a DC range just above 12V, often 20V. Measure with engine off, then repeat during charging to verify charging voltage.
Use a DC range around 20V for car batteries, test with engine off first, then during charging.
Is auto-ranging better than manual range for voltage checks?
Auto-ranging simplifies use and reduces guesswork, but you should still verify that the reading is within a reasonable range and understand the measurement context.
Auto-ranging makes it easier, but you should still confirm the reading makes sense for the circuit.
What precautions are necessary when measuring mains voltage?
Always use CAT-rated probes, work on a dry surface, and keep hands away from exposed conductors. If unsure, test with a non-contact tester first and consider consulting a qualified electrician.
Take proper precautions: CAT-rated probes, dry work area, and avoid exposed conductors. If unsure, seek professional help.
Key Takeaways
- Select the correct DC vs AC mode before testing
- Keep probes in good condition and avoid live contact
- Interpret readings against expected values and tolerances
- Document measurements for reliable troubleshooting
