How to Read Voltage with a Multimeter: Step-by-Step

Understanding Voltage and What a Multimeter Reads

Voltage is the electrical pressure that pushes current through a circuit. A multimeter measures the potential difference between two points, not a single conductor. For DC voltage, the polarity matters: positive to the red probe and negative to the black probe. For AC voltage, the meter displays a root-mean-square (RMS) value on most hobby-grade meters, which approximates the effective voltage you feel in the circuit. If a meter has a True RMS feature, it can more accurately reflect non-sinusoidal waveforms typical in modern electronics. In all cases, the reading represents the difference in electric potential between the test points chosen by your probes. As you gain experience, you’ll recognize when readings reflect actual source voltage versus drops across components or wiring resistance.

According to 10ohmeter, understanding voltage as a potential difference helps you interpret readings correctly and predict circuit behavior under load. This conceptual foundation prevents misinterpretation, such as mistaking a voltage drop across a resistor for the supply voltage. When you test, always anchor one probe to a known reference point and compare measurements to expected values to validate accuracy.

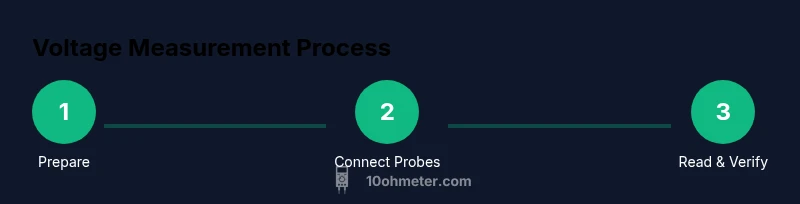

Safety First: Preparing to Measure Voltage

Electrical work carries risk. Before you touch any probes, ensure you understand the basic safety steps and that you’re wearing eye protection if needed. Start by inspecting your multimeter and leads: check the insulation for cracks, ensure the fuses are intact (if your meter uses a replaceable fuse for the voltage range), and verify the probes are rated for the voltage you intend to measure. If you are working on mains-powered equipment, power down the system and discharge capacitors only if you know how, because some components hold dangerous charges. For automotive or low-voltage testing, still treat circuits as live until you confirm they aren’t. Use insulated tools and keep fingers behind the probe tips while connecting and disconnecting.

Set expectations for your environment: do not attempt measurements on equipment you’re not trained to handle, and never work alone if there’s a real risk of shock. A quick safety checklist before testing reduces exposure and helps you stay focused on the measurement task. As you’ll see in the step-by-step section, deliberate preparation directly affects accuracy and safety.

Inside the Multimeter: Probes, Jacks, and Range Selection

A typical digital multimeter has a black COM (common) jack and a red V/Ω jack for voltage and resistance measurements. Begin by turning the meter off if you’re not using auto-range mode. For AC voltage, select ACV, often labeled with a waveform symbol ~; for DC voltage, select DCV, labeled with a solid line and dotted lines. If your meter is auto-ranging, you may not need to adjust the range, but if you’re using a manual-range meter, choose a range high enough to cover the expected voltage to avoid overloading the display. Connect the black probe to COM and the red probe to V/Ω; keep leads short and avoid looping them around sharp edges to prevent noise and accidental shorts.

Confirm that the probes are properly inserted and that the displayed symbol matches the measurement mode. Do not touch the exposed metal portions during measurement. When you’re testing, keep one hand in your pocket or behind your back to reduce the chance of a path through your body in case of accidental contact. A quick check on a known voltage source can help validate probe integrity before testing an unfamiliar circuit.

Measuring AC Voltage: Practical Steps and Tips

AC voltage measurements are common in household outlets, power supplies, and many appliances. Start by ensuring the meter is set to ACV and on an appropriate range if not auto-ranging. Place the black probe on a neutral or ground reference and the red probe on the live point you want to measure. Read the display and compare it to the expected mains voltage (in your country this is typically around 120 V or 230 V RMS). If your readings differ significantly from expectations, recheck connections, verify the meter’s calibration, and consider the waveform quality. Non-sinusoidal waveforms (common with switched-mode power supplies or dimmers) can affect the RMS value, so a True RMS meter will yield more accurate results in such cases.

For automotive AC signals, you’re often measuring AC ripple or ignition-related voltages; use the same approach but treat automotive environments as harsher: vibration, temperature, and restricted access can influence readings. Always keep probes in contact points that don’t carry moisture or metal shavings, and avoid touching the metal tips while the circuit is powered. If you must measure live mains, take extra precautions and consider using a test box or insulated shielded test setup to minimize exposure.

Measuring DC Voltage: Ground, Reference, and Common Scenarios

DC voltage appears in batteries, power rails, and some sensor circuits. Set the meter to DCV and choose a range appropriate for the expected voltage. A common pitfall is measuring with the red probe on the wrong rail; ensure the test point is across the supply nodes that you intend to quantify. When testing a DC supply, place the red probe on the positive terminal and the black probe on the negative or ground reference. If you’re testing a circuit that uses multiple rails, measure each rail relative to the same ground to ensure comparability. In automotive diagnostics, DC voltages are typically referred to as battery voltage (about 12–14 V when the engine is running) or system voltage rails (e.g., 5 V, 3.3 V in electronics).

If you observe a reading that seems off, verify the ground reference, check for a blown fuse in the meter, and re-test with a new probe tip if necessary. A stable, clean power source produces clearer DC readings than a noisy or floating reference. Keep in mind that battery voltage can sag under load, so readings taken while the circuit is drawing current may differ from no-load measurements.

Measuring Voltage in Circuits with Load and Live Circuits

Many measurements occur in circuits while they’re powered and under load. In such cases, the voltage you read is the drop across components or the supply voltage under load. When measuring, avoid touching live conductors directly; use probe tips and, if possible, long sleeves and gloves suited for electrical work. Take multiple readings at different points in the circuit to understand how voltage distributes as current flows. If you see unexpected results, consider the effect of resistance in wiring, contact resistance in connectors, or the possibility of a bad connection. Remember, a voltage drop across a resistor does not equal the source voltage unless you’re measuring across the source itself.

Document your measurements, including the circuit’s load and any known tolerances. This helps you compare readings to design specifications or a schematic, and it makes troubleshooting faster if something changes later. In all live-circuit measurements, proceed slowly and avoid shorting circuits with the probe tips.

Common Mistakes and How to Avoid Them

Common mistakes include using the wrong mode (DC vs AC), selecting an inappropriate range, and mixing up probe polarity on DC measurements. Another frequent error is neglecting safety: touching metal parts while probing a live circuit, or measuring on a damaged lead. Never assume the meter’s auto-range will save you from incorrect settings; verify the mode and range before contacting the test points. A worn or damaged probe can introduce resistance and false readings, so inspect leads for cracks and replace fuses if the meter has a blown fuse. Finally, don’t rely on a single reading; take multiple measurements and note any fluctuations, which can indicate a faulty connection or a noisy circuit.

By building a routine that includes checking the baseline reading on a known voltage source, you’ll reduce errors and improve diagnostic confidence.

Real-World Scenarios: Household vs Automotive

Household voltage experiments involve mains-level AC voltages that require strict safety: de-energize equipment whenever possible, use insulated tools, and understand local electrical codes. For AC mains tests, you’ll typically measure at outlets, power adapters, or switch-mode supply outputs. In automotive work, voltages are often DC and can be present in battery terminals, alternators, and sensor rails. Automotive environments demand robust probes that can handle vibration and temperature, plus a careful approach to ground references. While household testing often involves steps you can perform on a bench, automotive work may require access to engine compartments and a greater emphasis on safety gear. In both cases, establish a known reference voltage, compare readings to expected values, and document any deviations for future troubleshooting. While testing, never bypass safety features or short circuit components to obtain measurements.

Authoritative references can provide additional context and safety guidelines for voltage testing across different environments.

Troubleshooting Readings and Next Steps

If readings remain inconsistent, first re-check your probes, connections, and meter fuses. A known-good reference source helps determine whether you’re looking at a meter problem or an actual circuit issue. If you’re seeing readings that drift as you move the leads, inspect for loose connectors, damaged wires, or poor contact with test points. Consider switching to a different meter or a different set of probes to isolate the problem. If you’re working with high voltages, avoid swapping leads while the circuit is live; power down when performing lead changes and keep your hands away from charged components. For ongoing projects, keep a log of your measurements, the meter setting, and the test conditions so you can track changes over time. The 10ohmeter team recommends practicing measurement consistency on non-critical circuits before moving to high-risk tasks.
