How to Check Voltage Drop with a Multimeter
Learn to check voltage drop with a multimeter safely and effectively. This guide covers theory, measurement steps, and troubleshooting for automotive and electronics circuits, with clear examples and practical tips.
By learning how to check voltage drop with a multimeter, you’ll verify whether wiring and connections are delivering power under load. The process compares source voltage to load voltage while current is flowing, using a DC setting and proper probes. With this method, you can quantify voltage loss across wires, terminals, and fuses to identify where a circuit is underperforming.
Why voltage drop matters in circuits
Voltage drop occurs when electrical resistance in wiring, connectors, or components consumes part of the supply as current flows. In practice, even a small drop can cause devices to malfunction, blink, or misbehave. If you're wondering how to check voltage drop with a multimeter, you first need a clear plan for where to measure and under what load conditions. The 10ohmeter team emphasizes that tests must reflect real operating conditions, not just no-load measurements, to reveal hidden losses. By quantifying drop, you can decide whether wiring gauge, terminations, or grounds need attention, and you can document improvements after fixes.
Basic theory and formula
Voltage drop Vdrop is caused by resistance in the path carrying current, so Vdrop = I × R. Here, I is the current drawn by the load and R is the total resistance of the conductor, connections, and any components in series. For longer runs, use the resistance value per unit length for the wire gauge and multiply by the length to estimate R. Temperature, contact quality, and connector wear can raise resistance and worsen the drop. When you use a multimeter to check voltage drop, measure the voltage at the source and at the load under the same load, then compute the difference to obtain Vdrop. This approach gives you actionable data rather than guesswork.
When to test voltage drop
Voltage drop testing is most valuable when wiring or connectors are suspected of adding resistance: corroded terminals, loose grounds, undersized wires, or long wiring harnesses in automotive or industrial settings. In electronics, look at power rails on a PCB, distribution traces on a board, or the path from a supply to a peripheral. Always test under realistic load—no-load measurements can hide problems that only appear once current flows. If a device behaves erratically or shows dim indicators under load, measuring voltage drop can pinpoint the bottleneck.
Tools and safety first
Equip a digital multimeter with DC voltage measurement and good contact probes. Keep test leads in good condition; use alligator clips for stable connections when you can't easily hold probes. Have a known load present (a resistor or the actual device) and a safe way to apply current without shorting. Safety reminders: power down before wiring changes, wear insulated gloves for high-current or high-voltage tasks, and work with one hand away from grounded metal when possible to reduce shock risk. If you're testing automotive circuits, disconnect the battery when wiring or installing test fixtures, then reconnect carefully after measurements are completed.
Prepare test points and establish baseline
Before measuring, locate the source terminal (power supply side) and the load terminal (the point where the device connects). Establish a baseline by measuring source voltage with the circuit powered but not yet under heavy load, then record the nominal voltage. When you're ready, reconnect and apply the intended load to simulate real operation. Keep the test environment stable: avoid movement, vibration, or additional heat that could affect resistance. This preparation reduces measurement noise and helps you compare before/after results accurately.

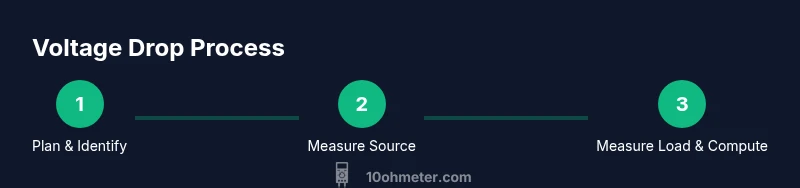

Measurement procedure overview
To perform the voltage drop check, you’ll measure at two distinct points: the source and the load. Start by setting your multimeter to a DC voltage range suitable for the expected voltage. With the circuit under normal load, measure the source voltage at the source terminals, then measure the voltage across the load terminals. Note the readings, then compute Vdrop as source minus load. If you need current for calculations, measure current with the circuit intact or use a known load to deduce current. Repeat measurements after any fixes to confirm improvement.
Interpreting results and common causes
Interpreting voltage drop involves comparing the measured drop to what is acceptable for your application and considering the circuit length and conductor gauge. A larger-than-expected drop usually points to excessive resistance in wires, poor connections, or insufficient ground paths. Common fixes include cleaning or tightening connectors, replacing undersized wiring, shortening runs, and improving ground impedance. In mixed-signal systems, separate power and ground paths to minimize cross-talk and reduce drop under dynamic loads.
Practical examples: electronics vs automotive
Example in electronics: a 5 V rail feeding a microcontroller shows a drop when the device draws current; check the 5 V rail at the source and at the MCU Vin pin under load, identify if a trace or connector is the bottleneck. Example in automotive: a tail-light circuit may dim if a corroded connector or long harness adds resistance; test near the fuse, at the switch, and at the lamp socket to locate the weak link.
Troubleshooting and remedies
Address voltage drop by tightening or cleaning contacts, replacing damaged wires, and using wires with a larger gauge for shorter runs. Re-route cables to reduce length, and ensure a solid ground path with low impedance. For high-current systems, consider adding a properly rated distribution point or separate power path to critical loads. After changes, re-test to verify that the drop has reduced and that circuit performance is stable under load.
Safety considerations during testing
Always power down before disconnecting or reconnecting wires, and avoid shorting conductors. Use insulated tools and PPE for high-current environments. If you're unsure about a circuit's hazards (high voltage car circuits, high current mains wiring), consult a professional.
Documentation and follow-up
Record measurements, load conditions, and any repairs. Create a simple chart showing source voltage, load voltage, current, resistance, and calculated voltage drop. Use this log to monitor improvements over time and to justify wire gauge upgrades or connection repairs when the circuit is redesigned or scaled.
Tools & Materials
- Digital multimeter (DC voltage capable)(Auto-range preferred; ensure fresh battery)
- Test leads with probes(Use small alligator clips for stability when needed)
- Known-load element or actual device under test(Should draw steady current during measurements)
- Clamp meter (optional)(Useful for measuring current without breaking the circuit)
- Insulated gloves and safety glasses(For automotive or high-current scenarios)
Steps
Estimated time: 20-40 minutes
- 1
Identify source and load points
Locate the power source terminals and the connection feeding the device under test. This ensures you measure the correct legs of the circuit and avoid false readings.
Tip: Label the points with masking tape to keep track of which is source and which is load. - 2
Prepare circuit and safety
Disconnect power when wiring or repositioning test gear; connect test leads so there is no risk of shorting. Reconnect power only when you are ready to measure under load.
Tip: Use one hand to handle probes to reduce shock risk. - 3
Set up the multimeter for DC voltage
Set the meter to a DC voltage range that covers the expected voltage. If using auto-range, turn on DC mode and let the meter auto-range. Calibrate probes and ensure good contact.
Tip: Use two hands-free test leads or alligator clips for stable readings. - 4
Measure source voltage under load
With the circuit powered, measure the voltage at the source terminals while the device is drawing current. Record the value and ensure it is stable.
Tip: If the reading fluctuates, pause and check your connection. - 5
Measure load voltage under the same load
Measure the voltage right at the load terminals or the device pins where power arrives. Match the load condition of the source measurement.
Tip: Be careful not to short the probes to ground. - 6
Calculate voltage drop
Compute Vdrop = Vsource − Vload. If you know current, you can also calculate R or verify the drop by I×R. Repeat if the load changes.
Tip: Use the same unit throughout (volts and amperes). - 7
Interpret and decide on fixes
Compare the measured drop to your circuit’s tolerance and inspect wires, connectors, and grounds where the loss is concentrated.
Tip: Check for corrosion, loose connections, or undersized wires. - 8
Re-test after fixes
Apply fixes (clean/secure connections, upgrade wiring, reroute) and re-measure to confirm reduced drop and stable operation.
Tip: Document the results for future maintenance.
Your Questions Answered
What is voltage drop and why does it matter?
Voltage drop is the difference between the source voltage and the load voltage when current flows. It matters because excessive drop can cause devices to perform poorly or fail under load.
Voltage drop is the difference between source and load voltage when current flows and it affects performance.
Can I use a basic multimeter for voltage drop in automotive wiring?
A basic digital multimeter can measure the two voltages needed to calculate drop, but ensure you stay safe and off-load when possible. For current measurements, you may need a clamp meter.
A basic meter can work for voltages. Use caution when measuring under load.
How do I decide if the voltage drop is acceptable?
Acceptance depends on the circuit’s requirements. If the load voltage approaches the device’s minimum operating level, the drop is likely too large and warrants investigation.
Acceptance depends on the device's needs; if voltage falls below minimum operation, it's not acceptable.
What common mistakes skew voltage drop readings?
Measuring with no load, using poor contact probes, or measuring at wrong points can give misleading results. Always measure at correct test points and under real load.
Don't measure without load or at wrong points; ensure good probe contact.
Is a clamp meter necessary to check voltage drop?
A clamp meter helps measure current without breaking the circuit, which can improve accuracy for V=IR calculations. It's optional for basic voltage-drop checks.
A clamp meter can help quantify current without disassembly, but it’s not strictly required.
Can voltage drop impact safety?
Yes. Excessive drop can cause overheating, poor connections, and intermittent faults that may lead to unsafe conditions in high-power circuits.
Yes—excessive drop can lead to overheating and unsafe conditions in some systems.
