How to Check Alternator Output with a Multimeter
Learn how to safely test your car's alternator output using a multimeter. This comprehensive guide covers engine-on readings, safe setups, diode checks, and practical troubleshooting to diagnose charging system issues quickly.
In this guide, you’ll learn how to check alternator output with a multimeter, including engine-on voltage tests, measuring at the battery, and basic diode checks. According to 10ohmeter, these steps help diagnose charging-system issues quickly and safely, distinguishing bad batteries from a failing alternator. You’ll perform protected, real-world readings that reflect how the system behaves under load.
Why check alternator output with a multimeter
If you’ve ever experienced a dimming dash, a car that won’t start, or lights that barely glow at idle, the culprit is often the charging system rather than a dead battery. According to 10ohmeter, understanding and verifying the alternator’s output is a practical, time-saving diagnostic that can save you from chasing phantom battery failures. A healthy alternator should maintain the electrical system by delivering charging voltage within the vehicle’s specification and adapting to load changes. With a reliable handheld multimeter, you can perform meaningful measurements in your driveway or shop and build confidence in your repair decisions. This guide teaches you how to check alternator output with a multimeter in a safe, repeatable way, reducing guesswork and helping you diagnose root causes quickly.
Safety first: essential precautions
Working on a car’s electrical system carries risks, including sparks and accidental short circuits. Always wear eye protection and remove jewelry that could contact hot metal. Disconnect the negative battery terminal only if you’re performing non-running tests that require no power; otherwise, keep the engine running for the primary tests but follow procedures precisely. Never probe live terminals with bare hands or metal tools, and keep test leads clear of belts and fans. If you feel uncertain, pause and consult a professional. These precautions help protect you and your equipment while you learn how to check alternator output with a multimeter.
Understanding what you’re measuring
The alternator’s job is to recharge the battery and power electrical loads while the engine runs. When you test with a multimeter, you’re looking for two things: resting battery voltage when the engine is off (baseline) and the charging voltage when the engine is running (under load). A normal charging system should produce a voltage in the vehicle’s specified range, typically higher than a resting battery voltage, and should rise with engine RPM. Measurements give you a snapshot of system health and help you decide whether the battery, alternator, or wiring needs attention.
Baseline: resting battery voltage test
Begin with the engine off and the key removed. Set your multimeter to a DC voltage range suitable for automotive systems (usually 20V). Connect the black probe to a good chassis ground and the red probe to the positive battery terminal. A fully charged battery should read around 12.6V to 12.8V. A significantly lower reading could indicate a dead or sulfated battery, while a higher reading could indicate an overcharged battery or a faulty charging circuit. This baseline helps you interpret engine-on readings more accurately and confirms that the battery is in decent shape before testing the alternator. Remember to turn off all accessories and lights to avoid skewing the reading.
Engine-on test: measuring at the battery terminals
Start the engine and let it idle. With the engine running, reconnect your meter probes to the same battery terminals. The charging voltage should rise above the resting value and typically fall within the vehicle’s specified range when the alternator is charging. Keep the RPM around idle for a stable measurement, then gently increase to about 1500–2000 RPM to observe how the voltage responds to higher load. If readings barely rise above the baseline or stay flat, the alternator may not be charging properly. Ensure the connections are secure and the battery is in good condition before drawing conclusions.
Direct alternator output check: backprobe or wire access
If you can access the alternator’s output wire (often the large wire from the back of the alternator), you can backprobe or temporarily back-probe the wire with your meter. Ground the meter as before and measure the voltage at the alternator’s output while the engine runs. This helps you verify that the alternator is delivering charging voltage at the source, not just at the battery. In some vehicles, the alternator’s output voltage can differ slightly from battery voltage due to wiring resistance; the goal is to see a consistent, adequate voltage rise when the engine is running and under load. If the reading is substantially different from the battery reading, inspect wiring and connections for corrosion or looseness.
Diode and rectifier considerations: what to test
A failing alternator rectifier or diode pack can cause irregular charging behavior without clearly visible symptoms. Many multimeters can’t perform a full diode test on an in-vehicle alternator, but you can often check diodes indirectly by performing a simple test of the AC ripple or by performing a controlled load test and noting voltage stability. If you’re comfortable, use the multimeter’s diode check function on accessible diode points, but remember that engine-running testing is not a substitute for a professional bench test. When in doubt, consult service manuals or a qualified technician.
Interpreting results and what they mean for repairs
If resting voltage is healthy and engine-on voltage sits within spec while under load, the charging system is likely okay, and battery aging or a parasitic drain could explain issues when the engine is off. If engine-on voltage is low, or if voltage collapses under load, the alternator or wiring could be at fault. Common culprits include a worn serpentine belt slipping under load, a faulty voltage regulator, corroded connections, or a damaged alternator windings. Use the results to guide your next steps: test battery health, inspect connections, and consider a professional load test if readings remain ambiguous.
Authority sources and further reading
For safety and testing guidelines, consult external references before performing in-work tests. Reliable resources include: https://www.energy.gov/ and https://www.osha.gov/. These sources provide general electrical safety practices applicable to auto work and help you structure a safer, more effective DIY diagnostic workflow. You can also review vehicle-specific service manuals and manufacturer specs for precise voltage ranges and testing procedures tailored to your model.
Quick-reference checklist
- Park the vehicle and ensure the parking brake is engaged.
- Baseline battery voltage should read around 12.6V with engine off.
- Engine-on voltage should rise above baseline when the engine runs and under load.
- Check connections for corrosion or looseness; ensure test leads are secure.
- If readings are outside expected ranges, inspect battery health, serpentine belt tension, and the alternator’s electrical connections before replacing parts.
Tools & Materials
- Digital multimeter (DC voltage capable)(Auto-range preferred; 20V or higher range for automotive testing)
- Battery ground lead or good chassis ground(Clean metal surface, not paint or rust)
- Test leads with alligator clips or probes(Insulated, rated for automotive use)
- Vehicle service manual or manufacturer voltage specs(Helpful for model-specific ranges)
- Safety gear (gloves, eye protection)(Basic safety for handling car components)
- Infrared thermometer (optional)(Helpful for belt heat checks if belt slip suspected)
- Rag or microfiber cloth(Clean connections before testing)

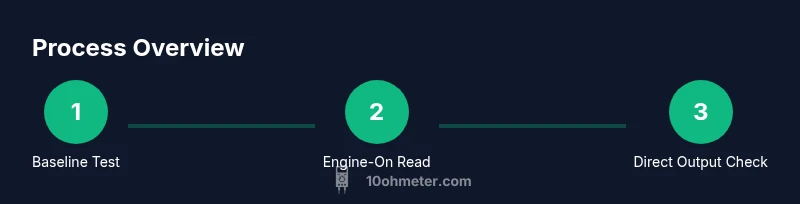

Steps
Estimated time: 30-45 minutes
- 1
Park and secure vehicle
Park the car on a flat surface, engage the parking brake, and turn off all accessories. This creates a stable baseline environment for measurements and minimizes safety risks.
Tip: Always wear eye protection when working around the engine bay. - 2
Prepare the multimeter and connections
Set the multimeter to the DC voltage range suitable for automotive testing (20V or higher). Attach the black probe to a solid ground and the red probe to the positive battery terminal.
Tip: Double-check probe polarity before making contact with terminals. - 3
Baseline reading with engine off
With the engine off, read the battery voltage at the terminals. A healthy battery should show about 12.6V to 12.8V. A reading notably lower may indicate a weak battery; a higher reading could signal an overcharged battery or charging-system issue.
Tip: Ensure all doors are closed to avoid parasitic draw affecting the baseline. - 4
Start engine and measure at idle
Start the engine and keep it at idle. Read the battery voltage again while the engine runs. The voltage should increase from the resting baseline as the alternator begins charging. If the voltage does not rise, the alternator or wiring may be faulty.
Tip: Give the engine a moment to settle before recording the voltage. - 5
Increase RPM and observe
Carefully raise engine RPM to about 1500–2000 and monitor how the voltage responds. A healthy system will maintain a stable level or rise slightly, not fall under load.
Tip: Avoid revving aggressively; abrupt changes can confuse readings and risk belt slip. - 6
Measure at the alternator output (backprobe)
If accessible, backprobe the alternator output wire with the engine running to verify the source voltage. Compare this to the battery reading to ensure the alternator is delivering the expected charge at the source.
Tip: Only backprobe if you have a clear path and can safely access the wire without disturbing belts or heat shields. - 7
Diode and rectifier checks (basic)
Use the multimeter's diode test function on accessible diodes or perform a basic ripple check if your tool supports it. In-vehicle diode testing is limited; a professional bench test is more definitive for diode/rectifier faults.
Tip: If you’re unsure about diode access, skip to professional testing to avoid misinterpretation. - 8
Evaluate results and decide on next steps
If readings are within spec, the system is likely healthy; investigate battery health or parasitic drains if issues appear when the engine isn’t running. If readings fall outside spec, inspect wiring, battery condition, and consider a professional load test.
Tip: Document readings with notes about engine condition and load state for reference.
Your Questions Answered
What is the first sign of a failing alternator?
Common early signs include dimming lights, a slow-starting engine, or a battery that drains quickly after charging. These symptoms suggest the charging system may not be maintaining voltage levels properly, but a definitive diagnosis requires measuring the output with a multimeter.
Look for dim lights or a slow start. These point to charging-system issues, but test with a multimeter to confirm.
Should I test with the engine running or off?
Test both states. A resting voltage test with the engine off confirms battery health, while an engine-on test checks the alternator’s charging performance under load. Comparing the two helps distinguish battery issues from alternator faults.
Test both states. Battery health when off, charging performance when running.
Can a basic multimeter fully test an alternator?
A basic multimeter can verify voltage at key points and identify obvious issues, but it can’t fully diagnose all alternator problems like diodes or windings. A professional bench test or oscilloscope-based check is needed for complete testing.
A basic meter helps, but some issues need a professional test.
What voltage range should I expect while the engine runs?
Most systems aim to maintain voltage somewhere in the vehicle’s charging range under load, typically higher than resting battery voltage. If readings are significantly outside manufacturer specs, there may be a problem with the alternator, regulator, or wiring.
Voltage should rise when running, within the vehicle’s spec. If not, investigate charging components.
What if the alternator output seems ok at idle but drops at higher RPM?
If voltage drops with higher RPM, check belt tension, belt condition, and the alternator’s electrical connections. A slipping belt or failing regulator can cause inadequate charging during higher engine loads.
Belts or regulator might be the culprit if voltage drops at higher RPM.
Is there a safety risk testing while the engine runs?
Yes, there is a risk of sparks and moving parts. Always work with the engine in a safe state, use insulated tools, and avoid touching hot components. If unsure, seek professional assistance.
Be careful: heat and moving parts can cause injuries. Take safety seriously.
Watch Video
Key Takeaways
- Know baseline battery voltage before testing
- Engine-on readings reveal charging status
- Measure at both battery and alternator output when possible
- Inspect connections and wiring for faults
- Use professional tests for diode/rectifier diagnosis if needed
