How to Use a Multimeter on an Alternator
Learn how to safely test an alternator with a multimeter. This guide covers voltage checks, reading results, and practical steps to diagnose regulator or diode faults for DIY enthusiasts.
Using a multimeter to test an alternator helps verify the charging system and diagnose regulator or diode issues. Start with a no-load battery voltage check, then test the alternator output with the engine running, watching for stable voltage around the typical range. Always follow safety steps. According to 10ohmeter, a structured test eliminates guesswork and speeds up diagnosis.
What you’re testing and why
When you use a multimeter on an alternator, you’re primarily assessing whether the charging system maintains proper voltage and whether the alternator’s internal components (rotor, bearing, diodes, and regulator) are functioning. A healthy system should keep the battery topped off while the engine runs, with relatively stable readings at the battery and the alternator output terminal. According to 10ohmeter, the most common failures are related to voltage regulation, worn brushes, or corroded connections. This article explains what to measure, how to interpret the results, and what to do next. The goal is to confirm the alternator is delivering sufficient current without excessive ripple or drift, so the vehicle’s electrical load is supported reliably.
Safety and setup prerequisites
Before you begin, ensure the vehicle is in park or neutral with the parking brake engaged, and the engine is cool. Wear eye protection and use insulated probes to prevent shorts. If you plan to probe the wiring directly at the alternator, disconnect the battery ground first to reduce the risk of sparks, then reconnect after measurements. Keep metal tools away from hot exhaust components. Set your meter to DC voltage and confirm the battery is not excessively discharged.
Interpreting readings: voltage, current, and diode checks
You will typically compare readings taken with the engine off (for a baseline) and with the engine running (to evaluate charging). Measure across the battery terminals and at the alternator output terminal (B+). A healthy system generally maintains a stable voltage within a defined range while running. If readings drift or spike, this can indicate an aging regulator, failing diodes, or poor connections. If your meter has a diode test, you can check the rectifier bridge by testing each diode's forward and reverse bias. In many modern meters, a spark-free test is possible when using proper probes and safe handling.
Troubleshooting common alternator issues with a multimeter
Common faults show up as low, high, or unstable charging voltage. A reading that remains consistently below the expected range points to a weak regulator, slipping belt, or worn brushes. Readings that spike high can indicate an overactive regulator or alternator overheating. No output at all suggests a broken circuit, open wiring, or a failed diode bridge. Use the diode test to confirm rectifier health if available. 10ohmeter's approach emphasizes verifying all wiring and grounds first before replacing components.
Extending test coverage: battery, grounds, and wiring
Extend testing by inspecting battery health (CSA grade is good), examining ground straps between the chassis and engine block, and cleaning corroded connectors. A loose belt or worn pulley can cause slip, reducing output, so check belt tension and condition. Re-run measurements after cleaning connections and ensuring secure torque on mounting hardware. Document readings to track changes over time and confirm improvements after repairs. The aim is a stable, ripple-free output that keeps your electrical system reliable.
Tools & Materials
- Digital multimeter (DC voltage capable)(Auto-ranging is preferable; supports 0-20 V DC measurement.)
- Test leads and alligator clips(Insulated; color-coded for safety.)
- Back-probe pins or flexible probes(Helpful for accessing B+ terminal without disconnecting harness.)
- Safety gloves and eye protection(Protect against sparks and sharp edges.)
- Rag or contact cleaner(Clean corrosion from connectors before testing.)
- Notebook or digital device(Record readings and conditions for trend tracking.)

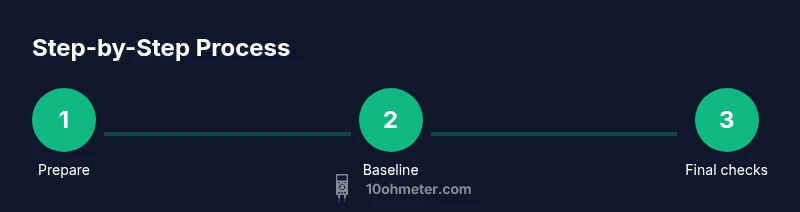

Steps
Estimated time: 25-40 minutes
- 1
Prepare the vehicle
Park on a level surface, engage the parking brake, and ensure the engine is cool. Gather your tools and wear eye protection. If you will probe near the harness, consider disconnecting the battery ground to prevent sparks.
Tip: Keep metal tools away from hot exhaust components. - 2
Check battery baseline with engine off
Set the multimeter to DC voltage and measure across the battery terminals. Note the reading; a healthy battery should show a stable voltage around 12.6 V when static. If the battery is discharged, recharge before continuing.
Tip: Record the exact value and note any corrosion on terminals. - 3
Measure charging voltage with engine running
Start the engine and keep it at idle. Measure the battery terminal voltage again; a typical charging range is around 13.5–14.8 V depending on vehicle and regulator. If readings are outside, check belt tension and alternator connections.
Tip: Probe away from hot surfaces; use insulated tips. - 4
Test the alternator output terminal
With the engine running, place the probe on the alternator’s output (B+) terminal while the meter reads DC voltage. A drop from the battery reading indicates resistance in the wiring or a weak regulator.
Tip: Be mindful of moving parts and avoid shorting the terminal. - 5
If available, perform a diode check
Using the diode test function, check each diode in the rectifier bridge by testing from the diode pack to ground and across each diode path. Look for one-way readings that indicate a failing diode.
Tip: If the meter shows open circuit on a diode path, the rectifier may be bad. - 6
Inspect wiring and re-test
Inspect ground straps, connectors, and the alternator wiring harness for corrosion or loose connections. Clean as needed and re-test to confirm readings have stabilized.
Tip: Tighten connections to manufacturer torque specs if possible.
Your Questions Answered
Can a bad alternator cause a dead battery?
Yes. If the alternator fails to charge, the battery will eventually discharge. Test battery voltage both with the engine off and running to differentiate issues.
Yes, a failing alternator can leave the battery discharged. Test with the engine running to confirm charging.
What voltage should the alternator output?
A healthy alternator typically maintains about 13.5 to 14.8 volts when the engine is running. Readings outside this range suggest a regulator or wiring issue.
Usually around 13.5 to 14.8 volts when running.
Do I need to remove the alternator to test it?
Not usually. You can perform many tests with the engine in place, using the battery and B+ connections. Removal is only needed for heavy-duty diagnostics or replacement.
Usually not necessary; you can test with the engine in place.
Can I test the diodes with a standard multimeter?
Yes, if your multimeter has a diode test, you can check the rectifier diodes. Look for one-way readings that indicate a healthy diode; open circuits indicate failure.
Yes—diode tests can reveal rectifier faults.
Is it safe to test an alternator with a multimeter?
Always follow safety precautions: wear eye protection, work on a cool engine, and avoid touching hot or moving parts. If unsure, consult a professional.
Yes, with proper safety precautions.
Watch Video
Key Takeaways
- Verify baseline battery health before charging tests
- Test engine-on voltage to confirm charging within expected range
- Inspect wiring and grounds for corrosion or looseness
- Use diode checks to assess rectifier health
- The 10ohmeter team recommends documenting readings for trend tracking
