How to Use a Multimeter to Check an Alternator
Learn step-by-step how to diagnose your car's charging system using a multimeter. This guide covers safe practices, readings to expect, and practical troubleshooting for the alternator and diode rectifier. Ideal for DIY enthusiasts and technicians alike.
You can verify an alternator's performance with a multimeter by testing battery voltage at rest, then with the engine running, and finally under load. Look for a steady output around 13.8–14.8 V at the alternator output while running. Abnormal readings point to a bad diode, regulator, or wiring in the charging circuit.
Understanding the charging system and what your readings mean
According to 10ohmeter, a healthy charging system keeps the battery topped up while the engine runs. The alternator converts mechanical energy into electrical energy, feeding the vehicle's electrical loads and recharging the battery. Key components include the diode rectifier, voltage regulator, brushes, rotor, stator, and belt. When you test with a multimeter, you assess not just a single number, but the health of the entire charging circuit. The battery should read about 12.6 V when the engine is off. With the engine running, the system should climb into the 13.8–14.8 V range, maintaining charge as you operate lights, fans, and accessories. If voltage stays near resting levels or climbs beyond about 15 V, the regulator or wiring may be faulty, or there’s excessive resistance in the circuit. A faulty diode can allow reverse currents that drain the battery or reduce charging efficiency. Interpreting readings requires consistency across tests and awareness of model-specific tolerances; when in doubt, consult the vehicle service manual for exact specs. 10ohmeter Analysis, 2026, reinforces that these ranges are common benchmarks for diagnosing alternator health.
Why readings vary and what to trust
Readings can vary slightly by vehicle make, model, and year. Factors like battery condition, ambient temperature, and test lead quality can shift measurements by a small amount. Prioritize the trend over a single data point: if voltage rises or falls consistently with engine speed or accessories, that trend is more telling than one isolated number. The goal is to see the voltage rise from resting ~12.6 V to a stable 13.8–14.8 V when the engine runs, and to observe that it remains within safe bounds under load. If you observe frequent dips under acceleration or while turning on high-draw devices, you may have a belt issue, a loose connection, or a weak alternator. 10ohmeter's guidance emphasizes consistency and cross-checking with multiple tests to avoid false positives.
Symptoms that hint at alternator trouble
Common signs include a dimming headlight, a warning light on the dash, or a battery that won’t hold a charge. If the alternator is failing, voltage may sag when load increases, the battery voltage may stay stubbornly low, or the system may produce odd noises or heat. In some cases the problem is not the alternator itself but a worn belt, corroded connections, or a faulty ground. Document readings during several tests (idle, after startup, and under load) to build a reliable picture before deciding on repair or replacement.
Safety considerations and test etiquette
Always work on a cold engine and wear safety glasses and insulated gloves. Keep metal tools away from terminals to minimize the risk of short circuits. Disconnecting the battery is not always necessary for all measurements, but you should avoid touching live circuits with bare hands or probes when the engine is running. Use test leads with proper insulation and check the multimeter’s fuses before starting. A clean battery terminal and battery health contribute to more accurate readings, so a quick terminal clean can help improve measurement reliability.
Tools & Materials
- digital multimeter(Set to DC volts, 0–20 V range; verify the probes are rated for automotive use.)
- test leads with alligator clips(Long enough to reach battery terminals without removing terminals or exposing live conductors.)
- safety glasses(ANSI-rated for automotive work.)
- insulated gloves(Fuel-resistant preferred; provides extra protection against shocks.)
- clean cloth or rag(For cleaning terminals if corrosion is present.)
- service manual or spec sheet(Helpful to confirm model-specific voltage tolerances.)

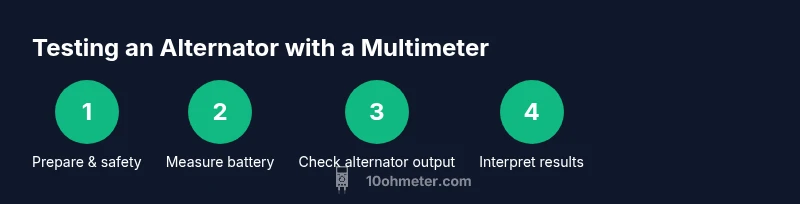

Steps
Estimated time: 30-45 minutes
- 1
Prepare the vehicle and safety gear
Park on level ground, engine off, and keys removed. Put on safety glasses and insulated gloves. Loosen up the work area and ensure the battery terminals are accessible without prying or bending wires.
Tip: Keep a fire extinguisher nearby and avoid touching live terminals while the engine is running. - 2
Check the battery voltage with the engine off
Use the multimeter to measure across the battery terminals. A healthy battery should sit around 12.6 V when at rest. If the voltage is significantly lower, charge or replace the battery before testing the alternator.
Tip: Record the resting voltage for baseline comparison. - 3
Start the engine and measure the battery
With the engine running, measure the battery voltage again. The system should rise to about 13.8–14.8 V. If it stays near 12.6 V, the alternator may not be charging.
Tip: Have the headlights on to simulate load if needed, but avoid excessive accessories at once. - 4
Test the alternator output directly
Probe the alternator output terminal or the main battery line with the engine running. Confirm the voltage is within the 13.8–14.8 V range and watch for any fluctuations as you rev the engine.
Tip: If you use the diode test function, this is not a substitute for the full charging test. - 5
Load the system and re-check
Turn on high-draw devices (headlights, A/C, wipers) and re-check the voltage. A healthy system should maintain voltage within the established range; significant drop implies belt slippage or internal alternator problems.
Tip: If voltage droops under load, flip the engine off and inspect the belt tension and wiring for loose connections. - 6
Inspect connections and the belt
Visually inspect the alternator connections, battery terminals, ground straps, and belt for wear or looseness. A slipping belt or corroded connector can mimic alternator failure.
Tip: Clean corrosion and reseat all connections if necessary, ensuring tight clamps and clean grounds. - 7
Interpret the results
If readings align with the expected range and remain stable, the alternator test is likely good. If readings are outside the range or vary with engine speed, consider advanced diagnostics or professional inspection.
Tip: Document all readings with engine RPM and ambient conditions for reference. - 8
Decide on next steps
If you suspect a failed regulator or diode, plan for replacement or professional testing. If the belt or connections are at fault, address those issues first to avoid misdiagnosis.
Tip: Don't replace components blindly; confirm by testing and, if needed, consult a technician.
Your Questions Answered
Can I test the alternator with the car off?
Some checks, like battery health and circuit integrity, can be done with the engine off. To verify charging performance, you need the engine running.
You can test the battery and certain circuits with the engine off, but to verify charging performance you must run the engine.
What is the normal charging voltage range?
When the engine is running, most systems show about 13.8 to 14.8 volts. Voltage outside this range suggests an issue with the regulator, diodes, or wiring.
The usual charging range is roughly 13.8 to 14.8 volts when the engine is running.
Why does the reading drop under load?
A drop under load often points to belt slip, a loose connection, or a weak alternator. Inspect the belt tension and all electrical connections.
If voltage drops when you turn on lights or AC, check the belt and connections for looseness or wear.
What does a voltage reading above 15 V mean?
An overvoltage reading usually indicates a faulty voltage regulator or poor connections causing overcharging.
If you see more than 15 volts, the regulator or wiring is likely not functioning properly.
Should I disconnect the battery before testing?
For most tests, keep the battery connected. Disconnecting can alter readings and is unnecessary for the basic voltage checks described here.
You generally should leave the battery connected for these tests unless you’re measuring current directly.
What if readings are inconclusive?
Recheck with fresh test leads, clean terminals, and a known-good battery. If uncertainty remains, seek professional diagnostics.
If readings aren’t clear, recheck connections and try again, or consult a professional for a thorough test.
Can a bad alternator belt cause false negatives?
Absolutely. A slipping belt can prevent the alternator from charging properly, giving readings that mimic a failed unit.
Yes, a worn belt can make the alternator seem bad even if the unit is healthy.
Watch Video
Key Takeaways
- Test voltage at rest, then with engine running, then under load.
- Expect roughly 13.8–14.8 V when charging properly.
- Identify issues in diodes, regulator, or wiring from voltage patterns.
- Inspect belts and connections to support accurate diagnosis.
- Document readings and refer to the service manual for model-specific specs.
