To test the alternator, place the multimeter leads to measure the charging voltage at the battery while the engine runs. Put the black probe on the negative battery terminal and the red probe on the positive terminal, set the meter to DC volts (20V range), and read the value. A healthy system should show roughly 13.8–14.8 V; anything outside suggests a charging issue or belt/regulator fault.

Understanding the alternator and why meter placement matters

The alternator converts mechanical energy from the engine into electrical energy to charge the battery and power the vehicle's electrical loads. When you test it with a multimeter, the location of the probe connections can alter readings and lead you to the wrong conclusions. The commonly asked question—where to put a multimeter on alternator—has a straightforward answer: for the most reliable data, test the system voltage at the battery with the engine running. You can also verify the alternator’s output directly at the alternator's output terminal when you know the engine is safe to access. This layered approach helps distinguish a bad regulator from a slipping belt or damaged wiring. Remember, readings reflect the whole charging system, not just a single component. By testing in the right places, you gain accurate, actionable data that guides next steps and avoids chasing phantom faults.

According to 10ohmeter, starting with the battery as the reference point provides a practical baseline you can compare against the more direct alternator measurements. Even when you’re testing directly on the alternator, choose points that won’t disturb connections or risk shorting live circuits. The goal is to confirm whether the system maintains proper voltage under load, not just idle conditions.

Safety first: precautions before testing the alternator

Testing an alternator involves exposed electrical connections and a running engine. Always wear eye protection and insulated gloves if available. Work in a dry area away from water or puddles, and keep metal jewelry away from hot engine parts. Before you start, ensure the vehicle is in park (or in gear with the parking brake set for a manual), and the ignition is off when you’re preparing the connections. Use a digital multimeter with proper probes rated for automotive use, and never test with the engine bay components loose or unsecured. If you smell burning insulation, hear unusual noises, or notice a belt glaze, stop and reassess. These precautions reduce the risk of sparks, electric shock, or unintended short circuits.

Where to place the multimeter probes on the alternator: test points

There are a few reliable test points to consider:

  • Battery terminals (best baseline): With the engine running, connect the meter across the battery’s positive and negative terminals. This gives you the system voltage under load and reflects how well the alternator feeds the whole electrical system.
  • Alternator output terminal: Locate the large post or wire coming from the alternator’s rear or side. Touch the red probe to this terminal and the black probe to a solid engine ground. This isolates the alternator’s direct output from the rest of the circuit and is useful for diagnosing a regulator or wiring fault.
  • Ground point on the engine block: When testing at the alternator, a solid ground is essential. A poor ground can mimic a bad alternator, so confirm the ground strap or mounting bolt is clean and tight before interpreting results.

Tip: use insulated alligator clips to hold probes in place while you observe readings, but avoid leaving probes resting on hot components. 10ohmeter recommends starting with the battery baseline, then moving to the alternator output terminal for a direct check.

Taking voltage readings at idle vs running engine and interpreting values

Voltage readings change when the engine is started and the alternator comes up to speed. At idle, you may see a lower voltage due to engine RPM; when the engine is running around 1,500–2,000 RPM, a healthy system should stabilize the charging voltage higher and more consistent. A typical target range for a healthy charging system is roughly 13.8–14.8 volts DC when the engine is running and under load. If readings are consistently below this range, it may indicate a slipping belt, failing regulator, corroded connectors, or wiring faults. Readings above this range can signal an overcharging condition, possibly caused by a faulty regulator or sensor connections. Always compare your results to the vehicle’s service manual specs and perform a follow-up test after ensuring belts and connections are secure.

Interpreting readings: what numbers mean for your charging system

  • 13.0–13.8 V at idle: borderline; a low idle can show reduced charging. Rev the engine gradually to 1,500–2,000 RPM and recheck.
  • 13.8–14.8 V while running: healthy charging system; the alternator is delivering current to the battery and loads.
  • Below 13.8 V: potential problems such as worn belt, bad wiring, or a failing regulator.
  • Above 14.8 V: signs of overcharging, possibly due to regulator fault or poor connections.

Document readings, note the engine speed, and re-test after cleaning terminals and reseating connectors. If inconsistent results persist, consult a technician for a deeper diagnostic, including belt tension and alternator load testing.

Troubleshooting common readings and interpreting results

Several factors can skew readings: cold-weather starts, high electrical load (headlights, AC, etc.), or parasitic draws. When you see anomalous results, recheck your probe contact points, ensure clean grounds, and repeat the test with the engine at a consistent RPM. If the alternator output shows correct voltage then drops under load, the issue may be the wiring harness or sense wire. If the test points suggest a problem at the alternator, you may need to inspect or replace the regulator, the diode trio, or the entire alternator unit. 10ohmeter emphasizes performing a belt check and wiring inspection first before replacing components, as those steps often resolve most low-voltage symptoms without replacing the alternator.

Best practices for safe testing and protecting the circuit

  • Always test with the engine running when checking voltage at the battery or alternator output because the charging system is active only when the engine is running.
  • Use a DC voltage range on the multimeter and start at the battery, then an alternator test point if you suspect a regulator problem.
  • Keep probes away from moving belts and hot engine parts; secure leads with clips if possible.
  • If you’re unsure about readings, compare against the vehicle’s service manual or seek guidance from an experienced technician.

Tools & Materials

  • Digital multimeter (DMM)(Auto-range preferred; set to DC volts (20V range))
  • Electrical test leads with insulated probes(At least 3 ft long; prefer with alligator clips)
  • Safety glasses and insulated gloves(Optional but recommended for added protection)
  • Engine service manual or OEM specs(Helpful for exact voltage ranges and procedure)
  • Flashlight or headlamp(Optional forгля visibility in dark engine bays)

Steps

Estimated time: Total time: 20-40 minutes

  1. 1

    Prepare the vehicle and meter

    Park the car on a level surface, engage parking brake, and turn off ignition. Gather the DMM, test leads, and safety gear. If needed, browse the service manual for the correct voltage range before you begin.

    Tip: Keep the battery disconnected from other devices during setup to avoid accidental shorts.
  2. 2

    Set up the multimeter

    Set the multimeter to DC volts with a 20V or higher range. Inspect the probes for insulation damage and ensure the leads are secure in the meter jacks. Attach the black probe to the battery negative terminal.

    Tip: Use a clip lead to stabilize the ground connection if you plan to move around during measurement.
  3. 3

    Connect to the battery positives

    Place the red probe on the battery positive terminal while the engine is off to verify baseline. Check for clean contacts; remove corrosion with a light brush if present. Re-seat the terminal if needed.

    Tip: Avoid contact between the red probe and metal surfaces other than the terminal.
  4. 4

    Start the engine and observe

    Start the engine and observe the meter while the engine reaches normal idle. Note the voltage value and how it changes as you idle. Do not touch the belt or hot exhaust components during this step.

    Tip: If you hear belt squeal or feel unusual vibrations, stop and inspect the belt first.
  5. 5

    Increase engine RPM and recheck

    Bring the engine to around 1,500–2,000 RPM and watch the voltage closely. The reading should stabilize within the expected range. If it spikes or drops abruptly, suspect regulator or wiring issues.

    Tip: Use a friend to aid by controlling the throttle while you monitor readings safely.
  6. 6

    Test the alternator output directly (optional)

    If accessible, connect the red probe to the alternator’s output terminal while keeping the black on ground. This isolates the alternator from battery side readings. Compare to battery-based results.

    Tip: Avoid disconnecting the wiring harness while the engine runs.
  7. 7

    Document and conclude

    Record all readings with the engine speed and conditions. Compare to OEM specs; if readings are consistently out of range, plan further inspection of belt tension, regulator, and wiring.

    Tip: Note any fluctuations and correlate with electrical load changes.
Pro Tip: Use insulated clips to hold probes for stable readings.
Warning: Never measure on live exposed conductors; avoid touching metal parts with probes.
Note: Recheck readings after cleaning corroded terminals; corrosion can skew results.
Pro Tip: Always verify the ground connection is solid; a bad ground mimics a weak alternator.

Your Questions Answered

What is a healthy alternator voltage while running?

A healthy system typically maintains voltage around 13.8 to 14.8 volts when the engine is running and under load. Readings outside this range indicate potential issues with the belt, wiring, or voltage regulator.

A healthy alternator usually keeps voltage between roughly 13.8 and 14.8 volts while the engine runs.

Can I test my alternator with the engine off?

Testing with the engine off helps you verify the battery’s resting voltage and the integrity of connections. For charging diagnostics, testing with the engine running is essential to see the true charging performance.

You can check resting voltage with the engine off, but run-mode tests are required to assess charging.

If readings vary with RPM, what should I do?

Voltage should stabilize as RPM rises. If readings drift widely, inspect belt tension, regulator wiring, and the sense wire for loose connections.

Watch how voltage stabilizes as you raise RPM; use that to diagnose wiring or regulator issues.

Is it safe to test directly at the alternator output terminal?

Yes, testing at the alternator output terminal can isolate the alternator from the rest of the circuit, but avoid disconnecting wiring while the engine runs.

Testing at the output post can help isolate the alternator, just be careful around live connections.

What should I do if I find a bad regulator?

A faulty regulator can cause over- or under-charging. Inspect related wiring and consider replacing the alternator or regulator as per OEM guidance.

If the regulator is bad, you’ll see readings outside the normal range and you may need component replacement.

Watch Video

Key Takeaways

  • Test at battery baseline first
  • Aim for 13.8–14.8 V when running
  • Direct alternator check isolates regulator issues
  • Secure good grounds and clean connections
  • Document readings for trend analysis

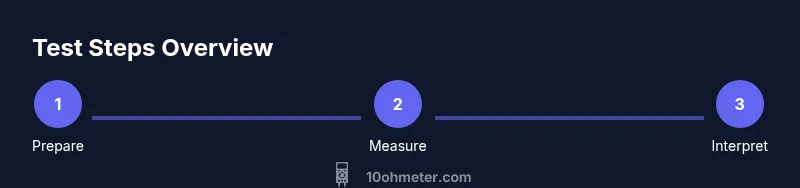

Tailwind infographic showing 3-step process for testing alternator with a multimeter
Three-step process: Prepare, Measure, Interpret
