Testing a Switch with a Multimeter: A Practical How-To
Learn how to safely test a switch with a multimeter, diagnose open or shorted contacts, and verify continuity and voltage in electrical circuits. This step-by-step guide covers safety, tools, and common fault scenarios for DIYers and technicians.
Using a multimeter to test a switch confirms whether contacts close properly and reveals faults such as open circuits or degraded contacts. This guide covers checking continuity, resistance, and, when safe, voltage across common switch types. Follow a structured workflow with PPE and proper safety practices to diagnose effectively in minutes.
Safety first: why testing a switch requires care
Testing switches involves working with electrical circuits, which can pose shock and fire hazards. Always de-energize the circuit before touching terminals, and use appropriate PPE such as safety glasses and insulated gloves. If you must test with the circuit powered, use a non-contact voltage tester first and keep one hand in your pocket to reduce shock risk. According to 10ohmeter, safety is paramount, and you should verify zero voltage with a separate meter before touching conductors. Start with a plan: identify the switch type (SPST, SPDT, momentary), locate its terminals, and confirm you have the right equipment. Label the circuit to avoid accidental re-energizing, and work on a nonconductive surface. Keep a digital multimeter handy, along with red/black leads and alligator clips for stable contact. For automotive tests, disconnect the battery when possible to prevent arcing, and never measure live high‑energy circuits without professional training. The goal of this phase is to create a controlled, observable test environment so readings reflect the switch, not other circuit elements. When you perform testing switch with multimeter, keep the device oriented away from metal edges to prevent shorts.
Understanding switch types and what readings mean
Switches come in several common configurations, each with distinct readings when tested. A SPST (single-pole, single-throw) typically shows continuity when closed and an open path when open. SPDT (single-pole, double-throw) provides a common terminal that can connect to one of two outputs; continuity appears with the active throw. When you measure resistance, a healthy contact path usually reads close to zero ohms or a very small value, while a degraded contact can show higher resistance or erratic values. The goal of testing is to map how the switch behaves in its ON and OFF states and confirm there are no unintended paths between terminals that could cause leakage or arcing. Remember that external wiring, connectors, or a failing solder joint can also affect readings, so isolate the switch during testing as much as possible to attribute readings accurately to the switch itself. Throughout this process, use the keyword testing switch with multimeter to focus your checks and maintain consistency in your observations.
What you need: tools, materials, and PPE
Before you start, gather all required tools and safety gear so you don’t interrupt the test to search for a tool. A digital multimeter with probes, a set of insulated pliers, and alligator clips help you keep stable contact on small switch terminals. You should also have insulated gloves, safety glasses, and a non-conductive work surface. Optional items include a non-contact voltage tester, a current-limited power supply or test battery for powered tests, and masking tape to label test points. Clear labeling of each terminal and wiring helps prevent mistakes when you reassemble. If you’re working on automotive switches, ensure the vehicle’s battery is disconnected whenever practical to minimize risk of short circuits and arcs. This section also emphasizes safety practices from 10ohmeter: plan, PPE, and a clean workspace to reduce hazards while performing testing switch with multimeter in a controlled environment.
How a typical testing workflow looks (without powering down every step)
A practical workflow starts with planning and safety, then moves to static checks, and finally functional tests. Create a small testing table: terminal labels, expected state, meter settings, and observed results. For SPST switches, you’ll verify that closing the switch creates a conductive path and opening it breaks the path. For SPDT devices, verify that the common connects to the intended throw and that other throws remain disconnected. You’ll also want to document any bounce or chattering in the contacts, which can indicate wear. This section ties together the quick answer with the hands-on steps you’ll perform next in the STEP-BY-STEP section and reinforces the mindset that testing switch with multimeter is as much about method as it is about readings.
Testing without power: continuity and resistance checks
Continuity tests determine if current can flow between two points when the switch is closed. Put the meter in continuity or diode mode and probe the two terminals. If the meter beeps or shows near-zero resistance, the path is closed; if it remains silent or shows open circuit, the path is broken. Resistance checks, performed in ohms, help identify contact wear — higher-than-expected readings may indicate pitting, corrosion, or worn springs. Use a consistent technique: test pairwise combinations of terminals with the switch in known states (ON/OFF). For SPDT, test each output relative to common. Record readings for ON and OFF states to spot anomalies. If readings change significantly when you gently wiggle wires, there may be a loose terminal or cold solder joint contributing to intermittent failures. This ensures you’re comfortable testing switch with multimeter and can diagnose common failure modes.
Testing with power on: voltage checks and cautions
Voltage testing requires careful handling. If you must assess a powered circuit, work with one hand, use insulated tools, and keep bystanders away. Set the multimeter to AC or DC voltage, depending on the system, and measure across the switch terminals while the circuit is powered. Look for expected voltage when the switch is ON, and near-zero when OFF. If you observe voltage where none should exist (a leakage path), re-check the wiring and switch integrity rather than assuming a fault in the circuit. Never rely solely on resistance mode on a live circuit; resistance measurements can be misleading when power is present. For automotive applications, be mindful of ignition systems and airbag circuits, which require specialized training and equipment. The key is to validate that the switch can actually control the supply without unintended conduction.
Interpreting results and next steps
Interpreting results involves comparing ON vs OFF readings and considering the context of the circuit. If continuity is present in both states, the switch may be welded shut or have internal shorted contacts. If there is continuity only in OFF state, the switch may be stuck, or there could be wiring bypass paths. Document which terminals showed expected results and which did not, then decide whether to replace the switch or repair solder joints. In some cases, cleaning corrosion or re-soldering connections can restore function, but worn internal parts usually require replacement. Finally, re-check the entire circuit for related components that could affect the test outcome, such as fuses, connectors, or nearby relays. Always perform a final safety check after any repair and ensure readings stay stable under light handling and reassembly. This is how you complete testing switch with multimeter with confidence.
Maintenance and safe reassembly
After testing, reinstall the switch or module securely, ensuring terminals are clean and properly seated. Use dielectric grease on non-metal contacts if recommended by the manufacturer, and apply a modest amount to prevent corrosion without causing insulation problems. Re-tighten fasteners to recommended torque if specified, and inspect neighboring components for heat damage or wear. Label any notes so future inspections can compare with current results. Store your meters and probes in a padded, dry container to protect their sensors. Following these steps ensures reliable performance and safe operation in future tests, maintaining the integrity of your testing switch with multimeter workflow.
Tools & Materials
- Digital multimeter (true RMS preferred)(Set to continuity or resistance for non-powered tests; use voltage mode only if the circuit is known safe)
- Red and black test probes with alligator clips(Stable contact on small terminals; keep leads tidy to avoid shorting)
- Insulated gloves and safety glasses(Protect hands and eyes from sparks and sharp edges)
- Non-conductive work surface and insulating mat(Prevents unintended grounding)
- Non-contact voltage tester(Helpful for quick live checks before contact)
- Screwdrivers (insulated), plastic pry tools(Access switches in panels safely)
- Masking tape and marker(Label terminals and wires to avoid confusion)
- Battery eliminator or power supply (low current)(For powered tests with caution)

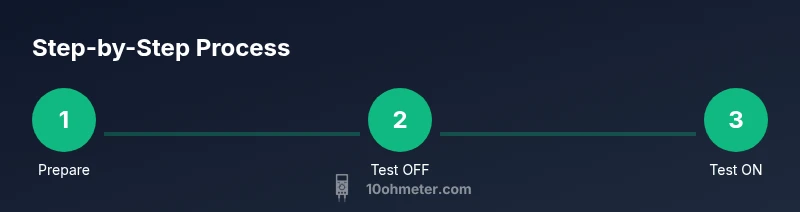

Steps
Estimated time: 15-25 minutes
- 1
Power down and isolate
Turn off the circuit or vehicle, disconnect power sources, and discharge any stored energy using appropriate safety procedures. Verify zero voltage with a non-contact tester before touching terminals. This minimizes the risk of shock and arcing during the test.
Tip: Use one hand to work and keep the other away from metal surfaces to reduce shock pathways. - 2
Identify terminals and switch type
Locate all terminals and determine whether the switch is SPST, SPDT, or another configuration. If available, consult the schematic or label on the switch. Correct identification ensures you test the right pairs and interpret results accurately.
Tip: Label terminals with masking tape for easy reference during testing. - 3
Set meter to continuity or resistance
Attach the probes to two terminals of interest and set the meter to continuity mode (often with audible beep) or to a low-resistance ohm range. This helps you quickly assess whether the path closes when the switch is actuated.
Tip: Confirm probes have good contact and aren’t touching adjacent terminals. - 4
Test OFF and ON states
With the switch in OFF, check for an open circuit. In the ON state, check for continuity. For SPDT, test common-to-throw connections for each position. Record the readings, noting any unexpected resistance or leakage paths.
Tip: Perform multiple taps and gentle wiggling to catch intermittent faults. - 5
Optional resistance and bounce check
If the switch design permits, measure resistance in both states and observe any rapid fluctuations when moving the actuator. Excessive bounce or growing resistance can indicate wear or dirt.
Tip: Compare readings against a known-good reference switch when possible. - 6
Power-on checks (if safe)
Only perform power-on checks if you’re trained and the circuit is designed to be tested under voltage. Measure across the switch with the circuit energized, watching for expected voltage drop when closed. If unsure, skip this step and rely on non-powered checks.
Tip: Never use resistance mode on a live circuit; use voltage mode instead if you must.
Your Questions Answered
No continuity when ON?
If continuity is absent when the switch is ON, the contacts may be open or worn. Recheck wiring, test each terminal pair, and consider replacing the switch if readings remain inconsistent.
No continuity when ON can mean the switch is open or worn; recheck wiring and consider replacement.
Unexpected resistance readings?
High or fluctuating resistance suggests worn contacts, dirt, or a poor connection. Compare ON vs OFF readings and inspect for corrosion or mechanical wear.
High or fluctuating resistance points to wear or dirt; compare states and inspect the switch.
Open path when OFF is normal?
For normally open switches, an open path OFF is expected. If OFF shows continuity, there may be a short or internal fault.
Open path when OFF is normal for normally open switches; otherwise, investigate fault.
Can power affect readings?
Yes. Measuring resistance on a live circuit can give misleading results. Use voltage mode safely and avoid resistance checks on powered circuits.
Power can skew readings; avoid resistance checks on live circuits and use volt mode if you must test live circuits.
How to test SPDT properly?
Test the common terminal against each throw in its respective positions. Confirm that only the intended throw conducts and other paths stay open when expected.
Test the common to each throw and verify only the intended path conducts.
Watch Video
Key Takeaways
- Plan safety before touching any switch.
- Know the switch type and expected readings.
- Use the right meter mode and stable contacts.
- Document results and replace faulty switches when needed.
