Test Light Switch with Multimeter: Step-by-Step Guide
Learn how to test a light switch with a multimeter safely and accurately. This 10ohmeter guide covers voltage checks, continuity tests, and common troubleshooting tips for DIY enthusiasts and technicians.
In this guide you will safely test a light switch with a multimeter to verify power presence, continuity, and switch operation. You’ll learn how to power down properly, verify wiring, and perform both continuity and voltage checks before reassembly.
Safety first: Why test a light switch with a multimeter matters
Testing a light switch with a multimeter helps verify wiring integrity, confirm the switch is actually breaking the circuit, and catch potential faults before they cause a shock or fire. According to 10ohmeter, taking a methodical approach reduces risk and improves accuracy. This topic is essential whether you’re wiring a new fixture or troubleshooting an erratic switch. The goal is to determine whether the switch opens and closes the circuit correctly and whether the supply and load are behaving as expected, without exposing yourself to live voltage. When you test, you’ll combine a continuity test with voltage checks to build a complete picture of the switch’s health. Remember: never rush, and always respect the hazard of electrical systems.
Understanding the switch circuit and what to measure
A typical wall switch sits between the hot supply and the light fixture. In the OFF position, the switch should interrupt current flow; in the ON position, continuity should exist between the two terminals. A multimeter lets you test continuity, measure resistance, and, with AC voltage settings, verify the presence of voltage. Knowing the type of switch (single-pole, three-way, dimmer) affects how you interpret readings and where you place the probes. Keep the circuit’s context in mind: a bad connection, a loose wire, or a faulty switch can mimic other problems, so clarity about the wiring path is essential.
Common types of light switches and how they affect testing
Single-pole switches are the simplest and typically show a straightforward continuity change between ON and OFF. Three-way switches introduce a traveler wire and require testing across multiple terminals. Dimmer switches add resistance and potential electronic components that may affect readings. For all types, a clean interpretation starts with a correct wiring diagram or photo of the box, so you know which terminals correspond to the hot, the load, and the travelers where applicable.
Prep work: power off, PPE, and workspace
Before touching a switch box, switch off the circuit at the breaker and verify there is no voltage present with a non-contact tester. Use insulated tools and wear eye protection. Clear the area of liquids and ensure the work surface is dry. Label wires or take a photo before disconnecting anything so you can restore the original wiring. Good prep minimizes the risk of shock and makes later reassembly a breeze.
Safety checks before you touch anything
Never trust a single check; always verify multiple times. Use a non-contact voltage tester to check the box for live conductors and verify that the terminals are not energized. If your tester indicates voltage, turn the breaker off again and re-test after waiting a few seconds. PPE such as insulated gloves and safety glasses adds a margin of safety when you're working in a live environment—even temporarily during testing.
Isolating the switch: removing the cover and wires safely
Carefully remove the faceplate and switch body from the wall, exposing the terminals. Do not touch bare conductors with metal tools. If any wire is loose or corroded, take a photo and secure it with a wire nut or electrical tape as you proceed. Keep the ground wire in view and avoid creating a short by bridging terminals with tools.
Continuity test: how to verify switch opens and closes
Set the multimeter to a continuity or low-resistance range. With the circuit de-energized, place the probes on the two switch terminals and toggle the switch from OFF to ON. You should see high resistance (no continuity) when OFF and a clear continuity (low resistance) when ON. If readings don’t change with the switch, the switch is likely faulty or miswired.
Voltage checks on live circuits: verifying supply and load
If you must verify voltage, re-energize the circuit carefully and measure between the hot line and the load on the switch while you toggle it. Use the AC voltage setting on the meter and keep your hands clear of exposed conductors. If you do not see voltage on the supplied side when the switch is ON, recheck wiring or consult a professional. If you’re using a non-contact tester, the absence of a neon glow indicates no live voltage at the box.
Interpreting test results: good vs. bad readings
A good switch test shows continuity only when ON, no continuity when OFF, and correct hot/neutral relationships in voltage checks. A bad switch may show continuity in OFF position or no continuity in ON position, or inconsistent voltage readings that don’t align with the expected wiring. Always compare your results with the circuit’s wiring diagram or the fixture’s specification sheet.
Common pitfalls and how to avoid them
Don’t test with the power on unless you’re trained and equipped. Avoid using metal tools to probe inside the terminal area. Don’t assume a non-contact tester is sufficient for all checks; use a real measurement when verifying resistance and continuity. Finally, never skip a reassembly test—recheck all connections and ground paths after restoration.
Special cases: 3-way switches, smart switches, and dimmers
Three-way switches and dimmers complicate testing because of travelers and electronics. For 3-ways, test across the two symmetrical terminals and the traveler paths to confirm proper operation. For smart switches, ensure the device is powered and the app or companion module is in a known state before interpreting readings. When in doubt, consult the wiring diagram.
Maintenance, documentation, and next steps
Document the observed readings and the exact wiring configuration for future troubleshooting. If you discover a faulty component, replace it with one that matches the old one’s rating and type. Clean the wall box area, label any changes, and test again after reassembly to confirm stable operation.
Tools & Materials
- Multimeter (digital preferred)(AC voltage setting and a continuity/low-resistance range)
- Test leads or probes(With insulated grips; ensure alligator clips are optional)
- Non-contact voltage tester(Helpful for quick voltage checks)
- Insulated screwdriver set(For removing the faceplate and switch screws)
- Wire labels or tape(For reassembly clarity)
- Safety glasses and gloves(Personal protective equipment)
- Camera or phone photo(Document wiring before removing components)

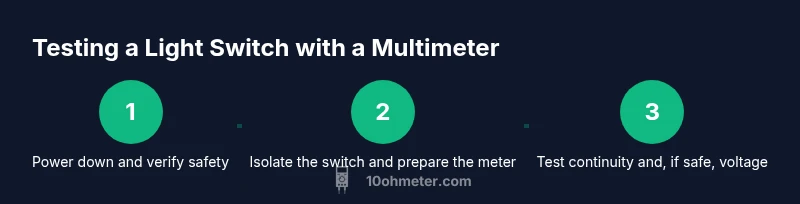

Steps
Estimated time: 45-60 minutes
- 1
Power down and verify safety
Turn off the circuit at the breaker, then confirm the area is de-energized using a non-contact tester. This prevents accidental shock as you prepare to inspect the switch.
Tip: Always verify with two independent methods. - 2
Remove the faceplate
Use an insulated screwdriver to remove the wall plate screws and gently lift the plate away from the box.
Tip: Keep screws organized in a labeled container. - 3
Isolate the switch
Disconnect the switch from the box by loosening the terminal screws and carefully detaching the wires. Do not touch exposed conductors.
Tip: Take a quick photo of the wiring before detaching. - 4
Set up for continuity test
Set the multimeter to continuity or low-resistance mode and check that the leads are functioning by touching them together.
Tip: If the meter beeps, the leads are good. - 5
Test continuity across terminals
Place probes on the two switch terminals and toggle the switch to ON and OFF. Expect continuity in ON and none in OFF.
Tip: Record readings and confirm they match the expected behavior. - 6
Check for voltage (optional, live test)
If you’re trained and the setup is safe, re-energize the circuit and measure between the hot terminal and load while toggling the switch. Use caution and keep hands away from exposed conductors.
Tip: Only perform live tests if you know how to stay safe. - 7
Interpret results and diagnose
Compare readings to the expected pattern for your switch type. A faulty switch or loose connection will show incorrect continuity or voltage behavior.
Tip: Consult wiring diagrams if readings are unclear. - 8
Reassemble and test again
Reconnect wires, reattach the switch, screw in the plate, and restore power. Rerun the continuity test and voltage checks to confirm stable operation.
Tip: Take a final photo of wiring configuration.
Your Questions Answered
Can I test a light switch without turning off power?
No. Working with a powered circuit increases the risk of shock or arc flash. Always power down, verify with a tester, and use insulated tools.
No. Always power down and verify de-energized before testing with a multimeter.
What does continuity tell me when the switch is OFF?
If there is continuity when OFF, the switch is likely faulty or wired incorrectly. The OFF state should interrupt current.
Continuity when OFF usually means the switch is bad or there’s a miswiring.
Is it safe to test live voltage on a switch?
Live testing is hazardous. Only perform if you’re trained, equipped, and following strict safety protocols.
Live testing is dangerous; only do it if you’re trained and have the right safety setup.
How do I test a three-way switch?
Three-way switches require testing across multiple terminals and travelers. Use the wiring diagram and test in all switch positions.
Three-way switches need testing across all terminals and travelers to verify proper operation.
What should I do if readings don’t match expectations?
Recheck the wiring, verify the correct terminals, and repeat tests. If in doubt, consult a professional.
If readings don’t match expectations, recheck wiring and repeat tests.
What maintenance should follow a switch test?
Reattach everything securely, restore power, and perform a final continuity test to confirm stable operation.
After testing, reassemble correctly and run a final check.
Watch Video
Key Takeaways
- Power down and verify safety before testing.
- Use continuity tests to confirm switch operation, OFF vs ON.
- Cross-check readings with the wiring diagram for accurate diagnosis.
- Document wiring changes for future troubleshooting.
- Always re-test after reassembly to confirm stable operation.
