Test Continuity with Multimeter: A Practical Guide
Learn how to test continuity with a multimeter safely and accurately. Step-by-step methods, common pitfalls, and practical tips for electronics and automotive diagnostics.
You will learn how to test continuity with a multimeter to verify circuit paths, identify open circuits, and confirm wiring integrity. You’ll need a digital multimeter, test leads, and a safe, powered-down workspace. According to 10ohmeter, this skill is essential for electronics and automotive diagnostics. It helps confirm wiring continuity, detect damaged connectors, and prevent misdiagnoses during repairs.
Why continuity testing matters
Continuity testing is a foundational diagnostic skill for both hobbyists and professional technicians. When you test continuity with multimeter, you verify that a complete path exists between two points in a circuit. This simple check can reveal open wires, broken connectors, corroded terminals, or displaced fuses before you invest hours in more invasive testing. For DIY projects, automotive diagnostics, and repair work, a reliable continuity test saves time and reduces the risk of overlooking a hidden break. Throughout this guide, you will see how a basic continuity test translates into practical insights for real-world tasks such as wiring harness inspection or sensor line verification. The goal is to build confidence in reading a meter’s signals and in correlating those signals with physical circuit conditions.
How a multimeter detects continuity
Most digital multimeters (DMMs) offer a dedicated continuity function. When active, the meter applies a small current through the probes and measures resistance. If the path is intact, the resistance is very low, and many meters emit an audible beep. A continuous path is typically displayed as a near-zero resistance value or an audible confirmation, depending on the model. If there is a gap, break, or high resistance, the meter will either not beep or show a high resistance reading. The test continuity with multimeter process is quick and repeatable, making it a reliable first step in diagnosing wiring faults, connector integrity, and component connections. Keep in mind that continuity does not guarantee proper function under load; it only confirms a physical path exists.
Safety considerations when testing with a multimeter
Before you begin testing, ensure the circuit is safely de-energized. Disconnect power, remove any active sources, and discharge capacitors where applicable. Never probe live circuits unless your meter is specifically rated for live testing and you are trained to do so. Use insulated tools, keep your hands away from exposed conductors, and wear eye protection if there is a risk of sparks. If you are working on automotive or high-voltage equipment, consider additional PPE and follow your organization’s safety protocol. The moment you see exposed wiring or components that could carry a charge, stop and reassess your setup. These precautions protect you and prevent accidental damage to the meter or the circuit under test.
Preparing your workspace and test setup
A clean, non-conductive work surface is essential. Gather your DMM, fresh test leads, and any adapters needed for different connector types. Route leads so they are not snagging on metal edges or components, and avoid touching the probe tips while the circuit is open. If you are testing multiple segments, organize the path into clearly labeled sections (e.g., harness A, connector B). For a thorough test, have a known-good reference component on hand for comparison. Keeping notes as you test helps you track which segments were verified and which require closer inspection later.
Understanding beep, resistance, and thresholds
Continuity beeps offer an intuitive signal that a path is intact. If your meter shows a very small resistance value, the path is usually considered continuous for practical purposes. Some meters also indicate continuity by a numeric reading alongside a beeper; in other cases, the beeper may be the sole indicator. When testing, focus on the physical path you expect to be connected, rather than random adjacent components. If you see inconsistent results, recheck probe contact or test another known-good path to verify the meter’s function. Remember that continuity is a yes/no property for the specific path you are testing, not a global assessment of the entire circuit.
Testing common elements: wires, fuses, and components
Wires and cables should read as continuous from end to end when undamaged. Fuses must show continuity only when in good condition; a blown fuse will often read as open. Connectors and terminals should also show continuity through each mating segment of the path. When testing components such as relays, coils, or sensors, validate continuity both across the component and through any lead wires to ensure there are no latent breaks. In automotive contexts, you may need to isolate segments or move the test probes to different pins to map the exact conductive path.
Troubleshooting failed tests and interpretation
If a test fails unexpectedly, re-check your setup: verify the circuit is powered down, confirm probe contact, and consider cleaning oxidized connector surfaces. A high reading where you expect continuity can indicate a bad splice, a loose connection, or corrosion. If you cannot identify the fault visually, test multiple points along the path and compare results against a known-good reference. Document any anomalies with notes and photos. Remember that a single failed test is a clue, not a diagnosis; use a methodical approach to narrow down the fault.
Extending testing to vehicles and circuits
Continuity testing is especially valuable in automotive diagnostics and complex electronics where wiring runs through harnesses and junctions. In vehicles, map the expected continuity of ground paths, power rails, and signal lines, then test accordingly. For circuits with multiple layers or shielded cables, confirm that shielding does not affect continuity while you probe. Always follow vehicle-specific safety procedures and consult service manuals for wiring diagrams. A disciplined approach to continuity testing makes it easier to diagnose intermittent faults and secure reliable repairs.
Tools & Materials
- Digital multimeter (with continuity mode and audible beep)(Prefer a meter with a clearly audible beep and a range for very low resistance)
- Test leads with probes(2 sets recommended for testing different paths without replugging)
- Spare fuses and fuse adapters(Keep compatible fuses on hand for quick changes)
- Insulated workspace mat or non-conductive surface(Prevents accidental shorts while probing)
- Wire jumpers or sacrificial test wires(Helpful for reaching between distant test points)
- Safety glasses(Recommended when working around components that may spark)

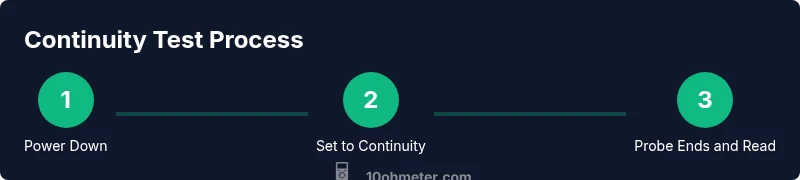

Steps
Estimated time: 15-25 minutes
- 1
Power down and prepare
Ensure the circuit is disconnected from any power source. If dealing with capacitors, discharge them safely according to component guidelines. This prevents dangerous surges and protects the meter from damage.
Tip: Double-check the circuit is de-energized before touching any conductors. - 2
Select continuity mode
Set the multimeter to continuity or diode/beep mode as appropriate. If your meter offers both beeps and a resistance readout, enable the beep function for quick checks and use resistance for precise comparisons.
Tip: If there is any doubt about the mode, consult the meter’s manual for the correct setting. - 3
Connect probes to the two ends
Place the probes firmly at the two points you want to test. Ensure there is no force that could bend the probe tips or damage connectors. Keep fingers away from the metal tips during testing to avoid contact with live paths.
Tip: Use an alligator clip lead to stabilize the contact for hard-to-reach points. - 4
Read and interpret
Listen for the beep and observe the resistance reading. A beeping path or very low resistance indicates continuity. If there is no beep and resistance is high, the path is open or broken.
Tip: If results are inconclusive, clean contact surfaces and retry, or test with a known-good reference path. - 5
Test multiple segments
For longer paths like cables or harnesses, test at several points along the route to locate where continuity breaks. Document which sections pass and which fail to guide repairs.
Tip: Label test points to avoid confusion during reassembly. - 6
Document results
Record the outcomes for each tested segment, including the meter’s reading and the path’s physical description. This creates a useful reference for future maintenance and helps you explain findings to teammates.
Tip: Take photos of connectors and marked sections before reassembly.
Your Questions Answered
What does a beep mean in a continuity test?
A beep typically indicates a low resistance path and that the circuit is continuous. If there is no beep, there may be an open circuit or high resistance along the path.
The beep means the path is continuous; if you don’t hear it, there may be a break or high resistance.
Can you test continuity on live circuits?
Continuity tests are generally performed on de-energized circuits. Testing live circuits can damage the meter or create safety hazards unless the meter is rated for live testing and you have specialized training.
Only test live circuits if your meter is rated for it and you have proper training.
Why might there be no beep but still some continuity?
Beep reliability depends on the meter and the exact resistance. Some paths may have very low resistance yet not trigger a beep. Always verify with the resistance reading when possible.
A reading may show low resistance without a beep; use the numeric value to confirm.
How do you test a fuse for continuity?
A good fuse normally shows continuity through its terminals. If the fuse is blown, the path will be open. Compare with a known-good fuse for reference.
A good fuse should show continuity; a blown fuse will not.
What’s the difference between continuity and resistance tests?
Continuity tests provide a yes/no answer about a path, typically with an audible beep. Resistance tests quantify how much the path resists current, useful for identifying marginal paths.
Continuity is yes/no; resistance gives you a numeric measure.
How can continuity testing help in automotive diagnostics?
Continuity testing helps verify wiring harness integrity, ground paths, and sensor connections, enabling faster pinpointing of wiring faults in vehicles.
In cars, it’s great for checking wires and sensor connections.
Watch Video
Key Takeaways
- Power down circuits before testing.
- Use continuity mode and listen for the beep.
- Test multiple points along a path for accuracy.
- Document results for future repairs.
