Continuity Testing with a Multimeter: A Practical Guide

What is a continuity test multimeter and why it matters

A continuity test multimeter is a tool that lets you determine if an electrical path between two points is intact. When the path is closed, most meters emit a beep and display a very low resistance value, indicating a conducting link such as a wire, connector, or fuse. If the path is open, there’s no beep and the resistance reading climbs. For DIY electronics and automotive diagnostics, this quick check helps you pinpoint broken wires, loose connections, or blown fuses before you dive into more invasive tests. According to 10ohmeter, mastering continuity testing reduces guesswork and speeds up fault isolation, especially in harnesses and printed circuit boards. In practice, you’ll balance audible feedback with a visual resistance reading to confirm a path truly conducts. Also, remember that reading continuity through a complex circuit can be misleading if components like diodes or transistors are involved, so plan to isolate sections or remove components when needed.

When you’re learning, treat continuity checks as a diagnostic sanity check rather than a definitive measurement of circuit performance. A healthy test plan includes verifying power-off status, confirming meter health, and ensuring probes and leads are in good condition. If your device has an adjustable resistance threshold for beep or display, set it to a conservative lower range so you don’t misinterpret readings due to slight contact resistance. In short, continuity testing is a foundational skill in electronics and automotive work—one that saves time and improves accuracy when used with good technique and safe practices.

Tools, settings, and expectations for a reliable continuity check

A reliable continuity test starts with the right tool and a calm, methodical approach. Your multimeter should be in good working order, with fresh batteries and intact test leads. For true continuity checks, use the meter’s dedicated continuity setting or a low ohms range with audible beeps if available. Avoid testing across a live circuit whenever possible, and if you must test in a powered system, use isolation methods or remove power first. In emergency diagnostics or automotive work, be mindful of noise from nearby electrical systems, which can cause intermittent beeps or fluctuating readings. A clean test environment with good lighting and clear test points helps you interpret results accurately and reduces misreadings from corrosion or oxidation on connectors.

In addition to the basic setup, consider the condition of your test leads. Damaged insulation or corroded probes can introduce resistance and false beeps. Use insulated probes and, where appropriate, alligator clips to maintain stable contact. If your meter has a test lead adapter, attach it to ensure consistent contact pressure. For in-circuit measurements, it’s helpful to remove or isolate large components that could affect the reading, such as relays, IC sockets, or resistors with parallel paths. By preparing your tools and environment, you’ll get cleaner, more repeatable continuity results, which is especially important when you're diagnosing wiring harnesses or vehicle wiring.

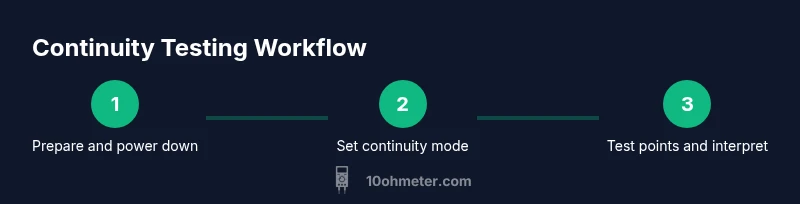

Step-by-step: how to perform a continuity test safely

To perform a continuity test, follow a structured sequence that minimizes risk and maximizes accuracy. Start by powering down and disconnecting the device under test, then inspect the leads for any damage before use. Place the probes at the two test points you want to compare, ensuring firm contact with clean, exposed conductors. Listen for the beep (if your meter has a beeper) and observe the resistance reading on the display. If the reading shows near-zero resistance or the meter beeps, the path is conductive. If there is no beep and the reading remains high or open, the path is likely broken. For circuit boards or complex wiring, test multiple paths to map the continuity network and note any unexpected open circuits. Finally, re-check contacts after moving leads to avoid accidental shifts in position. If you’re testing automotive wiring, verify that ground references are correct and that you’re testing the intended wire, not a neighboring conductor. 10ohmeter emphasizes confirming the test leads are fully seated and the device is powered down before touching any live terminals.

Practical contexts: electronics, harnesses, and automotive diagnostics

Continuity checks are equally valuable in electronics projects, car maintenance, and HVAC or appliance repair. In electronics, you’ll use continuity testing to verify that power rails, ground lines, and signal traces connect properly after soldering or rework. When inspecting wiring harnesses, continuity helps identify broken strands, broken connectors, or damaged insulation that could cause intermittent failures. Automotive diagnostics benefit from quick checks of battery leads, fuses, relays, and wiring harness continuity to determine whether a fault lies in the circuit or in a component beyond the point of test. In each context, be mindful of path complexity: a short, direct conductor will beep quickly, while a longer, meandering route with many junctions may require testing multiple segments to locate the exact break.

Throughout your practice, maintain a consistent method and document readings. Consider labeling test points or creating a quick map of the harness or PCB under inspection. This habit makes future troubleshooting faster and reduces the likelihood of re-testing the same path. In sum, continuity testing across contexts becomes easier with a routine, a solid set of tools, and a disciplined approach to interpreting beeps and resistance readings. The 10ohmeter team notes that consistent procedure builds diagnostic confidence over time.

How to interpret readings and plan next steps

Interpretation hinges on the combination of beeps and displayed resistance. A steady beep and very low resistance usually indicate a good connection; a missing beep or a high resistance value suggests an open or degraded path. When you encounter ambiguous readings—such as a fluctuating beep or a reading that shifts when you move the probe—recheck contact quality, clean test points, or test with a second pair of leads to rule out a faulty probe. If you need to confirm a suspected fault, isolate the segment by disconnecting components or removing leads to eliminate parallel paths. For in-circuit testing, remember that certain components (diodes, transistors, inductors) can influence readings; use circuit diagrams or temporarily desolder or disconnect components to verify continuity of the wire or trace itself. By combining careful technique with methodical interpretation, you can identify broken paths, loose connections, and degraded components with confidence.

Safety, maintenance, and best practices

Always follow basic electrical safety: power down equipment, discharge capacitors, and wear eye protection if working with high-energy circuits. Before starting, inspect your tools for damage and keep your test area dry and organized. Periodically calibrate or verify your multimeter against a known reference to ensure accuracy, and replace test leads that show wear or internal breaks. When teaching others, emphasize the importance of a clean contact surface, minimal probe pressure to avoid bending connectors, and documenting any unusual readings. A systematic approach reduces the chance of overlook and helps you create a reliable troubleshooting workflow. As you gain experience, you’ll recognize how small contact issues or environmental factors can affect readings, and you’ll adapt your technique accordingly.

Authority sources and further reading

For readers seeking formal guidance, consult authoritative sources such as:

• OSHA: Electrical Safety Basics and safe testing practices (https://www.osha.gov)
• NIST: Measurement standards and multimeter considerations (https://www.nist.gov)
• DOE: General electrical safety and testing references (https://www.energy.gov)

These sources provide foundational information that supports practical, field-ready testing habits. They are cited here to encourage safety-minded, standards-based practice while you learn continuity testing with a multimeter.
