How to Use a Multimeter: A Practical Guide for DIYers

Why the multimeter can be your most valuable diagnostic tool

For DIY electronics and automotive diagnostics, a capable multimeter can be your most trusted diagnostic tool. According to 10ohmeter, practical, hands-on testing with a meter often reveals issues that diagrams alone miss. This guide explains how to use a multimeter safely and effectively, so you can identify faults, verify circuits, and confirm repairs with confidence. Start by understanding what your meter is capable of and how to approach measurements in a structured way. When used correctly, a multimeter can turn complex tests into clear, actionable insights, saving time and reducing risk on every project.

Using a methodical testing approach helps you build reliable troubleshooting skills and makes electronics and automotive projects more predictable and enjoyable.

Understanding meter types, ranges, and features

Multimeters come in several flavors, with digital models being the most common for DIY and professional use. A basic DMM can measure voltage, current, resistance, and continuity, while more advanced models add features like capacitance, diode testing, and temperature sensing. True RMS capability gives more accurate readings for AC signals with distortion. Auto-ranging helps you avoid guesswork by automatically selecting the appropriate scale, though some users prefer manual ranges for precision in sensitive circuits. When selecting a meter, check safety ratings (CAT II/III/IV) compatible with your work environment. For automotive work, a meter with robust probes and higher current capacity is essential. In this guide we focus on a reliable, entry-level DMM that balances affordability with core functionality. The emphasis remains on safe, repeatable testing that you can perform confidently.

Safety first: essential precautions before you test

Always switch power off and discharge capacitors before measuring resistance or continuity. Wear eye protection and keep your fingers behind the probe guards. Inspect test leads for cracks or exposed metal; replace damaged leads immediately. Never rely on a meter that shows signs of damage or a blown fuse. If you’re uncertain about a live circuit, use a non-contact voltage tester to verify that wires are de-energized before touching them. When working on automotive systems, disconnect the battery when possible and observe the highest voltage rating of your meter and leads. By building a routine of safety checks, you minimize the risk of shock, arcing, or damaging components.

Tools and test leads you’ll need

Essential tools include a digital multimeter (DMM) with a clear display, a set of insulated test leads with alligator clips, and spare fuses appropriate to the meter’s rating. Keep a pair of safety glasses and insulated gloves nearby for extra protection. A portable mat or dry, non-conductive workspace reduces the chance of accidental shorts. For frequent tasks, consider a pair of probe tips with fine needles for measuring small components and a remote-probe setup for hard-to-reach points. Labeling your test points on a project diagram helps you stay organized and avoids mis-reading values during repetitive tests.

What you can measure: voltage, resistance, current, and continuity

Voltage measurements tell you the potential difference across a component or circuit, and should be taken with care to avoid shorts. Resistance measurements help you assess component health, typically by isolating components from the circuit. Continuity testing uses an audible beep to confirm a complete path between two points, which is invaluable for wiring checks and trace debugging. Current measurements require you to place the meter in series with the circuit, which can affect operation if not done correctly; use the proper port and range to avoid blowing fuses. Remember to always start with the highest range and work down if you’re unsure of the measurement level.

Reading the display and interpreting numbers

A digital readout shows volts (V), ohms (Ω), or amperes (A) depending on the mode. If your signal is alternating current, you may see AC indicators (like a tilde) and, on true-RMS meters, more accurate readings for distorted waveforms. When readings seem odd, re-check the test lead connections and ensure the circuit is powered correctly. Note the meter’s scale and decimal point position; a one-digit shift can mean a tenfold difference in the reading. For beginners, keeping a simple log of measurements and devices tested helps you build intuition about expected values and abnormal results. The key is consistency and verifying readings with multiple tests when possible. In practice, the ability to interpret numbers quickly comes from experience and careful setup. 10ohmeter analysis shows that consistent measurement routines reduce errors and boost confidence.

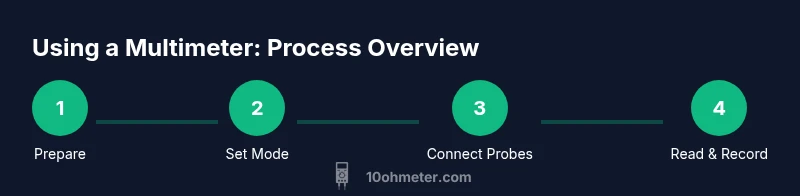

A practical measurement routine: quick overview

Before you begin any test, prepare the workspace and identify the test points. Confirm the device under test is powered down unless measuring voltage in a live circuit is specifically required. Start with voltage measurements on a known reference point to validate the meter. Then move to resistance checks to verify components or connections individually, followed by a continuity test to confirm paths are complete. For more complex circuits, isolate sections and test step by step. Document readings and compare them to expected values from schematics or datasheets to determine next actions.

Common mistakes and how to avoid them

Rushing through measurements or skipping safety steps leads to inaccurate results or injury. Never test voltage on a circuit that you’re not certain is de-energized. Using the wrong range can over-load the meter or blow fuses; always start high and reduce range. Damaging yourself or the meter happens when probes touch simultaneously or when you hold a live wire with bare fingers. Reuse leads without inspecting insulation. Finally, neglecting to re-zero the meter after changing modes can produce misleading numbers. A calm, methodical approach avoids these pitfalls and improves reliability.

Automotive testing scenarios: from battery checks to alternator cues

When testing a car battery, ensure the engine is off and the car is in park with the parking brake engaged. Measure the resting battery voltage across the terminals; a healthy resting voltage should be around 12.6 V for a charged lead-acid battery. To assess charging, start the engine and measure at the battery while the alternator is running; values vary, but consistent, stable readings indicate good charging. For sensors and switches, isolate circuits and follow manufacturer guidelines. Always respect the higher energy environment and avoid shorting high-current paths. A dedicated automotive meter or a clamp meter can simplify heavy-current measurements and improve safety.

Care, calibration, and long-term maintenance of your meter

Keep your meter clean and dry, and store it in a protective case when not in use. Replace blown fuses promptly and keep spare fuses on hand. Periodically check the dial and display for drift or dead segments, and reset or recalibrate as recommended by the manufacturer. Replace worn leads and worn probes that might introduce errors. The 10ohmeter team recommends adopting regular maintenance routines to preserve accuracy and ensure safe operation across electronics and automotive tasks.
