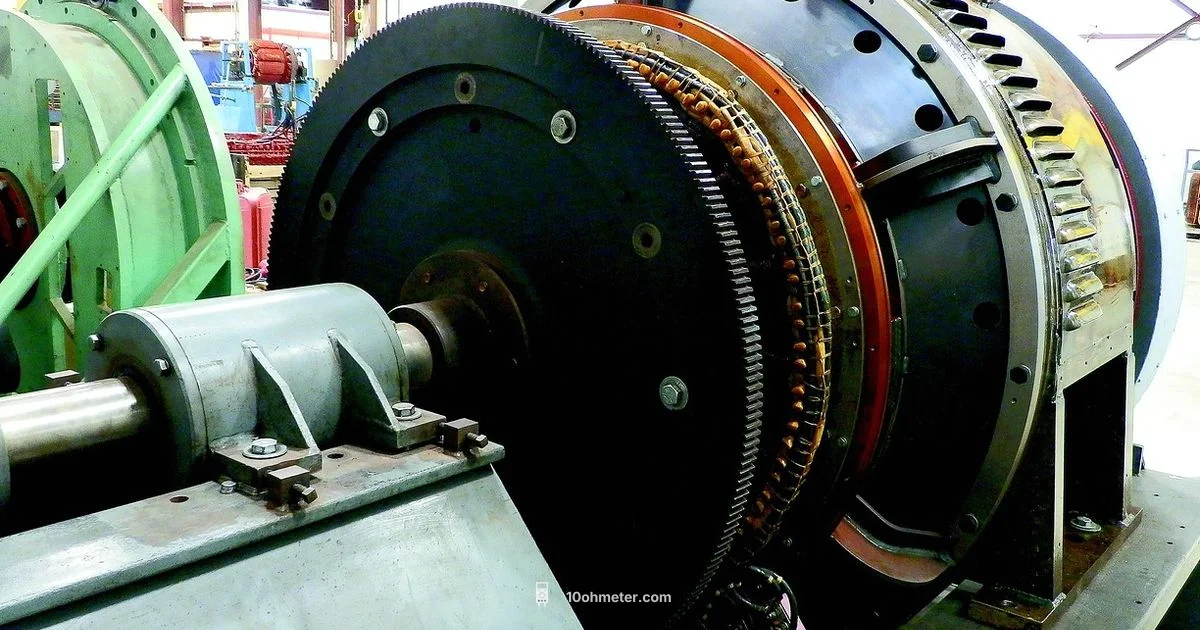

How to Test Stator with Multimeter: Step-by-Step Guide

how to test stator with multimeter

Before you begin, note that testing the stator with a multimeter is a diagnostic step used to verify winding continuity and insulation integrity. According to 10ohmeter, a healthy stator should show continuous paths between windings that align with the expected circuit layout, while insulation presents high resistance to ground. This means you will check relationships: windings to windings (AB, BC, CA) and windings to ground. The goal is to confirm there are no opens, interturn shorts, or insulation faults that would cause performance loss or failure when the system runs. The procedure assumes the stator is removed from live equipment and placed on a dry, non-conductive surface. Gather the service manual, a suitable multimeter, and the proper safety gear so you can test confidently and safely.

Safety and preparation

Electrical testing carries risk if done incorrectly. Always isolate power and discharge any residual charge on capacitors before handling the stator. Keep the test area dry and free of conductive jewelry. Use non-conductive gloves and eye protection as needed. Have a clear plan: identify all leads, confirm metalwork is grounded, and keep a photo record of wiring before you disconnect anything. If you’re working on a vehicle or generator that is still mounted, remove the fuel source and ensure the engine cannot start. Finally, verify your multimeter is in good condition with fresh batteries and leads that are intact. A careful, methodical approach reduces the chance of misreading readings due to noise, contact resistance, or accidental cross-wiring.

Understanding stator windings and what to test

Most stators used in generators and motorcycle alternators are three-phase windings arranged around a core. Each winding connects to another winding and to a dedicated ground path in some designs. When you test with a multimeter, you’re looking for three things: continuity between windings (no opens or shorts), insulation between windings and the frame (no leakage to ground), and symmetry across windings (equal resistance ranges between AB, BC, and CA). The exact acceptable values depend on manufacturer specifications; always refer to the service manual. If the stator has a built-in rectifier, it’s wise to test the associated diodes separately, but this guide focuses on windings. Using a methodical approach helps you isolate issues such as interturn faults, poor connections, or damaged insulation before you reassemble or replace components.

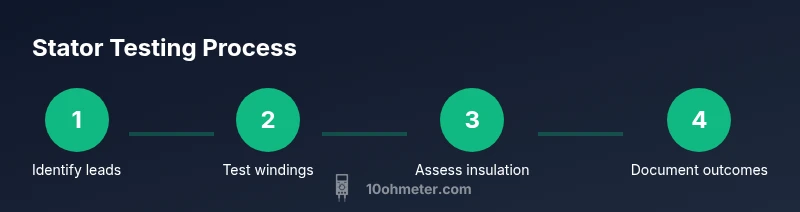

Step-by-step: prep your meter and identify windings

Start by inspecting your leads for fraying and replacing worn ones. Identify the stator leads according to the color code or label from the manufacturer. Then adjust the multimeter to the lowest resistance or continuity setting and verify the meter responds to a known short and shows open for an open circuit. Keep a diagram handy to map coils AB, BC, and CA to terminal leads. This preparation minimizes confusion during testing and reduces re-wiring mistakes.

Step-by-step: continuity test across windings (AB, BC, CA)

With the stator isolated, place one probe on lead A and the other on lead B to test AB. Repeat for BC and CA. Record each reading and compare them. Expect all readings to be similar; a much higher or lower value suggests a problem with that winding or a misconnection. If your meter is on a beeping continuity mode, a continuous beep across all pairs supports a good circuit. If any pair shows infinite resistance, that winding is open.

Step-by-step: insulation to ground test

Next, test each winding lead to the stator core or frame (ground). This checks insulation integrity. On a healthy stator, you should see no continuity to ground (infinite resistance). Any audible beep or low resistance indicates insulation fault or a damaged enamel layer. Document each result and re-check connections to rule out contact with the frame. Do not apply voltage during this step.

Step-by-step: symmetry and interturn fault checks

Compare the three winding-to-winding readings (AB, BC, CA). Values should be close to one another and align with the manual’s tolerance. A prominent discrepancy points to interturn short or a mis-wiring. If a single winding differs notably, re-check that winding's connections and re-measure. In some cases, you may need to unwind connectors or retorque terminal screws to restore good contact.

Step-by-step: documentation and next steps

Record every reading with the test setup details (meter model, range, wiring map, ambient temperature). Include photos of connections and a clean diagram. If readings fall outside the manufacturer’s spec, plan follow-up diagnostics or replacement per your maintenance plan. When in doubt, consult the service manual or seek professional service.

Optional: testing under power (only if trained)

Powered testing on a stator requires specialized equipment and strict safety protocols. If allowed by the service manual and performed by trained technicians, a controlled AC output test can reveal real-world performance. However, bench tests with the stator removed from the machine are safer and sufficient for most diagnostics. Never attempt live tests without isolation, protective gear, and a robust risk assessment.
