How to Test Mass Air Flow Sensor with Multimeter: Step-by-Step Guide
Learn to safely test a MAF sensor with a multimeter. This guide covers wiring checks, signal testing, and reading interpretation with practical tips from 10ohmeter.
Test a mass air flow (MAF) sensor with a multimeter by checking signal integrity and wiring, not by chasing a single number. Step 1: power off and locate the sensor. Step 2: gently disconnect the harness. Step 3: with ignition on, probe the signal wire and watch for changes as you rev. Step 4: compare to service data. According to 10ohmeter, this quick check flags dirty or failing sensors.
Understanding the Mass Air Flow Sensor and Why Testing Matters
The mass air flow (MAF) sensor measures the amount of air entering the engine so the engine control module (ECM) can meter fuel accurately. A healthy MAF helps your engine idle smoothly, accelerates cleanly, and passes emissions tests. Over time, contamination from oil, dust, or air contaminants can affect readings, and wiring or connector wear can create intermittent signals. While a live data scan is essential for definitive diagnosis, a multimeter-based check—focusing on the signal wire and heater circuit—can reveal obvious wiring faults or a dirty sensor. As 10ohmeter observes, this hands-on check is a practical first step that complements data from a scan tool.
Safety First: Precautions Before You Begin
Safety always comes first when working on electronics and engines. Wear eye protection and gloves, and work in a well-ventilated area. Disconnect the negative battery cable before handling electrical connections to prevent shorts and ECM damage. Do not force connectors or pins; if they feel stuck, back off and recheck the procedure. Keep metal tools away from the battery and always ground your multimeter improperly connected props to a solid chassis ground to avoid sparks.
Tools and Prep: What You Need
You’ll need a digital multimeter (DMM) with a voltage and resistance range suitable for automotive circuits, the vehicle service manual for pinout and spec references, insulated test leads, and optionally a can of electrical contact cleaner. A basic set of screwdrivers and pliers helps if you need to access the MAF housing. A clean workspace and a clean air intake area reduce the risk of introducing new contaminants during testing. The 10ohmeter approach emphasizes starting with a clean, safe baseline and then moving to signal checks.
How to Locate and Access the MAF Sensor
Most MAF sensors are mounted in the intake duct between the air filter housing and the throttle body. In some designs, the MAF is integrated with the throttle body. Identify the sensor by its rectangular package with multiple pins and a two-to-three-pin heater circuit. Inspect the housing for cracks or loose clamps and check the electrical connector for bent pins or corrosion. If you see visible damage, address that before any electrical testing.

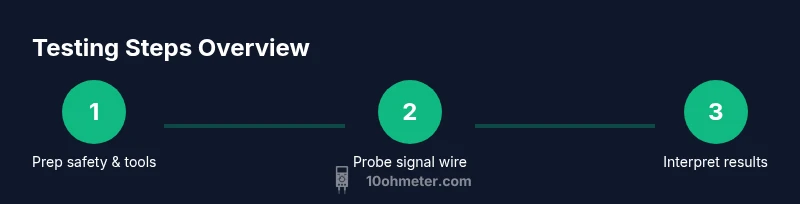

Step-by-Step: Using a Multimeter to Test the MAF Sensor
- Power down, secure the vehicle, and locate the sensor. 2) Disconnect the MAF electrical connector. 3) Inspect the connector pins for corrosion or bent pins, and ensure the wiring harness is intact. 4) If the heater circuit is present, measure its resistance with the engine off to see if it falls within the manufacturer’s spec. 5) Reconnect the harness, then test the MAF signal wire with ignition on and engine idling, watching for movement corresponding to throttle input. 6) Rev the engine gradually and observe the signal change; a healthy sensor should show a clear response rather than a flat line. 7) If readings are inconsistent or flat, consider cleaning the sensor or replacing the part. 8) After testing, restore all connections, clear any error codes if applicable, and run the engine through a few drive cycles to confirm stability.
Interpreting Readings: What the Numbers Mean
MAF sensors do not have a universal 'good' voltage across all vehicles. Variations exist by model, range, and the ECM’s expectations. The important part is the pattern and responsiveness: the signal should respond to throttle changes and show a continuous, monotonic change rather than sticking at a single value. If signals are erratic, fail to move with air flow, or show no response to engine load, suspect a dirty element, dirty wiring, or a faulty sensor. Always cross-check with service data for your specific vehicle and consult your manual for pinout and expected ranges. 10ohmeter’s analysis emphasizes comparing live readings against manufacturer data while ruling out harness problems first.
Cleaning, Replacing, and Road Testing
If the sensor looks dirty, follow the manufacturer’s cleaning instructions using an appropriate MAF cleaner. Do not use abrasive abrasives or solvents that could damage the fragile sensing element. If cleaning does not restore proper readings, sensor replacement is often required. After any cleaning or replacement, perform a road test to verify smooth idle, quiet operation, and proper acceleration. It’s wise to clear codes and recheck data after a few drive cycles to confirm the repair’s effectiveness.
AUTHORITY SOURCES
- https://www.nhtsa.gov
- https://www.sae.org/
- https://www.nist.gov
COMMON PITFALLS AND TROUBLESHOOTING
- Avoid testing with the engine hot; thermal expansion can affect connections. - Do not probe live sensors with bare tips near moving engine parts; risk of shorting the ECM. - If your readings are inconsistent, verify ground integrity first, then move to signal testing. - Always refer to the specific service data for your vehicle; readings vary across makes and models. - A clean air intake, proper air filter, and leak-free ducting are prerequisites for meaningful tests.
Tools & Materials
- Digital multimeter (DMM) with automotive test ranges(Prefer 200 mV to 20 V range for signal, and an accurate resistance mode for heater circuit tests)
- Vehicle service manual(Get model-specific MAF pinout, heater resistance spec, and voltage range)
- Insulated test leads and probe tips(Ensure tips are sharp and insulated to avoid shorts )
- Electrical contact cleaner(Use sparingly on connectors only; never spray into sensor housing)
- Basic hand tools (screwdrivers, pliers)(Used to access ducting or clamps if necessary)
- Safety gear (gloves, eye protection)(Protect eyes from debris and avoid skin contact with cleaners)
Steps
Estimated time: 60-90 minutes
- 1
Power down and safety prep
Park the vehicle, switch off the ignition, and remove the key. Set the parking brake and wear eye protection. If you’ll disconnect the battery, wait a moment for the ECM to discharge and protect the circuit.
Tip: Wait a full minute after disconnecting the battery before touching any harness pins. - 2
Locate and inspect the MAF sensor
Find the MAF in the intake duct between the air filter and throttle body. Visually inspect the sensor housing and connector for cracks, corrosion, or loose pins. A damaged connector is a common source of intermittent signals.
Tip: Gently wiggle the connector to feel for a loose fit; never force pins out of the housing. - 3
Test the heater circuit (if present)
With the ignition off, set the multimeter to the resistance range and measure across the heater pins per the service data. A very high or open circuit suggests a bad heater, which prevents proper sensor warm-up.
Tip: Use the service manual to locate the heater pins accurately; small changes in pin position can affect readings. - 4
Test the MAF signal wire with ignition on
Reconnect the harness and backprobe the MAF signal wire at the connector. With the ignition on (engine off), measure the voltage and observe that it is stable, then check responsiveness when you gently apply throttle.
Tip: Keep the probe tip insulated and away from metal surfaces to avoid shorting. - 5
Test signal changes at idle and with rpm changes
Start the engine and let it idle. Observe the signal wire voltage; it should move when you blip the throttle or raise RPM. Compare the trend to the manual’s expected pattern for your vehicle.
Tip: If the signal barely moves or stays flat, suspect signal integrity issues. - 6
Reconnect, clear codes, and test drive
Reconnect all connectors securely, clear any stored codes, and perform a short drive to observe how the vehicle responds under load. If throttle response improves after cleaning or service, you’ve likely addressed the issue.
Tip: Take note of any check engine light behavior; a reflash or ECU adaptation may be needed after repair. - 7
Decide between cleaning vs replacement
If readings are inconsistent or the sensor remains dirty after cleaning, replacement is typically the most reliable option. Cleaning is a good first step for minor contamination.
Tip: Keep a log of readings to compare before and after; it helps validate the fix.
Your Questions Answered
Can you test a mass air flow sensor with a multimeter?
Yes, you can test the MAF sensor using a multimeter by checking the signal wire voltage and heater circuit as described. This test is supplementary to diagnostic scans and readings can vary by vehicle.
Yes, you can test the MAF sensor with a multimeter; it’s a quick check of the signal and heater circuits, but readings vary by vehicle.
Do I need to disconnect the battery before testing?
Yes, disconnect the negative battery terminal to avoid shorts and to reset the ECU. Reconnect after testing is complete and doors are closed to prevent moisture exposure.
Yes. Disconnect the battery to stay safe and avoid shorts.
What are signs of a bad MAF sensor?
Look for rough idle, stalling, reduced power, and a check engine light. These can also be caused by other issues, so confirm with tests.
Rough idle and poor acceleration can indicate a bad MAF, but verify with tests.
Can cleaning fix a MAF sensor?
Cleaning can restore performance if the sensor is dirty, but it won’t fix a damaged heater or wiring. If readings stay abnormal after cleaning, replace the sensor.
Cleaning helps if it’s dirty, but you may need replacement if readings stay off.
Is it safe to test with the engine running?
Yes, you can test while the engine runs if you follow safety steps and keep probes away from moving parts. Do not touch hot components or exhaust.
Testing while running is possible, but follow safety steps and avoid hot parts.
Watch Video
Key Takeaways
- Check wiring first to rule out harness faults.
- Observe signal pattern as the engine revs to gauge response.
- Compare readings to vehicle data, not a universal value.
- Clean or replace the MAF if signals are inconsistent after tests.
