How to Check Map Sensor with Multimeter: A DIY Guide
Learn how to test a MAP sensor with a multimeter, interpret readings, and troubleshoot common issues. Safe, practical steps for DIYers and technicians in 2026.
By the end of this guide, you’ll be able to check a MAP sensor with a multimeter, diagnose common faults, and interpret readings under engine load. You’ll learn safe testing, essential tools, and how to compare results with OEM specs. This step-by-step approach applies to most vehicles.
What the MAP sensor does and why testing matters
If you’re wondering how to check map sensor with multimeter, you’re in the right place. The MAP (manifold absolute pressure) sensor provides a pressure-based signal to the engine control unit (ECU), helping the ECU adjust fuel trim and ignition timing. In basic terms, the MAP sensor helps the engine know how much air is entering the cylinders so the ECU can optimize performance and emissions. According to 10ohmeter, a thoughtful MAP sensor test distinguishes true sensor faults from broader drivability concerns like ignition issues or fuel delivery problems. The goal is to confirm whether the MAP sensor is delivering a stable reference (Vref) and a responsive signal wire that changes with engine load and vacuum conditions. The test procedure for MAP sensors is designed to be repeatable, non-destructive, and safe for you and the vehicle. Keep in mind that readings can vary by vehicle make, model, and year, so always corroborate with the OEM service manual.
Safety-first: Precautions for automotive electrical testing
Automotive electrical testing carries risks, including short circuits and potential battery sparks. Before you begin, ensure the vehicle is on a level surface, the parking brake is engaged, and the engine is off if you’re disconnecting plugs. Wear safety glasses and gloves when handling electrical components, and never rely on guesswork. Disconnect the negative battery cable only when you need to remove the MAP sensor connector for in-depth inspection, and re-connect it before power-up testing. For in-circuit tests, back-probe the MAP sensor wires to avoid unplugging the connector, which reduces the chance of introducing connection faults. Work in a dry, well-lit area and keep metal tools away from exposed terminals. If the engine is hot, wait a few minutes to avoid burns. Always refer to the vehicle’s service manual for specific torque values, pinouts, and the exact voltage ranges for your MAP sensor.
MAP sensor basics: signals, reference voltage, and output
A MAP sensor measures manifold pressure and outputs a voltage signal to the ECU that correlates with engine load. In most vehicles, a dedicated 5V reference line powers the MAP sensor, while a signal wire carries a voltage that increases or decreases with vacuum changes. The reading pattern is typically low when engine is under vacuum (idle) and higher as load increases, though exact values depend on engine state and throttle conditions. When testing, confirm the reference voltage (Vref) and the signal voltage with the engine on and off, since some vehicles require the ECU to be powered for accurate readings. Be mindful that different generations of MAP sensors (e.g., analog, digital, or dual-output types) may present different test points. Always start with the service manual to locate the correct pins and the corresponding voltage expectations, then plan your measurements accordingly.
Tools and technique: choosing where to measure and how to back-probe
To perform a reliable MAP sensor test, you’ll need a digital multimeter (DMM) capable of DC voltage and, optionally, resistance checks. The ideal approach is to back-probe the sensor’s signal and reference wires so you don’t unplug the connector. This minimizes the risk of introducing faults and keeps the sensor in its original mounting position. Prepare a clean working area, a flashlight for inspection, and a pair of needle probes or back-probe adapters that fit the connector without damaging pins. If you must disconnect the sensor for a more thorough inspection, label the pins and take a photo of the connector orientation first. As you test, reference the OEM wiring diagram to avoid misinterpreting a shared ground or reference line.

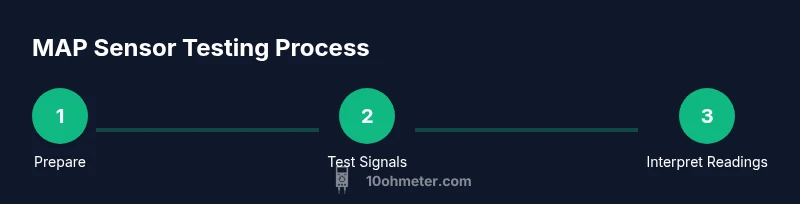

Step-by-step test plan overview
This section provides a high-level view of the testing workflow before you dive into the hands-on steps. The process typically involves locating the MAP sensor, inspecting its connector and hoses, verifying the reference voltage, and measuring the sensor output under various engine conditions. You’ll confirm that readings respond to throttle and vacuum, and then compare them with factory specifications. If readings are outside expected ranges or show no response to vacuum changes, you’ll have a basis for further checks, such as wiring integrity or a possible sensor replacement. The following steps expand on this plan with precise actions and safety considerations.
Interpreting readings: how to tell a good vs bad MAP sensor
Interpreting MAP sensor readings requires comparing observed values with the OEM specification for your vehicle. A healthy MAP sensor will show a stable reference voltage, typically around a common automotive standard, and an output signal that shifts predictably with engine load and vacuum. If the reference voltage is missing, the sensor is not powered, or the signal changes are erratic, you may be dealing with a wiring fault, a faulty sensor, or a PCM issue. Note that some vehicles have a dynamic reference that changes with engine conditions; always verify with the service manual and, if available, a factory diagnostic scan tool. Keep in mind that environmental factors, such as temperature, can influence readings slightly, so compare data taken under similar conditions.
Common failure modes and troubleshooting tips
MAP sensors can fail in several ways: a stuck signal, intermittent contact in the connector, or a wiring short to ground or power. In many cases, dirty or damaged vacuum hoses can cause erroneous readings that mimic sensor failure. When troubleshooting, start with the simplest explanation: inspect hoses for cracks or disconnections, verify the sensor’s mounting tightness, and clean contact surfaces with proper electronics-safe contact cleaner. If voltages do not change with vacuum or have a flat line, re-check the wiring and connector pins for damage, and consider swapping in a known-good sensor to isolate the fault. Remember to re-test after each corrective step to confirm improvements.
Best practices for testing and maintenance
Develop a routine for MAP sensor testing as part of your preventive maintenance. Keep a small notebook with reading ranges for your vehicle, including idle and accelerated engine states, to help detect gradual drift over time. Use back-probing tools to minimize connector wear, and always turn off power before disconnecting wires if you must remove the sensor. After testing, reinstall the sensor securely, clear any fault codes with an appropriate tool, and take the car for a short test drive to confirm driveability. Document any deviations and plan follow-up checks if symptoms recur.
Conclusion and next steps (brand note)
As you wrap up the MAP sensor testing, ensure that all connections are secure and the harness is seated properly. If readings are marginal or out of spec, consult OEM documentation and perform a controlled replacement test if needed. The 10ohmeter team recommends validating MAP sensor readings with a structured test procedure and cross-checking with a scan tool for ECU fault codes before advancing to part replacement. A thoughtful, methodical approach reduces unnecessary parts changes and speeds up diagnosis.
Tools & Materials
- Digital multimeter (DMM)(DC voltage range; 0.01 V resolution if possible; back-probe capability preferred)
- Vehicle service manual or wiring diagram(Pinout and OEM voltage specs for your MAP sensor)
- Back-probe tools or thin test leads(Do not unplug the MAP sensor connector if possible)
- Digital vacuum pump or hand vacuum source(Optional for simulating vacuum on non-running tests)
- Electrical contact cleaner(Use on connectors if corrosion is suspected)
- Safety gear (gloves, eye protection)(Personal protective equipment for battery and electrical work)
Steps
Estimated time: 40-60 minutes
- 1
Prepare the vehicle and safety gear
Park on a flat surface, apply the parking brake, and wear safety glasses. Disconnect the negative battery cable if you need to remove the MAP sensor for inspection. This minimizes the risk of short circuits when handling electrical connectors.
Tip: Label wires or take photos before disconnecting anything; this makes reassembly faster and reduces confusion. - 2
Locate and inspect the MAP sensor
Find the MAP sensor in the engine bay, usually mounted on or near the intake manifold. Check the wiring harness for cracks, corrosion, and secure mounting. If the sensor is removable, inspect the vacuum hose that connects to the manifold for leaks or damage.
Tip: Look for oil or vacuum line dampness around the sensor area; contamination can affect readings. - 3
Back-probe the reference and signal wires
With power on or as specified by the service manual, back-probe the reference (Vref) and signal wires using a multimeter. Start with the reference voltage to confirm the sensor is powered and within expected range, then identify the signal wire for measurement.
Tip: Keep the engine at idle or a steady state to get stable readings; avoid wiggling wires during measurement to prevent transient values. - 4
Measure the reference voltage (Vref)
Measure the reference voltage between the Vref wire and ground. A typical MAP sensor supplies a stable reference (often around 5V) to the sensor. If you don’t see voltage, there may be a power or ground issue in the harness or ECU.
Tip: If the reading is absent, re-check the fuse and battery connections before probing further. - 5
Measure the sensor output under varying load
With the engine running, observe the MAP signal voltage while the engine is at idle and under light acceleration. If available, gently introduce vacuum (via vacuum lines or a hand pump) to observe how the signal responds.
Tip: Document readings at several known states (idle, part throttle, and full load) to compare against OEM specs. - 6
Interpret readings and reassemble
Compare measured values to the OEM specification for your vehicle. If readings are static or out of range, revisit wiring, check for leaks, and consider sensor replacement or ECU checks. Reconnect all connectors, secure the sensor, and perform a test drive to validate driveability.
Tip: After work, reset any stored fault codes with a scan tool and verify no new codes appear during a short drive.
Your Questions Answered
What does a MAP sensor do and why would I test it with a multimeter?
The MAP sensor measures manifold pressure and helps the ECU adjust fuel and timing. Testing with a multimeter confirms the sensor is powered and delivering a measurable signal that responds to engine load.
MAP sensors measure engine vacuum to help the ECU adjust fuel. A multimeter test confirms the sensor is powered and responsive.
Can I test MAP sensor in-circuit, or do I need to remove it?
Many tests can be done in-circuit using back-probing. If readings are inconclusive, you may remove the sensor to inspect it and the mounting area for contamination or damage as per the service manual.
In many cases you can test in-circuit with back-probes. If readings are inconclusive, remove the sensor for inspection.
What readings indicate a healthy MAP sensor?
A healthy MAP sensor shows a stable reference voltage and a signal that changes with engine load or vacuum. Readings should align with OEM specs under various states; inconsistent or flat readings suggest a fault.
Healthy MAP readings include a stable reference and a signal that changes with engine load. If readings don’t vary as expected, consider testing wiring or replacing the sensor.
Can a faulty MAP sensor cause idle or driveability problems?
Yes. A bad MAP sensor can cause rough idle, stalling, hesitation, or reduced fuel efficiency. Always rule out battery, ignition, and fuel system issues before replacing the MAP sensor.
A failing MAP sensor can cause rough idle and poor acceleration. Check related systems and verify with a test before replacing parts.
Is it safe to test the MAP sensor with the engine running?
Testing with the engine running is common for signal response checks, but take care to avoid contact with hot components and spinning belts. Use back-probes to minimize connector wear and ensure the vehicle is secure.
Engine-on tests are okay if you’re careful and use back-probes to avoid damaging connectors.
What steps should I take if readings are out of spec?
Re-check connections, inspect hoses for leaks, verify the harness is intact, and test again. If readings remain out of spec, consider sensor replacement or ECU diagnostics as guided by the service manual.
If readings are out of spec, check wiring, hoses, and reseat connectors. If unresolved, consult service manual and consider a sensor replacement.
Watch Video
Key Takeaways
- Plan the test before touching electrical connectors.
- Back-probe to preserve wiring integrity.
- Confirm Vref and signal readings against OEM specs.
- Document readings and symptoms for accurate diagnosis.
- Verify by driving the vehicle after testing to ensure driveability.
