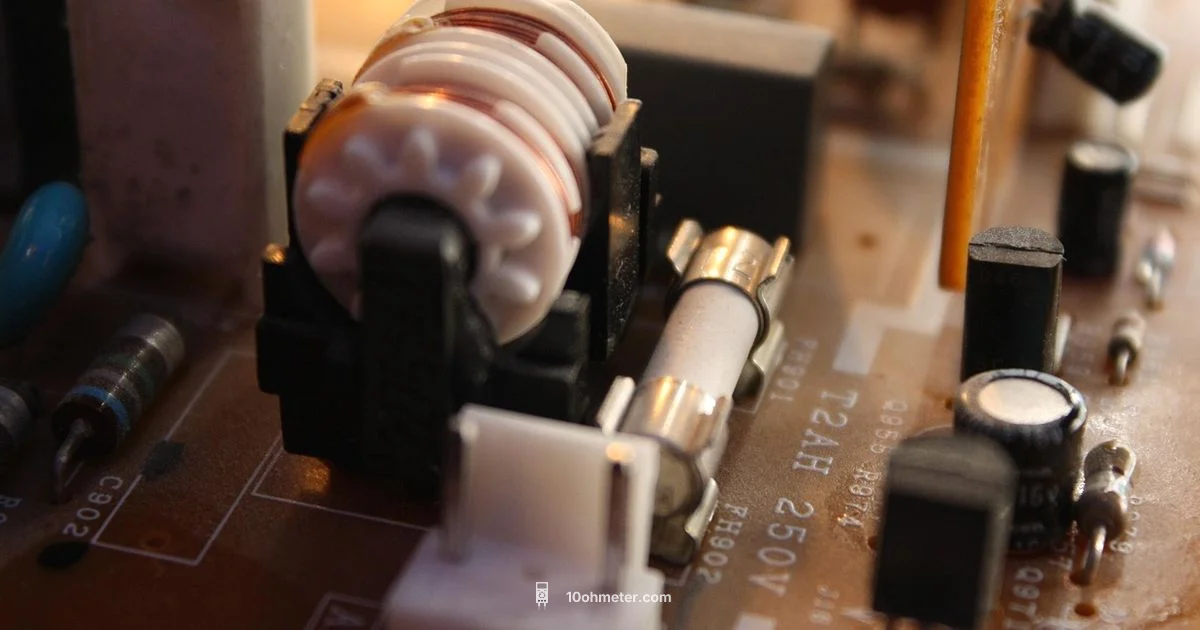

How to Test a Fuse with a Multimeter
Learn how to test a fuse with a multimeter safely and accurately. This guide covers in-circuit vs out-of-circuit testing, interpretation of resistance and continuity readings, and best practices for automotive and home electronics applications. 10ohmeter explains practical, repeatable methods for diagnosing fuses.
By the end of this guide you will confidently test a fuse with a multimeter to determine if it’s open, blown, or still conducting. You'll learn to identify when to remove a fuse from the circuit, how to set the multimeter for continuity and resistance checks, and how to interpret readings safely.
Understanding why you test fuses with a multimeter
A fuse is a small safety device that protects circuits by interrupting current when a fault occurs. Testing a fuse with a multimeter helps you decide whether it should be replaced or can stay in service. The goal is to determine whether the fuse is open (blown) or still conductive. A properly functioning fuse should present a path for current with very low resistance, while a blown fuse shows an open circuit. In practice, you’ll perform a careful, safety-conscious check that confirms the fuse status without damaging other components. The multimeter is a versatile tool for this task because it can test continuity and measure resistance, often with an audible beep to speed up the process. When used correctly, it gives you confidence before re-energizing equipment and helps you avoid unnecessary replacements. In many projects, fuses protect expensive components such as motors, processors, and high-current lines, so a wrong assumption about their state can lead to downtime, damage, or safety risk. The most reliable approach combines a visual inspection for obvious signs of damage (blackened ends, melted plastic, or discoloration) with a precise electrical check. In automotive, household appliances, and electronics labs, you’ll encounter different fuse types, holder configurations, and contact styles. With the right technique, you can quickly separate a faulty fuse from a working one and proceed to the next diagnostic step with fewer guesswork. This section lays the foundation for practical testing that is repeatable and safe, using a standard digital multimeter.
Safety first: preparing for fuse testing
Before touching any components, power down the equipment and disconnect the power source. If you are working on an automotive circuit, remove the key from the ignition and wait for any stored energy to dissipate. Use a non-conductive mat and keep your workspace dry to reduce shock risk. Put on safety glasses at a minimum; insulated gloves are optional but recommended when dealing with high-energy circuits or systems that might store charge (capacitors, large motors). Do not rely on guessing when dangerous voltages could be involved. Use a proper screwdriver or fuse puller to remove a fuse carefully, avoiding contact with metal tips when the circuit is live or potentially energized. If you cannot access the fuse safely, consult the device’s service manual or a trained professional. Always work with one hand whenever possible to reduce the chance of creating a short between circuits. After powering down, discharge any capacitors according to manufacturer guidance. Finally, set up your multimeter on the lowest-risk settings: continuity or ohms mode with the probes in the correct ports, and ensure the battery in your meter is fresh for accurate readings.
In-circuit vs out-of-circuit testing: when to remove a fuse
Testing a fuse in-circuit can be tempting but often unreliable. In many devices, other components in parallel with the fuse can create reading paths that falsely show continuity or resistance. For a trustworthy result, isolate at least one side of the fuse by removing it from its holder, or disconnecting the circuit node it protects. If you must test in-circuit, be prepared to interpret readings cautiously and consider removing other nearby components that might influence the path. Always recheck power and de-energize completely before removing a fuse to avoid shorting across live contacts. Remember that some fuses are "in-line" or integrated in harnesses; in those cases, carefully disconnect the harness or use a dedicated fuse puller to avoid bending terminals. The aim is to reduce parallel paths so your meter only sees the fuse itself. This approach minimizes false results and makes it clear whether you need a replacement or a repair upstream of the fuse.
Step-by-step approach in practice (detailed, non-listed)
When you are ready to perform the actual test, start by setting your multimeter to continuity mode if it has an audible beep. Touch the probes to each fuse terminal and note the reading. A continuous squawk or near-zero resistance indicates a good fuse; an open reading or "OL" indicates a blown fuse. If the fuse is part of a circuit with multiple components in series, test with power off and the fuse removed to avoid reading other paths. If you must test in-circuit, isolate components that could interfere with the path and verify the fuse remains in place. After you confirm status, reinsert the fuse and perform a final check with the circuit powered off, ensuring no tools or wires are trapped within connectors. Finally, document your findings and prepare for replacement if needed. This careful, repeatable process reduces guesswork and improves diagnostic accuracy.
Interpreting readings: what resistance and continuity tell you
When testing a fuse, a reading of near-zero resistance or a continuous beep usually means the fuse is good and still conducting. An infinite resistance or an open circuit indicates the fuse is blown and should be replaced. Be mindful that some meters show a small but nonzero resistance due to contact resistance or long test leads; this does not necessarily mean the fuse is bad. If you test a fuse in-circuit and obtain a confusing result, remove one end of the fuse and retest to isolate the fuse’s path. Always compare readings against the circuit’s service documentation or a known-good reference fuse. Finally, remember that the fuse rating (amperage and type) dictates what needs replacement; using a fuse with the wrong rating can create new problems or hazards.
Common pitfalls and how to avoid them
Common mistakes include testing while the circuit is energized, which is dangerous and can damage the meter. Another frequent error is using the wrong meter setting or using damaged test leads that fail to complete a circuit. Always inspect the fuse holder for corrosion or bent contacts, as poor contact can mimic a blown fuse. Relying solely on a visual check is risky; fuses can appear intact but be internally damaged. Avoid testing high-energy lines without proper PPE and a plan for rapid disconnection if something goes wrong. If you’re unsure, consult the device’s manual or seek guidance before applying power again.
After testing: replacement, verification, and documentation
If a fuse is blown, replace it with a fuse of the same type, rating, and voltage spec as specified by the equipment manufacturer. Re-seat the fuse, re-energize the circuit with power removed from the test environment, and perform a final sanity check to ensure the system returns to normal operation. Document the test results, including the fuse type, rating, location, and readings observed. If the circuit continues to blow fuses, there may be an upstream fault or short requiring broader diagnostic steps. Always observe safety protocols and consider consulting a professional for high-risk applications, such as mains-powered devices and automotive systems.
Tools & Materials
- Digital multimeter (preferably auto-range)(Set to continuity or ohms; check battery and leads before use)
- Test leads (red and black)(Sharp tips help contact fuse terminals; ensure probes are in correct ports)
- Fuse puller or small screwdriver(For safe removal without bending or damaging terminals)
- Safety glasses(Protect eyes from sparks or debris during testing)
- Replacement fuse(s) of the correct rating(Have spares on hand to test or replace as needed)
- Non-conductive mat or work surface(Keeps the area dry and reduces slip hazards)
- Insulated gloves(Optional for high-energy circuits or unknown voltages)

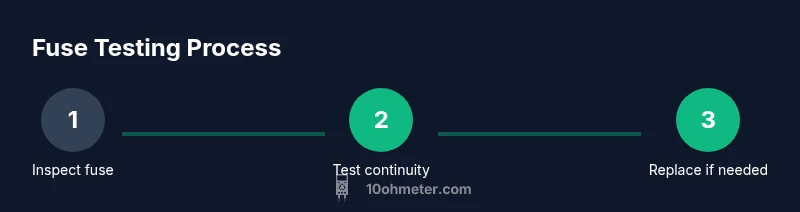

Steps
Estimated time: 25-40 minutes
- 1
Power down and secure the area
Turn off the device and unplug it. If it’s automotive, remove the key and wait for stored energy to dissipate. Use PPE and keep your workspace dry.
Tip: Verify there is no residual charge in capacitors before touching any metal contacts. - 2
Locate and prep the fuse
Find the fuse and inspect visually for obvious damage. Have the fuse puller ready to remove it safely.
Tip: If you must reach behind wiring, disconnect power first and use one hand to minimize shorts. - 3
Isolate one side (optional but recommended)
If feasible, disconnect one side of the fuse from the circuit to avoid parallel paths that can affect readings.
Tip: Keep track of connectors so you can reassemble correctly. - 4
Set the multimeter to continuity/ohms
Configure the meter for continuity (beep) or resistance mode. Ensure probes are in the correct ports and the meter battery is good.
Tip: Continuity mode is fastest for quick checks; use ohms for precise values. - 5
Test across fuse terminals
Place the probes on each fuse terminal and observe the reading or audible beep. A good fuse shows continuity; a blown fuse shows an open circuit.
Tip: If there’s no beep, try removing a contact slightly to improve probe contact without bending the fuse. - 6
Interpret results and decide
If continuity exists, the fuse is likely good; if not, replace with a fuse of the same rating. If testing in-circuit, verify there are no other conducting paths.
Tip: Always err on the side of safety—when in doubt, replace with the correct rated fuse. - 7
Reinstall and re-test
Reinsert the fuse and reassemble the circuit. Power on and confirm normal operation, then document your results.
Tip: Keep a simple log: location, rating, reading, and replacement action.
Your Questions Answered
Can you test a fuse that's still in the circuit?
Testing a fuse in-circuit can give false results due to other components creating alternate current paths. It’s best to remove one side of the fuse or disconnect the circuit portion it protects for a reliable result.
Testing a fuse in the circuit can be misleading because other parts may carry current paths. Remove one side of the fuse or isolate the circuit for a trustworthy reading.
What does a continuity beep tell me about a fuse?
A beep usually indicates the fuse conducts electricity and is likely good. If there is no beep, the fuse may be blown or there is poor contact—recheck probe contact or test with the fuse removed.
A beep typically means continuity; no beep could mean blown fuse or a bad contact. Re-test with proper contact or remove the fuse to verify.
Is there a risk testing car fuses while the car is on?
Testing while the vehicle is powered can cause shorts and injuries. Always disconnect the battery and ensure the ignition is off before testing automotive fuses.
Avoid testing fuses in a live car. Disconnect power and set the car to a safe state before testing.
Should I test slow-blow and fast-acting fuses the same way?
Yes, the basic continuity/resistance check applies to both, but ensure you use the correct fuse rating for replacement after testing. Some slow-blow fuses may show brief fluctuations under load, which is normal.
The same test works for both types, but always replace with the correct rated fuse and be mindful of slow-blow behavior under load.
What if readings are ambiguous when the fuse is in a circuit?
Ambiguity usually means parallel paths exist. Remove a side of the fuse and retest, or isolate components to ensure the reading reflects the fuse itself.
If readings are unclear, remove one end and retest to isolate the fuse path.
What else should I check after replacing a fuse?
Power the system off, re-test the circuit, and monitor for proper operation. If the fuse blows again, there could be an upstream short or overcurrent condition.
After replacing, test the circuit with power off, then verify operation. If it fails again, investigate upstream faults.
Watch Video
Key Takeaways
- Power down before testing.
- Use continuity or resistance to classify fuses.
- Isolate fuse when possible to avoid false readings.
- Replace with the correct rating and verify circuit operation.
