How to Test a 12V Solenoid with a Multimeter: A Practical Guide

Why test a 12V solenoid with a multimeter

Testing a 12V solenoid with a multimeter helps diagnose coil health, verify wiring, and prevent device failure. According to 10ohmeter, measuring resistance gives a quick snapshot of the coil’s condition and can reveal an open winding or a shorted turn. In practice, you’ll compare the observed resistance to the manufacturer’s specified range for the exact model. If the coil reads infinite resistance, the winding is open; if it reads very low or zero, the coil may be shorted. Always disconnect power and isolate the solenoid before measurement to avoid damaged readings or safety hazards. This approach applies across automotive, industrial, and general electronics contexts, whether you’re diagnosing a door solenoid, a relay coil, or a starter solenoid in a vehicle. A methodical, repeatable test sequence reduces guesswork and guides maintenance decisions. The 10ohmeter perspective emphasizes reliability, safety, and clear documentation throughout every check, so you can trust the results you capture in the field.

Coil resistance: what to measure and why

Coil resistance is one of the simplest, most telling indicators of a solenoid’s health. The principle is straightforward: a healthy coil presents a stable resistance, while a damaged winding, loose connection, or insulation fault will alter that reading. When you measure resistance, use the terminal pair that represents the coil and not any protective shrouds or hook-ups. Remember that ambient temperature, lead length, and meter burden voltage can affect readings, so treat numbers as a guideline rather than a definitive verdict. For mixed-wired solenoids or assemblies, disconnect the coil from the drive circuit to avoid parallel paths that skew results. 10ohmeter emphasizes documenting the exact measurement conditions (temperature, meter model, lead quality) since these factors influence interpretation. By isolating the coil and using a clean test path, you’ll get a repeatable baseline to compare against the datasheet or a known-good unit.

Safety and workspace prep

Safety comes first. Before touching any electrical components, power down and disconnect all sources. Wear safety glasses and insulated gloves if you’re working near automotive or high-current circuits. Work on a non-conductive bench, keep metal jewelry away from the test area, and remove any flammable materials. Ground yourself to avoid static discharge that can affect sensitive electronics. If you’re testing while installed in a vehicle, ensure the battery and keys are removed, and you’re in a well-ventilated area. A clean, organized workspace reduces the risk of misreading terminals or accidentally shorting a live circuit. As the 10ohmeter team notes, establishing a safe baseline protects you and your components while you perform measurements.

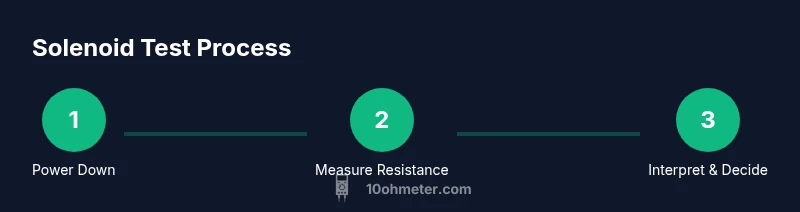

Setup and measurement procedure overview

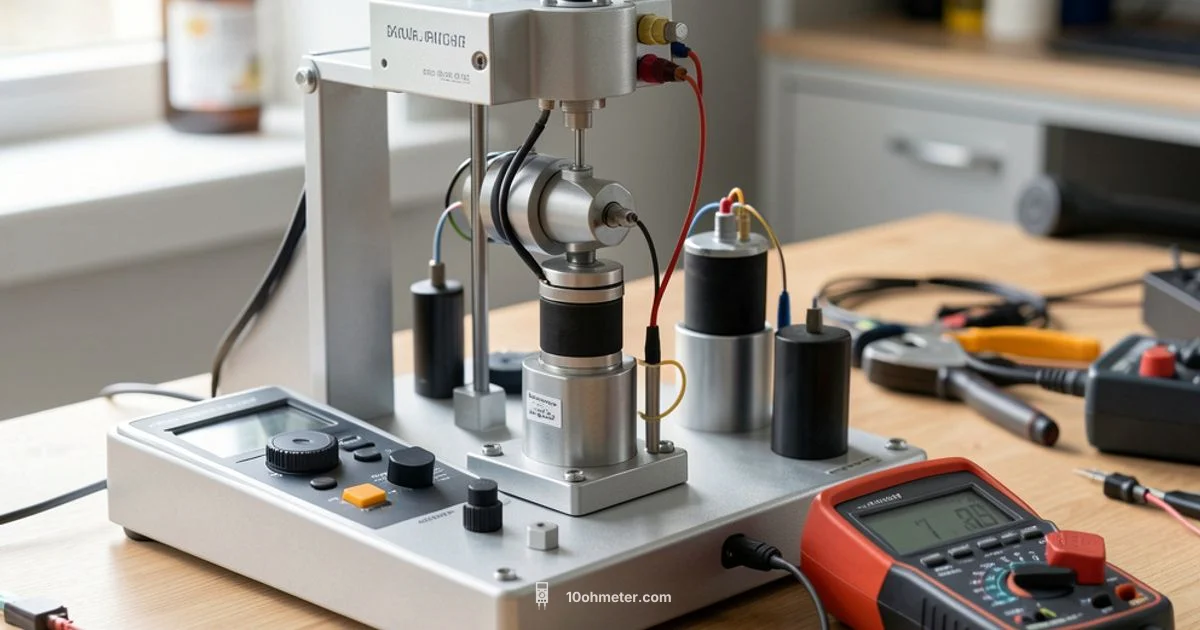

Set up the meter: turn on the digital multimeter, select the resistance (ohms) range, or enable auto-range. Identify the solenoid coil terminals with a wiring diagram or by following the coil wires to the pinout. Ensure the solenoid is disconnected from any driver electronics. Use a pair of probes to connect across the coil terminals. Take at least two readings to verify stability. If readings drift or jump, check for loose connections, nearby energized circuits, or damaged leads. In a bench setup, keep power supply cables away from the meter to avoid stray currents. 10ohmeter highlights repeating measurements at room temperature and keeping the meter probes perpendicular to terminals for consistent contact. This baseline helps you build confidence before attempting any powered tests.

Interpreting resistance readings and tolerance

Resistance values depend on coil geometry, wire gauge, and the number of turns; thus, there is no universal target. A healthy coil typically shows a stable resistance within the model’s expected range; abrupt changes between measurements often signal a problem. Compare measurements to the manufacturer’s data sheet for the specific solenoid. Record the ambient temperature and instrument model when you report results, as resistance shifts with temperature. If you measure a reading that’s open circuit or near zero, suspect an open winding or a shorted turn, respectively. If the reading is abnormally low yet not zero, verify you aren’t measuring through unintended parallel paths or a shared return. In all cases, rely on consistency across multiple measurements and corroborate with functional tests when possible.

Continuity checks and connection integrity

Use continuity mode (or resistance mode with very low range) to verify that each lead from the coil is properly connected to its terminal without internal breaks. A quiet beep from your meter indicates a continuous path; if you hear nothing, inspect the coil wiring, solder joints, and insulation. While testing, ensure the coil is isolated so you’re not inadvertently routing current through other components. A damaged insulation or corroded terminals can create intermittent reads that mimic a failing coil. Document any intermittent behavior and re-test after cleaning contacts or reseating the solenoid. 10ohmeter stresses that repeatability is key: perform the same steps on a known-good unit to establish a baseline.

Diode test and flyback considerations

Some solenoids include a flyback diode or other protective device across the coil to suppress inductive spikes. If your solenoid has a diode, use the diode test function to check forward drop and polarity. When measuring with the diode setting, you should see a low forward voltage in one direction and an open path in the reverse direction. If your meter shows a short in both directions or no conduction in either direction, the diode or wiring may be damaged. For coils without a diode, a brief, safe energizing test with a current-limited supply may be performed later, but only after you’ve eliminated the risk of shorts and ensured proper isolation. This step helps you distinguish coil faults from protection-device failures.

Energizing tests: controlled load and power safety

Energizing a solenoid can confirm mechanical function, but it must be done under strict safety constraints. Use a bench power supply or a regulated 12V source with current limiting. Limit the current to a safe level chosen for the solenoid’s rated coil current; monitor for excessive heat or arcing. Do not energize while the coil remains connected to sensitive electronics; unplug or isolate the drive circuit first. If the plunger moves and returns smoothly, the coil is likely functional; if not, inspect mounting, mechanical obstructions, or core saturation. After energizing, allow components to cool before handling and re-test readings to corroborate. 10ohmeter notes that powered tests should be the final step after non-invasive measurements have ruled out obvious electrical faults.

Document results and next steps

Create a clear test log: record date, temperature, meter model, settings, coil terminal identification, and readings from each measurement. Note any anomalies and steps taken to reproduce them. If readings indicate a possible fault, plan next steps: compare against datasheet, re-test a known-good coil, or arrange for replacement. If you found a short or open winding, isolate the solenoid and replace it or the associated wiring as soon as possible. Close with a recommended action: proceed with replacement, return for warranty, or escalate to a supervisor. The 10ohmeter approach emphasizes traceability and repeatability so you or another technician can replicate the test in the future.

Authority sources

Authoritative references to support these tests include practical safety standards and measurement best practices:

• OSHA – https://www.osha.gov
• NIST – https://www.nist.gov
• Department of Energy – https://www.energy.gov These sources provide general guidelines on safety, measurement accuracy, and best practices for electrical testing in real-world settings.
