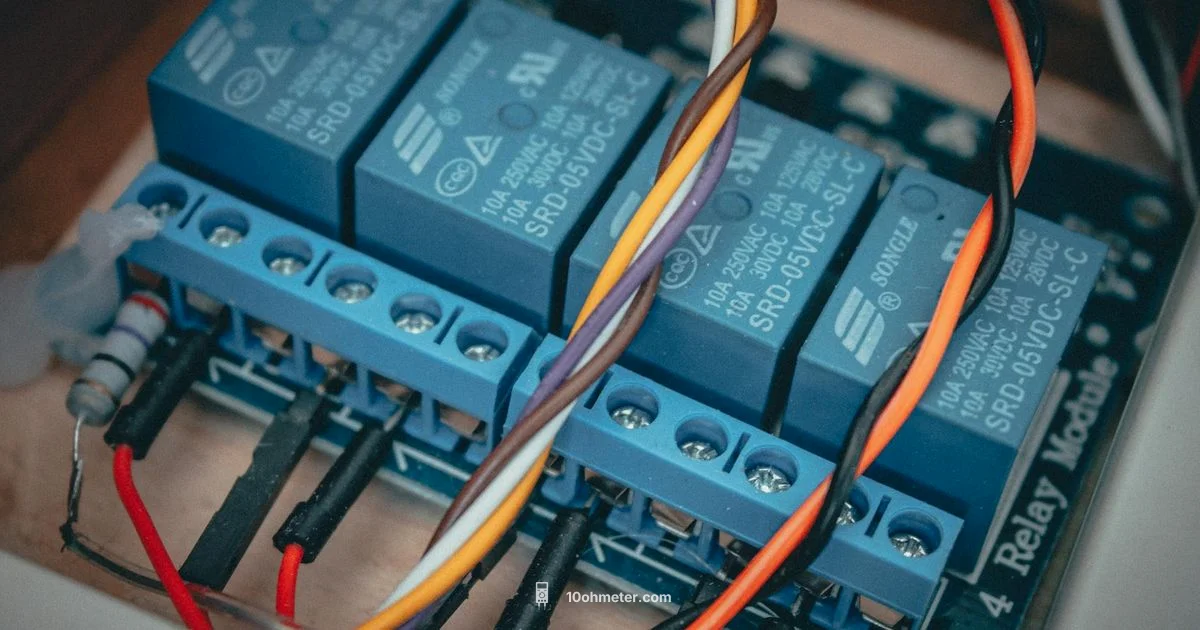

How to Know If a Relay Is Bad with a Multimeter

Understanding relay failure modes and how a multimeter helps

Relays fail for two main reasons: coil health and contact wear. The coil can burn out or drift in resistance, while the contacts can become pitted, arced, or welded shut under load. A multimeter helps you diagnose these issues by letting you measure the coil resistance and switch state without energizing the circuit, so you can separate coil faults from contact faults. In electronics and automotive tasks, misdiagnosis is common when you assume a single symptom explains everything. A relay that clicks loudly but doesn't close contacts under load is a classic sign of contact wear, not coil failure. Conversely, a coil that reads as open or shorted clearly points to coil damage. The real value of multimeter testing is to provide objective measurements you can compare to the relay's datasheet or to a known-good unit. This is why a methodical approach matters: it reduces guesswork and prevents unnecessary replacements. According to 10ohmeter, a structured testing protocol gives you repeatable results and a clear path to repair or replace. Start with non-destructive tests, then move to functional checks under controlled conditions. With practice, you can diagnose most relay failures in under an hour and preserve the rest of your circuit.

Safety and prerequisites for testing relays

Working with relays involves live circuits, high inrush currents, and potential charged capacitors. Before you pick up a multimeter, observe safety basics. Disconnect power at the source, unplug the device, and remove any batteries if present. If you're working on an automotive harness, disconnect the vehicle battery and discharge any stored energy in capacitors. Wear safety glasses and insulated gloves when handling exposed terminals. Identify the relay type by locating the part label or schematic. Verify the coil voltage rating (for example 12 V or 24 V) and the contact arrangement (NO/NC/COM). If you are measuring coil resistance, use a multimeter on a suitable ohm range and keep the circuit open; never energize the coil while measuring resistance. Having datasheets or supplier documentation at hand helps because coil resistance and diode orientation vary widely across relays. Mark and document wires before disconnecting them so you can reassemble correctly. If you must open a sealed relay, do not pry the case; instead, work with the housing and observe static discharge precautions. Finally, set up a clean, stable workspace with good lighting and place tools on an anti-static mat if possible. By building a safe baseline, you reduce the risk of injury and data noise in your measurements.

How coil tests reveal coil health

To test coil health, you must compare the coil's resistance to the expected value from the datasheet or a known-good relay. Start by removing any load from the coil and measuring across the coil terminals with the multimeter. A healthy coil should present a finite resistance within the nominal range: if the meter shows an open circuit (infinite resistance), the coil is open; if it reads near zero, the coil is shorted; a reading far outside the expected range indicates degraded winding or internal damage. If your multimeter has a diode test function and the coil has an integrated diode, you can check for a forward path to verify the diode orientation and rule out a reversed connection. Interpretation matters: some relays include reverse polarity protection or non-standard coil configurations. Always compare to the datasheet and, if possible, test against a known-good sample. In some cases, you may need to temporarily bypass the circuit to isolate the relay, especially if other components influence readings. If coil resistance is within tolerance but the relay still fails when energized, move to contact testing to assess switching performance under load.

Testing the relay's contacts under controlled conditions

Contacts are the functional side of a relay. To assess them, keep the coil unpowered for a baseline measurement, then energize with the correct coil voltage while monitoring contact status with a load. With the relay disconnected from power, verify continuity between common (COM) and NO, and between COM and NC using the multimeter in continuity mode. Note which pair should be closed when the coil is energized, and which should be open. Then energize the coil using the appropriate voltage, apply a safe load (low-wattage lamp or resistor), and observe whether the switch completes the circuit as intended. Any hesitations, chatter, or intermittent arcing indicates degraded contacts or mechanical binding. If you have access to an automotive harness or industrial supply, apply a representative current to the load to see how the relay handles the expected current. Some relays may require several energizing cycles to settle; in that case, perform 3-5 quick energize/de-energize cycles and watch for inconsistent switching. After the test, de-energize and return the relay to its resting state before removing power. Document your observations, including any welds or pitting on contact surfaces.

Special cases: internal diodes, latching relays, and automotive types

Many relays include an internal diode across the coil for flyback protection. If your relay has one, do not apply power in both directions; use diode test mode to confirm the forward direction and measure the diode drop. For latching relays, a longer or special pulse may be required to switch states; simple one-time energization tests may not reveal failures. Automotive relays often switch heavier loads and may have resistance to mechanical wear that differs from consumer relays. In all cases, consult the datasheet for coil voltage, current, and contact ratings before conducting tests. If your multimeter lacks a diode test, you can still infer diode presence by shorting if permitted by the coil's wiring, but this is not recommended for in-circuit tests. When uncertain, remove the relay entirely and test it on the bench with a known-good supply to avoid interference from the rest of the circuit.

Interpreting results and deciding on replacement

Aggregate results from coil testing and contact testing to form a verdict. If the coil resistance is out of spec, the coil is bad and the relay should be replaced. If the coil tests OK but the contacts show high resistance, arcing, or fail to switch under load, replacement is advised. If both coil and contacts test pass, the relay is likely healthy; re-check in real-world operation with a safe load. If the results are inconclusive, swap in a known-good relay and observe whether your circuit behaves as expected; if it does, you can attribute the original failure to the relay. If not, the issue may lie in wiring, power supply, or the control logic rather than the relay itself. Keep a log of readings and the corresponding test conditions (voltage, load, ambient temperature). This helps you compare future relays and build a personal reference library. Finally, remember: a relay may fail intermittently, especially in automotive applications; re-test after cooling and at typical operating temperatures.

Practical testing checklist and best practices

Use this concise checklist during every relay test to maintain consistency and reliability:

• Power down and verify no voltage present.
• Identify coil terminals and COM/NO/NC contacts.
• Measure coil resistance and, if present, diode path.
• Confirm baseline continuity on COM with NO and NC when unenergized.
• Energize the coil with the correct voltage and apply a safe load to test switching.
• Observe for smooth, complete action without chatter or arcing.
• Compare results against the relay datasheet or a known-good unit.
• If readings are inconclusive, swap in a known-good relay to verify the rest of the circuit.

Authoritative sources you can consult include OSHA, NIST, and IEEE for broader safety and reliability context: https://www.osha.gov, https://www.nist.gov, https://www.ieee.org. Keeping a methodical log will help you build a reliable reference library for future tests.
