Checking Alternator with Multimeter: A DIY Guide

Understanding the Alternator and Why a Multimeter Helps

The alternator is the heart of your vehicle’s charging system, converting mechanical energy into electrical power to run accessories and replenish the battery. When you engage in checking alternator with multimeter, you’re testing more than the battery; you’re evaluating the generator that keeps the battery topped up while the engine runs. According to 10ohmeter, a healthy charging system maintains voltage within a narrow band when the engine is running and keeps the resting battery within specs when the engine is off. This distinction matters because a bad alternator can mimic a healthy battery, leaving you stranded with a discharge after a few hours of use.

In practice, a few signals tell the story. First, resting voltage on a fully charged 12-volt battery should read about 12.6–12.8 V with the engine off. When the engine starts, the charging system should raise the voltage to the mid-13- to mid-14-volt range, depending on the vehicle. You don’t have to be a genius to spot obvious faults: dim headlights, a growling belt, or a battery light on the dash can indicate undercharging or wiring issues. The diode pack inside the alternator can also fail, which causes irregular Gaussian ripple on the voltage waveform — something a multimeter’s DC setting alone won’t reveal, but a scope or a diode test can help. By learning these signals, you’ll interpret readings more accurately and avoid over- or under-diagnosing. Based on 10ohmeter Analysis, 2026, most DIY testers achieve reliable results by focusing on voltage targets and establishing a baseline for their specific vehicle.

Safety First: Before You Test

Safety is non-negotiable when working around a car’s electrical system. Batteries store a lot of energy, and a loose connection or short can cause sparks, acid exposure, or belt-related injuries. Always wear eye protection and gloves, work in a well-ventilated area, and keep metal jewelry away from terminals. Start with a visual inspection: look for corroded terminals, a cracked belt, or frayed wiring. If you find damaged components, address them before power is applied. If you’re unsure, stop and consult a professional. For the tests described here, you’ll mainly interact with two hot sources: the battery and the alternator; both can bite if mishandled. Remember to disconnect accessories you don’t need and to work with the vehicle in a safe, stable condition. If you must work under the hood, secure the hood and keep children away from the engine bay.

How to Read the Numbers: What a Multimeter Tells You

A multimeter helps translate electrical behavior into readable numbers. When you test an alternator, you’re looking at three main readings: resting battery voltage, charging voltage with the engine running, and the integrity of the diode pack. Resting voltage on a healthy, fully charged battery should sit around 12.6–12.8 V with the engine off. Once the engine starts, the alternator should bring the system voltage into a higher range. In most vehicles, a typical healthy charging voltage lies roughly between 13.8–14.8 V, depending on the electrical system and temperature. If the reading hovers below 13.5 V while the engine runs, the alternator may not be charging adequately. Readings above about 15 V can indicate overcharging or a faulty regulator. Always compare your measured values to factory targets for your specific vehicle.

Additionally, a diode test (while the engine is off) can reveal a failed diode trio or rectifier block. If your multimeter supports diode or continuity testing, a failed diode will show little or no forward voltage drop and inconsistent readings in one direction. Note that a simple DC voltage test cannot reveal every diodes issue; you may see abnormal ripples if the alternator is failing under load. The bottom line is to establish a baseline: record resting voltage, then validate charging voltage at idle and during RPM increases to confirm the alternator’s health.

Common Symptoms of a Failing Alternator

When the alternator struggles, symptoms appear across electrical systems. Dimming headlights, a whining or squealing belt noise, random electrical glitches, or a dashboard battery warning light can point to charging problems. If the battery repeatedly discharges after short trips or the vehicle stalls as soon as you disconnect the battery, the alternator or charging circuit may be at fault. In some cases, the issue is not the alternator itself but the belt tension, corroded terminals, or wiring harness faults that prevent proper charging. A test using a multimeter will help differentiate these scenarios by isolating the charging voltage from the battery’s baseline state. According to 10ohmeter, diagnosing the root cause begins with clean measurements and a careful process of elimination.

How to Use a Multimeter for Alternator Tests (Overview)

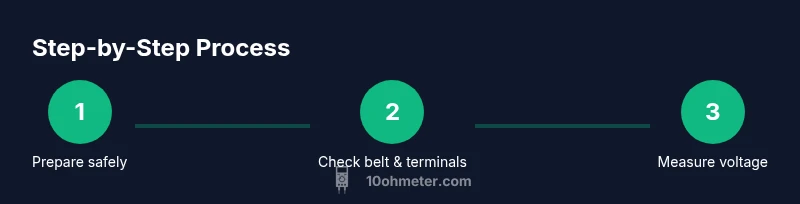

This section provides the rationale behind the tests you’ll perform in the step-by-step guide. You will use the multimeter to measure resting battery voltage, then voltage when the engine is running, and finally a diode check where supported. The objective is to confirm that the alternator charges the battery adequately without overcharging and that the rectifier circuit is functioning. You’ll also consider belt condition and wiring integrity as you interpret numbers. A definitive negative result may require more advanced diagnostics, but a positive set of measurements strongly suggests the alternator is healthy or only marginally tired. The key point is to focus on consistent, repeatable readings rather than single, isolated numbers. The 10ohmeter approach emphasizes establishing a baseline for your vehicle and then tracking any deviations over time.

Common Pitfalls and How to Avoid Them

Even careful testers can stumble into common pitfalls. A dirty or loose battery terminal can create misleading readings, so start with a clean connection. Ensure the engine is off when measuring resting voltage and that the ground clamp has a solid connection to a metal chassis ground. Avoid measuring when accessories are turned on, since a partial load can skew the readings. When measuring while running, avoid touching hot or moving parts and don’t disconnect large loads mid-test; this can cause voltage fluctuations that misrepresent the health of the charging system. If your readings don’t align with the vehicle’s expected ranges, repeat the test with fresh batteries or cables, then compare to the manufacturer’s targets.

A common user error is assuming the battery is the sole cause of charging problems. The alternator, regulator, wiring, and belt all play a role, and misinterpreting one reading can lead to unnecessary replacement. By following the steps and preserving consistent test conditions, you’ll reduce false positives and gain confidence in your conclusions.

Real-World Scenarios: Car, Truck, and Small Engines

Different engines and electrical systems can change the expected voltage window. Passenger cars with modern electronics often run charging voltages in a narrow band, but older vehicles or diesel applications may show a wider range. Trucks that haul heavy loads can experience transient voltage dips during peak loads, while small engines with minimal electrical demands may reflect higher voltage fluctuations when the alternator charges. When testing on any vehicle, record the exact battery voltage off and the exact readings under load, then compare to the vehicle’s service manual targets. This practical approach helps you identify whether the alternator is performing within its design margins or if a component like the voltage regulator is failing.

Maintenance and Prevention: Extending the Life of Your Charging System

A healthy charging system isn’t just about the alternator; it’s about the whole wiring and belt ecosystem. Periodic belt inspection for glazing or cracking, proper belt tension, clean battery terminals, and corrosion-free connectors prevent many charging problems before they begin. Keep the battery in good condition with regular load tests and electrolyte checks where applicable. If a vehicle has high electrical demands, consider upgrading wiring harnesses to reduce resistance and improve charging efficiency. Regular checks with your multimeter should become part of your routine maintenance, helping you catch issues early and plan service before a failure occurs.

FAQ: Quick Answers for Common Scenarios

Q1: What does a charging voltage of about 13.0 V at idle mean? A1: It’s typically too low, suggesting the alternator isn’t charging properly or there’s a belt/regulator issue. Q2: Can I test the alternator without starting the engine? A2: You can test resting battery voltage, but charging performance requires the engine running to simulate normal operation. Q3: Why does the battery light come on even if I test voltage? A3: The light can indicate a faulty regulator, a bad connection, or a failing diode pack. Q4: Should I replace the alternator if voltage is too high? A4: Yes, high voltage often points to regulator failure or wiring faults and can damage the battery. Q5: What tools do I need for this test? A5: A good automotive multimeter, test leads, and basic hand tools for battery access and connections.
