Check Solenoid with Multimeter: A Practical Guide for Techs
Learn how to safely check a solenoid with a multimeter. This step-by-step guide covers coil resistance, diode checks, and in-circuit versus out-of-circuit testing to help DIY enthusiasts and technicians diagnose solenoid faults.
By using a digital multimeter, you’ll confirm the solenoid coil’s health. Start with power-down and isolation, then measure coil resistance and, if present, diode behavior across the coil. A healthy coil shows consistent resistance and no short to ground; an open or shorted coil indicates failure, guiding your next repair steps.
Understanding solenoids and why a multimeter helps
Solenoids are simple electromechanical devices: a coil of wire surrounding a magnetic core that, when energized, pulls a plunger. In many machines, from automotive door locks to relays and actuators, the solenoid coil is the heart of the operation. A multimeter gives a quick, non-destructive way to assess coil health by measuring electrical resistance and, when applicable, diode or continuity characteristics. The goal is not to prove everything about the solenoid, but to confirm whether the coil is likely healthy enough to operate or needs replacement. According to 10ohmeter, coil integrity is a common failure point in both automotive and general electronics applications, and a simple resistance check can save you time diagnosing drive circuitry. In this guide, you’ll learn practical, field-ready steps to test without guessing.
Common failure modes of solenoids
Solenoids fail for simple reasons that a meter can often reveal. An open coil shows infinite resistance, while a shorted coil reads very low or near zero resistance. A coil inside a damaged actuator may also fail if insulation leaks or corrosion forms at the terminals. Mechanical sticking or a bent plunger can mimic electrical faults by preventing movement even when the coil tests as good. In practice, you may encounter intermittent operation caused by poor contacts or worn connectors. As the 10ohmeter analysis shows, many faults originate in the coil integrity or in adjacent drive circuitry rather than the control electronics alone.
Preparations before testing
Before you touch any wiring, ensure the system is completely powered down and disconnected from any energy source. Wear insulated gloves if you’re working near exposed connectors, and discharge any stored energy in capacitors or circuits. Identify the solenoid’s coil terminals using a schematic or a labeled harness, and isolate the coil from the rest of the circuit as much as possible. Have a datasheet or reference guide handy to compare readings, and label wires to prevent mix-ups when reassembling. These precautions help you avoid shock, accidental energization, or mis-reading the results.
How to measure coil resistance with a multimeter
With power removed and the coil isolated, set your multimeter to the resistance (ohms) function. Connect the probes directly to the two coil terminals, ensuring solid contact. Record the reading and pause briefly to check for stability; a steady value indicates a reliable measurement. If the coil is completely open, you’ll see infinite resistance; if it is shorted, you’ll observe very low resistance close to zero. In either case, compare the result to the device’s datasheet or a known-good coil from a similar solenoid. When testing, remember that in-circuit measurements can be skewed by parallel paths, so isolated measurements are often more trustworthy.
How to test in-circuit vs out-of-circuit
Out-of-circuit testing provides the cleanest view of the coil’s health, but it isn’t always practical. If you must test in-circuit, expect parallel paths that can distort readings. To minimize this, disconnect the coil from the harness or remove it from the assembly if possible. Be mindful of other components connected to the same circuit that could influence the reading, such as diodes or suppression networks. If you still see odd results in-circuit, perform a controlled, isolated resistance check with the coil fully separated, then re-check in the operating environment to confirm behavior.
Additional tests: diode check, continuity beep, and coil current estimate
Some solenoids include a flyback diode or other protective devices. If your meter has a diode-test function, check the diode in the correct direction to verify it’s not shorted or open. Use the continuity/beep setting to confirm a solid electrical path along the coil leads and to identify any intermittent connections. If you know the supply voltage, you can estimate current by applying Ohm’s law conceptually (I = V/R) using the measured coil resistance, while keeping power off during the test. These checks help distinguish coil faults from drive-circuit faults.
Interpreting results and next steps
If the coil resistance is stable and within expected bounds, the solenoid is likely healthy and the fault may lie in the drive circuit or a connector. An open reading generally indicates a broken coil, requiring replacement. A very low reading suggests a shorted windings condition or insulation failure. In-circuit measurements should be corroborated with out-of-circuit tests to confirm coil integrity. Document readings and compare them with manufacturer specifications or a known-good unit. If in doubt, err on the safe side and consult service documentation or a professional.
Final notes on reliability and safety
Testing solenoids with a multimeter is a practical diagnostic step, but it should be part of a broader fault-finding process. Always work with the system de-energized and secured, and keep track of wiring diagrams and pinouts. A disciplined approach reduces the risk of misinterpretation and accelerates repairs. The 10ohmeter team emphasizes safety, methodical testing, and verification against specifications as the best path to a reliable resolution.
Tools & Materials
- Digital multimeter(Prefer auto-ranging; use the ohms range for coil resistance checks)
- Test leads with alligator clips(Red/black leads to ensure solid contact on small terminals)
- Isolated power supply or battery (for bench testing)(Only if you need controlled in-circuit testing with supervision)
- Schematic or wiring diagram(Helps identify coil terminals and diode orientation)
- Insulated gloves(Optional for comfort when working near exposed connectors)
- Labeling tools (punch/marker)(Label wires and terminals before disconnecting)

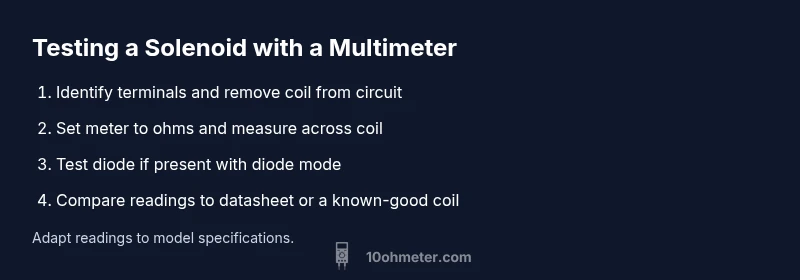

Steps
Estimated time: 20-40 minutes
- 1
Power down and locate the solenoid
Power down the system and locate the solenoid within the assembly. Confirm there are no residual charges in capacitors and the device cannot energize unexpectedly. This step reduces the risk of shock and equipment damage.
Tip: Double-check all power sources are disconnected before touching any wires. - 2
Identify terminals and disconnect
Use the schematic to identify the two coil terminals. If possible, disconnect the coil from the harness to isolate it from the rest of the circuit. Label each wire so you can reassemble correctly.
Tip: Take a photo or sketch pinouts before disconnecting. - 3
Set meter to ohms and measure coil resistance
With the coil isolated, set your multimeter to the resistance function. Place probes on the two coil terminals and record the reading after it stabilizes. Look for a solid, stable value rather than a fluttering one.
Tip: If readings drift, re-seat probes and clean terminals; poor contact mimics faults. - 4
Inter-circuit check (optional first try)
If you can’t remove the coil, measure with the coil still connected but be mindful of parallel paths. Compare against a known-good unit from the same family if available.
Tip: Treat any reading that seems out of spec with extra caution; isolated tests are more reliable. - 5
Diode and path checks (if applicable)
If the solenoid includes a flyback diode or suppression circuitry, switch the meter to diode mode and test in the expected direction. Verify a proper forward drop and no reverse leakage that would indicate a fault.
Tip: Remember diode tests require correct polarity; reverse leads to see reverse blocking. - 6
Doc results and plan next steps
Record all readings and interpret them with the datasheet or a known-good reference. Decide whether the coil needs replacement, or if the issue lies with the drive circuitry or connectors.
Tip: If in doubt, compare multiple measurements or consult a professional. - 7
Reassemble and verify operation
Reconnect the coil and wiring, ensure all connectors are secure, and perform a controlled test in the actual system to confirm proper operation after repairs.
Tip: Finish with a final functional test to ensure full system reliability.
Your Questions Answered
Can a solenoid be tested with a multimeter?
Yes. You primarily test coil resistance and, if present, any integrated diode with a diode test. Ensure power is off and isolate the coil to avoid misleading readings.
Yes. You can test a solenoid by checking coil resistance and any diode with a diode test, making sure the power is off and the coil is isolated.
What resistance value indicates a healthy coil?
There is no universal numeric value. Compare the reading to the datasheet or a known-good coil from the same model. An open circuit or a near-zero reading typically indicates a failed coil.
There isn’t a universal number; compare to the datasheet or a known-good coil. Open or almost zero resistance usually means a fault.
Why would in-circuit testing give odd results?
Because other components create parallel paths, the reading may be skewed. Isolate the coil if possible and re-check to confirm the coil’s true health.
In-circuit readings can be misleading due to other components sharing the circuit. Isolate the coil and re-test to verify.
Is it safe to test automotive solenoids under the hood?
Proceed with caution. Disconnect the battery, wear insulated gloves, and avoid touching hot components. Work methodically to prevent shorts and shocks.
Yes, with caution. Disconnect power sources and use insulated tools, then test methodically.
Can a flyback diode be tested with a multimeter?
If the solenoid includes a flyback or suppression diode, use the diode test mode to verify correct forward voltage and blocking in the reverse direction.
Yes, you can test a diode with the diode test function to verify proper operation and orientation.
What should I do if the solenoid test is inconclusive?
If readings are inconclusive, remove the coil from the circuit and re-test, or compare against a known-good unit. Consult service manuals for model-specific guidance.
If it’s inconclusive, remove the coil and re-test, or compare with a known-good unit and follow the manual.
Watch Video
Key Takeaways
- Test coil resistance to assess health
- Isolate coil for accurate readings
- Use datasheet or known-good references for comparison
- Differentiate in-circuit versus out-of-circuit results
- Prioritize safety and thorough documentation
