How to test e stop with multimeter: A Practical Guide
Learn how to test e stop with multimeter safely and accurately. This step-by-step guide covers safety, wiring basics, continuity and resistance checks, and maintenance for DIY and automotive tasks.
In this guide you will learn how to test e stop with multimeter to verify open/closed states, identify wiring configurations, and confirm reset behavior. You’ll perform a safe, non-energized continuity check, validate contacts, and document findings. The method applies to most industrial and automotive E-stops, using common multimeter functions and a basic test setup.
What is an E-stop and why test it with a multimeter?
An emergency stop (E-stop) is a safety device that quickly disconnects power to halt machinery during faults or danger. Its reliability matters: a failed E-stop can prolong hazards or cause equipment damage. For DIYers and technicians, knowing how to test e stop with multimeter is a foundational skill that helps verify the switch opens the circuit when pressed and closes it when released. In many control loops, the E-stop is wired in series with the control circuit or feeder line, so pressing the button interrupts current flow. To test, use a digital multimeter set to continuity or a low-resistance range to check that the contacts switch between open and closed as the handle moves. Always disconnect power before testing, follow the wiring diagram, and respect the device’s specific wiring (normally open vs normally closed). Some E-stops are momentary; others are latching, requiring a deliberate reset. This article focuses on practical, safe methods to validate the device, interpret readings, and document findings so you can spot a defective E-stop before it creates an unsafe condition. Practice on a bench mock-up first to minimize risk before testing in a live system.
Safety-first: prerequisites and risk awareness
Working with emergency stop devices carries risk, especially around live equipment. Before touching any terminals, ensure the machine is powered down, locked out, and isolated from stored energy. Wear PPE such as safety glasses and insulated gloves, and use non-conductive tools where possible. Keep the workspace dry, remove jewelry, and avoid loose clothing that could snag hardware. If testing on a vehicle or industrial panel, verify the power is off and capacitors are discharged according to the manufacturer’s guidelines. Use the wiring diagram to identify which terminals you’ll measure and whether you are testing normally open or normally closed contacts. Do not test while the system is energized or under load. If you’re unsure, postpone testing and seek supervision or consult the service manual. A thorough safety routine reduces the risk of electric shock, short circuits, or unintended activation of machinery.
Tools and materials you will need
Prepare a safe test setup with a digital multimeter (preferably auto-ranging) set to continuity or the lowest resistance range suitable for your meter. Use probe leads with alligator clips for stable connections to E-stop terminals. Include PPE such as insulated gloves and safety glasses, insulating tape, and a labeled test jig or bench mock circuit to capture faults. Have a wiring diagram on hand to confirm terminal identification. If testing on actual equipment, ensure power is off and the E-stop is accessible. Optional items include a resistor bank or light load for non-energized verification, spare switches of the same model for comparison, and a notepad to record readings and observations.
Reading schematics and common failure modes
E-stops can be wired in various configurations. Understanding whether the device is normally open or normally closed helps interpret readings. Common failure modes include worn contacts, contamination, miswiring after maintenance, or a stuck latch that prevents reset. When you review the diagram, note whether the E-stop is part of a larger interlock or safety loop. Some systems integrate LEDs or feedback sensing; while these indicators are helpful, they can mask contact issues if read in isolation. The goal is to verify that the contact pair transitions cleanly between open and closed states, and that there is no unintended continuity when the switch is released. A clean diagram and a careful inspection of the physical terminals reduce ambiguity during testing.
Step-by-step testing approach with a multimeter
A practical testing strategy balances safety and accuracy. Start by turning off power and isolating the E-stop circuit. Use a multimeter to test the two primary E-stop terminals for continuity when the button is unpressed (open) and after pressing (closed). If your device includes a secondary contact (for safety interlocks or reset circuits), test those paths separately as described in the wiring diagram. When testing, keep probes secure to avoid accidental shorting. If readings do not change with press/release, there may be a wiring error, a stuck contact, or an internal fault. Always document each reading and correlate it with the expected behavior from the diagram. Visual inspections of the spring, latch, and housing can reveal mechanical faults that electrical tests alone might miss. For visual references, consult the manufacturer’s data sheet or a control-system diagram.
Interpreting results: what readings mean
Interpreting multimeter readings requires context from the wiring diagram and the expected behavior of the E-stop. A healthy E-stop will show continuity when pressed and an open circuit when released, or the reverse if normally closed contacts are used. Resistance readings in the closed state should be low, and the open state should show no continuity. If readings do not align with the expected states, investigate wiring, switch contacts, or the possibility of a faulty actuator. Persistent anomalies warrant replacing the E-stop or consulting the manufacturer. For reliability, compare current readings with those from a known-good unit of the same model and document any deviations.
Troubleshooting common issues during testing
If readings are inconsistent, start with contact cleanliness: grime or corrosion can cause intermittent continuity. Clean terminals with a contact cleaner and re-test. Check for loose connections, damaged cables, or improper terminal identification. If the E-stop is part of a larger circuit, ensure other components aren’t introducing parallel paths that skew readings. For latched E-stops, verify the reset function and mechanical travel. Finally, if the device is worn or damaged, replace it with an identical or compatible unit to maintain system safety. Always re-check after replacement and update documentation.
Real-world examples: industrial vs automotive E-stops
Industrial E-stops are designed for rugged panels and may include interlock circuits that drive safety relays. Automotive E-stops, like those on some off-road or machine tools, can differ in wiring and reset-style. The testing approach remains consistent: ensure power is removed, use a multimeter to test contact states, and compare to the wiring diagram. Differences may include the presence of supplementary circuits, LEDs, or diagnostics lines. Always verify that the E-stop’s mechanical action matches the intended safety logic in your specific system.
Next steps and maintenance tips
After testing, clean up your workspace and record the results, including readings, terminal IDs, and states observed. Schedule periodic checks as part of a maintenance routine to ensure continued reliability. If any doubt remains about the E-stop’s condition, replace it rather than risking unsafe operation. Finally, review and refresh your knowledge of the system’s safety interlocks and ensure all stakeholders are informed about test outcomes and maintenance schedules.
Tools & Materials
- Digital multimeter(Auto-ranging preferred; set to continuity or low resistance.)
- Test leads with alligator clips(Secure connections without shorting nearby terminals.)
- Insulated gloves(Protect hands when working near potentially energized circuits.)
- Safety glasses(Eye protection against accidental arcs or sparks.)
- Insulating tape(Label test points and secure exposed conductors.)
- Wiring diagram or schematic(Identify which terminals and contacts to test.)
- Bench mock-circuit or resistor load(Optional for non-energized verification paths.)
- Notepad or digital log(Record readings and observations for traceability.)

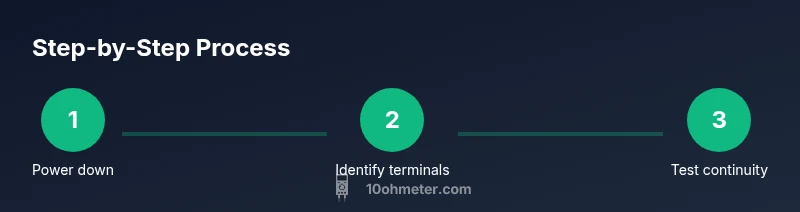

Steps
Estimated time: 30-45 minutes
- 1
Power down and isolate
Physically switch off power to the machine or panel and follow lockout/tagout procedures. Confirm the E-stop path is isolated from live circuitry before handling terminals.
Tip: Use a visible lockout device to prevent accidental re-energization during testing. - 2
Identify terminals
Consult the wiring diagram to locate the two primary E-stop terminals and any auxiliary contacts. Label them to avoid confusion during testing.
Tip: Take a photo or sketch of the terminal layout for later reference. - 3
Configure the multimeter
Set the meter to continuity or lowest resistance range. Ensure the meter is functioning correctly on a known-good circuit before testing the E-stop.
Tip: Test the meter on a simple known circuit to confirm it beeps or shows a low resistance when closed. - 4
Test open state
Connect the meter probes to the two primary E-stop terminals with the button released. The reading should indicate no continuity (open circuit).
Tip: Keep probes stable to avoid accidental shorting; use alligator clips if needed. - 5
Test closed state
Press the E-stop button, then re-check continuity between the same terminals. The meter should show a clear continuity (closed circuit).
Tip: Do not hold the button for extended periods if the circuit controls heavy loads. - 6
Test reset/secondary paths
If the E-stop has a reset mechanism or interlock contacts, test those paths per the diagram. Confirm whether resetting or releasing returns to the correct state.
Tip: Document the behavior of reset actions for future reference. - 7
Trace safety interlocks
For interlocked circuits, verify that the safety path breaks power properly. Check that auxiliary contacts change state consistently with the primary path.
Tip: Always confirm no alternate current paths exist that could bypass the E-stop. - 8
Record observations
Log terminal IDs, observed states, and any deviations from the diagram. Compare with a known-good unit if available.
Tip: Use a standardized form to ease future maintenance checks. - 9
Restore power and verify
Once all tests pass, re-check wiring, re-energize the system in a controlled manner, and monitor for proper stop behavior during a controlled shutdown.
Tip: Run a brief, controlled test with supervision to confirm safety.
Your Questions Answered
What is an E-stop and why test it?
An emergency stop is a safety switch designed to cut power quickly to halt equipment. Testing ensures the contacts open reliably when pressed and close when released, preserving safe operation.
An emergency stop is a safety switch that cuts power quickly. Testing confirms it opens when pressed and closes when released to keep equipment safe.
Do I need to disconnect power before testing an E-stop with a multimeter?
Yes. Always de-energize the circuit and lock out the machinery before testing. This prevents shock and damage, and ensures readings reflect the switch state rather than live voltage.
Yes. Always power down and lock out the system before testing to stay safe and get accurate readings.
Why doesn’t the meter show a change when I press the E-stop?
This can indicate miswiring, a stuck contact, or internal fault. Recheck terminal identification, inspect the actuator, and compare with the diagram. If in doubt, replace the unit.
If the meter doesn’t change when pressed, check wiring and the switch mechanism. If problems persist, consider replacement.
Can testing damage the E-stop?
Testing should not damage a properly functioning E-stop when done with the power off and proper technique. Incorrect wiring or forcing contacts can cause damage, so follow the diagram closely.
Testing is generally safe if power is off and you follow the wiring diagram. Don’t force contacts or bypass safety features.
How often should E-stops be tested?
Incorporate testing into routine maintenance based on usage and environment. High-use or critical systems may require more frequent checks.
Test during regular maintenance, with more frequent checks for high-use or harsh environments.
What is the difference between wired and wireless E-stops?
Wired E-stops physically interrupt circuits and are common in industrial setups. Wireless or remote E-stops may use radio or CAN-based signaling and require different testing approaches.
Wired E-stops interrupt the circuit; wireless ones use signals and need specialized testing methods.
Watch Video
Key Takeaways
- Verify open/closed states with the button released/pressed.
- Power must be isolated before any measurement.
- Follow the wiring diagram for accurate terminal testing.
- Document readings and compare to a known-good unit when available.
- Replace faulty E-stops to maintain system safety.
