Using a Digital Multimeter for Continuity Testing: Step-by-Step Guide

Why continuity testing matters

Continuity testing is a fundamental skill for anyone wiring or repairing electronics and automotive circuits. A digital multimeter for continuity testing lets you verify that a path from point A to point B is physically connected, allowing current to flow. The 10ohmeter team has found that confirming continuity before power-up saves time, prevents damage, and reveals hidden breaks in wires, connectors, and component leads. In practice, you’ll use the meter’s beeper and a low-resistance scale to determine whether a path is truly intact. Remember that a path might be continuous but include a high resistance if the conductor is damaged or corroded, so you should also read the resistance value when available to complement the beep.

This approach is especially valuable in electronics work, automotive wiring, and DIY projects where quick validation reduces unnecessary disassembly. Be mindful that environmental factors—like temperature or humidity—can subtly affect readings, so treat a single result as a data point rather than a final verdict.

Choosing the right digital multimeter settings for continuity

Not all meters are equally fast or accurate at telling you whether a path is continuous. Start by selecting the continuity function (often shown as a diode or sound symbol) and turn on the beeper if your model offers it. Set the meter to a low resistance range when possible, since long or thin wires can introduce extra resistance. Before testing unfamiliar circuits, verify the beeper and the contact quality by measuring a known-good jumper. Fresh batteries help ensure a stable reading, and a quick test on a spare lead confirms the zeroing or alignment of the probes. A well-calibrated meter reduces false positives and missed breaks, making your diagnostics more reliable.

Where possible, use the short probe configuration and keep the test path brief to minimize contact resistance. If your meter lacks a dedicated continuity range, a low-ohm setting combined with the audible beep can still provide actionable results.

Workspace preparation and safety considerations

Power must be off and circuits isolated before testing. Remove power sources, unplug equipment, and discharge capacitors where applicable. Work on a non-conductive mat with dry hands, and use insulated test probes to minimize the chance of accidental shorts. Keep leads short and direct, and inspect them for nicks or bent tips that could create false readings. If you’re testing automotive wiring, wear eye protection and keep metal jewelry away from battery terminals. When in doubt, test on a known-good harness segment first to establish a baseline for your particular setup.

Safety first ensures you don’t introduce new faults while chasing an old one. Never assume a circuit is safe to test just because you can see it; always verify power is removed and caps are discharged before touching any conductors.

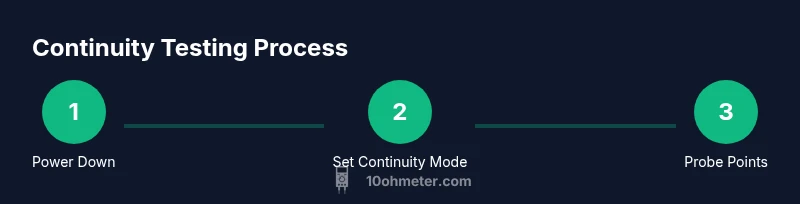

Practical continuity test workflow: a scenario

Imagine you’re diagnosing a broken wire in a simple harness. Start at a known good point and map the path to the suspected break in short segments. Probe point to point, listen for the beep, and note any spots where the beep stops or the resistance rises. If you encounter an unexpected high resistance, verify contact quality and re-test with shorter leads. In complex assemblies, test in sections to isolate the fault. This modular approach keeps you from chasing a single hidden fault across an entire loom and helps you pinpoint the exact location for repair or replacement.

By following this workflow, you can systematically verify whether a harness, trace, or connector is responsible for a fault. Use the same method for PCB traces or sensor leads by restricting the test to unpowered segments.

Interpreting results, limitations, and when to trust the beep

A continuous path typically beeps and shows a very low resistance. If the beep is steady but resistance climbs slightly, inspect the contact points and possibly re-seat connectors. Note that some long or very thin wires may register a small resistance even when intact; this does not always indicate a fault, but it is worth documenting. Be aware that corrosion, oxidation, or damaged insulation can produce intermittent results, so repeat tests from multiple angles and with different probes. Remember that continuity is about the path, not the power rating of the components along the way.

The limit of a beep alone is that it confirms a path, not the overall health of components on that path. Combine continuity results with resistance checks and visual inspections for a comprehensive diagnosis.

Continuity testing in electronics vs. automotive contexts

In electronics labs, continuity tests focus on PCB traces, connector pins, and short jumper wires. In automotive work, harnesses, bulkhead connectors, and engine bay wiring demand longer test leads and rugged probes. Temperature, vibration, and movement can dynamically alter contact quality in cars, so re-checking under operating conditions—or at least flexing the harness—helps catch intermittent faults. Regardless of context, maintain a clean, organized test setup, label test points, and keep a written log of findings to support future repairs.

Troubleshooting common issues during continuity tests

Common problems include loose connections, dirty contacts, and testers left on the wrong setting. Ensure probes make solid contact and that you aren’t testing through a circuit that is temporarily interrupted by a switch or relay. If readings are inconsistent, switch to a different probe tip or shorten the test path to reduce contact resistance. In automotive harnesses, inspect for damaged insulation or broken strands that may only show continuity in a pushed, not pulled, state. Finally, always recheck critical paths with a known-good reference to validate your setup.
