You will learn how to perform a safe, accurate multimeter test on basic circuits. This guide covers selecting the right test mode, preparing the meter, reading results, and troubleshooting. You'll understand safety steps, how to interpret voltage, resistance, and continuity readings, and how to verify results using a reference.
What is a multimeter test and why it matters
A multimeter test is a hands-on way to quantify electrical properties in a circuit using a handheld instrument called a multimeter. In practical terms, you use the meter to measure voltage, current (where safe), resistance, and sometimes continuity and diode behavior. For DIY electronics and automotive tasks, a reliable multimeter test helps you verify component health, troubleshoot faults, and confirm that a circuit behaves as intended before applying power. The 10ohmeter team emphasizes that starting with clear goals—do you want to confirm a supply, check a switch, or identify a short—keeps your readings meaningful and reduces the risk of surprises when power is on. Throughout this guide, you’ll learn how to select the appropriate test mode, prepare the meter and probes, and interpret results with confidence.
Safety first: hazards and precautions
Safety is not optional when performing a multimeter test. Live circuits can deliver dangerous shocks or cause arcing, especially in automotive or high-energy projects. The 10ohmeter approach begins with PPE, proper tool inspection, and a clear error-free plan. Before you touch any test points, ensure the device under test is powered down, capacitors are discharged, and the meter is in the correct range for the expected measurements. Keep metal jewelry away from exposed conductors, work on an insulated surface, and never test with damaged probes. If anything feels uncertain, stop and reassess. A careful, safety-first mindset reduces the risk of harm and protects the parts you’re testing, including the meter itself.
Choosing the right test mode on your multimeter
A multimeter offers several modes for different measurements. Voltage modes (AC and DC) let you read potential differences; resistance modes (ohms) measure how much a component resists current flow; continuity mode checks if a path exists between two points and often emits a beep for a closed circuit. For many DIY tasks, starting with DC voltage and resistance tests provides a solid baseline. Some meters also offer diode test, capacitance, and current measurement. Selecting the correct mode helps avoid misleading readings, minimizes meter stress, and makes troubleshooting faster. Always verify you’re in the right range before taking readings to ensure accuracy and safety.
Preparing your equipment and workspace
Begin with a clean, dry workspace and fresh batteries in the meter. Inspect test leads for cracks or exposed conductors; replace worn leads before testing. Attach the probes securely to the meter’s input jacks: common (COM) and measurement (V/Ω for voltage and resistance, mA/10A for current). Establish a stable grip on probes and consider using alligator clips for steady connections. If you’re testing automotive circuits, work in a well-ventilated area and keep a fire extinguisher nearby. Label test points to avoid confusion later, and keep a small notebook or device handy to log readings for future reference.
Performing a basic DC voltage test
Power down the circuit under test and configure the meter to DC voltage. Place the black probe in COM and the red probe in the V/Ω jack. Connect probes across the point where you want to measure voltage (e.g., across a supply or component). Read the display and compare against expected limits in the circuit diagram. If the reading is far outside the expected range, re-check connections and look for open circuits or shorts. After measuring, power the circuit back up only if you’re sure the connection is safe and stable.
Testing resistance and continuity safely
Set the meter to the resistance (ohms) range and confirm the device is powered off. Place the probes across the component or path you want to test. A healthy resistor shows a finite, non-infinite value; a short shows very low resistance, while an open circuit appears as infinite resistance. Switch to continuity mode if your meter offers a beep function; this helps quickly identify intact wires or traces. If readings drift or bounce, ensure the leads aren’t loose and that there are no residual charges in capacitors. Remember: resistance measurements should only be performed on de-energized circuits.
Diode, capacitance, and transistor checks
Many meters include diode test and capacitance measurement features. In diode mode, forward-biased readings indicate proper junction behavior, while reverse readings suggest possible faults. For capacitance tests, discharge the capacitor before measuring, then connect the leads and read the value. Some meters offer transistor tests to check gain or junction integrity. Interpreting these results requires a basic understanding of the circuit and component datasheets. Always use the correct mode and probe orientation to avoid incorrect conclusions about a component’s health.
Automotive testing with a multimeter: battery and alternator checks
Car electrical tests demand extra care. When checking a battery, ensure the engine is off and all accessories are off before measuring voltage with the engine off, then compare to the manufacturer’s spec. For alternator testing, check the battery voltage with the engine running; a healthy alternator maintains a specific voltage range. Use the proper settings for AC/DC voltage and respect high-current limits. Automotive work adds risk due to vehicle energy storage; proceed slowly and consult the vehicle service manual for safe procedures.
Validating results and troubleshooting common readings
If readings don’t match expectations, re-check your connections, re-seat probes, and re-zero if your meter requires it. Look for common culprits: blown fuses in the meter, dead batteries, or wrong range selection. Compare results against circuit diagrams or known-good components when possible. If a measurement seems inconsistent, test a known reference path to confirm meter accuracy. Document patterns you notice across measurements to identify intermittent faults more quickly in future tests.
Safe storage, maintenance, and calibration reminders
After finishing, turn off the meter, unplug leads, and store in a dry, secure place. Regular maintenance includes cleaning probes and inspecting the dial or display for wear. If your meter supports calibration, follow the manufacturer’s recommended schedule and use certified test references. Keeping proper storage and routine checks helps preserve accuracy and extends the life of your multimeter test toolkit. Always replace worn components before they cause misleading readings.
Authoritative sources and learning resources
To deepen your understanding of measurement principles, consult trusted sources. This guide aligns with standard electrical safety practices and measurement fundamentals found on official sites such as OSHA, NIST, and MIT’s OpenCourseWare. For ongoing learning, review the recommended readings:
- https://www.osha.gov
- https://www.nist.gov
- https://ocw.mit.edu Further reading can help you interpret readings more precisely and stay current with safety standards while performing a multimeter test.
A quick recap with practical context
In practice, a multimeter test blends technique with interpretation. Start by setting the right mode, verify connections, and proceed methodically rather than rushing through checks. The goal is to identify issues safely, confirm circuit behavior, and build confidence in your measurements. With consistent practice, your multimeter test skills become an invaluable asset for electronics projects and car maintenance alike. According to 10ohmeter, steady technique and strict safety guidelines are the foundation of reliable readings and durable tools; the team recommends documenting outcomes and reviewing readings against expected behavior to track progress and avoid repeat problems.
Tools & Materials
- Digital multimeter (auto-range preferred)(Ensure the meter is functioning and has fresh batteries.)
- _TEST-leads_ and probes(Check for cracks and replace damaged leads; use probes rated for at least 250V.)
- Alligator clip adapters(Helpful for holding components steady during tests.)
- Safety glasses(Protect eyes from sparks or accidental shorts.)
- Known-good reference component or circuit(Useful for verifying readings and calibration.)

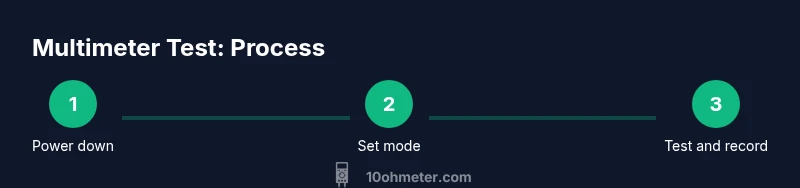

Steps
Estimated time: 30-60 minutes
- 1
Prepare workspace and safety checks
Clear the work area, verify power is off, and inspect the meter and leads. Set a clear goal for the test (e.g., measure supply voltage, check a resistor, or test continuity). This prevents misinterpretation and reduces risk.
Tip: Do a quick visual check for damaged probes before starting. - 2
Power down and discharge
If testing a powered circuit, power it down and discharge any large capacitors. Never measure resistance on live circuits; this can damage the meter or cause injury.
Tip: If unsure about capacitor discharge, wait longer or use a known-safe method to discharge first. - 3
Set meter to DC voltage mode
Rotate the selection dial to the DC voltage range (V⎓). For uncertain voltage levels, start with a higher range to prevent overloading the input.
Tip: If your meter auto-ranges, you can skip manual range selection. - 4
Prepare probes and jacks
Insert the black probe into COM and the red probe into the V/Ω jack. Ensure probes have good contact and avoid touching the metal tips during measurement.
Tip: A stable, single-handed grip reduces the chance of accidental shorts. - 5
Measure voltage across points
Place the probes across the points where you want to measure voltage (e.g., supply rails or a component). Read the display and compare to the expected range.
Tip: If readings drift, check for loose connections or parasitic paths. - 6
Switch to resistance mode for components
Power must be off. Change the meter to the resistance (ohms) range. Place probes across the component leads to measure resistance.
Tip: Ensure the component is isolated from the circuit before testing. - 7
Check continuity
If available, switch to continuity mode. A beep confirms a complete path between the test points, ideal for tracing wires or solder joints.
Tip: Be mindful of other nearby components that may short the path. - 8
Diode and other tests
Use diode test mode to check junction behavior; a forward reading indicates a healthy diode. For capacitors, discharge first and test with the capacitance setting if available.
Tip: Consult datasheets if readings seem unusual. - 9
Automotive checks (where applicable)
With safety precautions, test battery voltage with engine off, then with engine running to gauge alternator health. Do not exceed tool ratings.
Tip: Never touch a live battery terminal with bare hands. - 10
Document and verify results
Record readings and compare with circuit specs or reference measurements. Look for consistent patterns across similar test points to confirm reliability.
Tip: Keeping a log helps when diagnosing intermittent faults. - 11
Store tools and finalize
Power off devices, disconnect leads, and store the meter in a dry place. Inspect the kit for wear and plan any replacements needed.
Tip: Regular maintenance extends meter life.
Your Questions Answered
What is a multimeter test?
A multimeter test measures electrical properties like voltage, resistance, and continuity to diagnose circuits. It helps confirm component health and identify faults.
A multimeter test measures voltage, resistance, and continuity to diagnose circuits and identify faults.
Should I power down a circuit before testing resistance?
Yes. Resistance measurements require no power to avoid damaging the meter or circuit. Always disconnect the component and discharge capacitors if present.
Yes, power down and disconnect components before measuring resistance.
Can I test a car battery with a multimeter?
Yes, but follow safety precautions: wear PPE, ensure the engine is off, and compare readings to manufacturer specs. Do not attempt high-current tests without proper gear.
You can test a car battery with a multimeter, but follow safety steps and compare with official specs.
How do I test continuity with a multimeter?
Set the meter to continuity mode (or ohms if required) and connect the probes across the path. A beep or a low resistance reading indicates a closed path.
Use continuity mode to check if a path is complete; a beep confirms a good connection.
How do I calibrate my multimeter?
Calibration procedures vary by model. Refer to the user manual and use certified references or professional calibration services as needed.
Calibration depends on the model; follow the manual or seek professional service for accuracy.
What safety precautions should I follow?
Work on de-energized circuits, wear PPE, keep probes away from skin, and avoid touching metal tips while measuring to prevent shocks.
Test safely by de-energizing circuits and using PPE; avoid touching the conductors.
Watch Video
Key Takeaways
- Identify the correct mode before testing
- Power down circuits before resistance or continuity tests
- Interpret readings in the context of the circuit
- Verify results using a known reference component
- Document findings for future troubleshooting
