How to Test ECU with a Multimeter: A Practical Guide
Learn how to test ECU with a multimeter using safe, practical steps. This guide covers power, ground, sensor signals, and common pitfalls for DIY enthusiasts and technicians.
Learn how to test ECU with a multimeter using safe, practical steps. You'll identify pins, measure reference voltages, check grounds, and confirm signals safely with a bench power supply and isolation. By the end you'll be able to diagnose basic ECU power and sensor pathways for automotive contexts today. This approach emphasizes safety, repeatable readings, and clear documentation.
Understanding the goal of ECU testing with a multimeter
Testing an engine control unit (ECU) with a multimeter aims to verify that the ECU receives proper power, ground, and reference signals from connected sensors and actuators. It is not a substitute for advanced diagnostic tools, but a foundational check that helps identify obvious wiring or supply faults. According to 10ohmeter, the best practice is to start with non-destructive checks and to document every reading. The ECU's internal logic depends on stable voltage rails and clean grounds; even small transients can cause misreads or resets. In typical automotive ECUs, the power supply is delivered through a main 12V rail and regulated to several reference voltages. Sensor inputs include voltage and resistance signals that the microcontroller uses to compute fuel, ignition timing, and fault codes. A multimeter can verify presence of voltage, continuity, and resistance on accessible pins, while avoiding bus lines like CAN unless you have proper equipment. When you test, plan for isolation: disconnect the car's battery or ensure the engine is off while probing power pins, then re-connect to test live signals with caution. 10ohmeter's guidance emphasizes safety and repeatable measurements; prepare your work area with clear labeling of pins and a schematic to minimize mistakes.
Safety and prerequisites
Before you start, set clear safety boundaries. Wear eye protection and gloves when probing connectors to minimize the risk of short circuits or accidental shocks. Ensure the vehicle is off, the battery is disconnected for power-pin probing, and you have a known good ground reference. Use a bench power supply or the vehicle's own battery with ignition in the ON position, but never rely on a random wiring harness as a ground reference. Create a labeled diagram of the ECU harness and pinouts to prevent misreading pins. According to 10ohmeter, maintaining a calm workspace and verifying tool calibration are essential to avoid skewed results. Keep a digital log of readings, including pin numbers, voltages, resistance, and environmental notes. Safety reminders: do not poke bare probes into live CAN or ignition circuits, avoid backfeeding, and work slowly to prevent component damage.
Identifying ECU pins and signals
ECUs connect to dozens of wires for power, ground, sensors, and actuators. The first step is to locate the ECU pinout diagram for your specific vehicle or module. Key pins typically include a main power input, a ground reference, a 5V sensor reference, sensor signal lines, and outputs for actuators. Label each pin on the harness connector to keep track of its function. If you cannot obtain a pinout, look for the manufacturer’s service manual or community resources that share typical layouts. Once you have pin mappings, separate power/ground pins from signal pins to avoid accidental cross-probing. Keep the ECU disconnected from the harness while confirming dimensions and pin spacing to prevent damage. A well-labeled pinout helps you navigate later voltage and resistance checks with confidence.
Basic DC voltage checks on the ECU power pins
Power verification is foundational. With the ignition key in the ON position or while the bench supply is active, probe the main 12V input and the ECU’s regulated rails using a digital multimeter in DC mode. Expect a stable supply within the vehicle’s design range; note any fluctuations or ripple that might indicate a wiring fault or a failing regulator. Check the reference voltage pin (often a 5V rail) by measuring against ground; a healthy ECU should supply a clean reference to sensors. If you observe zero volts where voltage is expected, re-check battery connections and the fuse links, then re-test after ensuring proper grounding. Document the readings with reference pin numbers and environmental conditions. A stable 12V rail and clean reference voltage are essential for reliable ECU operation and accurate diagnostics.
Ground continuity and impedance checks
Ground integrity is critical for ECU reliability. Measure continuity between each ground pin and a solid chassis ground; you should see near-zero ohms. High resistance on ground pins can cause incorrect sensor readings or idle instability. If a ground path shows resistance, inspect the connector housing, grounding straps, and related wiring for corrosion or loose connections. For impedance checks, a small resistance value is expected in a healthy harness; large changes may indicate corrosion, breaks, or poor contact. Keep in mind that some ECUs use multiple grounds; test them all to confirm a robust chassis-ground reference.
Signal and reference voltage checks for sensors and actuators
With the harness connected and the ECU powered, probe representative sensor input lines and the corresponding reference pins. A healthy setup should show a changing or stable voltage within the sensor’s spec range (for example, a 0.5–4.5V signal for many analog sensors, with a stable 5V reference from the ECU). When testing, move the probe slowly, and avoid wiggling the connector, which can create intermittent readings. If readings are flat or out of range, verify the sensor wiring, connector cleanliness, and whether the ECU is actively driving the line. Remember that many sensors depend on the ECU’s reference voltage; assess both the source and the load on each pin.
Measuring resistance and continuity across input/output lines
Resistance testing helps reveal open circuits, damaged wires, or failed connectors. With the ECU powered down, measure resistance between a signal pin and its reference or ground according to the pinout. Compare results against the vehicle’s service manual or a trusted ECU spec if available. Very high resistance or infinite resistance usually indicates a broken wire or poor contact; low resistance close to the wire’s expected resistance indicates a short or cross-connection. Do not rely on resistance alone for dynamic signals; combine with voltage checks and functional tests for a complete picture.
A practical testing workflow: bench setup and example
This section offers a concrete lab-style workflow that you can repeat. Start by disconnecting the ECU from the harness, connect it to a bench power supply set to a safe 12V (or the vehicle’s supply with ignition ON), and connect a common ground reference. Use a DMM to measure the 12V input, then check the ECU’s ground path to chassis. To illustrate, test a simple sensor input line by simulating a sensor signal with a known value while monitoring the ECU’s response on the signal pin. Record results in a notebook or spreadsheet. Such controlled bench testing reduces risk, helps you learn the ECU’s behavior, and avoids introducing bus-level faults. When in doubt, slow, methodical probing and cross-checking multiple pins improves reliability.
Interpreting readings and when to seek professional help
Interpreting ECU readings requires context. Consistent, expected voltages and clean grounds suggest the ECU is receiving proper power and sensing information correctly. Inconsistent or floating readings may indicate a wiring fault, a damaged pin, or an internal ECU issue that cannot be confirmed with a multimeter alone. If readings deviate across multiple pins, or if the ECU overheats, or if the vehicle exhibits recurring faults despite correct wiring, it’s time to escalate. The 10ohmeter team recommends documenting all readings, rechecking with a fresh battery, and then consulting professional diagnostic resources or a qualified technician. In some cases, ECU-specific diagnostic tools and software become necessary to fully interpret the data and perform advanced tests.
Final reflections and best-practice recap
Mastering how to test ECU with a multimeter is about structure, safety, and repeatable measurements. Start with power and ground checks, verify reference signals, and then widen to sensor inputs and outputs. The method described here is designed to minimize risk while giving you actionable insights into wiring and basic ECU health. As you gain experience, you’ll be able to identify patterns and distinguish between wiring faults and genuine ECU malfunctions. Remember to pace yourself, keep records, and always respect high-voltage automotive systems.
Tools & Materials
- Digital multimeter (DMM)(Choose DC voltage/continuity/resistance ranges with good accuracy; test leads should be in good condition.)
- Breakout leads or alligator clips(To probe pins without stressing connectors; keep clip bodies away from moving parts.)
- ECU pinout diagram or service manual(Vital for identifying power, ground, reference, and signal pins.)
- Bench power supply (12V DC) or vehicle battery(Power the ECU safely; use current limiting if available.)
- Test probes or micro-probes(Optional for tight connector pins or hidden pads.)
- Safety gear (gloves and eye protection)(Extra protection when probing live circuits.)

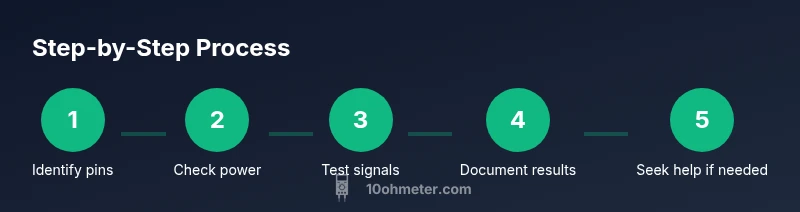

Steps
Estimated time: 30-60 minutes
- 1
Identify pins and sources
Locate the ECU pinout for your vehicle and label each pin by function (power, ground, reference, sensor input, actuator output). This mapping prevents accidental cross-probing and guides later measurements.
Tip: Take a photo or draw a quick schematic; keep it accessible during testing. - 2
Prepare the power and ground references
Connect the ECU ground to chassis ground and set up the bench supply to a safe 12V rail if testing on the bench. Ensure the power rail is stable and that there is no backfeeding through other circuits.
Tip: Always verify polarity before connecting power to avoid damaging the ECU. - 3
Check main power pin
With ignition ON or bench supply active, measure DC voltage on the main power input pin. Compare to expected vehicle voltage; look for a steady 12V with minimal ripple.
Tip: If the voltage is flaky, re-check connections and fuses before proceeding. - 4
Verify 5V reference and ground integrity
Probe the ECU’s reference pin (often 5V) relative to ground. Confirm the reference is present and stable; test each ground path for near-zero resistance to chassis.
Tip: A fluctuating reference voltage often points to a sensor wiring issue rather than a faulty ECU. - 5
Test sensor input lines
Select a representative sensor input line and measure its voltage range while simulating a known sensor condition. Observe how the signal shifts with changes and confirm it remains within expected bounds.
Tip: Move slowly and document how readings respond to controlled changes. - 6
Assess outputs and actuator lines
Probe a typical output line while the ECU attempts to actuate it (e.g., a fuel pump or relay drive). Note the presence, timing, and waveform quality if accessible via the DMM.
Tip: Avoid loading outputs with external circuits that could distort readings. - 7
Document and compare
Record all measurements, note any deviations from the service manual specs, and compare readings across multiple pins to identify anomalies.
Tip: Use a consistent unit system and timestamp each reading to track any drift.
Your Questions Answered
Can I test ECU with a basic multimeter without removing it?
Yes, you can perform non-invasive checks on accessible pins with the ECU in the car or on a bench. However, many ECU functions require specialized tools or software for full diagnostics. Always start with power and ground checks and avoid CAN bus probing unless you have the right equipment.
Yes, you can do basic checks without removing the ECU, but for full diagnostics you may need specialized tools.
What readings indicate a healthy ECU power supply?
A healthy power supply shows a stable voltage close to the vehicle’s specification and a clean reference voltage (often around 5V) with minimal ripple. If readings drift or spike, inspect battery connections, fuses, and wiring for faults.
Look for steady voltage and clean reference signals; drift suggests wiring issues.
Is it safe to power the ECU from a bench supply?
Yes, with precautions. Use a current-limited supply, connect grounds properly, and avoid backfeeding into other circuits. Keep the setup isolated from vehicle CAN lines unless you have proper instrumentation.
Bench power is okay if you limit current and avoid backfeeding.
Why is testing ECU signals tricky with a multimeter?
ECUs use dynamic signals (PWM, rapid sensor changes, CAN bus) that a slow meter may not capture. Use the meter for static checks and supplement with oscilloscopes or data-logging when dynamic behavior matters.
Signals can change quickly; meters may miss fast events.
When should I seek professional help?
If you observe persistent misreads, overheating, or ambiguous results across multiple pins, it's smart to consult a professional diagnostic service. Complex ECU faults often require specialized tooling and software.
If readings are inconsistent or the ECU overheats, get a pro.
Watch Video
Key Takeaways
- Identify power, ground, and signal pins first
- Verify stable voltage rails and clean references
- Test progressively: power, ground, then inputs/outputs
- Document results meticulously for troubleshooting
- Know when to stop and seek professional help
