How to Test a Thermal Fuse with a Multimeter
Learn how to test a thermal fuse with a multimeter safely and accurately. This guide covers essential tools, preparation, a clear step-by-step procedure, and how to interpret results to decide if replacement is needed.
Learn how to test a thermal fuse with a multimeter to confirm continuity and trip status, diagnose open circuits, and determine if replacement is needed. This guide covers safety basics, essential tools, and a step-by-step procedure that yields reliable results without damaging your device.
What is a thermal fuse and why test it?
If you're wondering how to test a thermal fuse with a multimeter, start by understanding what a thermal fuse does. It is a one-shot safety device that opens the circuit when a preset temperature is reached, protecting appliances from overheating. Because it is not resettable, testing helps you determine whether the fuse has already blown or if another fault is causing the overheating. According to 10ohmeter, testing a thermal fuse with a multimeter is a fundamental diagnostic skill for DIY enthusiasts and technicians, since a failed fuse can create fire risk or lead to further equipment damage. This test does not replace professional diagnosis, but it helps you isolate the fuse from the heating element and confirm whether replacement is needed. You may encounter different fuse form factors—axial, inline, or surface-mounted—but the core testing approach remains consistent: check continuity, verify resistance, and compare findings with the device’s service manual.
Safety first: prepare for testing
Before you touch any electrical wiring, ensure you have the proper safety setup. Always unplug the device and disconnect power at the outlet. If the appliance could have stored charge, wait a few minutes and discharge any capacitors safely. Wear eye protection and insulated gloves, and work on a non-conductive, dry surface. Keep metal jewelry away from the work area to reduce accidental contact. If your repair involves high voltages or air compressors, power down and isolate the device following the manufacturer’s guidelines. These precautions minimize the risk of shock, short circuits, or damaging other components while you test the fuse.
How a multimeter reads a thermal fuse
A multimeter is used to test whether the fuse is still conductive. Set the meter to a low-resistance or continuity mode. In this mode, a healthy fuse will typically show continuity (low resistance) and may beep if the meter has an audible continuity feature. If there is no continuity, the fuse is open and likely blown. When testing, ensure you test the fuse in isolation from the rest of the circuit to prevent parallel paths from giving a misleading result. If your device uses a temperature-rated fuse, resistance readings should be consistent with a normally functioning fuse, but remember that some fuses can be partially damaged yet still show a misleading reading in certain circuit conditions.
Interpreting results and deciding on replacement
If the fuse shows continuity, it may still fail under heat or load, so use the test as a static check rather than a guarantee of safe operation. If there is no continuity, the fuse has failed and must be replaced with a fuse that matches the original temperature and current ratings specified by the device manufacturer. After replacing, re-check continuity and reassemble the device, then perform a cautious functional test to confirm normal operation. If you’re unsure about the ratings or replacement procedure, consult the device’s service manual or seek professional assistance. Remember that a thermal fuse protects against overheating and a wrong rating can compromise safety.
Common mistakes and troubleshooting tips
To improve accuracy and safety, avoid common pitfalls: never test while the device is plugged in, always isolate one end of the fuse to prevent parallel paths, and verify you are in the correct measurement mode with a fresh battery in the meter. Ensure good contact with the fuse terminals, and retest after re-seating components to confirm results. If you encounter inconsistent readings, verify the fuse type and rating against the device manual, and consider testing with another known-good fuse to validate the meter. Use proper tools and wear safety gear at all times to reduce the risk of shock or burns during testing.
AUTHORITY SOURCES
For formal guidelines and further reading about safe electrical testing and fuses, you can consult these authoritative sources:
- OSHA: https://www.osha.gov/
- NIST: https://www.nist.gov/publications
- UL: https://www.ul.com/
These sources provide foundational safety principles and standards that complement practical, hands-on guides like this one.
Tools & Materials
- Digital multimeter with continuity mode(Prefer a meter with an audible continuity beeper.)
- Replacement thermal fuse (matching temperature and current rating)(Obtain an identical or compatible rating from the device's manual.)
- Screwdrivers (Phillips and flat-head)(For opening the device housing and fuse access.)
- Insulated safety gloves(Protect hands while handling exposed conductors.)
- Safety glasses(Eye protection during disassembly and testing.)
- Heat shrink tubing or electrical tape(Insulate any exposed wiring after replacement.)
- Non-conductive mat or tray(Provides a safe work surface and helps organize screws.)

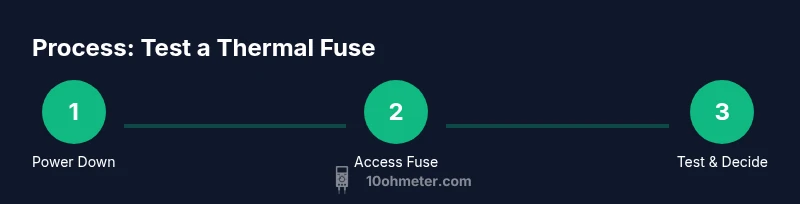

Steps
Estimated time: 25-40 minutes
- 1
Power down and unplug
Ensure the device is fully powered off and unplugged. This prevents electrical shock and accidental operation while you work. If you suspect stored energy, wait a few minutes for capacitors to discharge.
Tip: Keep the device unplugged throughout the test and work on a dry, non-conductive surface. - 2
Access the fuse housing
Open the appliance housing or fuse compartment following the manufacturer’s service manual. Identify the fuse location and note how it is wired into the circuit. Resume work only after you can clearly view both fuse terminals.
Tip: Take photos of the original wiring before disconnecting anything so you can reassemble accurately. - 3
Set the multimeter to continuity
Power on the multimeter and select a continuity or lowest-resistance setting. If your meter has a beep, enable it to hear a successful connection. This step prepares the meter for the fuse test.
Tip: If the meter uses a battery, ensure it is fresh for reliable readings. - 4
Isolate the fuse from the circuit
If possible, detach one end from the circuit to test the fuse in isolation. This prevents alternate paths from skewing results and ensures you’re testing the fuse itself, not other components.
Tip: Only disconnect one end if you’re confident you can reattach it correctly later. - 5
Test for continuity across fuse terminals
Touch the meter probes to both fuse terminals. A successful continuity reading (and possibly a beep) indicates the fuse is intact. If there is no continuity, the fuse is blown and should be replaced.
Tip: Ensure solid probe contact and avoid touching other metal parts with the probes. - 6
Replace and reassemble
If the fuse failed, install a new fuse with the same temperature rating and current rating from the device manual. Reassemble the unit, then perform a cautious power-on test to confirm normal operation.
Tip: Label the replacement date and rating for future maintenance.
Your Questions Answered
What is a thermal fuse and what does it do?
A thermal fuse is a one-time safety device that opens the circuit when temperatures exceed a preset limit, preventing overheating. It must be replaced after it has blown. This test helps confirm whether the fuse is still conducting.
A thermal fuse is a one-use safety device that stops current if things get too hot. If it’s blown, you’ll need to replace it and re-test the circuit.
Can a multimeter test indicate a faulty fuse?
Yes. A continuity test shows whether the fuse is still closed. If there is no continuity, the fuse is blown. Be sure to test the fuse in isolation to avoid false results from other components.
Yes. A continuity test can show if the fuse is blown, but test it with the circuit isolated to avoid false readings.
What if the fuse shows continuity but the device still overheats?
Continuity indicates the fuse isn’t open, but it doesn’t guarantee safe operation under load. Other parts—like the heater, thermostat, or wiring—could fail or short, causing overheating despite a good fuse.
If there’s continuity but the device overheats, other components may be faulty even though the fuse is intact.
Why does my meter beep when testing a fuse?
Beeping typically means the fuse is continuous and has low resistance. A non-beeping reading may mean the fuse is blown or there is a poor probe contact.
A beep usually means the fuse is still conductive; if it doesn’t beep, recheck connections or replace the fuse.
Should I test fuses while the device is powered?
No. Always test with power removed to prevent shock and meter damage. Unplug, discharge capacitors, and follow safe testing practices.
Never test a fuse while the device is powered; ensure the device is unplugged and safe to handle.
What ratings should I look for when replacing a thermal fuse?
Choose a fuse with the same temperature rating and similar current rating as the original. Check the device manual for exact specifications and use an approved replacement.
Replace with the same temperature and current ratings as the original fuse, per the device manual.
Watch Video
Key Takeaways
- Verify power is disconnected before testing.
- Use continuity to identify a blown fuse.
- Replace with an identical rating fuse as specified.
- Test the device after reassembly to confirm safety.
- Document fuse rating and test results for future reference.
