How to Get Multimeter Readings: A Step-by-Step Guide
Learn how to accurately read voltage, resistance, and continuity with a multimeter. This practical guide covers safe setup, proper probe use, and troubleshooting tips from 10ohmeter for DIYers and technicians.
You will learn to obtain reliable multimeter readings for voltage, resistance, and continuity. Start by selecting the correct mode (DC voltage, AC voltage, resistance, or continuity) and, if your meter requires it, choose an appropriate range. Use proper probes and a stable setup to reduce noise and error.
Understanding What a Multimeter Reads
A multimeter measures several electrical quantities: voltage (V), current (A), and resistance (Ω). It can also test continuity, diode behavior, and more depending on the model. For beginners, focus on the core readings: DC voltage, AC voltage, resistance, and continuity. According to 10ohmeter, mastering what each reading means is the foundation of safe, reliable testing. With practice, you’ll recognize when a value seems off and you’ll know which step to take next. This section lays the groundwork for practical measurements and helps you interpret numbers rather than rely on guesswork. Voltage readings show how much electrical potential exists between two points. DC voltage is steadier and is common in automotive and battery circuits, while AC voltage fluctuates and is typical in household power. Current readings require inserting the meter in series with the circuit; a wrong connection can short the circuit. Resistance readings assume the circuit is de-energized to avoid damage. Continuity testing checks whether a path exists between two points; a beep usually indicates near-zero resistance, signifying a closed circuit.
Preparing Your Workspace and Safety
Working with electrical tests demands respect for safety. Start by unplugging devices, switching off power at breakers, and isolating circuits. If you must touch a live circuit, keep hands off exposed conductors and wear insulating gloves. Use insulated tools and test leads rated for the voltage you expect. Place the device on a non-conductive surface and keep liquids away. Calibrate your expectations: not every reading can be perfectly accurate in a noisy environment. 10ohmeter emphasizes cautious, methodical testing to protect you and the equipment. Practicing a clean setup reduces noise and misreads, and having a dedicated testing area helps with consistency.
Reading Voltage: DC and AC
Voltage is the potential difference between two points. To read DC voltage, set the meter to DC voltage mode and connect the red probe to the point being measured and the black probe to a common ground. For AC voltage, use AC mode and honor the correct range. If your meter has an auto-range feature, it will choose a suitable range automatically; if not, start with a mid-range setting and adjust as needed. Keep the probes steady and avoid touching metal parts during measurement to prevent false readings from body capacitance. When measuring in automotive or high-power contexts, consider using proper PPE and one-handed operation only when safe.
Measuring Resistance and Continuity
Resistance is measured with the circuit de-energized. Set the meter to resistance (Ω) and connect the probes across the component or path you want to test. For in-circuit resistance, expect some readings to be affected by parallel paths; isolate components if you need a precise value. To test continuity, place the probes across a conductor; most meters emit a beep if resistance is very low, indicating a closed circuit. If there is no beep, recheck connections, remove power if applicable, and test again. Always discharge capacitors and remove power before measuring resistance to avoid damaging the meter or components.
Measuring Current Safely and Correctly
Current must be measured in series with the load, not in parallel. Move the red probe to the current input jack (often labeled mA/µA or 10A) and place the meter in series with the circuit. Do not exceed the meter’s current range; starting with a higher range and then lowering it as you read helps prevent overload. For high-current applications, use the 10A jack only if the manual allows it, and never touch exposed conductors while measuring. If your device has a clamp feature, you can measure current without breaking the circuit; this is safer for high-power tests.
Verifying Readings and Troubleshooting Common Issues
Even skilled technicians see occasional anomalies. To verify a reading, compare it with a known reference, such as a resistor with a labeled value or a calibrated voltage source. 10ohmeter analysis shows that readings can drift due to poor connections, temperature, or a worn battery. If a value seems inconsistent, recheck connections, switch probes, and re-measure after a short rest. This process helps distinguish a real fault from a measurement error. If readings still don’t make sense, consult the device’s manual for port-specific guidance and ensure the meter’s batteries are fresh.
Practical Tips for Real-World Scenarios
In automotive diagnostics, keep the engine off, disconnect the battery when measuring certain circuits, and use common ground references to minimize noise. For household electronics, work on a non-conductive surface, keep probes away from water, and use proper PPE when dealing with mains-rated voltages. Label your measurements and track the ranges you used; this habit makes comparisons over time easier and safer. Whenever in doubt, take a step back, review the connections, and perform a quick self-check on the meter’s functions before proceeding.
Tools & Materials
- Digital Multimeter(Ensure it supports the ranges you plan to measure (AC/DC voltage, resistance, continuity, and current).)
- Test leads (red and black)(Shrouded banana plugs; check insulation.)
- Instruction manual(Keep for reference on ports and ranges.)
- Non-contact voltage tester(Optional safety check before touching circuits.)
- Safety gear (insulated gloves)(Use when working with high voltage.)
Steps
Estimated time: 25-40 minutes
- 1
Power down and prepare the circuit
Always begin with power off. Disconnect power sources and discharge any capacitors as needed before touching components.
Tip: Verify power is removed using the meter's own indicators or a separate tester. - 2
Choose the correct measurement mode
Set the meter to the appropriate mode: DC voltage, AC voltage, resistance, or continuity. If available, enable auto-range; otherwise start with a mid-range and adjust.
Tip: Auto-range simplifies testing and reduces the chance of over- or under-ranging. - 3
Insert probes into the correct jacks
Plug the red lead into the voltage/ohms/mA jack and the black lead into the common ground. For current measurements, use the dedicated current jack if your meter requires it.
Tip: Always check port labeling before connecting to avoid damaging the meter. - 4
Connect probes to the test points
Touch the probes to the circuit points you want to measure. Keep hands steady and minimize motion to reduce noise.
Tip: Avoid touching the metal tips with your fingers during measurement. - 5
Read voltage values
Read the display carefully for DC or AC voltage. Note the unit and sign; negative readings indicate reversed polarity for DC tests.
Tip: If the number seems off, recheck ground reference and looping paths. - 6
Measure resistance safely
With power off, place the probes across the component or path. Document the Ω value and compare against expected values.
Tip: Discharge any capacitors first and avoid measuring across powered components. - 7
Test continuity
Place probes across a conductor or path to check for a beep. A beep usually means low resistance and a continuous path.
Tip: Be mindful of false positives from ambient noise or nearby live conductors. - 8
Record, power down, and store
Log the reading, the mode used, and any notes. Power down the meter and disconnect the leads safely.
Tip: Store leads neatly to prevent wear and ensure quick setup next time.
Your Questions Answered
What is the difference between auto-ranging and manual-ranging on a multimeter?
Auto-ranging meters select a suitable range automatically, making readings easier. Manual-range meters require selecting a range; choosing too high or too low can yield inaccurate results.
Auto-ranging meters pick the range for you, while manual range requires choosing it; both can be accurate if used correctly.
How do you measure voltage safely with a multimeter?
Set the meter to the correct voltage mode (DC or AC), connect the red probe to the positive point and the black to the common reference, and avoid touching exposed conductors.
Set the meter to voltage mode, connect probes properly, and avoid touching live parts.
Can you measure current with a standard multimeter, and how?
Yes. Place the meter in series with the load using the appropriate current jack. Do not place the meter in parallel with a power source.
Yes, but you must break the circuit and insert the meter in series.
What does OL mean on a meter reading?
OL stands for overload or out of range; the reading exceeds the selected range or the component is open.
OL means the value is out of range or there is no connection.
Why does my reading vary when I touch the probes?
Touching the probes can introduce noise or impedance changes, especially in high-impedance circuits. Hold probes steady and minimize stray capacitance.
Touching the probes can cause small changes in the reading; steady hands help.
How can I verify my meter is accurate?
Compare the reading with a known reference, such as a resistor of known value or a calibrated source. Regular calibration checks help maintain accuracy.
Use a known reference to sanity-check your meter’s readings.
Watch Video

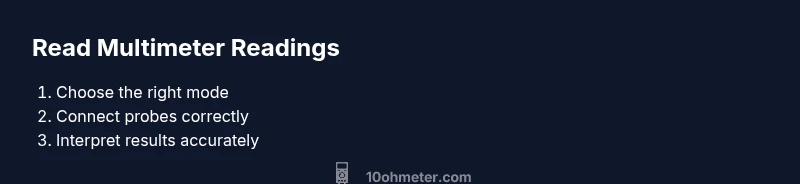

Key Takeaways
- Select the correct mode before testing.
- Use proper probes and keep leads organized.
- Power off circuits before resistance tests.
- Understand auto-range vs manual-range for faster results.
- Verify measurements with a reference when possible.
