How to Use a Multimeter: Test Voltage, Resistance, and More
Learn how to use a multimeter to test voltage, resistance, continuity, and current safely. This step-by-step guide covers setup, measurement techniques, and practical troubleshooting for electronics and automotive tasks.
By following these steps, you’ll learn how the multimeter can test voltage, current, resistance, and continuity safely. You'll choose the correct mode, set ranges, connect probes properly, and interpret readings to diagnose circuits in electronics projects and automotive tasks. This quick guide also emphasizes safety and proper technique for reliable results.
Why a multimeter can test a wide range of properties
A handheld multimeter is a versatile tool that can test voltage, current, resistance, continuity, capacitance, and even diode conduction. The reason it can test so much is that modern meters combine multiple measurement circuits into a single probe system. It is essential to understand that the phrase multimeter can test refers to the device's ability to measure electrical parameters by applying internal circuits and measurement principles. According to 10ohmeter, a well-used multimeter can test these properties across a broad range of applications—from electronics hobby projects to automotive diagnostics. Mastery begins with understanding what each mode does and how to interpret the numbers you see on the display. In practice, you’ll switch between DC voltage, AC voltage, resistance, continuity (often with audible beeps), diode testing, and current measurements when appropriate. Keep in mind that accuracy depends on proper setup, good probes, and safe working conditions.
Safety first: precautions before you start testing
Safety is the foundation of any testing procedure. Always de-energize circuits before measuring resistance or continuity, use insulated tools, and wear eye protection when working near exposed conductors. Inspect your test leads for cracks or damaged insulation and replace them if needed. Do not touch the metal parts of the probes while the meter is in use, and keep your fingers behind the grip guards. If you’re uncertain about a voltage level, start on the highest safe range and work downward. Remember that high-energy circuits can cause shocks, burns, or equipment damage, so plan your test path and keep a safe workspace.
Understanding your multimeter: key features and modes
Modern digital multimeters (DMMs) combine several meters in one device. Key features include DC and AC voltage ranges, resistance (ohms) testing, continuity with audible beep, diode testing, capacitance measurement, and sometimes current measurement via separate jacks. The common (COM) and voltage/current jacks are color-coded and labeled, so you know where to connect the probes. Auto-ranging meters simplify use by selecting the best range automatically, while manual-range meters require you to pick a range. For accuracy, look for true RMS in AC measurements, maintain clean test leads, and understand the meter’s resolution and accuracy specifications. Regular calibration and battery checks also help maintain reliability.
Step-by-step: prepare and select measurement mode
Before you measure, verify the device under test is safe to test. Inspect probes for wear, then insert the ground probe into the COM jack and the signal probe into the appropriate V/Ω/mA or current jack. Set the meter to the correct measurement type (DC voltage, AC voltage, resistance, or continuity). Start with a higher range if you’re unsure of the magnitude, then narrow down to improve resolution. Ensure the probes do not short across adjacent components.
Step-by-step: test DC voltage with probes
Power the circuit or device and place the black probe on COM and the red probe on the V/Ω input. Select DC voltage mode and a suitable range (start high if uncertain). Read the display and compare to expected values. If the reading is OL or very unstable, re-check connections and consider a higher quality probe or a fresh battery in the meter. When testing a component, momentarily connect across the leads for a live measurement, but avoid shorting the circuit.
Step-by-step: test AC voltage safely
Switch to AC voltage mode and a safe range. Use one probe on a known reference point and the other on the non-reference point. Be mindful of the meter’s input impedance and the circuit’s impedance; very low impedance paths may cause misleading results. If you’re probing a powered AC circuit, keep hands away from exposed conductors and wear protective equipment. Compare readings with expected mains values or reference components. If you suspect irregular voltage, stop and inspect wiring.
Step-by-step: test resistance and continuity
Power off the circuit and discharge capacitors where applicable. Place the probes across the component or resistor; resistance is read in ohms. For continuity, use the beeper feature if available. If you see OL, the path is open; if you hear a beep, path resistance is low. Document which parts pass or fail and re-test with a known-good component to verify results. High resistance may indicate a faulty part or loose connection.
Step-by-step: measure current safely
Current measurements require the meter to be placed in series with the circuit. If your meter supports current measurement, connect the probes in series after breaking the circuit. Use the appropriate current jack (usually mA or A) and never measure current by placing the meter across a live supply. For large currents, use a clamp meter or a shunt designed for safe, indirect measurement. Observe polarity and avoid short circuits.
Interpreting readings and tolerances
Readings must be interpreted in context. Compare DC voltage to the expected supply, check continuity against the circuit diagram, and verify resistance against the component’s datasheet. Remember tolerances; a resistor marked 1k may have a tolerance range that affects the reading. Use calibration references and, when possible, measure multiple times to check stability. If readings drift, re-check connections, replace worn probes, and consider a meter calibration.
Authority sources and safety reminders
To deepen understanding and verify your method, consult authoritative safety and standards resources. For electrical safety guidelines, refer to OSHA (https://www.osha.gov). For measurement standards and references, see NIST (https://www.nist.gov). Energy efficiency and standards guidance can also be found at https://www.energy.gov. These sources help ensure you follow best practices and stay compliant with safety expectations.
Tools & Materials
- Digital Multimeter (DMM) with auto-ranging(Prefer a model with true RMS for AC measurements and multi-range functionality)
- Test leads with probes(Shrouded probes with alligator clip attachments recommended)
- Validated resistors (known values 1kΩ–10kΩ)(Used for reference checks and calibration practice)
- Safety PPE (gloves, goggles)(Essential for automotive and high-voltage tasks)
- Non-contact voltage tester (optional)(Helpful for quick verification of live circuits)
- Insulated mat or work surface(Minimizes slip hazards and accidental shorts)

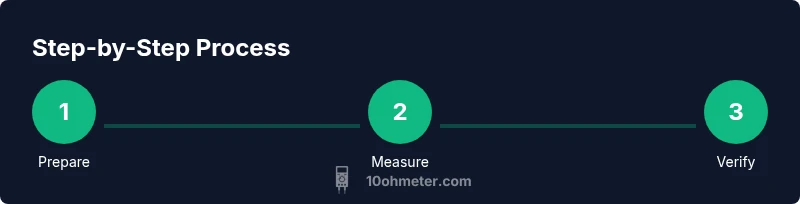

Steps
Estimated time: 60-90 minutes
- 1
Power down and prepare
Power off the circuit and discharge any capacitors before touching components. Inspect test leads for wear and keep a clear workspace. This reduces shock risk and measurement error.
Tip: Inspect the meter’s battery and ensure the dial or button functions are clean. - 2
Set up the meter and probes
Plug the black probe into COM and the red probe into the V/Ω/mA or A input depending on the measurement. Select the correct function on the dial (DC voltage, AC voltage, resistance, or continuity).
Tip: Start with a higher range if you’re unsure of the value to avoid overrange. - 3
Measure DC voltage
Place the black probe on COM and the red probe on the test point’s positive node. Read the display and compare with expected DC supply values. Avoid touching bare conductors.
Tip: Keep the ground lead close to the measurement point to reduce noise. - 4
Measure AC voltage
Switch to AC voltage mode. Probe the hot and neutral/reference as appropriate. Read RMS value and compare to nominal mains or source value. Use caution with live circuits.
Tip: Use auto-range if available to reduce manual range guessing. - 5
Test resistance
Ensure power is removed and capacitors are discharged. Place the probes across the component. Read ohms and compare with the expected resistance.
Tip: If reading is unstable, check for poor probe contact or a damaged component. - 6
Check continuity
With power off, test across wires or components to confirm a low-resistance path. Listen for the beep if your meter supports continuity.
Tip: Be aware that very short probes may cause false beeps if touching the wrong test point. - 7
Measure current safely
Insert the meter in series with the circuit or use a dedicated current clamp for high current. Do not place the meter directly across a power source.
Tip: Break the circuit at a safe point and ensure correct input jack usage. - 8
Document and verify
Record the readings, note the conditions, and re-check with a known-good component if possible. Validate that multiple measurements align with expectations.
Tip: Keep a log for future reference and troubleshooting. - 9
Wrap up safely
Power down, remove probes, and store equipment properly. Recheck that the workspace is clear of tools and shields.
Tip: Recharge the meter battery and inspect leads after use.
Your Questions Answered
What can a multimeter test?
A multimeter can test voltage (AC/DC), current, resistance, continuity, diodes, and occasionally capacitance depending on the model. It helps diagnose circuits and components.
A multimeter tests voltage, current, resistance, continuity, and sometimes diodes or capacitance, depending on the model.
Can I measure current in-circuit with a standard meter?
Current measurements must be made in series with the circuit. Do not place the meter across a power source. For high current, use a clamp meter or proper shunt.
Yes, but only in series or with a proper clamp meter for safety and accuracy.
What is continuity testing and the beep?
Continuity tests check if a path exists between two points. A low resistance path typically produces a beep on many meters, indicating a complete circuit.
Continuity checks confirm a complete path. A beep usually means a good connection.
How do I test a resistor with a multimeter?
Power off the circuit, remove the resistor if possible, and place probes at both ends. Compare the reading to the resistor’s labeled value within tolerance.
Turn off power, place probes on the resistor ends, and compare the reading to its labeled value.
How do I choose a safe range for testing?
Start with the highest range and gradually lower until you obtain a stable reading. This avoids overloading the meter and protects sensitive circuits.
Begin with the highest range and step down to get a stable reading.
Can a multimeter test automotive circuits?
Yes, but use appropriate automotive probes and safety practices. Treat automotive circuits as higher risk due to power and vibration; de-energize when possible and follow vehicle-specific guidelines.
Yes, with proper safety and vehicle-specific guidelines in mind.
Watch Video
Key Takeaways
- De-energize circuits before resistance or continuity tests.
- Use COM with the appropriate V, Ω, or A input for each measurement.
- Choose correct range and probe placement for accuracy.
- Document and verify readings with a second method when possible.
- Follow safety guidelines to prevent shocks or burns.
