Which Multimeter Ports to Use: A Practical Guide
Learn how to choose the right multimeter ports for voltage, current, resistance, and diode tests. This practical guide from 10ohmeter covers safety, port selection, and common pitfalls to help DIY enthusiasts and technicians measure accurately.
Mastering port selection lets you measure safely and accurately. For most tasks, pair COM with the V/Ω/mA input, then switch to the 10A jack only when you expect currents near or above the meter’s high‑current limit. Always verify labeling, fuses, and range settings before touching live circuits. This quick approach minimizes misreads and protects both you and the device.
Why port selection matters for which multimeter ports to use
Choosing the right ports is not a cosmetic detail—it's foundational to accuracy and safety. The ports you select determine the impedance the meter presents to the circuit, the protection offered by fuses, and the range of readings you can obtain without damaging the instrument. When you know which multimeter ports to use, you reduce the risk of blown fuses, inaccurate readings, and even electrical shocks. In this 10ohmeter guide, we focus on the standard jacks found on most handheld digital multimeters: COM, V/Ω, mA, and the high-current 10A input. We also discuss shared inputs, fused vs unfused paths, and what to do when your measurement requires unusual ranges. By the end, you’ll feel confident selecting ports for voltage, current, resistance, diode testing, and continuity, and you’ll understand how port choice interacts with range settings and measurement mode.
Understanding common multimeter ports
Most handheld digital multimeters use a small set of standardized input jacks. The COM (common) port serves as the reference ground for most measurements. The V/Ω port is the workhorse for voltage, resistance, continuity, and diode tests. The mA port is used for small current measurements, while the 10A port handles higher current readings. Some meters share inputs or have fused and unfused paths, so always check the device labeling and your user manual before connecting probes. When you understand which multimeter ports to use, you’ll avoid misreadings and protect the meter’s internal fuses. For automotive and electronics tasks, knowing the right port combination is especially critical to prevent damage and ensure safe operation.
Preparing to measure safely: prerequisites and checklists
Before you connect anything, power down the circuit and discharge capacitors where appropriate. Inspect your test leads for damaged insulation or bent probes, and ensure the probes are firmly seated in the jacks. Verify the meter’s fuse status; many meters have replaceable fuses for both the mA and 10A inputs. If the fuse is blown, do not attempt to measure—replace the fuse with the same rating. This preparation keeps you safe and preserves the accuracy of your readings by ensuring clean, low-noise connections and protecting the meter from overcurrent.
Measuring voltage: port usage in practice
Voltage measurements primarily use COM and the V/Ω port. Start by turning the meter to the DCV or ACV function as appropriate, and select a range that covers the expected voltage plus some headroom. For low voltages, you can start at a higher range and let the meter auto-range if supported. Touch the black probe to COM and the red probe to V/Ω. If you’re measuring a live circuit, keep your hands away from exposed conductors and avoid touching the metal tips. For higher voltages, ensure your test leads are rated for the voltage you are measuring and use proper PPE as needed.
Measuring current: series connection and port choice
Current must be measured in series with the circuit, not in parallel. Identify whether the expected current will stay within the mA range or require the 10A port. If you anticipate more than a few hundred milliamps, use the 10A input; otherwise, the mA input is preferred for higher resolution. Move the switch to the appropriate current function (A or mA) and insert the meter in series with the load. A snug, secure connection helps prevent arcing and reduces measurement noise. Do not bridge circuits with the probes across a power source while measuring current.
Measuring resistance, continuity, and diode tests
Resistance measurements use the V/Ω port and the resistance mode. Begin with the highest range and work downward to optimize resolution. For continuity tests, switch to the continuity function; a beep confirms a closed circuit. For diode testing, use the diode test mode and place the probes on the diode’s anode and cathode. If you are testing a component in-circuit, isolate the component if possible to avoid parallel paths that skew results. Practicing careful lead placement helps you obtain stable, repeatable readings.
Special cases: high-current measurements and fused ports
High-current measurements often require the 10A input, which is sometimes unfused or fused differently from the mA port. Always check the device manual for the exact rating and fuse status. When using the 10A jack, ensure you do not exceed the meter’s specified max current and remain mindful of the leads’ insulation and rating. For automotive tasks, high-current measurements can present unique hazards, including voltage spikes and inductive kick. In those scenarios, clamp meters or dedicated automotive meters may be safer and more practical.
Practical examples: common tasks and port choices
Example 1: You want to measure the voltage across a 9V battery. Use COM and V/Ω, DCV setting, and a suitable range. Example 2: You need to measure the current draw of a small LED circuit. Start in the mA range, place the meter in series, and adjust the range as needed. Example 3: You’re checking the resistance of a resistor in a disconnected circuit. Use the V/Ω function and select a high range initially, then step down if the reading is out of range.
AUTHORITY SOURCES
- OSHA Electrical Safety Guidelines: https://www.osha.gov
- NIST Measurements and Standards: https://www.nist.gov
- U.S. Department of Energy Safety Resources: https://www.energy.gov
Tools & Materials
- Digital multimeter(Any common DMM with COM and V/Ω ports; verify the labeling for your model.)
- Test leads with probes(Two probes with insulated handles; check for wear.)
- Alligator clip leads (optional)(Helpful for securing connections during current measurements.)
- User manual for your meter(Review port labeling and fuse ratings specific to your model.)
- Safety glasses(Eye protection when working with live circuits.)

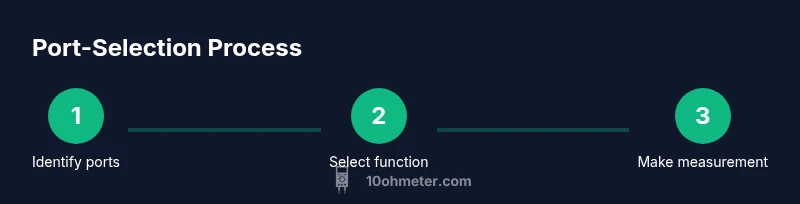

Steps
Estimated time: 30-45 minutes
- 1
Identify ports
Scan the meter face to locate COM, V/Ω, mA, and 10A inputs. Note which ports are labeled for the functions you need and confirm any shared inputs on your model. This step sets the stage for safe and accurate measurements.
Tip: If in doubt, refer to the manual to confirm port labels before connecting probes. - 2
Check fuses and labeling
Inspect the fuses for the mA and 10A inputs. A blown fuse will block current measurements and can be dangerous if used blindly. Replace fuses only with the same rating and after removing power from the circuit.
Tip: Never assume a fuse is intact—a visual check may miss internal damage. - 3
Attach test leads securely
Insert the black lead into COM and the red lead into the appropriate input (V/Ω for voltage or mA/10A for current). Ensure probes are fully seated and that leads are not frayed. Proper seating reduces noise and improves reading stability.
Tip: Keep your hands behind the probe tips to avoid accidental contact with live circuits. - 4
Set function and range
Choose DCV or ACV for voltage measurements, and set the meter to the correct current or resistance range. If the range is unknown, start high and work down until readings stabilize. Auto-range meters can simplify this step.
Tip: Low-impedance ranges can improve noise immunity in some environments. - 5
Measure voltage safely
Place the black probe on COM and the red probe on the test point. Read the display and compare it to the expected value. Ensure the circuit is de-energized when possible, and re-energize only after you’ve completed the measurement.
Tip: Never touch the metal tips while the circuit is live. - 6
Measure current in series
Power down, disconnect the load, and insert the meter in series using the appropriate port (mA or 10A). Reapply power and observe the reading. If the current exceeds the selected range, shift to a higher range or use the 10A input.
Tip: Work slowly and verify connections after each adjustment. - 7
Measure resistance and continuity
Connect the probes to the component with the circuit de-energized. Use the V/Ω input and select resistance. For continuity, switch to the beep mode and check for a continuous path. Diode testing uses the diode function with the probes placed on the diode.
Tip: Unplug power sources and isolate components to avoid parallel paths. - 8
Record and verify
Document readings, note any unexpected results, and re-check suspicious measurements. Power down before removing leads and store the meter properly. If readings look off, re-check connections and ranges.
Tip: Repeat critical measurements to confirm consistency.
Your Questions Answered
Do all multimeters have separate 10A and mA ports?
Not all meters use separate inputs. Some share a single current input with different fusing or ranges. Always check the labeling and manual for the exact port design on your model.
Not all meters have separate inputs; check your model’s labeling and manual for port details.
Can I measure current without breaking the circuit?
No. Current must be measured in series. Placing the meter in parallel across a live source can cause a short or blow a fuse. Plan your connection and insert the meter properly.
No, you need to place the meter in series with the circuit to measure current safely.
What happens if I use the wrong port for a measurement?
Using an incorrect port can blow fuses, yield inaccurate readings, or damage the meter. Always start with the recommended port for the measurement and verify range before applying power.
Wrong port can blow fuses and damage the meter; verify the port and range first.
Are there meters with fused vs unfused current ports?
Yes. Some meters have fused mA inputs and an unfused 10A input, or different fuse ratings. Always know the fuse status and replace with the same rating if needed.
Some meters have different fuse setups; know your fuse ratings before measuring.
How do I test a diode with multimeter ports?
Use the diode test mode and place the probes across the diode in correct orientation. A healthy diode shows a forward voltage drop in one direction and high resistance in the opposite direction.
Use diode test mode and check for a forward drop in one direction and high resistance in the other.
Can I measure capacitance with a standard multimeter port?
Some meters have a dedicated capacitance function. If your meter lacks it, you’ll need a specialized capacitor tester or a meter with a capacitance mode.
Some meters support capacitance measurement; others require a dedicated tool.
Watch Video
Key Takeaways
- Use COM with V/Ω for most measurements.
- Switch to the 10A input only when current exceeds mA range.
- Always verify fuses before measuring current.
- Isolate components when measuring resistance and diode tests.
- Follow safety protocols to protect yourself and the meter.
