How to Use a Digital Multimeter: A Practical Guide

Why a Digital Multimeter Matters for DIY and Tech Work

According to 10ohmeter, mastering a digital multimeter unlocks safer testing and faster troubleshooting for electronics, automotive tasks, and home projects. A high-quality DMM lets you quantify voltage, current, resistance, and continuity with confidence, reducing guesswork and preventing accidental damage to components. In practice, a few well-chosen measurements can reveal open circuits, bad connections, or failing components long before they fail catastrophically. By learning to interpret readings—plus how to identify common errors—you’ll save time and avoid costly mistakes in both hobby projects and professional repairs. 10ohmeter analysis shows that beginners who practice with simple, out-of-circuit measurements build a solid foundation before tackling live circuits. This foundation also helps you plan tests without assuming outcomes, which is essential when diagnosing complex electronics.

What you’ll gain: safer hands-on testing, quicker fault isolation, and a clearer understanding of circuit behavior. Also, you’ll improve your ability to sequence tests logically rather than jumping between measurements randomly.

Safety First: Precautions When Using a Multimeter

Before you touch any circuit, understand the safety basics. A digital multimeter is a powerful tool, but it can deliver dangerous shocks or cause equipment damage if misused. Always disconnect power before measuring resistance or continuity, and never exceed the meter’s voltage rating. Inspect test leads for cracks, replace damaged fuses if the meter has a blown fuse, and keep your fingers behind the insulated sections of the probes. Use eye protection when working around high voltages and never test energized components with bare hands. Read the user manual for model-specific limits and fuse ratings. These precautions apply whether you’re working on automotive wiring, consumer electronics, or home improvement projects. As you gain experience, you’ll recognize patterns that help you stay safe while testing.

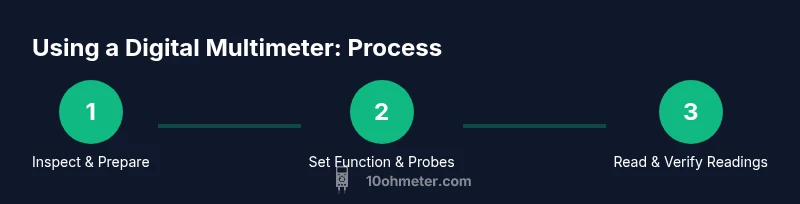

Dial Settings and the Auto-Range Debate

Digital multimeters come with a range of settings that decide how readings are processed. Auto-ranging meters can simplify testing by automatically selecting an appropriate range, reducing guesswork for beginners. Manual-range meters offer greater control and sometimes improved accuracy for seasoned users who know the expected magnitude of a measurement. The key is to understand the symbols on the dial: V for voltage (DC and AC, typically with separate DC and AC symbols or a toggle), Ω for resistance, A for current (with separate mA and 10A or similar ranges), and the continuity/beep or diode test symbols. Practice with low-risk circuits to learn which range to select and when auto-range is advantageous. Consistency in range selection helps prevent over-range readings and potential damage to the meter or the circuit.

Measuring Voltage: DC and AC

Voltage measurements are among the most common tasks with a DMM. For DC voltage, connect the black probe to the ground/reference and the red probe to the test point. Observe the polarity and check that the device is in a powered condition appropriate for the test. For AC voltage, use the AC setting (often marked with a sine wave symbol) and be mindful of the RMS vs peak values your meter reports. Keep measurement points stable and avoid touching exposed conductors while testing. If you see erratic readings, check for noisy grounds or intermittent connections and re-test with the circuit powered down when possible to verify magnitude and trend.

Measuring Resistance and Continuity

Resistance testing requires the circuit to be de-energized. Remove power, discharge large capacitors, and place the probes across the component or path you want to test. A healthy resistor will show a finite resistance within the expected tolerance; open circuits show very high values, while short circuits read near zero. The continuity function provides an audible beep when a near-zero resistance path exists, helping you locate broken traces or loose connections quickly. Remember, resistance testing in-circuit can yield misleading results if parallel paths exist; isolate the component when accuracy matters.

Measuring Current: In-Line Testing and Clamp Meters

Current measurement usually involves placing the meter in series with the load (in-line) or using a clamp meter in non-contact mode. To measure in-line, power down, disconnect the circuit at the test point, insert the meter between the points, and power up to read current. If your meter supports a clamp function, you can measure current without breaking the circuit by clamping the conductor. In both cases, ensure you’re using the correct jack for current (often labeled mA or A) and never exceed the meter’s maximum current rating. Safety remains essential: isolate high-current paths and use proper PPE.

Diode Test, Capacitance, and Other Tools

Many digital multimeters include diode test, capacitance, and sometimes transistor or temperature features. The diode test checks forward bias and reverse bias to determine if a diode is functional, while capacitance testing measures the stored charge in capacitors. For capacitors, ensure they are discharged before testing to avoid shocks and false readings. Remember that not all meters measure large-value or high-voltage capacitors accurately; consult your manual for limits. These functions add versatility to your toolkit, enabling faster troubleshooting across projects.

Practical Troubleshooting Scenarios

Imagine a car’s battery that won’t start. Use DC voltage measurements to verify battery voltage and alternator health, then switch to resistance and continuity to check wiring and fuses. For a dead LED strip, measure supply voltage, check for open or shorted traces, and test individual components with diode or continuity checks. When a circuit behaves erratically, compare readings against known-good sections to isolate the fault. Keeping notes of readings over time helps you spot drift and intermittent faults that static measurements might miss. The goal is systematic, repeatable tests that tell a coherent story about circuit health.

Maintenance, Calibration, and Longevity

A well-maintained meter lasts longer and gives more reliable readings. Regularly replace dead batteries and blown fuses; check leads for wear and replace damaged probes. Store the meter in a dry environment away from direct heat. Periodic calibration is often performed by the manufacturer; practice good habits by validating readings against known reference standards when possible. Clean the display and contacts with a soft, dry cloth, and avoid exposure to solvents. Proper care reduces the risk of drift, incorrect readings, and instrument failure over time.
