How to Connect a Multimeter in the Circuit: A Practical Guide
Learn how is a multimeter connected in the circuit for voltage, current and resistance tests. Safe, step-by-step guidance for DIY electronics and automotive work.
To measure safely, place the meter where you test the point of interest, and choose the right mode: voltage tests connect in parallel across the component, current tests insert in series by breaking the circuit, and resistance tests measure across a component after power is removed. Always start with the lowest range, use proper probes, and observe safety to protect both the circuit and yourself.
What is a Multimeter and Why Connection Matters
For most DIY electronics work, understanding how is a multimeter connected in the circuit is the first skill you should master. A multimeter is a versatile instrument that measures voltage, current, resistance, and sometimes frequency or capacitance. Before you attempt any measurement, you must know where to place the probes and which mode to select. The connection determines what you measure and how accurate the reading will be. In practice, you will sometimes measure across a component, and other times you will insert the meter into the circuit. Getting this right reduces misreadings and protects both you and the device under test. In this guide, we’ll walk through the essential connections for voltage, current, and resistance tests, plus practical tips for common automotive and electronics scenarios. The goal is to help you answer the question how is a multimeter connected in the circuit with confidence, using safe, repeatable steps. According to 10ohmeter, practicing proper probe placement yields faster, more reliable results.
How is a multimeter connected in the circuit for voltage, current, and resistance measurements
When you’re learning how is a multimeter connected in the circuit, you’ll rely on three core connection patterns. Voltage measurements are made by placing the probes across the two points you want to compare; the meter is in parallel with the component or section of the circuit. For DC circuits, set the dial to DC voltage (V— with a solid line and dashed line); for AC circuits, use the AC voltage setting. Current measurements require inserting the meter into the circuit path to create a series connection; the circuit must be broken at one point and the meter placed in line with the load. Use the appropriate current input jack (often mA or A) to avoid blowing the meter’s fuse. Resistance measurements are made with the circuit powered off; place the probes across the component and read the resistance value. If the circuit contains capacitors, discharge them safely before measuring resistance to avoid inaccurate readings. Continuity testing, often with an audible beep, offers quick verification of a path, while diode testing checks polarity and forward voltage. Throughout these tests, ensure your test lead polarity is respected and your hands stay clear of the live conductors to minimize risk.
Safety First: essential precautions before connecting a meter
Safety is non-negotiable when learning how is a multimeter connected in the circuit. Always power down the circuit before starting any measurement, and unplug equipment or remove batteries where possible. Discharge capacitors safely to avoid sudden voltage release. Inspect probes for cracks or exposed conductors; damaged leads can cause shorts or shock. Use the correct range and function on the meter, and avoid touching the metal tips while measuring. Wear safety glasses in busy workbenches or automotive environments, and keep the work area dry and uncluttered. If you’re uncertain about a live circuit, seek an alternative method or a clamp-meter solution that minimizes direct contact. Remember, the goal is to protect yourself, the meter, and the device under test.
Step-by-step connection basics

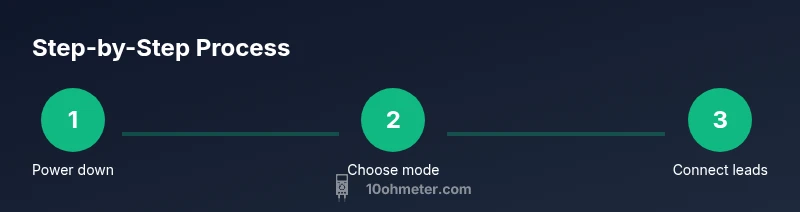

Below we summarize a practical flow to reinforce the steps involved in connecting a multimeter to a circuit. Although a full STEP-BY-STEP is provided later, this section anchors the concepts and helps you visualize proper probe placement and mode selection. Visualize the test as three distinct actions: (1) ensure safety and power-down, (2) select the measurement mode and range, and (3) attach the probes to the circuit in the correct configuration. By keeping these actions separate and deliberate, you’ll reduce the likelihood of a short or an incorrect reading and build a solid foundation for precise measurements.
Common mistakes and how to avoid them
New users often mix up connection points or confuse voltage and current modes. A common error is measuring current in parallel, which can blow the fuse or damage the meter. Another frequent mistake is attempting a resistance check while the circuit is powered, which yields meaningless numbers and potential harm. Ensure you are testing the correct parameter and that the circuit is safe for the chosen mode. Always verify the leads’ polarity and recheck the range before recording a reading. If a measurement seems off, recheck connections, consider alternative routes in the circuit and confirm you’re not measuring the wrong node. These habits reduce frustration and improve reliability.
Authority sources and further reading
To deepen your understanding of how is a multimeter connected in the circuit, consult authoritative public resources and educational references. For safety and standards, OSHA provides general electrical safety guidelines; NIST offers measurement principles and calibration concepts; MIT OpenCourseWare offers circuit fundamentals and practical lab practices. These sources help you cross-check concepts and ensure your practice adheres to recognized norms. Important topics include proper probe placement, meter range selection, load considerations, and the impact of wiring impedance on readings. Always align your procedures with credible educational materials and official guidelines.
Real-world examples and tips
Real-world testing scenarios often illuminate the nuances of how is a multimeter connected in the circuit. In automotive diagnostics, you might measure battery voltage while alternator load shifts, or check sensor outputs in a controlled harness. In electronics projects, voltage tests across a resistor, diode, or supply rail illustrate how increased resistance or voltage drop affects readings. Practical tips include keeping test leads short to reduce noise, using clamps for high-current paths, and documenting each measurement with a photo and notes. By associating the readings with known reference points, you’ll quickly validate results and improve repeatability.
Tools & Materials
- Digital multimeter(Any general-purpose DMM with voltage, current, resistance measurement)
- Test leads (red and black)(Insulated probes; ensure tips are intact and fully insulated)
- Alligator clips(Optional for hands-free or stable connections)
- Safety glasses(Eye protection during automotive or high-energy testing)
- Insulated gloves(Optional for high-energy circuits or unfamiliar setups)
Steps
Estimated time: 15-25 minutes
- 1
Power down the circuit and prepare the meter
Ensure the device under test is unplugged or its battery removed. Set the meter to OFF and inspect probes for damage. If you expect a high voltage, start with the lowest safe range.
Tip: Never test a live circuit in voltage mode with unplugged meters; turn off power first. - 2
Choose the measurement mode and range
Select voltage, current, or resistance mode on the dial. Start on a higher range if you’re unsure to avoid blowing the fuse, then move to a lower range for a more precise reading.
Tip: If you see an overload indication, shift to a higher range immediately. - 3
Prepare the test leads
Inspect leads for cracks. Attach alligator clips if available for stability. Confirm red lead goes to V/Ω/mA jack and black to COM.
Tip: Keep leads arranged to prevent accidental shorting. - 4
Measure voltage safely
For DC voltage, place the red probe on the positive node and the black on the negative node across the component. Read the DC voltage on the meter.
Tip: Measure with circuit powered only if your meter supports it and the design permits. - 5
Measure current by inserting in series
Break the circuit and insert the meter in series to measure current. Use the appropriate current input jack (often mA or A).
Tip: Do not exceed the meter’s current rating; use the proper jack to avoid blowing the fuse. - 6
Measure resistance with power removed
Ensure power is OFF and capacitors are discharged. Place probes across the component and read resistance. If still fluctuating, disconnect and recheck.
Tip: Resistance readings require an unpowered circuit for accuracy.
Your Questions Answered
What is the difference between measuring voltage, current, and resistance with a multimeter?
Voltage is measured in parallel across a component. Current requires the meter in series by breaking the circuit. Resistance is measured with the circuit powered off; discharge capacitors and allow the meter to measure across the component.
Voltage is measured across two points, current in series, resistance with power off across the component.
Can I measure current without breaking the circuit?
No. To measure current, you must place the meter in series by opening the circuit path. In some cases, a clamp-meter can measure current without breaking the circuit.
Not without placing the meter in series or using a clamp meter.
What safety steps should I follow before starting?
Power down the circuit, discharge capacitors, and keep hands away from live connections. Use eye protection and avoid touching probe tips.
Always power down, discharge, and protect yourself before testing.
Why are readings sometimes different from expected values?
Meter accuracy, probe contact resistance, temperature, and circuit conditions can affect readings. Re-check connections and ranges, and calibrate if needed.
Several factors can affect readings; verify connections and range.
How do I test a diode with a multimeter?
Set to diode test mode, place probes across the diode in both directions to observe forward voltage drop and reverse blocking.
Use diode mode to check forward and reverse behavior.
Is it safe to test a car battery with a multimeter?
Yes, but use a proper automotive multimeter or a meter with a higher current rating and observe polarity. Keep clear of moving parts and avoid shorting terminals.
Yes, with caution and proper setup.
Watch Video
Key Takeaways
- Know when to use parallel vs series connections.
- Power down before resistance testing.
- Use the correct jack and range to protect the meter.
- Safety first: protect yourself and the circuit.
