What to Set a Multimeter To: A Practical Guide

Understanding Multimeter Modes

Multimeters offer several measurement modes that correspond to what you are testing. The most common are DC voltage (V with a solid line), AC voltage (V with a wavy line), resistance (Ω), current (A or mA), and diode/continuity checks. If you own a digital true RMS meter, it can handle non-sinusoidal signals more reliably, but the core concepts stay the same. When changing modes, ensure the device under test is safe to approach and that the meter is powered off during probe connections to minimize arcing or shorts. If the display reads OL or 1, you have exceeded the current range or are out of range for that measurement.

A good practice is to understand the basic symbol set on your meter and always refer to the user manual for any mode-specific cautions. This article uses the keyword what to set a multimeter to to help you remember the core idea: set the meter to the right measurement type first, then choose a range that provides readable and repeatable results.

Tip: If your meter has auto-range, it can simplify the process, but you should still verify the readings by checking a manual range when precision matters. This reduces surprises during critical tests in automotive diagnostics or home electrical projects.

How to Choose the Right Range

Range selection is about balancing safety, accuracy, and resolution. Start with the highest range you expect to encounter, particularly for voltage or current measurements, to prevent blowing internal fuses or damaging the meter. If the reading is well within that high range, you can step down to a more precise setting. Auto-range meters are convenient, but in some cases, manual ranges give you a tighter reading and a clearer sense of measurement stability.

Always consider the circuit’s energy level and your meter’s fuse rating. For sensitive electronics or power rails near known values, you can select a range that yields a display in the middle of the scale (not at the top or bottom). This improves accuracy and minimizes the impact of minor fluctuations.

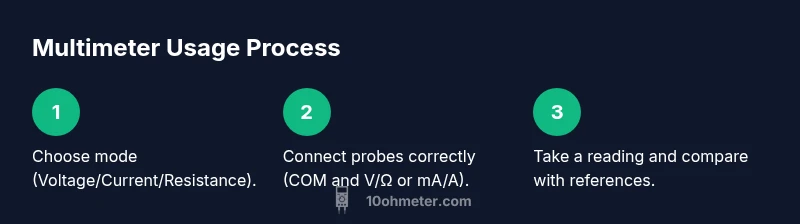

Before you begin, confirm the meter is set to the correct type (voltage, current, resistance) and that the probes are connected to the proper jacks (often COM and V/Ω for voltage and resistance; mA or A for current). A wrong connection can blow a fuse or create a short.

Safety note: Never exceed the meter’s rated input for any measurement. If you’re unsure of the circuit’s maximum voltage, use a higher range and verify with another method or a calibrated meter.

Measuring Voltage: DC and AC

Measuring voltage is one of the most common tasks. When testing DC voltage, set the meter to DC volts (V—). For AC voltage, use the AC volts setting (V~). To measure, connect the black probe to COM and the red probe to the V/Ω jack. Place the probes across the component or section of the circuit you want to measure, then read the display. For safety, never touch exposed metal tips, and avoid measurements on live mains without proper insulation and a non-conductive surface beneath.

Begin with a high voltage range (if unspecified) and drift down to improve resolution. When measuring a live source, keep hands away from metal parts and avoid shorting the circuit with the probes. If you see unstable readings, verify connections and consider a different range or a clamp-style meter if available.

Applications include diagnosing car electrical systems, household outlets, battery packs, and power rails in electronics projects. For automotive work, ensure the engine is off and components like the alternator are not actively charging the circuit while you’re testing other parts to avoid misleading results.

Measuring Resistance and Continuity

Resistance testing requires the circuit to be de-energized. Set the meter to the resistance range (Ω) and ensure the circuit or component is not powered. Connect the probes across the resistor or component terminals. A good resistor should show a stable, finite value, while a short will read near zero and an open circuit will show infinite resistance (often displayed as OL).

Continuity checks are often a quick pass/fail test. In continuity mode, the meter will often beep if a path is complete, signaling that current can flow between the probes. This is useful for tracing wires, checking fuses, and verifying wiring continuity in automotive harnesses.

Notes:

• Remove power and discharge capacitors if necessary before testing resistance.
• If you’re testing a component in-circuit, you may get misleading results due to other parallel paths. Isolate the component when possible.

Measuring Current: In-Series Testing and Safety

Measuring current requires inserting the meter in series with the load, not in parallel. Set the meter to the correct current range (mA or A, depending on expected load). Break the circuit at the test point and place the meter so current flows through it. High-energy circuits can cause damage or injury; only perform this on circuits you understand and with appropriate PPE.

Always start with the highest current range to prevent blowing fuse, then step down as needed for resolution. If you’re unsure of the circuit’s current, measure a known load first to gauge how the meter responds. Do not attempt to measure current across a live power source without isolating the circuit.

Automotive vs Household Scenarios

Automotive testing often involves 12-14 V systems with high inrush currents and swinging loads when cranking. Start with voltage checks around the battery, fuses, and wiring harnesses with the engine off. For in-vehicle diagnostics, use a meter on DC voltage, resistance for sensors, and continuity to trace wiring. In mains-powered household testing, bias toward DC and AC voltages, and be mindful of ground references and insulation. Use appropriate PPE and never bypass safety features of the vehicle or household wiring.

Understanding the environment is key: automotive work demands rapid checks in tight spaces, while household electrical work emphasizes outlet testing, wiring faults, and safe operation around shock hazards. By keeping the same fundamental approach—identify mode, select range, test with care—you’ll develop safe, repeatable habits.

Common Mistakes and Safety Guidelines

Common mistakes include testing resistance on powered circuits, using the wrong jack for current measurements, and starting with an incorrect range. Always disconnect power and discharge capacitors before resistance or continuity tests. Place the black probe in COM and the red probe in the V/Ω or mA/A jack as appropriate. Keep the meter and leads in good condition; damaged leads can produce false readings or short circuits.

Safety guidelines: wear safety glasses, work on a non-conductive surface, and never touch the metal tips during live measurements. If you’re testing high-energy circuits, consider a meter with appropriate protection and a current clamp option to minimize exposure. When in doubt, step back and confirm each measurement with a known reference or a schematic.

Authoritative sources and best practices support safe testing practices, and this guide references those standards for you to consult as needed.
