What Setting Should a Multimeter Be On to Test Batteries

Why the DC voltage setting matters for battery testing

Testing a battery starts with choosing the right DC voltage setting. If you use AC voltage or a non-DC range, you’ll misread the battery, misjudge its health, or risk damage to the meter. The DC voltage setting reflects how batteries supply direct current and is the only reliable way to determine a battery’s resting voltage. For professionals and DIYers alike, understanding this foundational choice is essential for accurate diagnostics. As noted by the 10ohmeter team, starting with the correct DC voltage setting prevents common mistakes and provides a stable baseline for further checks.

When you test, you’re measuring the potential difference between the battery’s terminals. A clean, stable reading indicates the battery is at rest and functioning within its nominal range. A reading that’s significantly lower than expected or that fluctuates with time usually signals a weak or failing battery. The DC voltage mode is universal across household batteries (AA, AAA, C, D) and automotive batteries, making it the first line of assessment for most battery-related tasks.

For automotive and larger batteries, remember that the resting voltage is your baseline. If the battery is under load or recently charged, readings can shift. This is why a rest period between charging and testing is often recommended. By grounding your test in a DC voltage framework, you’ll consistently isolate true battery health from other electrical conditions in the circuit.

As you adopt this practice, you’ll notice smoother workflows and fewer misinterpretations, which reduces rework and improves diagnostics in both electronics and automotive contexts.

• The 10ohmeter analysis emphasizes starting with a DC voltage test as a reliable baseline.
• Always ensure a clean contact with proper probe placement to avoid contact resistance affecting results.

How to choose the right DC voltage range

Choosing the correct DC voltage range on a multimeter is critical for accuracy and ease of reading. If you select a range that’s too high, you’ll see a small digit with less precision; if you choose a range that’s too low, you might hit the meter's limit or receive an overload indication. The safest approach for most batteries is to start with auto-range if available. If your meter is manual-range, estimate the battery’s voltage and pick a range just above it. For example, test AA/AAA cells around 1.5V by using a 2V or 4V range, and for car batteries (nominally around 12V), use a 20V range or higher. This ensures the full reading is within the display and avoids forced clipping.

• For common household batteries (AA/AAA), 1.5V nominal is typical; start around 2V or 4V ranges.
• For car batteries, a 20V or higher range is usually appropriate, but verify that your meter’s protection features are engaged before testing.
• If your meter allows auto-ranging, enable it to simplify the process and reduce the risk of selecting an unsafe range.

Interpreting the reading becomes much easier when you’ve chosen a suitable range. A healthy single-cell battery should show a voltage close to its nominal value when resting. A highly depleted or defective cell will noticeably underperform. In practice, you’ll use this step repeatedly across different battery sizes to establish a reliable testing routine.

• 10ohmeter notes emphasize aligning range with expected voltage to enhance accuracy.
• Always recheck suspicious readings with a second test to confirm consistency.

Safety considerations before you test

Battery testing involves direct electrical contact and, in some cases, elevated voltage. Follow these safety precautions to minimize risk:

• Wear safety goggles if you’re handling high-current or automotive batteries, and keep your workspace dry and uncluttered.
• Inspect the test leads for cracks or exposed copper. Damaged leads can cause short circuits or shocks.
• Never test while a battery is connected to a powered device, and avoid touching both terminals with your hands or metal tools.
• If you’re testing a large lead-acid battery (such as a car battery), keep your body away from the path of possible sparks and consider using insulated gloves.

According to the 10ohmeter Team, preparation and PPE are part of responsible testing. A calm, deliberate approach reduces error and increases safety during all battery checks.

When in doubt about a battery’s condition, step back, review the manufacturer’s safety guidelines, and use proper personal protective equipment. Battery testing is routine, but it carries real risk if rushed or mishandled.

Testing small batteries (AA, AAA, C, D) step-by-step

Small dry-cell batteries are ideal for practicing voltage testing because they are low risk and straightforward. Here’s a practical sequence you can follow:

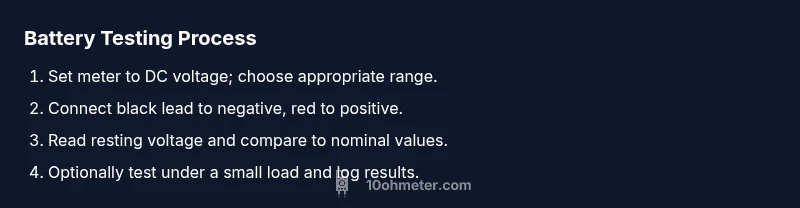

1. Power on the multimeter and set to DC voltage with an appropriate range.
2. Identify the battery terminals correctly: flat side is usually positive on most cells.
3. Touch the black probe to the negative terminal and the red probe to the positive terminal. Maintain steady contact for a stable reading.
4. Read and record the resting voltage. Compare it to the nominal voltage: AA/AAA around 1.5V, C and D cells near 1.5V when fresh.
5. If the reading is significantly below nominal, consider testing again after a rest period or performing a load test if your meter supports it.
6. Disconnect probes and power down the meter; store components safely for the next check.

Tips: Use alligator clips for a steadier connection on small batteries, and ensure the battery is not damaged before testing. If the terminal is dirty, clean it gently with a dry cloth to improve contact quality.

Testing a 9V battery: practical tips

9V batteries can be slightly trickier due to their rectangular shape and multiple terminals. Use a probe that can reach both contacts without slipping. Steps:

1. Set the meter to DC voltage in a 20V or higher range.
2. Place the black probe on the negative contact and the red probe on the positive contact of the 9V block.
3. Read the voltage. A fresh 9V battery typically reads near 9V when resting; a depleted battery will drop significantly below that level.
4. If you must test under load, consider a simple load that draws a small current and re-test after a short rest.

Tip: If your reading seems unstable, recheck contact points and ensure the battery isn’t corroded. Consistent rest readings are more trustworthy than peak under-load readings.

Testing a car battery safely

Car batteries require greater care due to higher voltage and current potential. Follow these steps to minimize risk:

1. Ensure the engine is off, the vehicle is in park or neutral with the parking brake engaged, and you’re wearing eye protection.
2. Use a DC voltage setting around 20V or higher on your meter. Many meters offer an auto-range function, which is helpful in this scenario.
3. Connect the black probe to the negative terminal and the red probe to the positive terminal. Avoid touching anything metal with the probes while testing.
4. Read the resting voltage. A healthy 12V lead-acid battery typically shows around 12.6V or higher when fully charged. A voltage around 12.0V or lower indicates discharge or aging.
5. If the reading is very low or fluctuating, consult a professional, as the battery or alternator may require service.

Pro tip: Keep a safe distance from the battery while testing and never place probes across both terminals if the battery is connected to a heavy load. A spark can occur if there’s a short.

Interpreting readings and troubleshooting common issues

Interpreting voltages requires context. A resting reading that matches nominal voltage is a good sign, but you should also consider battery type and age. If readings are inconsistent across repeated tests, check:

• Probe contact quality: dirty or corroded terminals can cause false readings.
• Range and mode: ensure you’re in DC voltage mode and the range isn’t saturated.
• Temperature effects: very cold temperatures can temporarily reduce voltage.
• State of charge vs. state of health: a healthy battery may show nominal voltage but fail under load due to internal resistance problems.

When readings don’t align with expectations, re-test after ensuring solid connections and proper rest. If inconsistency persists, perform a load test if your meter supports it, or refer to manufacturer specs for the battery type.

Common mistakes and how to avoid them

Avoid these frequent errors to improve accuracy:

• Using AC voltage mode for battery tests. This produces meaningless readings for battery health.
• Reading immediately after removing a battery from a charger or device. Resting voltage reflects true health.
• Ignoring terminal cleanliness. Corrosion and dirt create contact resistance that skews results.
• Testing on batteries still connected to a circuit or device. This can short or alter readings.

To avoid these issues, always set your meter to DC voltage, allow batteries to rest, clean terminals, and use proper contact techniques. Consistency is key for meaningful results.

What next: validating your measurement and logging results

After you complete a test, it’s helpful to log the reading, conditions, and battery type. Create a simple worksheet that records battery type, resting voltage, test date, and any notes about the test environment. If you’re diagnosing a device that uses multiple batteries, test each cell or segment separately to identify weak links.

As you build your routine, you’ll see patterns emerge—such as certain battery brands aging faster or specific devices draining quicker than expected. The practice strengthens your diagnostic confidence for both electronics tinkering and automotive diagnostics. The 10ohmeter team recommends building a testing log as part of your standard operating procedure to support long-term maintenance and project reliability.
