Which Multimeter Setting to Test Battery: A Complete Guide
Learn which multimeter setting to test battery, how to read DC voltage, interpret results, and perform safe under-load checks. A practical, step-by-step guide for DIY enthusiasts and technicians.
DC voltage testing is the go-to setting for batteries. Connect black to the negative terminal, red to the positive, and read the voltage with the circuit at rest. A healthy 12V car battery is about 12.6V; lower readings indicate discharge or potential health issues, while a load test can reveal deeper capacity concerns.
Why battery testing matters with a multimeter
A reliable battery is the heart of every project, from car starters to microcontroller setups. Knowing which multimeter setting to test battery is essential to accurately assess health, avoid false conclusions, and prevent unnecessary replacements. According to 10ohmeter, starting with a voltage check gives you a clear snapshot of state of charge and helps decide whether you should charge, load-test, or replace. In practice, most problems show up as a voltage sag under load or a rested voltage that's inconsistent with the stated capacity. This guide walks you through the process of selecting the right setting and interpreting the numbers. You’ll learn to test common chemistries—lead-acid, Li-ion, NiMH—and to adapt your approach to automotive applications and electronics batteries alike. The steps below assume a basic handheld multimeter and standard test leads; more advanced meters with auto-ranging make the job easier, but the core principle remains the same: voltage is the baseline, and the rest is about context.
Safety first: precautions when testing batteries
Battery testing can involve exposed terminals, heavy currents, and venting gases in some chemistries. Safety isn’t optional—it's essential. Start with a clean, dry work surface and wear eye protection. If you’re testing a vehicle battery, ensure the engine is off and the battery is accessible without engine heat or moving parts nearby. Handle terminals and connectors with dry hands and avoid metal jewelry that could bridge contacts. If you notice a strong sulfur smell, hissing sounds, or signs of swelling, stop immediately and ventilate the area. The goal is to keep you safe while you collect meaningful data. 10ohmeter emphasizes the importance of conservative testing—do not rush, especially when dealing with high-current automotive batteries or large packs.
Understanding multimeter settings: DC voltage as the baseline
When you ask which multimeter setting to test battery, the baseline is almost always DC voltage (V with a straight line). This setting measures the chemical potential between the positive and negative terminals. For most hobbyist and automotive tasks, you’ll use a range that comfortably covers your expected voltage (for a 12V system, commonly 20V or auto-range if available). Learn to distinguish DC voltage from AC, resistance, and current measurements. DC voltage reflects the battery’s state of charge under no load, while other tests reveal capacity, health, and the presence of internal losses. A good multimeter will stabilize quickly and show a steady reading once the probes contact clean terminals. If the reading is wildly erratic, check connections, contact quality, and probe integrity before drawing conclusions.
How to test a typical 12V lead-acid car battery
Lead-acid car batteries are the most familiar test target for DIYers. Begin by turning off all loads and ensuring the battery terminals are clean. Set your meter to a DC voltage range that covers at least 20V. Place the black probe on the negative terminal and the red probe on the positive. Read the resting voltage; a fully charged battery typically shows around 12.6V to 12.8V. If the voltage sits near 12.0V or lower, the battery is discharged and may need charging. For a more informative test, perform a controlled load test: start the engine or apply a significant electrical load and observe how quickly the voltage drops. If it falls below a critical threshold or recovers slowly, the battery may be weak or failing.
Testing other battery chemistries: Li-ion and sealed lead-acid
Lithium-ion and sealed lead-acid batteries require careful handling because their voltage behavior can differ from traditional lead-acid. Li-ion cells often show higher resting voltages, but capacity loss during discharge can be subtler, so you should compare resting voltage to the cell’s rated nominal voltage and consider a load test when practical. Always verify safety data for high-energy packs and avoid shorting terminals. For sealed or maintenance-free batteries, ensure vents remain unobstructed and avoid aggressive disassembly. The same DC voltage principle applies: a healthy pack should maintain a stable voltage under no-load conditions and demonstrate reasonable voltage under load depending on its size and chemistry.
Interpreting readings: no-load vs under-load
A resting (no-load) voltage can hide surface charge that skews perceived health. Under-load testing, using a controlled draw, reveals true capacity and internal resistance. If a battery reads healthy voltage at rest but collapses quickly under load, it may be near end of life or have a high internal resistance. When testing, document both readings and compare them to the manufacturer’s specifications. If you don’t have exact specs, keep in mind that larger packs require higher stable voltages and that deviation from typical ranges warrants a follow-up test or professional evaluation.
Troubleshooting common issues with a multimeter
Inconsistent readings often come from poor contact, corroded terminals, or damaged test leads. Start by cleaning terminals and inspecting probes for damage. Loose connections produce voltage drops that mimic bad batteries. Always test with the device powered down and the leads firmly seated. If readings remain inconsistent, test with a different set of leads and a known-good reference, such as a fresh battery, to confirm meter accuracy. For automotive tests, ensure the meter’s ground is properly connected to a solid chassis ground to avoid parasitic paths that can distort results.
Practical tips for battery maintenance in electronics projects
Batteries used in hobby electronics benefit from regular, simple checks. Create a small testing routine that includes resting voltage measurements monthly and after heavy use or charging cycles. Keep contacts clean and dry, store batteries in a cool, dry place, and avoid exposing them to extreme temperatures. Document readings and charging cycles so you can track aging trends over time. A high-quality digital multimeter with good probes makes these checks faster and more reliable, reducing the risk of misinterpretation.
Common mistakes to avoid
Avoid assuming a single reading tells the full story. Don’t test a battery while it’s actively charging, as readings will be misleading. Don’t skip the no-load test; it helps identify surface charge from actual capacity. Never bridge the terminals with metal tools or jewelry. Finally, don’t rely on a single measurement to decide replacement—use a combination of resting voltage, voltage under load, and the battery’s age and service history.
Next steps: replacement and verification
If readings consistently fall outside expected ranges or the battery fails under load, plan replacement and re-test with the new unit to confirm performance. For automotive batteries, consider a professional load test to verify capacity and cold-cranking amps (CCA). When replacing, recycle old batteries responsibly and document the new battery’s serial and warranty information. A proper handover from testing to replacement saves time and reduces the risk of repeated failures.
Tools & Materials
- Digital multimeter capable of DC voltage measurement(Auto-ranging is convenient; ensure it can read at least 20V or higher)
- Test leads with alligator clips(Insulated, properly rated for your battery’s voltage)
- Personal protective equipment (safety glasses)(Protect eyes from any venting or sparks)
- Disposable wipe cloth or dielectric cleaner(Use to clean corrosion off terminals for reliable contact)
- Battery terminal brush or cloth(Useful for making solid contact, especially on corroded posts)
- Optional load tester or known-good load (resistor or device)(Helpful for under-load voltage checks on larger batteries)

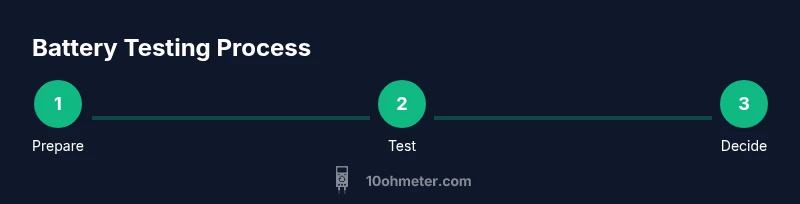

Steps
Estimated time: Total time: 30-60 minutes
- 1
Prepare workspace and safety checks
Clear the area, wear PPE, and ensure the battery is accessible. If testing a car battery, verify the engine is off and the vehicle is in park with the parking brake engaged. Inspect the battery for signs of damage, leaks, or swelling before touching terminals.
Tip: Keep metal jewelry and tools away from the terminals to prevent short circuits. - 2
Power down and isolate the battery
Disconnect any loads connected to the battery and remove the device from the circuit if practical. For automotive testing, disconnect the ground strap only if you know how to do so safely; otherwise, proceed with caution and follow vehicle-specific safety guidelines.
Tip: Isolating loads reduces stray currents that can skew readings. - 3
Select the correct DC voltage range
Turn the meter on and choose a DC voltage range that covers the expected battery voltage. If your meter has auto-ranging, enable it. If not, select a high enough range (e.g., 20V) to avoid saturating the display.
Tip: Auto-range meters minimize user error in range selection. - 4
Connect the probes correctly
Attach the black probe to the battery’s negative terminal and the red probe to the positive terminal. Ensure a firm, clean contact and avoid touching the metal tips with your fingers.
Tip: Clips help maintain stable contact while reading; avoid shorting adjacent terminals. - 5
Take a resting (no-load) voltage reading
With the circuit at rest, read the DC voltage. Record the value and confirm the meter shows a steady reading without fluctuations. This resting voltage reflects the battery’s surface charge and stored energy.
Tip: If the reading bounces, check contact quality and allow the battery to settle. - 6
Apply a controlled load to test under-load
If safe and appropriate, apply a controlled load and observe how the voltage behaves. Compare the under-load voltage to the resting value to assess internal resistance and capacity.
Tip: Use a known load or the device that normally drains the battery, but avoid short circuits. - 7
Take the under-load reading
Record the voltage under load after a short stabilization period. A healthy battery should hold voltage above critical thresholds for its size; a rapid drop suggests weakness or sulfation in lead-acid types.
Tip: Allow the battery to recover briefly after removing the load for a second reading. - 8
Compare readings to specs and interpret
Refer to manufacturer guidance or a trusted reference to interpret resting and under-load voltages. Note that different chemistries have different healthy ranges; use context and age as part of the decision.
Tip: Remember that newer batteries may show surface charge that masks underlying health. - 9
Document results and plan next steps
Log both readings, date, battery type, and any observed symptoms. Decide whether to charge, re-test later, replace, or seek professional evaluation.
Tip: Documentation makes it easier to track aging and predict failures. - 10
Wrap up and safely store equipment
Power down the multimeter, unplug leads, and reassemble the testing area. Store tools in a dry, cool place away from direct sunlight and heat sources.
Tip: Keep fresh batteries in the meter’s battery compartment to ensure readiness.
Your Questions Answered
What setting should I use to test a battery with a multimeter?
Use the DC voltage setting to measure the battery’s resting voltage, then perform a controlled under-load test if needed. This provides a baseline and highlights capacity issues.
Use the DC voltage setting to measure resting voltage, then consider a controlled under-load test if needed.
Can I test a battery without disconnecting it from a circuit?
You can test while connected, but a proper reading is more reliable with the load isolated. If you must test in-circuit, ensure there are no shorts and the device isn’t drawing significant current.
Reading is more reliable when the load is isolated, but you can test in-circuit if you avoid shorts and heavy draw.
What voltage indicates a healthy 12V lead-acid battery?
A fully charged 12V lead-acid battery typically shows around 12.6V to 12.8V at rest. If it sits near 12.0V or lower, it may be discharged or aging.
Healthy resting voltage for a 12V lead-acid battery is about 12.6 to 12.8 volts; around 12.0 volts or lower can mean discharge or aging.
Is there a need to test current in a battery with a multimeter?
Finely measuring current typically requires a dedicated setup and shunt; most handheld multimeters test voltage, resistance, and sometimes current with proper method. Voltage tests are sufficient for quick health checks.
Most handheld meters focus on voltage; current testing needs a proper setup, so voltage checks are usually enough for quick health checks.
What causes readings to bounce during measurement?
Contact issues, dirty terminals, or a fluctuating load can cause bouncing readings. Clean contacts, stable probes, and waiting for the measurement to settle typically resolves this.
Bouncing readings usually come from contact problems or unstable loads; clean, reseat probes and wait for a stable reading.
When should I replace a battery based on multimeter results?
If resting voltage is consistently low and under-load voltage drops quickly, consider replacement. Age and usage history also factor into the decision.
If resting voltage stays low and under-load voltage drops fast, replacement is wise, especially with old age or heavy use.
Watch Video
Key Takeaways
- Test with DC voltage as the baseline.
- Resting and under-load readings reveal health.
- Use proper safety gear and clean contacts.
- Document results to track aging and plan replacements.
