What setting on multimeter for 12v: A practical guide

What setting to use for 12V measurements

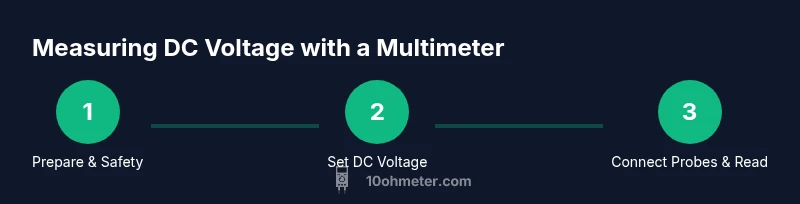

If you’re wondering what setting on multimeter for 12v, the answer is to use DC voltage mode and a range that covers at least the expected voltage. Most hobbyist and automotive applications run with DC voltage, not AC. Set the dial to DC voltage (often marked as V with a straight line). If you have auto-range, turn it on; otherwise choose a range above 12V, such as 20V, to ensure a stable reading. When you connect the probes, place the black lead on the common/ground reference and the red lead on the test point. Read the display to capture the voltage at that node. If the reading is wildly off, recheck connections and confirm power state.

In practical terms, you are aligning the measurement setting with the nature of the source—DC and within a safe voltage band. This helps avoid overload on the display and reduces the risk of damage to the meter or the circuit under test. Remember: the test point and ground reference define the voltage you’re reading, so consistent ground points are crucial for repeatable results.

DC voltage ranges and auto-ranging explained

DC voltage ranges on multimeters come in two flavors: manual ranges and auto-range. When measuring roughly 12V, you typically pick a range that is higher than 12V to prevent clipping. Manual-range meters often offer 20V, 200V, etc.; the 20V range is common for 12V automotive work. Auto-range meters handle the range internally, so you just set the mode to DC voltage and let the meter select the best range. Auto-range reduces the chance of choosing an inappropriate scale and makes beginners more comfortable. If you’re using an older meter, start with a higher range and move down only after confirming a stable, full-scale reading. Also verify polarity: a negative sign appears if you connect the leads backward, which helps you diagnose wiring mistakes quickly.

Safety-first: precautions when measuring 12V

Even though 12V circuits are considered low voltage, improper technique can damage the meter or the circuit and may cause a spark if a live contact is shorted. Always power down the circuit when possible and discharge capacitors before probing high-energy sources. Wear safety glasses in automotive environments. Use the COM (black) probe in the common jack and the red probe in the V/Ω jack. If you’re testing live automotive circuits, keep your hands stable and avoid touching metal parts of the probes. Never switch ranges with the leads connected to a live circuit on many meters. Allow the meter to stabilize before recording a value.

Measuring 12V: automotive vs lab power supply

In automotive systems, the nominal voltage sits around 12V, with charging voltage typically reaching about 13.8–14.4V when the engine is running. In a lab power supply, you’ll often have a clean, adjustable DC source and precise voltage sharing. For both scenarios, ensure you have a solid ground reference. On a car battery, place the black probe on a chassis ground and the red on the battery terminal. On a bench supply, use a proper test fixture and a known ground reference. If readings drift with engine RPM, consider alternator regulation as a factor; if readings are stuck, recheck wiring and the probe connections. Consistent ground points are essential for reliable, repeatable measurements.

Common mistakes and how to avoid them

Common mistakes include failing to set DC mode, measuring AC voltage by mistake, selecting the wrong range, using the wrong ports, or probing with power on unsafe circuits. Avoid these by double-checking the dial setting before touching any test points, verifying the leads are in the correct jacks, and keeping one hand away when probing live circuits to reduce the risk of a short. After inserting the leads, take a moment to ensure the display has stabilized before recording the reading. Finally, practice on a known reference source to build confidence and accuracy.
