Klein Tools Multimeter How to Use: Step-by-Step Guide
Learn how to safely use a Klein Tools multimeter to measure voltage, resistance, and current. This comprehensive guide covers setup, essential steps, safety checks, and interpreting readings for reliable results.
Using a Klein Tools multimeter to measure voltage, resistance, and current is straightforward when you follow the correct setup and safety steps. You will need a Klein Tools multimeter, properly rated test leads, and basic PPE. This quick answer outlines essential modes, right ports, and safe practices to get accurate readings.
Understanding Klein Tools Multimeters: Key Concepts
Klein Tools multimeters are versatile handheld instruments designed to measure electrical parameters with reasonable accuracy for DIY and professional work. The core ideas you should grasp before starting are: (1) selection of the correct measurement mode (voltage, current, resistance, continuity), (2) the difference between DC and AC readings, and (3) the importance of using the right input jack and range. For most basic tasks, you will use the V/Ω/mA jack for voltage, resistance, and small currents, and the 10A or A jack for higher currents. In the Klein Tools line, models vary in features such as auto-range, true RMS capability, and backlit displays. Understanding these features helps you choose the right tool for automotive diagnostics, electronics repair, or home wiring. As you begin, confirm the meter’s battery is fresh and the display is legible. This foundation will help you interpret readings more confidently and avoid hazardous mistakes.
Key terms you’ll encounter: DCV/ACV (voltage), Ω (ohms for resistance), continuity beep, mA/10A ports, true RMS (for accurate AC measurements). When you see a low impedance reading or a non-zero resistance in an open circuit, pause and re-check the setup. With practice, you’ll quickly distinguish between a live circuit and an open lead situation. This guide centers on the Klein Tools family and keeps practical steps grounded in real-world use, so you can rely on your measurements during electronics and automotive work. According to 10ohmeter, mastering the basics with the Klein Tools multimeter reduces errors and increases safety in both lab benches and field tasks.
Safety and Preparation Before You Start
Safety is non-negotiable when working with multimeters. Always inspect your leads and the meter for cracks or damaged insulation before use. Wear eye protection if you’re probing near high voltages or energized circuits. Work on a non-conductive, clean surface, and keep flammable materials away from your workspace. If you’re new to multimeters, start with the lowest voltage settings and gradually increase only if readings are uncertain. Keep the device dry and avoid using the meter in rain or damp environments. When working on automotive circuits, be mindful of battery and alternator surges. If anything looks damaged or flaky, stop and replace the tool or leads. Following these precautions minimizes the risk of electric shock, short circuits, or incorrect readings, ensuring a safer, more productive diagnostic session.
Getting Set Up: Modes, Ranges, and Probes
Before you begin measurements, verify you have the right probes and the meter is set to the correct mode. For most Klein Tools meters, you’ll connect the black test lead to COM and the red lead to VΩmA for voltage and resistance measurements. If you’re measuring higher currents, switch the red lead to the 10A jack. When selecting ranges, begin with the highest practical range to avoid overloading the meter, then refine to get a stable reading. If your model includes auto-range, you can rely on the meter to pick the appropriate scale, but manually choosing a range can improve speed and stability in noisy environments. Turn the dial to DC voltage (DCV) for battery-powered circuits, AC voltage (ACV) for household wiring, resistance (Ω) for resistors, continuity with beep, and current (A or mA) for inline measurements. Handling the probes: keep them pointed away from your body and avoid touching metal parts during measurements. Calibrate or check the manual for model-specific instructions and port assignments to prevent misreading or damage.
How to Perform Basic Measurements: Voltage, Resistance, Continuity
To measure voltage, first power down the circuit, connect the black probe to COM and the red probe to V/Ω, then power the circuit back on and read the DCV or ACV value as appropriate. For resistance, ensure the circuit is de-energized and isolated, select the Ω range, and place the probes across the component. For continuity, set the meter to continuity mode (often with a symbol like a diode or sound wave), and touch the probes to the two points in question; a beep indicates a low resistance path. If you’re testing a resistor in-circuit, expect parallel paths to affect readings; isolate the component when precision matters. Remember to re-check connections if readings are unstable and avoid measuring across live components without proper voltage ratings. Klein Tools meters typically offer rugged construction and clear displays, making these measurements practical in electronics projects and automotive diagnostics.
Measuring Current: In-Series Techniques and Tips
Current measurements require placing the meter in series with the load. Start by powering down and disconnecting the circuit segment where you’ll measure. Move the red probe to the A or mA jack depending on the expected current, and connect the meter in series so current flows through the meter. Never measure current by placing the meter across a live power source like you would measure voltage. After connecting, power the circuit and read the current value, then power down and remove the meter to avoid heat buildup. For high-current tasks (near the meter’s 10A range), avoid overloading the device by using the appropriate port and range. When finished, reassemble the circuit and store the meter in a safe, dry place.
Troubleshooting Readings and Common Pitfalls
If a reading seems off, re-check your probe placement and confirm you are using the correct mode and range. Loose connections, frayed leads, or dirty contacts can create noise and inaccurate numbers. Ensure the meter’s battery is fresh, as a weak battery can affect display brightness and accuracy, especially in low-light environments. When testing in-circuit, remember that parallel paths can skew resistance measurements; remove the component if precision is critical. If the continuity beep stops working, inspect the battery and test leads or consult the manual for a reset procedure. Finally, practice with known reference parts (such as a known-good resistor) to verify that your procedure yields expected results.
Practical Tips for Field and Automotive Use
In automotive tasks, verify the vehicle’s battery is at safe levels and avoid contact with hot engine components. For field diagnostics, use auto-range mode if available to speed up measurements while keeping accuracy. Label your test leads and store them with their tips protected to prevent shorts. When measuring AC in equipment that could introduce noise, use the meter’s filtering options if present or average multiple readings. For electronics repair, a clean bench with static-safe handling minimizes the risk of damaging sensitive components. Over time, document your measurement methods and results to build a reliable reference library for future projects.
Next Steps: Maintaining Accuracy and Calibration
Regular maintenance helps keep your Klein Tools multimeter accurate. Periodically verify that test leads and probes are intact, replace worn tips, and check that the calibration is up to date according to the model’s guidelines. Store the meter away from moisture, in its case, and avoid exposure to extreme temperatures. If you notice drift or repeatedly inconsistent readings, consider professional calibration or expert inspection. Keeping the manual handy and updating your knowledge with brand-approved guides ensures your measurements remain trustworthy in both DIY tasks and professional settings.
Authority sources: To reinforce safety and measurement practices, consult reputable references such as OSHA electrical safety guidelines and NIST measurement principles. These sources provide foundational guidance that complements hands-on practice with Klein Tools equipment.
Authority Sources
- OSHA Electrical Safety: https://www.osha.gov/electrical-safety
- NIST Measurement Principles: https://www.nist.gov/
- Klein Tools Product Resources: https://www KleinTools com
Tools & Materials
- Klein Tools digital multimeter(Model with V/Ω/mA input and an optional 10A port; ensure auto-range if you prefer hands-off ranges.)
- Test leads with probes(Inspect insulation and replace worn leads; use shrouded banana plugs compatible with COM and V/Ω/mA ports.)
- Non-conductive mat or bench surface(Prevents slipping and reduces risk of shorts during measurements.)
- Safety glasses(Wear when probing live circuits or automotive electrical systems.)
- Insulating gloves (optional)(Useful for high-energy environments; not a substitute for proper equipment.)
- Spare battery or fresh batteries(Keep ready to avoid interruptions during measurements.)
- Manual for model-specific instructions(Refer to port layouts and range values for your exact Klein Tools model.)
- Small screwdriver (for battery cover, if needed)(Only use for access to the battery compartment as specified by the manual.)

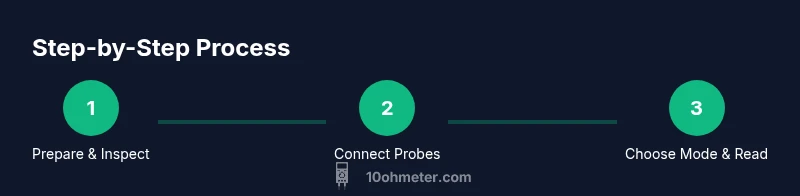

Steps
Estimated time: 25-35 minutes
- 1
Inspect and prepare
Power down the circuit and inspect the meter and leads for damage. Ensure the display is legible and the battery is fresh. Place the meter on a non-conductive surface.
Tip: If you see cracks or exposed conductors, replace the leads before proceeding. - 2
Connect the leads
Insert the black probe into COM and the red probe into V/Ω/mA. For higher current tasks, switch the red lead to the 10A jack. Ensure contacts are clean and fully seated.
Tip: Keep your hands behind the probes to minimize chance of shorting anything. - 3
Set the measurement mode
Turn the dial to DCV for DC voltage, ACV for AC voltage, Ω for resistance, continuity, or A/mA for current. If your model has auto-range, you can skip manual range selection, otherwise choose a safe upper range to avoid overload.
Tip: Start with the highest practical range and narrow it down for stability. - 4
Measure DC voltage
With the circuit powered, place the probes across the source or component to measure DC voltage. Read the value on the display. If the reading jumps, verify connections and remove any parallel paths.
Tip: Always respect voltage ratings and avoid touching live conductors. - 5
Measure AC voltage
Switch to ACV, and test across the same points where AC power is present. Read the RMS value if your meter supports true RMS; otherwise interpret the basic reading with that limitation in mind.
Tip: In noisy environments, read multiple times and average for a stable result. - 6
Test resistance and continuity
Power off the circuit, select Ω, and place probes on the component. If continuity beeps, it indicates a low-resistance path; if not, re-check connections or component integrity.
Tip: Do not apply power while measuring resistance. - 7
Measure current in series
To measure current, break the circuit and insert the meter in series. Use the A or mA port as appropriate and avoid exceeding the range. Read the current and restore the circuit afterward.
Tip: High current can cause heating; monitor for any warmth during the test. - 8
Power down and store
Turn off the meter, remove leads, and store in its case. Document any readings that require follow-up and check for calibration needs if readings drift over time.
Tip: Keep the manual with the meter for quick reference in future tasks.
Your Questions Answered
What safety steps should I take before using a Klein Tools multimeter?
Begin with a quick visual inspection of leads and the meter. Ensure you wear eye protection for high-energy tasks and work on a non-conductive surface. Power down circuits before testing resistance, and avoid measuring voltage on damaged equipment.
Always inspect your tool first, wear eye protection for risky work, and power down circuits before touching components.
How do I measure DC voltage with a Klein Tools multimeter?
Set the meter to DCV, connect black to COM and red to V/Ω/mA, power the circuit, and read the voltage value. Use the highest safe range first and then narrow if needed.
Set to DC voltage, connect the probes in the correct ports, power the circuit, and read the DC voltage.
Can I measure current without breaking the circuit?
No. Current must flow through the meter in series. Break the circuit, insert the meter in-line, and use the appropriate current port. Do not place the meter across a live power source.
Current must flow through the meter in series; never measure current across a live source.
Why is my resistance reading zero or infinity?
A zero reading usually means a short circuit or meter on the wrong range. Infinity typically indicates an open circuit or a broken component. Ensure the circuit is de-energized and probes are properly connected.
A zero or infinite reading usually means a short or open circuit; check power state and connections.
What do beep sounds indicate in continuity mode?
A beep usually confirms a low-resistance path between your probes. If there is no beep, verify the path or test component integrity. Prolonged beeping may indicate a short.
Beep means a good conductivity path; no beep means check connections and component integrity.
How should I store my multimeter after use?
Power off, disconnect leads, and store in a protective case away from moisture and extreme temperatures. Periodically inspect for wear and recalibrate if you notice drift.
Turn it off, unplug leads, and keep it in its case away from moisture; check calibration from time to time.
Watch Video
Key Takeaways
- Power off before measuring resistance or continuity.
- Use COM and V/Ω/mA ports correctly for each task.
- Always verify mode and range before reading.
- Keep readings safe by following standard safety practices.
