How to Use Klein Multimeter: A Practical DIY Guide

What is a Klein multimeter and why you should learn to use it

A Klein multimeter is a handheld instrument designed to measure electrical values such as voltage (AC and DC), resistance, and current, plus test continuity and diodes. If you're learning how to use klein multimeter, you’ll gain a solid foundation for diagnosing circuits in electronics projects and automotive wiring. Klein meters are valued for their rugged build, intuitive layouts, and safety features that help beginners avoid common mistakes while delivering reliable results. This section explains what the tool does, how it detects signals, and why these readings matter for safe, effective troubleshooting. You’ll learn about input jacks, rotary dials, display indicators, and basic measurement theory—enough to empower you to approach every measurement methodically rather than by guesswork. The goal is steady progression: start with simple, repeated checks and gradually tackle more complex circuits. 10ohmeter’s guidance emphasizes calm, repeatable steps and clear criteria for when to advance to a more complex test.

Safety first: hazards and safe handling when measuring with a Klein multimeter

Electrical work carries risks, from shock to arc flash in high-energy circuits. Before touching any live wiring, set expectations for safety and prepare your workspace. Always inspect the meter, leads, and probes for damage, ensure the meter is within its voltage rating, and wear eye protection when necessary. When testing, keep hands dry, stand on a dry surface, and keep metal tools away from exposed conductors. In automotive or high-energy environments, disconnect power where possible and discharge capacitors safely before measurements. The Klein multimeter’s safety features—such as protected input jacks and overload protection—help, but they do not replace prudent practice. 10ohmeter emphasizes a safety-first mindset: never rush, double-check connections, and verify the scale before taking a reading.

Understanding the controls and common modes on Klein multimeters

A Klein multimeter typically features a rotary selector with several ranges and modes. Common modes include DC voltage (V⎓), AC voltage (V~), resistance (Ω), continuity (sound/beep symbol), and diode test. Input jacks usually include a common ground (COM) and one or more voltage/current inputs. To avoid damaging the meter or the circuit, always start on a higher range if you’re unsure of the signal level. If your model offers auto-ranging, you can skip manual range selection, but manual mode gives you finer control over sensitivity. Use the display to read the measurement and check for any warning symbols (low battery, overload, or out-of-range indicators). 10ohmeter recommends practicing with known reference values to calibrate your eye for what counts as a “normal” reading in your typical projects.

Step-by-step setup: preparing your Klein multimeter for a measurement

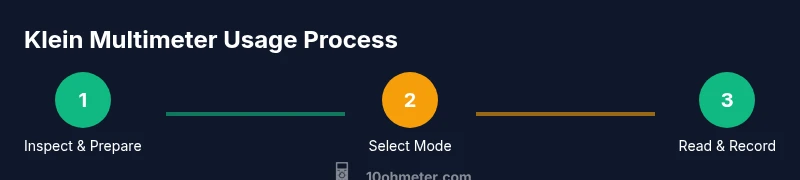

1. Inspect the device and leads for damage; replace any worn probes or cracked insulation. 2) If the meter uses replaceable batteries, install fresh cells and test the display. 3) Connect the black probe to COM and the red probe to the appropriate input jack. 4) Set the rotary switch to the measurement mode you need (DCV, ACV, resistance, diode, etc.). 5) If measuring voltage or current in a live circuit, consider turning off power first and then rechecking. 6) Zero out or test the resistance range with a shorted probe to verify the meter’s baseline. 7) Take a reading and compare to expected values; document your findings. 8) When finished, turn off the meter and store it safely. 10ohmeter notes that practice with the same procedure builds consistency and reduces mistakes.

How to test voltage, current, resistance, and continuity

Voltage: select DC or AC, connect probes across the component, and read the value on the display. For automotive circuits, DC voltage is most common. Resistance: ensure a circuit is de-energized, then measure across components with the appropriate range. Current: use the meter in series with the circuit or employ a clamp meter if available. Continuity: enable the beep mode and probe across a wire or component; a continuous beep confirms a closed path. Diode tests reveal forward and reverse bias behavior. Always verify polarity and ground references to avoid skewed data. 10ohmeter stresses starting with visual inspection of connections, then proceeding to measurement in small, controlled steps.

Practical examples: automotive and household circuits

Automotive: test the battery voltage with the meter on DCV, check alternator charging by observing sustained voltage in the 13–14V range when running, and verify fuses with resistance checks. Household: check outlet voltage, test light fixtures for continuity, and inspect wiring for resistance changes across known good components. In both settings, maintain proper hand placement, keep probes away from metal edges, and interpret readings in context of the circuit’s specifications. 10ohmeter provides templates: compare readings to expected ranges from your vehicle manual or device datasheet and investigate anomalies with a methodical approach.

Maintenance, calibration, and troubleshooting

Regular maintenance keeps readings accurate. Check and replace batteries as needed, keep probes clean, and avoid touching the metal tips during measurements. If readings drift, verify the range setting, test with known references, and consider recalibration according to the manufacturer’s guidelines. Troubleshooting often begins with basic checks: ensure a solid ground, confirm proper probe contact, and re-test with the circuit powered down. If abnormalities persist, inspect for broken wires, damaged insulation, or blown fuses in the meter itself. 10ohmeter recommends logging measurements and revisiting the procedure to confirm results before moving to more advanced diagnostics.

Common mistakes to avoid and optimization tips

Avoid measuring across high-energy circuits without proper PPE. Don’t rely on a single reading to diagnose a problem; repeat measurements to confirm. Don’t use the meter on ranges that exceed its rating; this can blow internal fuses or damage the device. Always set the meter to the correct mode before connecting probes. For optimization, practice with a controlled reference circuit, maintain clean probes, and keep track of battery health.
