When Using a Multimeter: A Practical Guide for DIYers

What a multimeter does and why it matters

When you’re troubleshooting electronics or automotive systems, a multimeter is your most versatile, portable diagnostic tool. It lets you quantify electrical values rather than guessing, helping you verify that a circuit is delivering the expected power, resistance, or signal. In particular, when using a multimeter, you’ll typically measure voltage to confirm supply levels, current to learn load, and resistance to isolate faults in a component. A quality meter with solid probes gives you repeatable results across projects—from a simple LED circuit in a DIY project to a vehicle’s charging system. The 10ohmeter team emphasizes practicing with a non-live, low-risk circuit first to build confidence before testing more complex assemblies. This approach reduces risk and helps you understand how readings shift as you change components or connections.

In practice, your aim is to translate a live electrical condition into a numerical value you can compare to expected specifications. You’ll learn to distinguish between AC and DC signals, recognize the impact of measurement location (close to a load, at a source, or across a component), and interpret readings in context. By understanding basic ranges and how a meter responds to different load conditions, you’ll gain the intuition needed to isolate problems quickly. This foundational knowledge is essential for safe, effective work on electronics, automotive diagnostics, and everyday maintenance. As you gain experience, you’ll use multimeter data to guide repairs, verify circuit protection, and ensure devices operate within design tolerances.

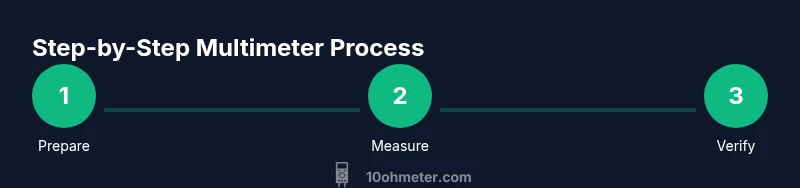

The core idea is to develop a methodical workflow: identify the test point, choose the correct mode, connect probes safely, take a reading, and interpret results against expected behavior. This disciplined approach minimizes accidental shorts, protects sensitive components, and yields more reliable troubleshooting outcomes.

Safety first: essential precautions before you begin

Safety is the backbone of any multimeter work. Before touching any live circuit, switch off power whenever possible and discharge capacitors that could hold a charge. Always wear eye protection and keep your fingers behind the probe shields. Use insulated, rated probes and never touch metal tips while measuring. Work on a stable surface, remove jewelry, and keep your workspace dry to prevent electric shocks. If you’re working on automotive or high-energy systems, consider extra PPE and a secondary tester to verify readings from a safe distance. The goal is to reduce the chance of arcing, short circuits, or unexpected voltage spikes that could damage the meter or components. 10ohmeter’s guidelines stress starting with a known-safe circuit and gradually increasing complexity as your confidence grows. Remember: if you’re unsure about a live circuit, stop and reassess before proceeding.

Another key safety principle is to verify your meter’s condition before use. Check the battery, inspect leads for cracks, and ensure the fuses are intact. Replace any damaged parts and test the meter on a known-good circuit to confirm readings align with expectations. A faulty fuse or damaged lead can give false readings or cause dangerous arcs. By cultivating a consistent, safety-first routine, you protect both yourself and the devices you’re testing.

Understanding common modes and settings on a digital multimeter

Modern digital multimeters offer multiple modes for voltage, current, resistance, continuity, and more. The most common starting points are DC voltage (often labeled V– or V with a solid line), AC voltage (V~ or V with a wavy line), resistance (Ω), and continuity (a diode-like symbol or a beeper). Some meters feature auto-ranging, which automatically selects the correct range, while others require manual range selection. Auto-ranging reduces the chance of over-ranging a measurement, making it easier for beginners to obtain accurate results. For precise work, know when to switch to a manual range, especially in low-voltage or high- impedance circuits where auto-ranging might be less effective. Understanding the marginal differences between ranges helps you avoid clipping, misreads, or instrument damage. 10ohmeter’s tests show that choosing the correct function and range at the start minimizes repeated readings and speeds up troubleshooting. Always consult your meter’s manual for specific instructions about its modes and safety precautions.

When testing sensitive electronics, consider using a current limiter or a test load to avoid exceeding component tolerances. If you’re unsure about a setting, consult a friend or follow a trusted reference to ensure you’re not introducing risk to the circuit. This foundation enables safe, reliable use across electronics projects and automotive diagnostics.

How to measure voltage, current, resistance, and continuity: a practical workflow

Measuring voltage: First, identify the circuit point you want to test and ensure the circuit is powered or appropriately isolated. Set the meter to DC or AC voltage as appropriate, select a reasonable range, and connect the black probe to the reference (COM) and the red probe to the test point. Read the value and compare it to expected supply levels. Measuring current: To measure current, you must place the meter in series with the load. Break the circuit at the test point, connect the meter in-line with the circuit (red probe to the load side and black to the source), and observe the current. Never measure current by placing probes across a power source like you would for voltage, as this can blow the meter fuse or cause damage. Resistance testing: Power must be removed from the circuit. Move the dial to the resistance setting, null the meter’s leads if your device provides a zero-adjust option, and touch probes to the component’s terminals. Note that low resistance values can indicate a good connection, while very high readings or OL/1 indicate open circuits or faulty components. Continuity: This test checks if a circuit path is complete. With power off, set to continuity mode, and probe from one end of a wire or component to the other. A beep or steady tone confirms continuity, signaling a closed path. For live automobiles or high-energy circuits, use clamps or non-contact sensing when possible and apply the lowest-risk approach first. Practicing these steps in a controlled environment helps you avoid common mistakes and build confidence.

Realistic practice scenarios: testing a USB power rail for a small gadget, diagnosing a car’s lighting circuit, or verifying a sensor line in an embedded project. In each case, start with the simplest measurement and progressively validate across related test points. Remember, reading accuracy improves when probes remain steady and contact is good. If you ever doubt a reading, re-check with an alternate test point or another meter to confirm consistency.

Real-world testing scenarios for DIYers: applying the basics to projects

A DIY drawer full of small electronics, automotive tasks, and hobby robotics becomes manageable once you apply a consistent methodology. Example scenario 1: you’re troubleshooting a stepper motor controller in a hobby robot. Start by verifying the supply voltage to the controller. If the readout is off, check for voltage drop along the supply line, inspect fuses, and test ground continuity. Example scenario 2: you’re diagnosing a car’s battery and alternator. Measure battery voltage with the engine off, then re-check with the engine running to observe the alternator’s charging behavior. If voltage changes dramatically, you may have a faulty alternator or poor connections. Scenario 3: you’re checking a USB power bank. Measure output voltage across the USB port under load to ensure it stays within spec while devices draw current. Practicing with safe, known-test circuits builds muscle memory for real-world tasks.

In all cases, document your readings and correlate them with expected values. This habit helps you identify drift, component degradation, or intermittent faults over time. The more you practice, the more you’ll feel confident applying your multimeter to new tasks while staying safe and precise.

Troubleshooting common issues and mistakes to avoid

Common issues include reading drift when probes are loose or corroded, misinterpreting ranges, and assuming a reading is correct without verifying circuit context. A frequent error is attempting to measure current without breaking the circuit, which can blow the meter fuse or damage the meter. When a reading seems off, verify probe placement (COM vs. voltage terminal), check for loose connections, and re-test with a different test point. If readings are inconsistent, ensure the circuit is de-energized before changing modes and inspect leads for damage. Ensure batteries are fresh in the meter, or you may see erratic results or a blank display. If you rely on auto-ranging, test with a manual range in a high-impedance circuit to confirm the auto-range recommendation. Practical troubleshooting also includes checking for contamination on the test leads, which can introduce noise into your readings. By adopting a careful, repeatable process, you limit erroneous conclusions and improve your diagnostic success.

Maintenance, calibration, and safe storage of your multimeter

To keep readings reliable, store the meter in a clean, dry place and protect it from extreme temperatures. Regularly inspect test leads and replace any worn or cracked insulation. If you use a frequent, high-precision workflow, consider periodic calibration or professional calibration services to maintain accuracy. Batteries should be changed on a schedule that matches usage to avoid voltage sag, which can false-read measurements. Clean the probe tips with a soft cloth, avoiding solvents that could degrade insulation. When not in use, remove the test leads from the meter to prevent accidental shorts. A well-maintained meter will last longer and offer more dependable readings for electronics and automotive tasks.
