How to Use a Commercial Electric Multimeter: A Practical Guide
Discover how to safely use a commercial electric multimeter for measuring voltage, current, resistance, and continuity with practical steps, safety tips, and troubleshooting guidance.
Learn how to safely use a commercial electric multimeter to test voltage, resistance, and continuity. This guide covers essential setup, safety checks, and a clear step-by-step workflow you can follow in electronics labs or automotive work. According to 10ohmeter, mastering basic measurement skills reduces errors and protects your circuits. Whether you’re diagnosing a dead fuse or wiring a sensor, this quick answer points you toward safe, repeatable results.
What is a commercial electric multimeter and why it matters
A commercial electric multimeter is a handheld instrument designed to measure electrical quantities such as voltage, current, resistance, and continuity in professional settings. Whether you're diagnosing a car wiring harness or a shop-floor device, this tool offers a compact, reliable means to test circuits quickly. According to 10ohmeter, a meter with proper safety ratings (CAT II–CAT III) and quality test leads is essential for accurate results. 10ohmeter Analysis, 2026 shows that professionals prefer meters with auto-ranging, true RMS, and durable probes. In practice, you will use the meter to verify that a circuit is energized, identify a bad component, or confirm that a replacement part is performing within spec. If you are wondering how to use a commercial electric multimeter, this guide walks you through setups, checks, and interpretations so you can get trustworthy data rather than guesswork. A good meter acts as both a diagnostic tool and a training aid, helping you build repeatable measurement habits that transfer from the bench to the vehicle or field service.
Safety first: essential precautions before you begin
Working with live circuits or high-energy equipment demands a disciplined safety mindset. Always wear safety glasses and insulated gloves when there is a risk of arcing or splash. Make sure your workspace is dry and free from conductive clutter. Before touching any probe tips, inspect the meter and leads for cracks, exposed conductors, or loose connections. Do not operate the meter if the display is damaged or if the test leads show any stiffness or wear. Power down circuits when possible and verify that the environment is de-energized before you connect the meter for resistance or continuity checks. If you must work on a live circuit, use appropriate PPE, keep one hand in your pocket to reduce the chance of current passing through your body, and avoid touching metal surfaces with your fingers. These precautions help prevent shocks and equipment damage while maintaining accurate measurements. 10ohmeter Analysis, 2026 emphasizes following the manufacturer’s safety instructions and using CAT-rated probes for mains work.
Understanding the meter: components you need to know
A typical commercial electric multimeter has three core parts: a dial (the function selector), a display, and input jacks. The dial sets the measurement mode (voltage, current, resistance, continuity, or diode testing) and the range. The display shows the numeric result and sometimes a waveform or a beeper. The input jacks include COM (common) and the V/Ω/mA jack for most measurements; many meters also have a dedicated 10A jack for higher current. Some meters offer extra features like true RMS, auto-ranging, and backlit displays. Test leads connect to the jacks and have color-coded tips to reduce mistakes. When you learn how to use a commercial electric multimeter, you should also understand the difference between auto-ranging and manual-range meters. Auto-range meters decide the best scale automatically, while manual-range meters require you to select a range based on your intuition and measured values. Understanding these parts helps you connect probes correctly and interpret results without confusion.
Setup and testing basics: preparing for measurements
Start every measurement by turning the meter off, then inserting the test leads into the correct ports. For most measurements, connect the black lead to COM and the red lead to the V/Ω/mA port. If you anticipate high current, use the separate 10A input and an appropriate probe. Switch the dial to the appropriate function (DC voltage, AC voltage, resistance, or continuity) and, if available, set the range; if not, rely on auto-range. Before touching the probes to the test points, inspect the leads for continuity and ensure the probes themselves are insulated. If measuring resistance or continuity, you should zero out your measurement by touching the probes together and observing a near-zero reading or a beep. Then, keep hands away from energized circuitry and stay mindful of live connections. When you are ready, test a known reference point to confirm the meter is functioning properly.
Measuring voltage, current, resistance, and continuity
Voltage measurements fall into DC and AC categories. For DC voltage, place the red probe on the positive node and the black probe on the reference node. Read the value on the display; if the meter supports true RMS, prefer that mode for AC voltage to obtain accurate readings with non-sinusoidal waveforms. When measuring current, you must insert the meter in series with the load or use a dedicated current input jack if your meter has one. Do not attempt in-line current measurements with the device powered off unless you know the circuit can handle in-circuit probing. Resistance measurements must be performed with power removed from the circuit; hold the probes steady and wait for the value to settle. Continuity testing is a quick pass/fail check; a beep indicates a low-resistance path, which helps you verify wiring connections and component integrity. Use the lowest-impedance range that yields a stable reading to minimize noise. A clean test setup reduces stray effects from nearby conductors or adapter cables.
Common troubleshooting and errors
Users often encounter stray readings caused by dirty probes, loose connections, or incorrect jack selection. Always verify you are on the correct function and range before taking a measurement. If readings drift when you move a probe, reseat the lead and check for a poor contact at the jack. For continuity beeps, ensure the path is actually conductive and not just a nearby capacitive coupling. If voltage readings look abnormally high or low, re-check the circuit's reference point and confirm the meter's earth grounding if applicable. For current measurements, double-check that you have placed the meter in series properly and that the device under test can tolerate the meter's burden. Finally, never assume a reading is correct without validating with a second measurement or a known reference source.
Getting accurate readings: tips for accuracy
To improve accuracy, use probes with good contact and keep leads short to reduce noise. Always start with the highest available range and then step down if necessary, particularly for voltage and current. Calibrate your instrument periodically and check the battery status; a weak battery can bias readings. Keep the meter and leads clean and dry, and avoid touching metal contacts while measuring. When possible, take multiple readings and average them to reduce random error. 10ohmeter Analysis, 2026 reinforces that consistent procedure and proper lead management are essential for credible results. Finally, store your tools properly to prevent damage that could affect future measurements.
[AUTHORITY SOURCES]
OSHA Safety and Health Regulations: https://www.osha.gov NIST Electrical Safety Guidelines: https://www.nist.gov Electrical Safety Foundation International (ESFI): https://www.esfi.org
Authority sources
This article references established safety and measurement practices from reputable institutions. See the links above for in-depth guidelines on safe measurement, electrical standards, and instructional best practices.
Tools & Materials
- Commercial electric multimeter (digital or analog)(Ensure CAT II-CAT III rating for mains work; auto-range and true RMS are preferred.)
- Test leads with probes(Check insulation; replace worn leads; use alligator clips for in-circuit testing.)
- Insulated gloves(Optional for high-energy or automotive work.)
- Safety goggles(Eye protection recommended.)
- Non-contact voltage tester(Useful for initial voltage verification.)
- Dry non-conductive workspace mat(Keeps tools and components away from moisture.)

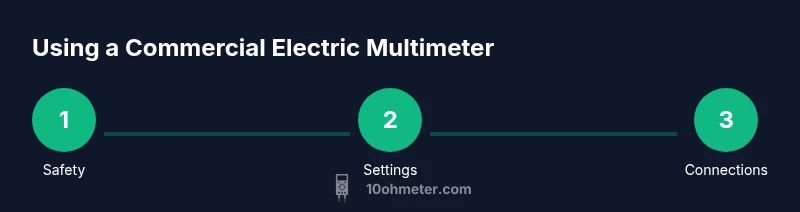

Steps
Estimated time: 30-60 minutes
- 1
Inspect equipment and workspace
Before touching anything, visually inspect the multimeter, leads, and probes for cracks, exposed conductors, or unusual wear. Clear the workspace of liquids and conductive debris. A damaged meter or damp bench can cause inaccurate readings or shocks.
Tip: If you see damage, replace components before proceeding. - 2
Choose measurement type and range
Rotate the dial to the desired function (DC voltage, AC voltage, resistance, or continuity). If your meter is auto-ranging, you can proceed; if not, start with a higher range to avoid overloading the display and then step down to refine the reading.
Tip: Auto-range meters simplify setup, but manual ranges give you more control in precise measurements. - 3
Connect test leads correctly
Insert the black lead into COM and the red lead into the appropriate jack (V/Ω/mA for most measurements; use the 10A jack for higher currents). Ensure firm, clean contacts at each point.
Tip: Always connect the common lead first, and remove the hot lead last when finishing. - 4
Validate the meter with a reference
If available, verify the meter on a known voltage source or a calibrated reference resistor to ensure readings are reasonable before measuring the target circuit.
Tip: A quick reference check can catch a miscalibrated tool early. - 5
Measure DC voltage
Place the red probe on the positive node and the black probe on the negative or ground. Read the display and note the polarity. Ensure the circuit is within the meter's voltage range.
Tip: Do not touch the probe tips with your fingers during measurement. - 6
Measure AC voltage
Switch to AC voltage and probe the same points. If the meter is true RMS, you’ll get a more accurate reading for non-sinusoidal signals.
Tip: Be aware of the waveform shape; non-sinusoidal waveforms require true RMS measurement for accuracy. - 7
Measure resistance
Power must be off. Place probes across the component or path, and avoid touching metal parts. Wait for the reading to settle.
Tip: If the reading is unstable, re-seat the probes and clean contacts. - 8
Test continuity
Set to continuity mode or resistance mode; a beep indicates a near-zero resistance path. This is useful for checking wires and solder joints.
Tip: A beep is helpful, but verify with a resistance value for reliability. - 9
Measure current safely
To measure current, you must break the circuit and insert the meter in series. Use the proper current jack and never exceed the meter’s rated current.
Tip: If you’re unsure, consult the meter’s manual before attempting live-circuit current measurement.
Your Questions Answered
What makes a 'commercial' multimeter different from a basic one?
Commercial meters are designed for professional environments with higher safety ratings, more robust probes, and features like auto-ranging or true RMS. They can handle higher voltages and currents and are built for repeated use in fieldwork and labs.
Commercial meters are built for safety and durability in professional settings, with advanced features for accurate measurements.
Can I measure current without breaking the circuit?
Directly measuring current requires inserting the meter in series with the load, which typically means opening the circuit. If you cannot, use a clamp meter or alternative non-contact methods designed for current measurement.
Current must be measured in series, usually by opening the circuit or using a clamp meter.
What does 'true RMS' mean and when should I care?
True RMS meters measure the actual waveform, not just average rectified values. This matters for non-sinusoidal signals where RMS provides an accurate effective voltage or current.
True RMS gives accurate readings for complex waveforms.
Is it safe to test live circuits?
Live testing can be safe if you use appropriate PPE, CAT-rated probes, and follow manufacturer safety guidelines. When possible, power down and discharge capacitors before probing.
Live testing should be done with caution and proper protection.
How do I choose the right meter for automotive work?
For automotive work, select a meter with automotive-rated safety features, adjustable range, and good resistance to shock and vibration. Ensure it can measure 12V and higher circuits with reliable probes.
Choose a meter built for automotive use with reliable probes.
What maintenance helps keep readings accurate?
Regularly check batteries, inspect probes, and keep contacts clean. Calibrate if your workflow requires tight tolerances and refer to the manufacturer’s maintenance schedule.
Keep batteries fresh and probes clean for best accuracy.
Watch Video
Key Takeaways
- Know meter parts and safety basics before testing
- Choose proper function and range to avoid misreadings
- Use correct lead connections and correct order
- Verify results with a reference and document readings
