How to Use a Certified Multimeter: Step-by-Step Guide
Learn how to safely and accurately use a certified multimeter for voltage, resistance, and continuity tests. This comprehensive guide from 10ohmeter covers prep, settings, measurements, and best practices for DIY electronics and automotive tasks.
By the end of this guide, you will be able to safely and accurately use a certified multimeter to measure voltage, resistance, and continuity. Start with a visual check of the meter and leads, choose the correct mode and range, connect probes properly, then verify readings against expected values. Always de-energize circuits before resistance tests.
Why a certified multimeter matters
A certified multimeter is built and calibrated to meet recognized accuracy standards, which matters for reliable diagnostics in electronics and automotive work. Certification provides documented traceability to calibration laboratories, helping you trust readings on critical projects. For DIY enthusiasts and technicians, using a certified meter reduces the risk of misdiagnosis and unsafe work, especially when troubleshooting wiring, sensors, and power circuits. In this guide from 10ohmeter, we explain how to verify certification, keep the tool in good condition, and apply correct procedures to common tasks. Remember: certification is not a one-time check; it’s part of ongoing quality control that protects your projects and, more importantly, your safety.
Safety first: essential precautions
When you work with electrical systems, safety should always come first. Power down circuits before measuring resistance or continuity, and unplug equipment before inspection. Wear eye protection in busy work areas and keep your hands dry and free of conductive jewelry. Use insulated test leads that are intact and rated for the measurement category (CAT) your work requires. Do not rely on a faulty meter or damaged leads; replace any worn components before continuing. If you must work on live systems, limit exposure and keep a safe distance from exposed conductors. A well-maintained, certified multimeter is your primary safety partner, not a substitute for caution.
Inspecting and preparing your meter and leads
Before starting any measurement, perform a quick inspection of the meter, fuses, and test leads. Check the display for clear readability, examine the leads for cracks or exposed wires, and verify the fuse isn’t blown by inspecting the fuse holder or using a built-in test function if available. Confirm the battery is sufficiently charged to avoid fluctuating readings. If your meter supports a calibration certificate, ensure it’s current and readily available for reference. Store the device in its case when not in use to prevent impact damage and dust buildup. A disciplined prep routine prevents common errors that skew measurements.
Understanding ratings, fuses, and battery checks
Certification and safety ratings (such as CAT safety categories) indicate what kinds of environments the meter can be used in. Always replace a blown fuse with the same type and rating specified by the manufacturer; never bypass a fuse, as this can cause dangerous faults. Check the battery level and replace batteries as needed to maintain consistent readings. If the meter has a manual range option, test it on a known reference source to confirm the internal circuitry is functioning correctly. Understanding ratings helps you select the right tool for automotive diagnostics or electronics repair without compromising safety.
Getting the right settings and leads for common measurements
For most tasks, you’ll need to orient the red probe to the V/Ω/mA jack and the black probe to COM. Select the correct measurement type: DC voltage (V— with a solid line), AC voltage (V~ with a wavy line), resistance (Ω), or continuity (often a diode symbol or continuity beep). Use the appropriate range: start high, then step down if the reading is not within range. When measuring current, you typically place the meter in series with the circuit and use the current-specific port (mA or A). If your meter lacks a clamp, you must open the circuit to measure current with accuracy, so plan your approach accordingly.
Step-by-step: measuring voltage (DC and AC)
Measuring voltage is a common task that tests power integrity. For DC voltage, place the red probe on the positive side and the black probe on the ground or reference point across the component or supply. Read the display and compare it to the expected value from the circuit diagram or datasheet. For AC voltage, ensure you’re on VAC with the appropriate safety margin and measure at the outlet, a sensor input, or a powered circuit. Keep the probes steady and avoid touching conductive parts during measurement to prevent stray readings or shocks. Always verify with a second method if the reading is unusual.
Step-by-step: measuring current
To measure current, you must insert the meter in series with the load. Break the circuit at the point where current is to be measured, connect the red lead to the appropriate current jack (often labeled mA or A) and the black lead to COM, then resume circuit operation and read the current. Do not exceed the meter’s current rating, and never measure current by placing the meter across a live supply (that would be a short). If your device has a clamp, you may measure current without interrupting the circuit by clamping around a conductor. Always work slowly and verify that the wiring remains correct after insertion.
Step-by-step: measuring resistance and continuity
Power must be removed from the circuit before measuring resistance. Select the resistance (Ω) mode and place the probes across the component or path you want to test. A steady reading indicates continuity; if you see OL or a very high value, there may be an open circuit. Use the beep function if available to quickly verify continuity in wire harnesses or PCB traces. For components, record the resistance and compare with expected values from the schematic or manufacturer data. If readings are wildly off, re-check connections and ensure the component is not thermally stressed or damaged.
Calibration, troubleshooting, and maintenance
Calibration verification is essential for ongoing accuracy. Periodically check readings against known reference values or a calibration sheet, especially after impact or exposure to high humidity or temperature changes. If readings drift, consider sending the meter for professional calibration or replacing worn parts like fuses, probes, or the battery. Regular maintenance includes cleaning, inspecting seals, and storing the meter in a protective case to minimize exposure to dust and moisture. If you encounter persistent anomalies, consult the manufacturer’s manual for model-specific guidance and safety notes.
Practical safety scenario in automotive work
When diagnosing a car electrical issue, use the meter to verify battery voltage, alternator output, and sensor signals. Start by turning the ignition off, then testing the battery with the meter’s DC voltage setting across the battery terminals. If you suspect a bad ground, measure continuity between the engine block and chassis. Always observe proper PPE and maintain a clean, dry workspace. In automotive contexts, a certified multimeter helps you distinguish between a blown fuse, a faulty sensor, or a wiring fault without introducing further damage.
Tools & Materials
- Certified multimeter with verified calibration(Ensure the meter's calibration certificate is valid within the test period)
- Test leads (red and black) with alligator clips(Check for cracks, ensure probe tips are intact)
- Appropriate test leads for current measurement(Use appropriately rated leads; ensure current port is in use)
- Battery or fresh power source for the meter(Battery should be fresh; check low-battery indicator)
- Personal protective equipment(Safety glasses, insulated gloves when working on live circuits)
- Non-conductive mat or work surface(To prevent accidental grounding)
- Calibration certificate or verification reference sheet(Keep for compliance, if available)
- Official manufacturer manual(Reference for model-specific settings)
- Back-up fuse for the meter(Carry the specific fuse type per meter model)

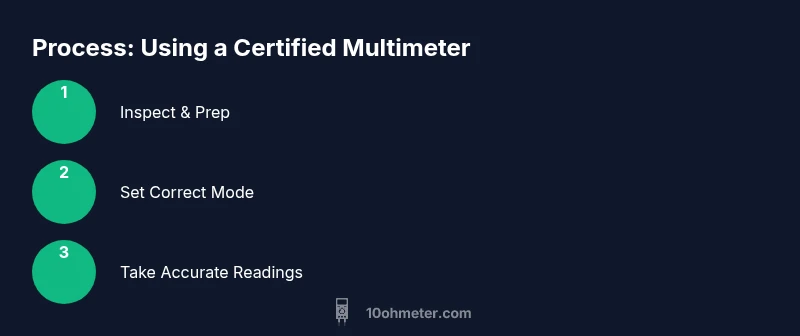

Steps
Estimated time: 15-25 minutes
- 1
Inspect the meter and leads
Power off the meter and visually inspect the display, case, leads, and fuses. Look for cracks, loose connections, or signs of overheating. Confirm the battery is functional and that the fuses are intact. This step prevents erroneous measurements and potential safety hazards.
Tip: If any damage is found, replace components before continuing. - 2
Insert probes and power on
Connect the red probe to the V/Ω/mA jack and the black probe to COM. Power on the meter and ensure the display is readable. If your model has auto-range, enable it; otherwise stay prepared to adjust ranges as you test different signals.
Tip: Maintain a steady hand to avoid probe movement during measurement. - 3
Select the correct measurement type
Choose the measurement category you need: DC voltage (V with solid line), AC voltage (V with wavy line), resistance (Ω), or continuity. Ensure you’re using the proper leads and ports for the chosen test.
Tip: Always start with the highest practical range when unsure. - 4
Measure DC voltage
Place the probes across the DC source or circuit node. Read the value on the display and compare with expected DC levels. If the reading is unstable, re-seat probes and check for a loose connection.
Tip: Keep fingers away from the metal probe tips to avoid touching live conductors. - 5
Measure AC voltage
Switch to AC voltage and probe electrical outlets, sensors, or AC circuits. Note the RMS value if your meter displays it and compare with system design values. Exercise caution around high-energy sources.
Tip: Use the appropriate PPE and avoid contact with exposed conductors. - 6
Measure resistance and continuity
Power off all devices. Place probes across the component to measure resistance and listen for the continuity beep if available. If the reading is infinite or very high, investigate connections or component integrity.
Tip: Discharge capacitors before resistance testing to prevent erratic readings. - 7
Measure current
To measure current, break the circuit and connect the meter in series, selecting the appropriate current range. Do not exceed the meter's maximum rating. If your meter lacks a clamp, you must interrupt the circuit to measure current.
Tip: Verify wiring after insertion to avoid short circuits. - 8
Safety checks and aftercare
Turn off and detach the probes. Reinsert any loose fuses, switch off the device, and store the meter in its case. Document any calibration concerns and keep the tool protected from moisture and dust.
Tip: Keep calibration certificates accessible for quick verification.
Your Questions Answered
What makes a multimeter certified?
A certified multimeter has undergone validation against recognized standards and should include a calibration certificate. Check the device label for certification marks and the certificate date to ensure it’s current.
A certified multimeter has been validated to standards and includes a calibration certificate; always verify the label and date before use.
Can I measure current without breaking the circuit?
Current must be measured in series. If your meter supports a clamp, you can measure without breaking the circuit; otherwise you must open the circuit safely and insert the meter in series.
Yes, with a clamp meter you can measure current without breaking the circuit; otherwise, insert the meter in series.
What should I do if the fuse blows?
Replace the fuse with the specified rating from the manufacturer. Do not bypass fuses, and investigate the cause of the overload before testing again.
If the fuse blows, replace it with the correct rating and check for overload or a short circuit before testing again.
How often should I calibrate my meter?
Follow the manufacturer's guidelines for calibration intervals. Regular checks with reference standards help maintain accuracy, especially for critical work.
Calibrate at the manufacturer’s recommended intervals and verify with known references when precision matters.
Is it safe to use an older, pre-certified meter?
If the meter lacks current certification or calibration history, consider replacing it or sending it for professional calibration. Safety and accuracy depend on up-to-date standards.
If it’s not certified or calibrated recently, consider upgrading or calibrating to ensure safety and accuracy.
Watch Video
Key Takeaways
- Inspect the meter and leads before every use.
- Use correct settings and ports for each measurement type.
- Always power down for resistance and diode tests.
- Calibrate and verify readings against known references.
